VRX Highlander
Variable Depth Racks
Installation Instructions
1.866.879.4522
GreatCabinets.com
PREFACE
This manual is provided to prevent service personnel from committing an act that results in the risk
of re, electric shock, or injury to persons. Only trained service personnel should receive, unpack,
and assemble the racks. In addition, only trained service personnel should install equipment in
enclosures.
SAFETY SYMBOLS USED IN THIS MANUAL
This manual provides general safety guidelines to be observed during installation, operation, and
maintenance of the racks.
WARNING:
Failure to follow directions in the warning could result in injury to persons or loss of life.
BEFORE ASSEMBLY, PLEASE SEE PAGE 10 FOR SAFETY CONSIDERATIONS.
INSTALLATION
RECEIVING, UNPACKING, AND REMOVING THE RACK
Inspect and report damage before receiving. Unpack the rack by carefully removing the corrugated
cartons and corners. Avoid damaging the rack when removing packaging.
SERVICE
The VRX Racks should be repaired by personnel trained by Great Lakes, or returned to Great
Lakes for repair or replacement. Contact Great Lakes Technical Support at 814.734.7303 or at
greatcabinets.com

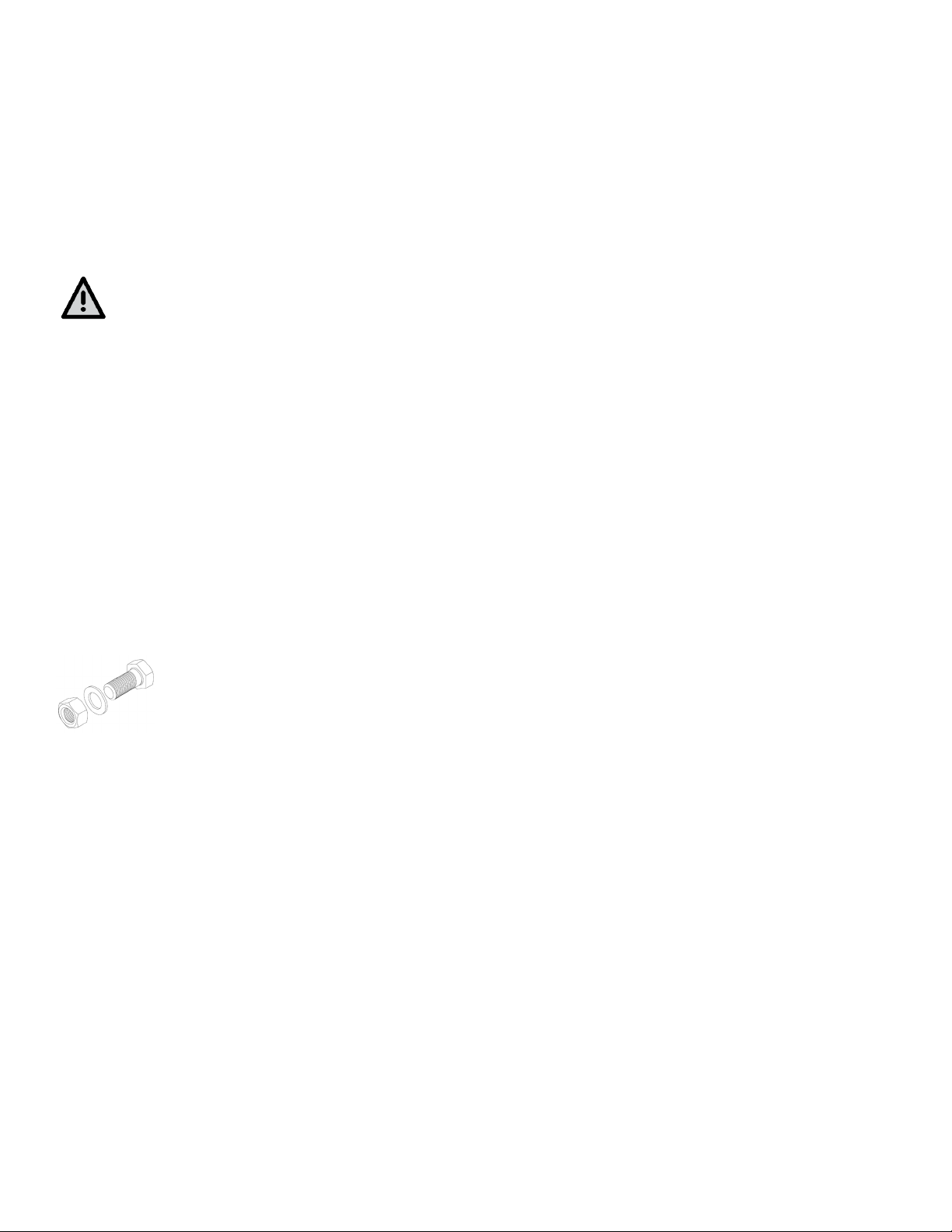

HARDWARE
Racks and accessories ship with hardware to accommodate multiple assembly congurations.
Depending on the conguration you are building, you may have additional hardware.
3
INSTALLATION QUESTIONS?
SPECIFICATIONS
Certications: UL2416 Listed
Construction: Vertical Uprights, 12 ga. steel; Cross Members, 14 ga. steel; Extension Bars,
12 ga. steel; Bottom Width Brackets, 12 ga. steel; Top Width Brackets, 14 ga. steel
Finish: Steel - Black Powder Coat
Grounding: Ground Studs located on Vertical Uprights
Rail Type: 3/8" sq. or (M6) Cage Nuts
Total Max.
Load Capacity: 2500 lbs.
VRX, VARIABLE DEPTH RACKS
INSTRUCTIONS APPLY TO THE FOLLOWING GREAT LAKES
VARIABLE DEPTH RACKS
Part No. RMU H" W" (19" EIA) W" (23" EIA) Channel Depth" Overall Depth" Rail Rating lbs.
VRX-45U-2132-M6-HL 45 84 24 28 21-32 24.6-36.6 2500
DETAIL A
SCALE 0.40 : 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
A
3" DESIRED RACK DEPTH MINUS 6" 3"
DESIRED RACK DEPTH
LENGTH OF ASSEMBLED
VARIABLE DEPTH BRACKETS
COMPONENT QTY.
Vertical Uprights (2 left/2 right) 4
Rack Mounting Hardware 50
Top Width Brackets 2
Bottom Width Brackets 2
Rack Assembly Hardware Kit 1
Rear Cross Members 4
Front Extension Bars 4
Top Cable Waterfalls 2
Double Hole Ground Jumper 1
Rack Depth
DETERMINE RACK DEPTH
When assembled, cross members and extension
bars create the variable depth side rails. Use
DIAGRAM A to determine the desired rack depth.
Rack Depth Minus 6"
Length of assembled
Variable Depth
Side Rails
Rear Front
WHAT’S INCLUDED:
DIAGRAM A
4
E
F
Vertical
Upright
Top Width
Bracket
Bottom Width
Bracket
When assembled,
a cross member
and extension
bar create the
variable depth
side rail.
Diagram E,
see page 6
Front Extension Bar
Rear Cross
Member
Diagram F,
see page 7
DIAGRAM B
E
F
5
TOOLS - 3/4" socket and 3/4" wrench
Assembly
1. The variable depth side rails are assembled by rmly snapping a front extension bar into the
hooks of a rear cross member. (See DIAGRAM D, sheet 6/7)
Side rails are same top and bottom. Side rails are specic to the left and right side of the rack.
Refer to DIAGRAM C and hole patterns indicated on each depth member to be sure side rails are
oriented properly. Note, indicator holes are reference only & not used for assembly.
LF
LR
RF
RR
RR
RR
RIGHT FRONT
Three
Holes
LF
LR
RF
RR
RR
RR
RIGHT REAR
Four
Holes
LF
LR
RF
RR
RR
RR
Left Variable
Depth Side
Rails
Right Variable
Depth Side
Rails
DIAGRAM C
LEFT FRONT
LF
LR
RF
RR
RR
RR
Single
Hole
RR
LR
LF
RF
LF
LR
RF
RR
RR
RR
LEFT REAR
Two
Holes
6
E
F
2. Assemble top width brackets to vertical uprights. DO NOT TIGHTEN!
STEP 1 CONTINUED To assemble a cross member and extension bar, determine the desired rack
depth. Insert the small square tab of the rear member cross piece into the correct square hole
on the extension bar. Push down on the cross member so that the tab is inserted rmly into the
extension bar hole. Install 1/4-20 bolt and nut on any side hole as shown in DIAGRAM D.
Once the cross members and extension bars have been assembled, the variable depth side rails can
be mounted to the uprights (see DIAGRAM E & F).
3/8" Ext. Tooth Washer
3/8-16 x 1" lg Hex
Head Bolt
3/8-16 x 1" lg Hex
Head Bolt
3/8" Ext. Tooth Washer
1/4-20 Bolt
Rear Cross
Member
Front
Extension
Bar
1/4-20 Nut
DIAGRAM D
DIAGRAM E
Note orientation of left and
right depth side rails as
well as which direction the
assembly should be facing
(front or rear).
7
4. Use appropriate tool and tighten all hardware (54 ft-lb torque is recommended).
5. When mounting to a cement oor, recommended mounting hardware is Great Lakes Seismic
Anchor Kit (AK101 or HDW-4-FLMT). For other oor construction, the installer must provide all
appropriate hardware.
3. Assemble bottom width brackets to vertical uprights.
E
F
3/8-16 x 1" lg Hex
Head Bolt
3/8-16 x 1" lg Hex
Head Bolt
3/8" Ext. Tooth Washer
3/8" Ext. Tooth Washer
3/8-16 Nut Plate
Toe In: Rack depth MINUS 2.22"
Toe Out: Rack depth PLUS 2"
21.00" C to C
.75", Four
locations
DIAGRAM F
DIAGRAM G
8
3/8" Ext. Tooth Washer
6. Install top cable waterfalls with two 1/4-20 carriage bolts each.
DETAIL A
SCALE .5
A
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
REF DRAWING -
A
OPTIONAL VERTICAL POWER CABLE BAR, VPCB1
1. Mount VPCB1 along side of an upright and secure with four
#12-24 screws in locations as shown.
DIAGRAM H
9
POWER AND GROUNDING OF ALL RACKS
When using PDUs, each PDU should be connected to a committed branch circuit that is rated
for the continuous load of all the equipment connected. When not using a PDU, each piece of
equipment should be connected to a dedicated branch circuit.
PROTECTIVE EARTHING/GROUNDING
A main protective earthing stud is provided.
WARNING:
To avoid injury to persons or loss of life, ground rack individually to the dedicated branch circuit
earthing ground.
CONNECTING MAIN PROTECTIVE EARTHING STUD TO THE DEDICATED BRANCH CIRCUIT
EARTHING GROUND CONDUCTOR
Connect the dedicated branch circuit earthing ground conductor to the main protective earthing
stud located on the support frame using a listed ring or closed-loop terminal.
PARTS NOT BONDED TO PROTECTIVE EARTHING TERMINAL
The following parts are not eectively bonded to the protective earthing terminal: Top Cable
Waterfall. If these parts need to be bonded to the protective earthing terminal, do so in accordance
with Article 250 of the National Electric Code.
Although equipment may physically t into a Great Lakes rack, with or without brackets,
customers must also review and comply with the equipment manufacturer’s installation and
other requirements. For more information, please contact your Great Lakes representative or call
1-866-TRY-GLCC.
When any equipment or accessory is installed in a Great Lakes product, the installation procedures,
recommendations and product warranty requirements of the equipment manufacturer must be
followed. Great Lakes will not be responsible for any losses or claims arising from a customer’s
installation of electrical, electronic or other third party products in any Great Lakes racks, unless
caused solely by a written conguration prepared by Great Lakes for that customer or by a
conguration provided by Great Lakes’ website, any conguration relies on complete and accurate
information from the customer.
Product specications are subject to change without prior notice.
