Operator’s Manual

Manuel du Utilisateur

915232 – ZT 42 CARB

(SN 000101 +)

915234 – ZT 50 CARB

(SN 000101 +)

915232 – ZT 42 CARB

(SN 000101 +)

915234 – ZT 50 CARB

(SN 000101 +)

915244 – ZT 34

(SN 000101 +)

915246 – ZT 42

(SN 000101 +)

Models

915210 – ZT 34

(SN 000101 +)

915212 – ZT 42

(SN 000101 +)

915214 – ZT 50

(SN 000101 +)

915208 – ZT 34 CARB

(SN 000101 +)

EN - 2

SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . 3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . 13

CONTROLS AND FEATURES . . . . . . . 15

OPERATION . . . . . . . . . . . . . . . . . . . . . 16

MAINTENANCE SCHEDULE . . . . . . . . 21

SERVICE AND ADJUSTMENTS. . . . . . 23

STORAGE . . . . . . . . . . . . . . . . . . . . . . . 32

TROUBLESHOOTING . . . . . . . . . . . . . 33

SERVICE PARTS . . . . . . . . . . . . . . . . . 35

ACCESSORIES. . . . . . . . . . . . . . . . . . . 35

SPECIFICATIONS . . . . . . . . . . . . . . . . . 36

MANUALES EN IDIOMAS

DIFERENTES DEL INGLES

Puede obtener manuales en

idiomas diferentes del inglés en su

distribuidor. Visite a su distribuidor

o vaya a www.gravely.com para

obtener una lista de idiomas

disponibles para su equipo.

También puede imprimir manuales

en idiomas diferentes del inglés

descargándolos gratuitamente de

nuestra página Web:

http://www.gravely.com

THE MANUAL

Before operation of unit, carefully and

completely read your manuals. The contents

will provide you with an understanding of

safety instructions and controls during normal

operation and maintenance.

All reference to left, right, front, or rear are

given from operator seated in operation

position and facing the direction of forward

travel.

ENGINE MANUAL

The engine on this unit is covered by a

separate manual specific to the engine. This

manual is included in the literature package

that shipped with the unit. Refer to this

manual for engine service recommendations.

If the engine manual is not available, contact

the engine manufacturer for a replacement

manual.

MODEL AND SERIAL NUMBERS

When ordering replacement parts or making

service inquiries, know the Model and Serial

numbers of your unit and engine.

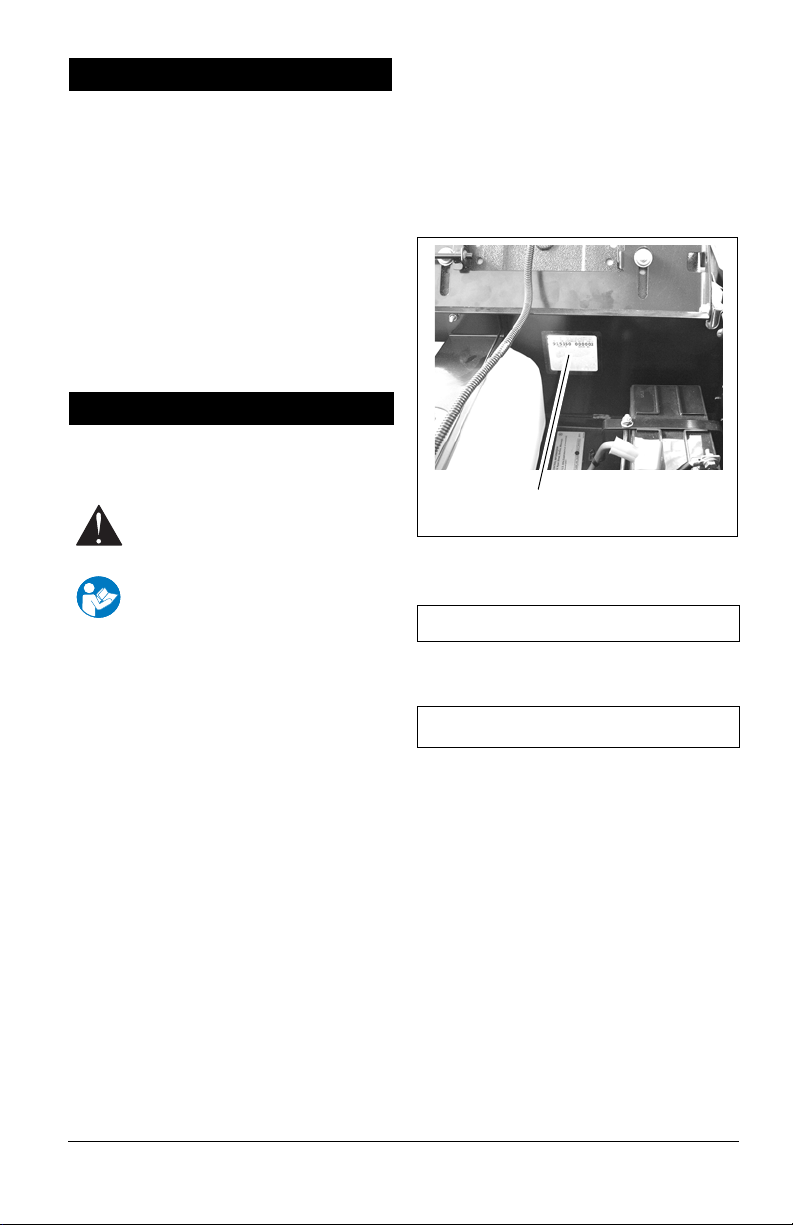

Numbers are located on the product

registration form in the unit literature

package. They are printed on a serial number

label, located on the frame of your unit under

the seat (Figure 1).

• Record unit model and serial numbers

here.

• Record engine model and serial

numbers here.

PRODUCT REGISTRATION

The Gravely dealer must register the product

at the time of purchase. Registering the

product will help the company process

warranty claims or contact you with the latest

service information. All claims meeting

requirements during the limited warranty

period will be honored, whether or not the

product registration card is returned. Keep a

proof of purchase if you do not register your

unit.

Customer Note: If the dealer does not

return the product registration card to Gravely

or go to www.gravely.com on the Internet.

TABLE OF CONTENTS

INTRODUCTION

Unit Serial Number Label

Figure 1

EN - 3

UNAUTHORIZED REPLACEMENT

PARTS

Use only Gravely replacement parts. The

replacement of any part on this unit with

anything other than Gravely authorized

replacement part may adversely affect the

performance, durability, and safety of this unit

and may void the warranty. Gravely disclaims

liability for any claims or damages, whether

warranty, property damage, personal injury or

death arising out of the use of unauthorized

replacement parts.

NOTICE: A complete Parts manual may be

downloaded from www.gravely.com on the

Internet.

DELIVERY

Customer Note: If you have purchased this

product without complete assembly and

instruction by your retailer, it is your

responsibility to:

• Read and understand all assembly

instructions in this manual. If you do

not understand or have difficulty

following the instructions, contact your

nearest Gravely dealer for assistance.

NOTE: To locate your nearest Gravely dealer,

go to www.gravely.com on the Internet.

Before Attempting to Operate Your

Unit:

1. Make sure all assembly has been

properly completed.

2. Understand all Safety Precautions

provided in the manuals.

3. Review control functions and operation

of the unit. Do not operate the unit

unless all controls function as described

in this manual.

4. Review recommended lubrication,

maintenance and adjustments.

5. Review Limited Warranty Policy.

6. Fill out a product registration card and

return the card to the Ariens Company or

go to www.gravely.com

DISCLAIMER

Gravely reserves the right to discontinue,

change, and improve its products at any time

without notice or obligation to the purchaser.

The descriptions and specifications contained

in this manual were in effect at printing.

Equipment described within this manual may

be optional. Some illustrations may not be

applicable to your unit.

EMISSION CONTROL SYSTEM

This equipment and/or its engine may include

exhaust and evaporative emissions control

system components required to meet U.S.

Environmental Protection Agency (EPA)

and/or California Air Resources Board

(CARB) regulations. Tampering with emission

controls and components by unauthorized

personnel may result in severe fines or

penalties. Emission controls and components

can only be adjusted by an Ariens Company

dealer or an authorized engine

manufacturer's service center. Contact your

Ariens Company Equipment Retailer

concerning emission controls and component

questions.

WARNING: Improper assembly

or adjustments can cause

serious injury.

SAFETY

WARNING: This cutting machine

is capable of amputating hands

and feet and throwing objects.

Failure to observe the safety

instructions in the manuals and on

decals could result in serious

injury or death.

Slopes are a major factor related

to loss-of-control and tip-over

accidents. Operation on all slopes

requires extra caution.

Tragic accidents can occur if the

operator is not alert to the

presence of children. Never

assume that children will remain

where you last saw them.

Gasoline is extremely flammable

and the vapors are explosive,

handle with care.

Disengage attachment, stop unit

and engine, remove key, engage

parking brake, and allow moving

parts to stop before leaving

operator’s position.

EN - 4

REQUIRED OPERATOR

TRAINING

Read and understand the

Operator's Manual and decals

on the unit. This information is

for your safety and the proper

use of your equipment.

Failure to follow these

instructions and warnings may cause death

or serious injury. If you have purchased this

product from an Gravely dealer, the dealer

can provide you with training.

Familiarize yourself and any other operators

with all controls and the safe use of the

features of this unit. If you loan, rent or sell

this product to others, provide them with all

manuals.

If you have any questions, please call our

customer support line at 920-756-4688 or

this equipment if, after reading the Operator's

Manual and the on-board decals, you have

any questions about the safe use of this

product.

SAFETY ALERTS

The safety alert symbol is used in decals and

with this manual. Understand the safety

message. It contains important information

about personal safety.

NOTATIONS

NOTICE: General reference information for

proper operation and maintenance practices.

IMPORTANT: Specific procedures or

information required to prevent damage to

unit or attachment.

Look for these symbols to

point out important safety

precautions. They mean:

• Attention!

• Personal Safety Is

Involved!

• Become Alert!

• Obey The Message!

WARNING: POTENTIALLY

HAZARDOUS SITUATION! If not

avoided, COULD RESULT in

death or serious injury.

DANGER: IMMINENTLY

HAZARDOUS SITUATION! If not

avoided, WILL RESULT in death

or serious injury.

CAUTION: POTENTIALLY

HAZARDOUS SITUATION! If not

avoided, MAY RESULT in minor

or moderate injury. It may also be

used to alert against unsafe

practices.

EN - 5

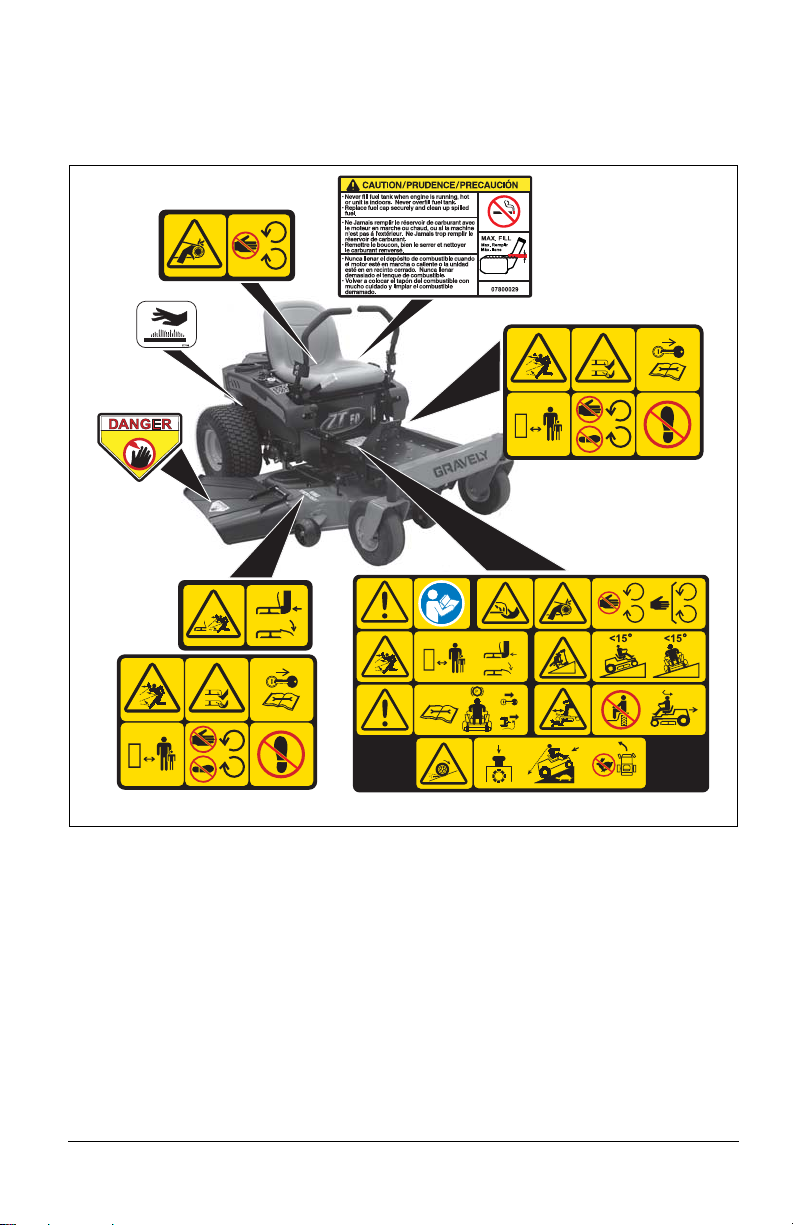

SAFETY DECALS AND

LOCATIONS

ALWAYS replace missing or damaged Safety

Decals. Refer to Figure 2 for safety decal

locations.

07800401

07800403

KEEP HANDS and FEET AWAY

02988100

Figure 2

EN - 6

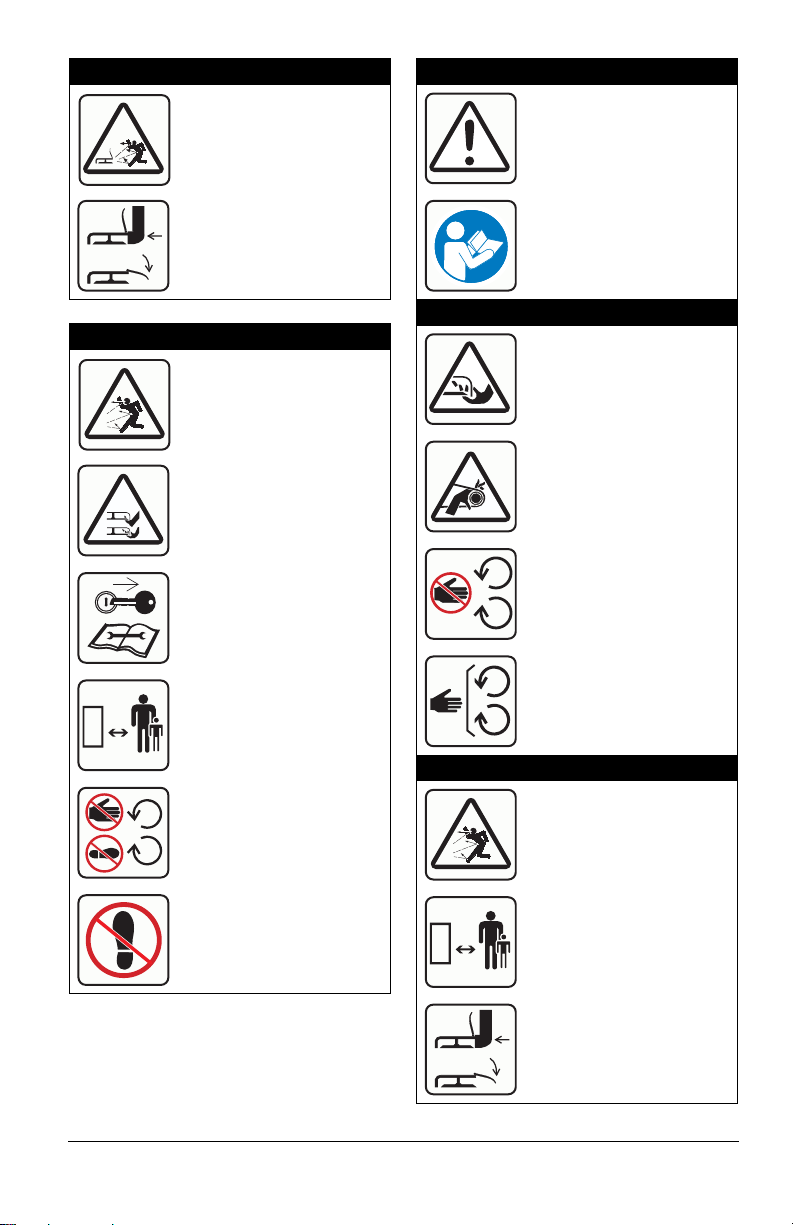

1. DANGER!

Discharge Hazard -

NEVER operate unit

without discharge chute in

operating position. Thrown

objects can cause injury or

damage.

Do not operate mower

unless all guards are in

operating position or

bagger is attached.

2. DANGER!

Discharge Hazard - NEVER

direct discharge toward

people, pets or property.

Thrown objects can cause

injury or damage.

Amputation Hazard -

NEVER stick hands or feet

under deck or shielded

areas.

Shut off engine, remove key,

and read manual before

servicing or making

adjustments to unit.

Keep children and others

away from unit while unit is

in operation.

Keep feet and hands away

from all rotating or moving

parts.

DO NOT step or stand in

this area.

3. DANGER!

DANGER!

Read and understand the

operator’s manual before

operating unit.

3.1 Amputation Hazard

To avoid amputation hazard

do not put hands near

rotating blades.

To avoid amputation hazard

do not put hands near

moving belts.

Keep hands away from all

rotating or moving parts.

Keep all guards and shields

in place.

3.2 Discharge Hazard

Discharge Hazard - NEVER

direct discharge toward

people, pets or property.

Thrown objects can cause

injury or damage.

Keep children and others

away from unit while unit is

in operation.

Do not operate mower

unless all guards are in

operating position or bagger

is attached.

EN - 7

3.3 Tipping Hazard

Avoid tipping hazard.

DO NOT operate on slopes

over 15°.

DO NOT operate on slopes

over 15°.

3.4 Service Hazard

Before servicing unit do the

following:

Read owners manual before

servicing or making

adjustments to unit.

Set parking brake.

Remove key and disconnect

spark plug before servicing

or making adjustments to

unit.

3.5 Bystander Hazard

DO NOT operate the unit in

the presence of bystanders.

Do not carry passengers.

Look behind when operating

the unit in reverse.

3.6 Loss of Traction Hazard

If loss of traction is

experienced do the

following:

Disengage PTO.

Proceed off slope slowly.

Do not try to turn or speed

up.

4. DANGER!

To avoid amputation hazard

do not put hands near

moving belts.

Keep hands away from all

rotating or moving parts.

5. DANGER!

DANGER!

EN - 8

Safety Rules

The following safety instructions are based

on ISO 5395 and the B71.1 specifications of

the American National Standards Institute in

effect at the time of production.

ALWAYS Keep hands and

feet away from discharge

chute.

Dismemberment Hazard -

NEVER put hands or feet

beneath guards and or

shields.

6. DANGER!

DO NOT touch parts which

are hot from operation.

ALWAYS allow parts to cool.

7. CAUTION!

No smoking.

IMPORTANT: DO NOT

overfill.

Fill fuel tank to below bottom

of filler neck.

WARNING: Overfilling may cause

severe damage to evaporative

system!

• Never fill fuel tank when engine is

running, hot or unit is indoors. Never

overfill fuel tank.

• Replace fuel cap securely and clean

up spilled fuel.

Training

Read, understand, and follow all instructions

on the machine and in the manual(s) before

starting.

Be sure the area is clear of bystanders and

pets before operating. Stop machine if

anyone enters the area.

Improper use of power equipment can cause

serious permanent injury or death to the

operator or a bystander.

Understand:

• How to operate all controls

• The functions of all controls

• How to STOP in an emergency

• Braking and steering characteristics

• Turning radius and clearances

If the operator or the mechanic cannot read

the manual, it is the owner’s responsibility to

explain it to them.

ALWAYS train any inexperienced operators

and require them to read and understand all

manuals and decals.

Only allow responsible adults, who are

familiar with the instructions, to operate this

machine.

Only the operator can prevent and is

responsible for accidents or injuries

occurring to themselves, other people or

property.

Operator Age

DO NOT allow children under the age of 18

to operate any outdoor power equipment.

Local regulations may restrict the age of the

operator.

Data indicates operators age 60 years and

above are involved in a large percentage of

riding mower-related injuries.

These operators should evaluate their ability

to operate the riding mower safely enough to

protect themselves and others from serious

injury.

EN - 9

Children

Tragic accidents can occur if the operator is

not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. NEVER assume

that children will remain where you last saw

them.

Be alert and turn machine off if a child enters

the area.

Before and while backing, look behind and

down for small children.

NEVER carry children, even with the

blade(s) shut off. They may fall off and be

seriously injured or interfere with safe

machine operation. Children who have been

given rides in the past may suddenly appear

in the mowing area for another ride and be

run over or backed over by the machine.

NEVER allow children to operate the

machine.

Use extreme care when approaching blind

corners, shrubs, trees or other objects that

may block your view of a child.

Keep children out of the mowing area and in

the watchful care of a responsible adult

other than the operator.

Personal Protection

DO NOT wear loose clothing or jewelry and

tie back hair that may get caught in rotating

parts.

Wear adequate outer garments.

NEVER wear open sandals or canvas shoes

during operation. Wear adequate safety

gear, protective gloves and footwear.

Wear proper footwear to improve footing on

slippery surfaces.

ALWAYS wear eye and ear protection when

operating machine.

Before Operating

Keep all nuts and bolts tight to be sure the

equipment is in safe working condition.

Maintain the machine to be in compliance

with the maintenance schedule.

Clean grass and debris from unit, especially

from around muffler and engine, to help

prevent fires.

Check parking brake operation frequently.

Adjust and service as required.

Inspect unit before each use for missing or

damaged decals and shields, correctly

operating safety interlock system, and

deterioration of grass catchers. Replace or

repair as needed.

Ensure Safety Interlock System is

functioning properly. DO NOT operate unit if

safety interlock is damaged or disabled.

Start and operate unit only when seated in

operator’s position. Steering control levers

must be in neutral, PTO disengaged and

parking brake set when starting engine.

NEVER interfere with the intended function

of a safety device or reduce the protection

provided by a safety device. Check their

proper operation regularly.

Keep machine free of grass, leaves or other

debris build-up. Clean up oil or fuel spillage

and remove any fuel-soaked debris.

Operation

Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

NEVER operate machine in a closed or

poorly-ventilated area.

ALWAYS maintain unit in safe operating

condition. Damaged or worn out muffler can

cause fire or explosion.

This product is equipped with an internal

combustion type engine. DO NOT use unit

on or near any unimproved, forest-covered

or brush-covered land unless exhaust

system is equipped with a spark arrester

meeting applicable local, state or federal

laws. A spark arrester, if it is used, must be

maintained in effective working order by

operator.

DO NOT operate machine while feeling

tired, ill or under the influence of alcohol or

other drugs.

DO NOT put hands or feet near rotating

parts or under the machine. Keep clear of

the discharge opening at all times.

DO NOT touch parts which are hot. Allow

parts to cool.

DO NOT operate machine without the entire

grass catcher, discharge guard or other

safety devices in place and working.

ALWAYS keep hands and feet away from all

pinch points.

Avoid slippery surfaces. ALWAYS be sure of

your footing.

NEVER carry passengers.

EN - 10

NEVER direct discharged material toward

anyone. Avoid discharging material against

a wall or obstruction. Material may ricochet

back toward the operator. Stop the blade(s)

when crossing gravel surfaces.

NEVER engage PTO when attachment,

including mower blades, is not in use.

ALWAYS turn off power to attachment when

not in active use such as traveling or

crossing driveways.

ALWAYS disengage PTO, stop unit and

engine, remove key, engage parking brake

and allow moving parts to stop before

leaving operator’s position.

NEVER engage PTO while raising the

attachment, including mower blades, or

when attachment is in the raised position.

Keep safety devices or guards in place and

functioning properly. NEVER modify or

remove safety devices.

DO NOT mow in reverse unless absolutely

necessary. ALWAYS look down and behind

before and while backing.

Stop engine before removing grass catcher

or unclogging chute.

Slow down before turning.

If you strike a foreign object, stop and

inspect the machine. Repair, if necessary,

before restarting.

NEVER leave a running machine

unattended. ALWAYS turn off blade(s), set

parking brake, stop engine and remove key

before dismounting.

Disengage blade(s) when not mowing. Shut

off engine and wait for all parts to come to a

complete stop before cleaning the machine,

removing the grass catcher, or unclogging

the discharge guard.

Know the weight of loads. Limit loads to

those you can safely control and the unit can

safely handle.

Operating Conditions

Lightning can cause severe injury or death.

If lightning is seen or thunder is heard in the

area, do not operate the machine; seek

shelter.

ALWAYS check overhead and side

clearances carefully before operation.

Watch for traffic when operating near or

crossing roadways.

Clear the area of objects such as rocks,

wire, toys, etc., which could be thrown by the

blades.

Check for weak spots on docks, ramps or

floors. Avoid uneven work areas and rough

terrain. Stay alert for hidden hazards or

traffic.

Use care when approaching blind corners,

shrubs, trees or other objects that may

obscure vision.

Dust, smoke, fog, etc. can reduce vision and

cause an accident.

Operate machine only in daylight or good

artificial light.

Slope Operation

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation on

all slopes requires extra caution. If you

cannot back up the slope or if you feel

uneasy on it, DO NOT mow it.

DO NOT operate on slopes of more than

15°.

Mow up and down slopes, not across.

ALWAYS keep the machine in gear when

going down slopes. DO NOT shift to neutral

and coast downhill.

Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could

overturn the machine. Tall grass can hide

obstacles.

DO NOT mow on moist or wet grass. Tires

may lose traction causing a loss of control.

Use extra care while operating machine with

grass catchers or other attachments; they

can affect the stability of the machine. DO

NOT use on steep slopes.

Keep all movements on the slope slow and

gradual. DO NOT make sudden changes in

speed or direction, which could cause the

machine to roll over.

Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disengage

the blade(s) and proceed slowly straight

down the slope.

Operation on slopes may lead to loss of

steering control. When operating on slopes

be prepared to react to an emergency

situation:

• Return steering levers to neutral position.

• Immediately set parking brake.

• Turn off PTO and engine.

DO NOT try to stabilize the machine by

putting your foot on the ground.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gravely Tondeuse à gazon

Gravely

Gravely 070 Professional G, 071 Profes Manuel du propriétaire

Gravely

Gravely ZT Series Manuel du propriétaire

Gravely

Gravely 15459E1 Manuel utilisateur

Gravely

Gravely Rapid XZ 990107 Manuel du propriétaire

Gravely

Gravely Promaster 260Z Manuel utilisateur

Gravely

Gravely 885005 - 40" Mower Manuel du propriétaire

Gravely

Gravely 915015 1742 9150156 2048 Manuel du propriétaire

Gravely

Gravely 988100-GR1336FX, 988101-GR1536 Manuel du propriétaire

Gravely

Gravely 927062 - RM1232 Manuel utilisateur

Gravely

Gravely 991091 ZT HD60 Manuel du propriétaire

Gravely

Gravely REAR ENGINE RIDER 927060 - RM1028 Manuel utilisateur

Gravely

Gravely Promaster 310 Manuel du propriétaire

Gravely

Gravely 911530 - Pro 21 SCH Manuel du propriétaire

Gravely

Gravely 927060 Manuel du propriétaire

Gravely

Gravely Pro-Walk 36 Manuel utilisateur

Gravely

Gravely ZT HD 48 Manuel utilisateur

Gravely

Gravely 408 Manuel utilisateur

Gravely

Gravely ZT HD 44 Manuel utilisateur

Gravely

Gravely Pro-Master 992184 Manuel du propriétaire

Gravely

Gravely 915140 Manuel du propriétaire

Gravely

Gravely 990022 Manuel du propriétaire

Gravely

Gravely 408 Manuel utilisateur

Gravely

Gravely pro-stance 36 994131 Manuel utilisateur

Gravely

Gravely ZT XL Manuel du propriétaire

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
