Rear Engine Rider

Parts Manual

Models

927062 - RM1232

02767000 11/02

Printed in USA

ANUAL

Before you operate your unit, carefully and completely

read manuals supplied with the unit. The contents will

provide you with an understanding of safety instructions

and controls during normal operation and maintenance.

For your safety and the safety of others always read,

understand, and follow all DANGER, WARNING, and

CAUTION messages found in manuals and on safety

decals.

Hardware descriptions are given in decimals.

ERVICE

AND

EPLACEMENT

ARTS

When ordering replacement parts or making service

inquiries, know the Model and Serial numbers of your unit

and engine.

Numbers are located on the product registration card in

the unit literature package. They are printed on a serial

number label, located on the frame of your unit.

• Record Unit Model and Serial numbers here:

• Record Engine Model and Serial numbers here:

UNAUTHORIZED REPLACEMENT PARTS

Use only Gravely replacement parts. The replacement of

any part on this vehicle with anything other than an

Gravely authorized replacement part may adversely

affect the performance, durability, or safety of this unit

and may void the warranty. Gravely disclaims liability for

any claims or damages, whether warranty, property

damage, personal injury or death arising out of the use of

unauthorized replacement parts.

Decimals to Fractions

.063 1/16 .563 9/16

.125 1/8 .625 5/8

.188 3/16 .688 11/16

.250 1/4 .750 3/4

.313 5/16 .813 13/16

.375 3/8 .875 7/8

.438 7/16 .938 15/16

.500 1/2 1.00 1

RODUCT

EGISTRATION

The Gravely dealer must register the product at the time

of purchase. Registering the product will help the

company process warranty claims or contact you with the

latest service information. All claims meeting

requirements during the limited warranty period will be

honored, whether or not the product registration card is

returned. Keep a proof of purchase if you do not register

your unit.

Customer Note:

If Dealer does not register your product,

please ﬁll out, sign and return the product registration

card to Gravely.

OUR

ATISFACTION

MPORTANT

Questions? Please follow these helpful steps:

1. Refer to the manuals supplied with your unit.

They will guide you through safe and proper

operation and maintenance.

They contain speciﬁcations on your unit.

If your questions are not answered in these manuals,

go to step number two.

2. Contact Your Dealer.

Our dealers will be happy to supply any service or

advice required to keep your unit operating at peak

efﬁciency.

A factory trained staff is available to support your

equipment needs. They stock genuine Gravely parts

and lubricants manufactured with the same precision

and skill as the original.

If your questions are not resolved by the support

staff, ask for the manager or owner.

When contacting your Dealer supply your model and

serial numbers.

TO SPEED PARTS ORDERING:

1. Know the model and serial numbers of your unit.

2. Know the part number required.

3. Know the quantity required.

4. Know the part description.

ODELS

927062 (1232)

12 H.P. 32” Hydro

Serial No. 000101 and up

ABLE

ONTENTS

ECALS

Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

RAME

, E

NGINE

, C

ONTROLS

AND

UEL

Frame, Hood and Seat. . . . . . . . . . . . . . . . . . . . . . . . 5

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Steering and Front Wheels. . . . . . . . . . . . . . . . . . . . . 7

Rear Wheels and Hydro Drive . . . . . . . . . . . . . . . . . . 9

Brake System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Gas Tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LECTRICAL

YSTEMS

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Continuity Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . 15

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ECKS

Decks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Deck Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

ECALS

Item Part No. Qty. Description

1 05301900 2 Decal, Gravely ZT

2 05305000 1 Decal, Trailer Hitch

3 05301600 1 Decal, Rear Engine Rider Warning

4 05304800 1 Decal, Throttle

5 07742300 1 Decal, Warning

6 07731400 2 Decal, Mower Pan Danger

7 05303600 2 Decal, Rear Engine Rider Gravely 1232

8 05223900 1 Decal, Gravely

9 07757500 1 Decal, Parking Brake Lever

10 07719800 1 Decal, Ignition

11 05305600 1 Decal, Transmission Disconnect

12 05305100 1 Decal, American Flag

13 07754100 1 Decal, Hot Surface

DANGER/PELIGRO

07731400D

077541

WARNING/AVERTISSEMENT/ADVERTENCIA

Do not operate mower

unless guards are in

operating position or

bagger is attached.

Ne jamais utiliser

la tondeuse sans

protecteur sur le

canal d'ejection ou

sans le bac monte.

No operar segadora a

menos que las defensas

esten en posicion de

operacion o el

recogedor este fijo.

07742300B

05304800A

07719800B

05305600

PA0290

5 7

3 9

1 13

RAME

, H

OOD

AND

EAT

Model 927062

Item Part No. Qty. DescriptionI

1 02760151 1 Frame

2 02755200 1 Seat V-1300 Low Weltless

3 02760551 1 Weldment, Seat Mount/Bar

4 02764451 1 Reforcement, Seat Support

5 02766151 1 Panel, Solenoid Mounting

6 02760353 1 Seat Support

7 02760253 1 Weldment, Footrest

8 07049600 4 Bolt, Serrated Hex Flange Washer Head .312-18 x .75

9 06227000 19 Bolt, Round Head Square Neck .31-18 x .75 Grade 5

10 06544500 19 Nut, Top LockNut Locking Top Flange .38-16

11 02768500 1 Cupholder

12 02771700 1 Grip, Rear Engine Rider Footrest Left Hand

02771800 1 Grip, Rear Engine Rider Footrest Right Hand

13 06544400 2 Nut, Locking Top Flange .31-18

14 06530400 1 Nut, Spin Lock Flange .312-18

15 06114400 4 Screw, Machine .25-20 x .75

16 07009000 4 Nut, Retainer .25-20 x .56

17 02771453 1 Engine, Hood

18 02771651 1 Weldment Tube

19 02771551 1 Bracket, Hood Support

20 07534800 2 Knob, Clamping .31-18 Nyloc

21 06221800 4 Bolt, Round Head Square Neck .31-18 x 1.00

22 040380 2 Nut, Push .312

PE0010

20 21

NGINE

Model 927062

Item Part No. Qty. Description

1 52710400 1 Group, Engine 12HP Intek

2 07240600 1 Belt, Poly V (Hydro)

3 06601800 1 Key, Straight .25 x 1.75 x .25

4 02764900 1 Pulley Drive (Hydro)

5 02768100 1 Belt, PTO

6 06443500 1 Washer, Flat Steel .463 x 1.375 x .25

7 06309300 1 Washer, Locking .44 x .109 Regular

8 05967500 1 Bolt, Hex .44-20 x 1.75 Grade 5

9 06535800 6 Nut, Locking Top Flange .38-16

10 03622900 2 Shoulder Stud

11 06435700 2 Washer, Flat Steel .38 x .875 x .083

12 06944800 2 Clip, Spring

13 02771900 4 Bushing, .625 x .50 x .75

14 05958000 2 Bolt, Hex .38-16 x 1.25 Grade 5

15 06544500 1 Nut, Locking Top Flange .38-16

16 08311000 1 Spring, Tension .08 x .687 x 5.16

17 02773100 1 Bracket, PTO Idler

18 07318400 1 Sheave 3.25 x 1.25

19 02773000 1 Bracket, Poly-V Idler

20 07326500 1 Idler, Flat 1.875 O.D. x .75

21 08537800 1 Spring, Extension

PA0320

8 9

15 12

TEERING

AND

RONT

HEELS

Model 927062

PA0240

TEERING

AND

RONT

HEELS

Model 927062

Item Part No. Qty. Description

1 02753700 1 Steering Wheel 13 Inch

2 05803700 1 Pin, Roll .25 x 1.75

3 02749100 1 Steering Shaft

4 07503700 1 Plug

5 02753800 1 Tube

6 05801600 2 Pin, Roll .188 x 1.00

7 05505300 1 Bushing, Flange .625 x 1.156 x .375

8 06418100 1 Washer, Hardened Steel .515 x .97 x .062

9 01310000 1 Retaining Plate1

10 02705400 1 Pinion

11 07126400 2 Tire/Wheel Assembly

07108000 2 Tire 4.10/3.50 - 4

05505800 4 Bushing, Flange .75 x 1.38 x .75 x 1.557

07123100 2 Wheel

12 01238200 2 Spindle Cup

13 036202 2 Hub Cap

14 06707100 4 Pin, Cotter .12 x 1.00

15 036038 1 Pin, Groove .25 x 1.25

16 02512000 2 Spindle Washer

17 02917100 2 Ball Joint

18 02761300 1 Steering Gear

19 02760400 1 Box, Steering

20 02765700 2 Steering Link

21 02765800 2 Spring, Suspension

22 01591100 4 Bushing 1.00 x .75 x 1.00

23 06439000 4 Washer, Flat Steel .812 x 1.50 x .135

24 06308600 2 Washer, Locking .31 x .078 Regular

25 05947000 2 Bolt, Hex .31-18 x .75 Grade 5

26 06439700 2 Washer, Flat Steel .344 x 1.38 x .075

27 06227000 8 Bolt, Round Head Square Neck .38-16 x .75 Grade 5

28 06544500 8 Nut, Locking Top Flange .38-16

29 044753 2 Rod End, .38 Right Hand

30 02765900 1 Weldment, Spindle Right Hand

31 02766000 1 Weldment, Spindle Left Hand

32 06539700 4 Nut, Locking Center .875-9

33 06538800 2 Nut, Locking Nylon .375-24 With Insert

34 02761451 1 Steering Gear Support

35 02771200 1 Bracket, Steering Column

36 036046 1 Bushing, Flange

37 02760600 1 Support, Steering Column

38 07414900 4 Screw, Tapping 10-24 x .375 TORX Pan Head

39 1 Plate, Cover

EAR

HEEL

AND

YDRO

RIVE

Model 927062

Item Part No. Qty. Description

1 02761200 1 Transmission Support, Rear Engine Rider Hydro

2 07415400 2 Screw, Tapping .38-16 x .75 Hex Washer Head

3 07411500 4 Screw, Tapping .31-18 x .50 Hex Washer Head

4 02761600 1 Weldment, Forward and Reverse Pedal

5 05520600 1 Bushing, Flange .502 x 1 x .75

6 06539500 1 Nut, Jam .50-20 Grade 2

7 06307300 1 Washer, Lock .50 x .125 Reg.

8 02765000 1 Pulley, Transmission

9 02772600 1 Fan, 6 Inch

10 07406900 3 Screw, Tapping 10-24 x .484

PA0300

7 8

28 13

26 1

30 28

EAR

HEEL

AND

YDRO

RIVE

Model 927062

Item Part No. Qty. Description

11 03693200 1 Transaxle, Hydro

12 02764800 1 Rod, Transmission Disconnect

13 06714800 2 Pin, Hair

14 05960600 4 Bolt, Hex .31-18 x 2.75 Grade 5

15 036282 2 Key, Square .188 x 2.0 x .188

16 06441500 4 Washer, Flat Steel .755 x 1.375 x .062

17 02765400 2 Spacer, Wheel .75 x 1.00 x 1.25

18 02765300 2 Assembly, Tire and Wheel 16 x 6.5 x 8

039653 2 Tire 16 x 6.50-8 2 Pulley

19 036277 2 Spindle Cup

20 036278 2 Ring, Retaining External .75 x .05

21 036202 2 Hub Cap

22 02761700 1 Weldment, Shift Rod and Hub

23 06714500 2 Pin, Spring Clip

24 06437200 1 Washer, Flat Steel .344 x .688 x 065

25 02764500 1 Rod, Shift Rear Engine Rider Hydro

26 02761951 1 Bracket, Shift Rod

27 06436200 1 Washer, Flat Steel .406 x .812 x .065

28 034633 2 Yoke .31-24 x 2.250

29 06444300 1 Washer, Flat Steel .390 x .750 x .125

30 06811800 2 Pin, Clevis .31 x .822

31 06439100 2 Washer, Flat Steel .38 x .87 x .179

32 06944800 2 Clip, Spring

33 06441100 7 Washer, Flat Steel .52 x .827 x .062

34 034738 1 Bushing, Flange .515 x .75 x .745 x 1.00

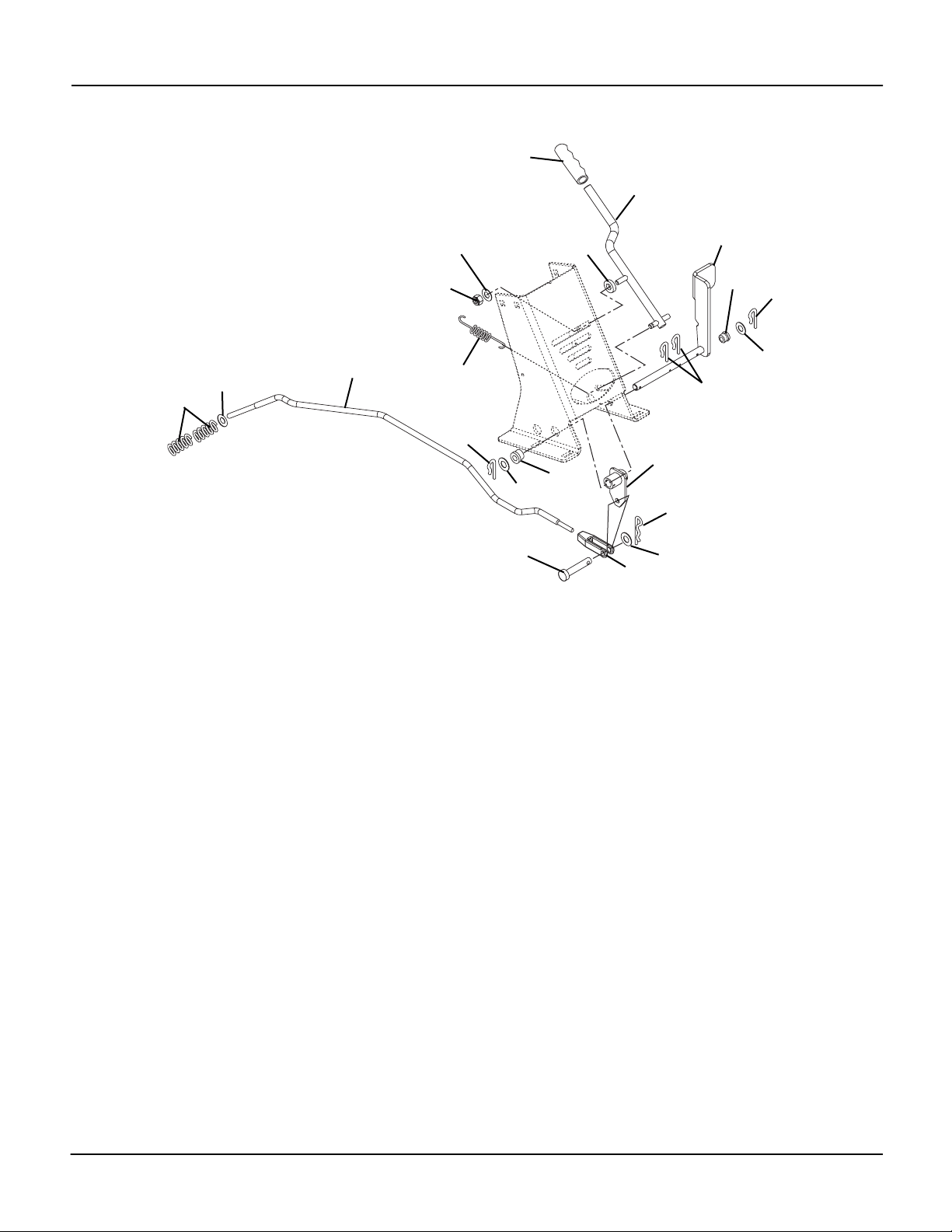

BRAKE SYSTEM

Model 927062

Item Part No. Qty. Description

1 08313100 2 Spring, Compression .063 x .53 x 1.19

2 06444300 1 Washer, Flat Steel .39 x .75 x .125

3 02764600 1 Rod, Brake Rear Engine Rider Hydro

4 07527500 1 Grip

5 06435700 1 Washer, Flat Steel .38 x .875 x .083

6 06544500 1 Nut, Locking Top Flange .38-16

7 08330300 1 Spring, Tension .048 x .44 x 2.12

8 02762000 1 Weldment, Parking Brake

9 05515800 1 Bushing, Flange .406 x .88 x .27 x .140 Grade 2

10 06714500 1 Pin, Spring Clip

11 05521100 2 Bushing, Flange .515 x .75 x .745 x 1.00 Nylon

12 07014700 1 Yoke, .312-24 x 2.25

13 06439200 2 Washer, Flat Steel .505 x 1.00 x .062

14 02761800 1 Weldment, Brake Pedal

15 06714800 1 Pin, Hair

16 02762100 1 Brake Rod Arm and Hub

17 06439100 1 Washer, Flat Steel .38 x .87 x .179

18 06811800 1 Pin, Clevis .312 x .822

19 06944800 2 Clip, Spring

PA0340

2 3

13 11

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gravely Tondeuse à gazon

Gravely

Gravely 927060 - RM1028 Manuel utilisateur

Gravely

Gravely Promaster 310 Manuel du propriétaire

Gravely

Gravely Promaster 992066 Manuel du propriétaire

Gravely

Gravely HD 48 CARB Manuel du propriétaire

Gravely

Gravely Pro 150 Manuel du propriétaire

Gravely

Gravely 915140 Manuel du propriétaire

Gravely

Gravely ZT34 CARB Manuel du propriétaire

Gravely

Gravely Pro-Walk Gear 32GR Manuel utilisateur

Gravely

Gravely Pro-Stance 48 Manuel du propriétaire

Gravely

Gravely 915172 Manuel utilisateur

Gravely

Gravely ZT 2250 Manuel utilisateur

Gravely

Gravely ZT 2044 XLP Manuel du propriétaire

Gravely

Gravely 21296-40 Manuel utilisateur

Gravely

Gravely ZT 915100 - 1732 Manuel utilisateur

Gravely

Gravely Ariens 815134 Manuel du propriétaire

Gravely

Gravely Pro 21SCH Manuel utilisateur

Gravely

Gravely Pro-Stance 1934FX Manuel du propriétaire

Gravely

Gravely 927060 Manuel du propriétaire

Gravely

Gravely Promaster 100 Manuel utilisateur

Gravely

Gravely Pro-Master 992184 Manuel utilisateur

Gravely

Gravely 1842 ZT XL Manuel du propriétaire

Gravely

Gravely ZT 1334 Manuel du propriétaire

Gravely

Gravely Promaster 260Z Manuel utilisateur

Gravely

Gravely 22531 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
