Grandview PT-L Series Manuel utilisateur

Model：PT-Lxx

GRANDVIEW REPRODUCING GENUINE COLORS

Thank you for purchasing a Grandview projection screen.

Before use, please read instructions carefully. After installation, store instructions for future reference.

Instruction manual for

Portable Series Classic Tripod Screen

ISO9001:2000

International Certification

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

P.O. 511400 Federal Ind. Zone No. 363, Yushan West Road,

Shiqiao, Panyu District, Guangzhou, Guangdong, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

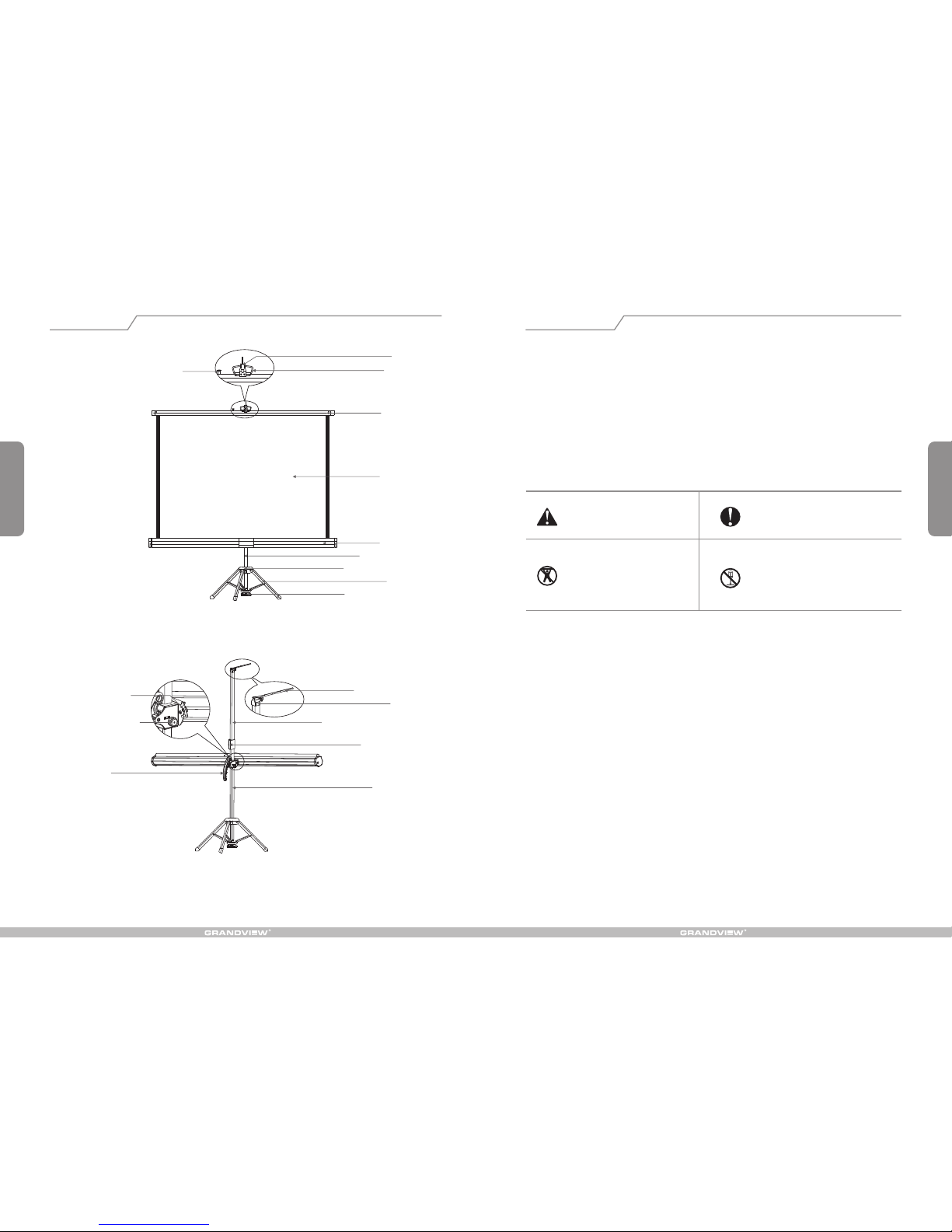

Handle

Hook

Rivet

Top bar

Fabric

Housing

Stainless bar

Tripod connector

Tripod

Toe release plate

Extension bar

Hook

Adjustable uphold bar

Magic button

Stand bar

Plastic handle

Housing adjustment screw

Level adjustment screw

Description

Ignoring the safety warnings may

lead to injuries and/or damaging

the product.

Refrain from hanging anything on the

screen as it may cause the screen to

fall.

Roll up the screen after every use.

Leaving it hanging for a long period

of time may cause the fabric to loosen.

Please contact your local dealer for

repairs or maintenance. Please contact

our company if you have any further

questions. Avoid taking apart the

fixtures yourself. Loose parts may

cause the screen to fall.

Warnings

Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer.

Product specifications are subject to change.

1. Please make sure the Tripod stand is fully extending during using, this can assure stability and safety.

2. You can lower down the screen height according to adjusting the height of Adjusting uphold bar. But

please hold the Adjusting uphold bar first then press the Magic button(refer to step 3 of Screen

retraction for detail), while not it would lead to damage to the screen.

3. There is a nail at the middle of screen Top bar, please make sure it to be locked onto the slot nearby

the Plastic handle. Otherwise it would cause damage during carrying.

4. During retracting, please make sure the Plastic hook lock into a hole on the housing.

5. After folding the screen, make sure that the security lock is turned to Locked position. otherwise,

accident or damage of the screen would happen.

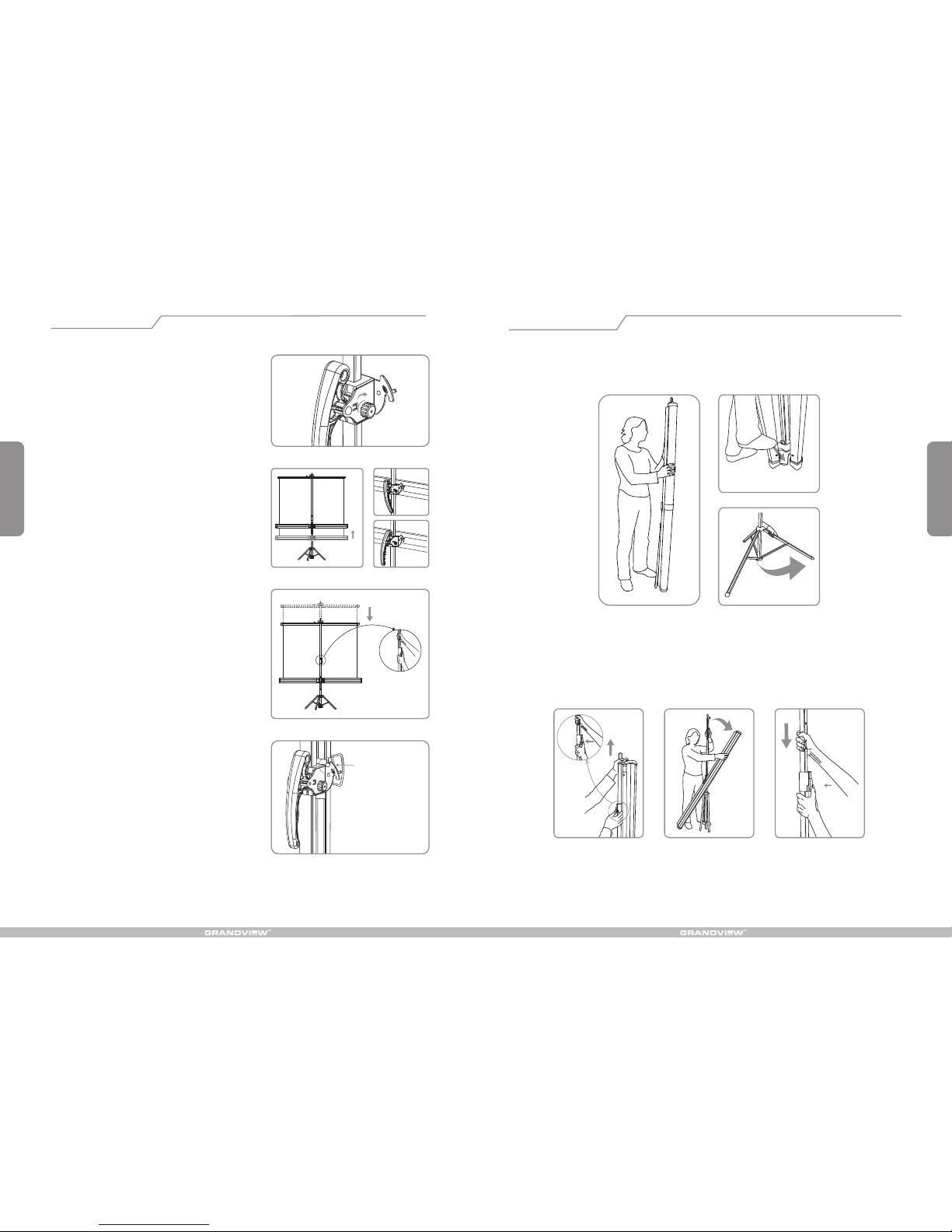

1. Grasp the screen handle with one hand and step the toe release plate to fully stretch the tripod

on the ground. (Figure1-3)

Lock

Unlock

Lock

Unlock

Lock

Unlock

2. Press the Magic button, and raise the adjustable uphold bar to release housing from the

plastic hook. (Figure 4)

3. Rotate the housing counterclockwise to horizontal level. (Figure 5)

4. Press the Magic button to low down adjustable uphold bar to the lowest point. (Figure 6)

1. Tu r n t h e Housing position lock t o “L O C K”.

( F i g u r e 1 6 )

2. After release the Plastic handle to Unlocked

condition, please hold the handle toraise the

housing until you hear a sound“DA”, which

means housing is locked, then please also

lockup the Plastic handle to Locked condition.

(Figure 17-19)

3. Hold the Adjustable uphold bar with your right

hand, then press the Magic button with your left

hand to lower down the Adjusting uphold bar to

down most point. (Figure 20)

4. Take off the Stainless bar ring from the Plastic

hook and retract the screen slowly into the

housing. After the housing is rotated to parallel

with Aluminum bar, then adjust the Adjustable

uphold bar to make the Plastic hook on its top to

lock onto a hole on the housing . At this time you

can fully retract the Metal tripod stand. (Remarks:

Please assure the Top bar is locked onto the

Aluminum stand. Figure 21)

Figure 1

Figure 2

Figure 3

Figure 4 Figure 5 Figure 6

Screen displaying

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Figure 21

Locked

condition

Unlocked

condition

Remarks: Assure the Top bar is

locked onto the Aluminum stand.

Screen retraction

Lock

Unlock

Lock

Unlock

Level adjustment device

Lock

Unlock

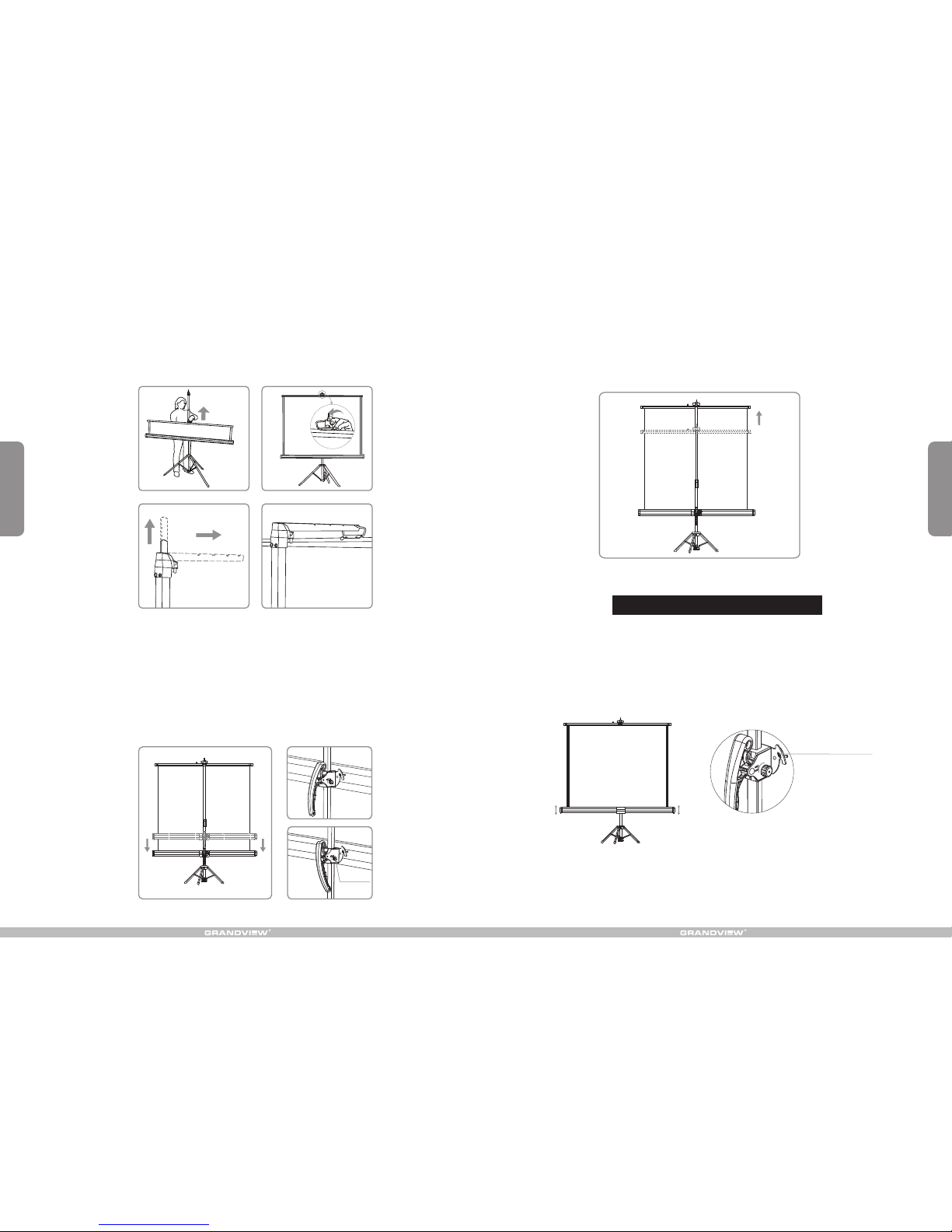

5. Open the screen:

Method 1: Pull up and hang the bar ring onto the Plastic hook. (Figure 7-8)

Method 2: For different gradient viewing angle , we can use Keystone system . Pull out the

extension bar hidden in the uphold bar and turn it to a horizontal level. Hand the metal hook ring

over the extension bar which has four optional slots for fixing the screen. (Figure 9-10)

6. To meet different viewing height (from floor to housing), you can adjust the position of housing

via the Plastic handle. (Figure 11)

Method: Turn the Housing position lock to status of “UNLOCK”, and hold the Plastic

handle as well as lower down the housing slowly to your appreciated position after release

the Plastic handle to Unlocked condition then lockup the Plastic handle to Locked condition.

The housing can be even lower after you lower down the Adjusting uphold bar to another

lockhole below and then adjust and lockup the housing to your appreciated position.

(Figure 12-13)

7. To hold the Aluminum stand with one hand, and hold the Adjusting uphold bar with another

hand as well as raise it to adjust the height of the screen. (Figure 14) Remarks: You don't

need to press the Magic button while raise the Adjustable uphold bar.

The screen viewing area can display in 1:1, 4:3 or 16:9 format according to different height of

Adjustable uphold bar and height of housing.

Special Level Adjustment Device

If the housing is found to a little inclined when fully displayed , you can adjust it horizontally

according to the Level adjustment device. (Figure 15)

Figure 7 Figure 8

Figure 9 Figure 10

Figure 11

Figure 12

Figure 13

Locked

condition

Housing

position lock

Unlocked

condition

Figure 14

Figure 15
