Grandstream Networks GDS3710 Manuel utilisateur

GDS3710

Hemispheric HD IP Video Door Phone

GDS3710 is a hemispheric IP video door phone and a high-definition

IP surveillance camera –ideal for monitoring from wall to wall without

blind spots. Powered by an advanced Image Sensor Processor (ISP)

and state of the art image algorithms, it delivers exceptional

performance in all lighting conditions. The GDS3710 IP video door

phone features industry-leading SIP/VoIP for 2-way audio and video

streaming to smart phones and SIP phones. It contains integrated PoE,

LEDs, HD loudspeaker, RFID, motion detector, lighting control switch

and more. Together with Grandstream videophone, mobile Apps, and

Network Video Recorder (NVR), the GDS3710 provides a powerful

recording and monitoring solution. The GDS3710 can be managed with

GSURF Pro or any ONVIF-compliant video management system. It also

offers a flexible HTTP API for easy integration with 3rd party applications

and other surveillance systems.

Video Compression

H.264 High Profile / Main Profile / Base Profile, Motion JPEG

Image Sensor

Resolution

1/2.7”, 2 Megapixel, 1920H x 1080V

Lens Type

1/2”, F2.5, FOV: 180°(W) x 180°(H)

Day & Night

White LEDs with smart brightness control

Max Video Resolution

1920x1080

Max Frame Rate

30 frames per second

Minimum Illumination

0.5Lux

Wide Dynamic Range

Yes, up to 120db

Video Bit Rates

32 Kbps to 8 Mbps, Multi-rate for Preview & Recording

Embedded Analytics

Motion detection (up to 8 target areas)

Privacy Mask Support

Yes (4 zones)

Pre-/Post-Alarm

recording

Yes

Snapshots

Triggered upon Events, Send via email and/or FTP

Multi-Stream Resolution

High-performance streaming server allowing multiple simultaneous

accesses

Primary video stream: 1920*1080 resolution for continuous full HD

recording

Secondary video stream: 640*480 resolution for SIP/VoIP video calls

Third video stream: 320*240 resolution for smartphone Apps

Network Protocol

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A

record, SRV, NAPTR), DHCP, PPPoE, SSH, SMTP, TFTP, NTP,

STUN, SIMPLE, LLDP-MED, LDAP, 802.1x, TLS, SRTP

SIP/VoIP Support

Broad interoperability with most 3rd party SIP/VoIP devices and leading

SIP/NGN/IMS platforms

Voice Codecs

G.711µ/a-law, G.722, in-band and out-of-band DTMF (in audio,

RFC2833, SIP INFO), AEC

QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)

Security

User and administrator level access control, MD5 and MD5-sess based

authentication, 256-bit AES encrypted configuration file, TLS, SRTP,

HTTPS, 802.1x media access control

Upgrade/ Provisioning

Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using

TR-069 (Pending) or AES encrypted XML configuration file

Audio Input

Built-in digital microphone, up to 1.5m with good AEC

Audio Output

Built-in HD loudspeaker, up to 3m with good loudness

Button

12-key touchpad plus a capacitive doorbell button, each with individual

LED illumination

RFID

125KHz: ISO1 4223, ISO18000-2 (2 RFID cards included)

Motion Sensor

Yes, built-in Infrared tube with detection range of 0.5 m

Alarm Input

Yes, 2 channels, Vin < 15V, for door sensor or other devices

Alarm Output

Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal

Close, for electric lock, light switch or other devices

Network Interface

10M/100M auto-sensing

Expansion Interface

RS485, Wiegand input and output

Weight

0.6Kg

Package Content

Base unit, Ethernet cable, Quick Start Guide, Screwdriver

Dimensions (H x W x D)

173mm(H) x 80mm(W) x 36mm(D)

Power Supply

PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power

adapter not included)

Ingress Protection

Weather proof, vandal resistant, with support for extra back reinforcing

metal plate

Temperature and

Humidity

Operation: -30°C to 55°C (-22°F to 131°F)

Storage: -35°C to 60°C (-31°F to 140°F)

Humidity: 10% to 90% Non-condensing

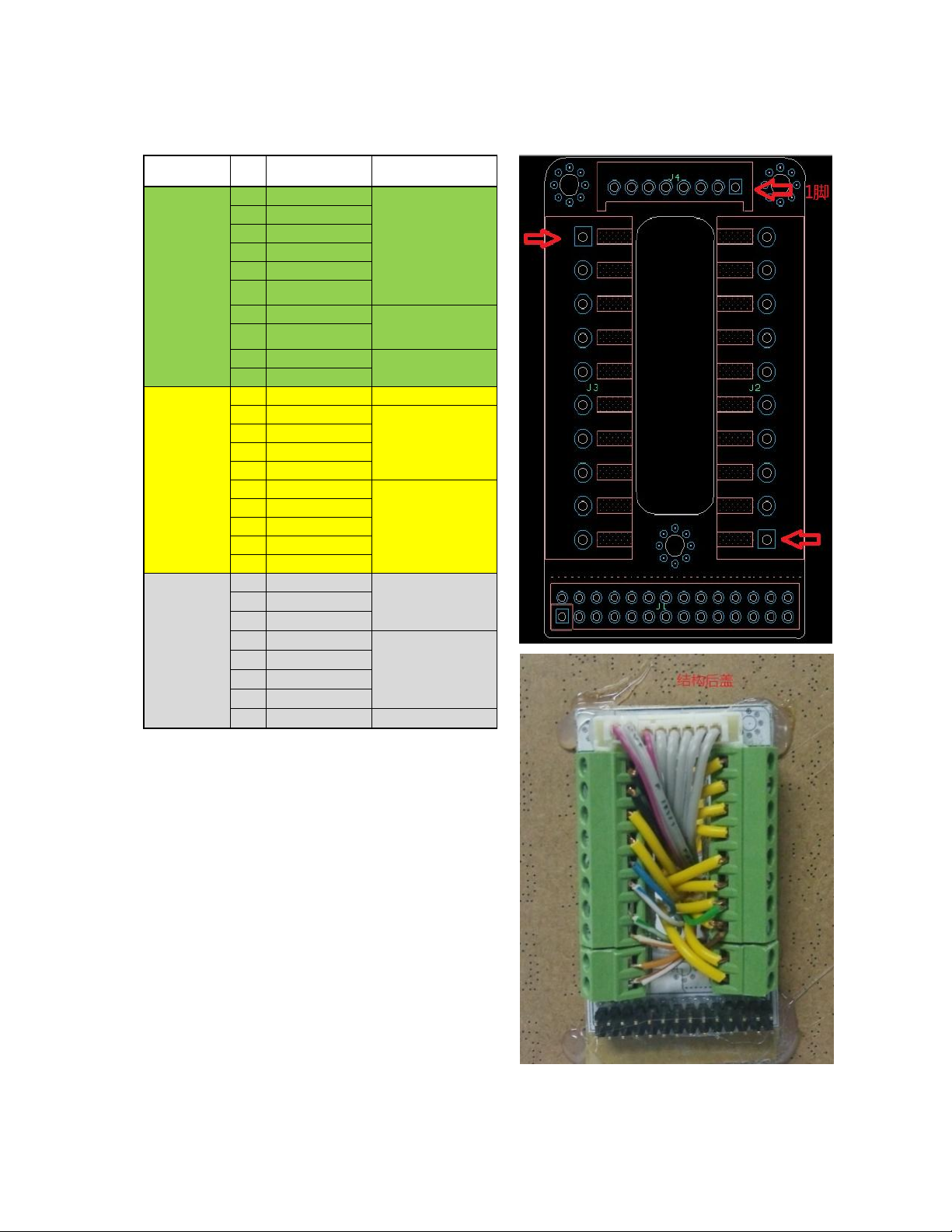

Appendix I: Cable Wiring on Rear Panel

Jack

Signal

Function

(basic)

3.81mm

TX+

Ethernet, PoE

TX-

RX+

RX-

POE_SP2

POE_SP1

RS485_B

RS485

RS485_A

GND

Power Supply

12V

(advanced)

3.81mm

GND

Alarm Ground

ALARM1_IN+

Alarm In

ALARM1_IN-

ALARM2_IN+

ALARM2_IN-

NO1

Alarm Out

COM1

NO2

COM2

NC2

(special)

2.00mm

GND

Wiegand Out

WG_D1_OUT

WG_D0_OUT

LED

Wiegand In

WG_D1_IN

WG_D0_IN

BEEP

Wiegand Power

Appendix II: Rear Panel Installations

EU Compliance Statement:

The device complies with EU EMF Directive 1999/519/EC can be used in the European

Community.

“Hereby, (Grandstream Networks, Inc.), declares that this (Model:GDS3710) is in compliance

with the essential requirements and other relevant provisions of Directive

1999/5/EC.”

FCC Compliance Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:(1)This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Important: Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

RF Exposure:

This equipment complies with FCC’s and Europe's RF radiation exposure limits set forth for an

uncontrolled environment. The antenna(s) used for this transmitter must be installed and

operated to provide a separation distance of at least 20 cm from all persons and must not be

collocated or operating in conjunction with any other antenna or transmitter. Installers must

ensure that 20cm separation distance will be maintained between the device (excluding its

handset) and users.
