Grandstream Networks HT704 Manuel utilisateur

1297 Beacon Street, 2nd Floor

Brookline, MA 02446, USA

Tel : +1 (617) 566 – 9300

Fax: +1 (617) 247 – 1987

For Warranty and RMA information, please visit www.grandstream.com

Grandstream Networks, Inc.

www.grandstream.com

HT704

Analog Telephone Adapter

QuickStart

Guide

QuickStart

Guide

~1~

The HT704 is not pre-conﬁgured to support or

carry emergency calls to any type of hospital,

law enforcement agency, medical care unit

(“Emergency Service(s)”) or any other kind

of Emergency Service. You must make ad-

ditional arrangements to access Emergency

Services. It is Your responsibility to purchase

SIP-compliant Internet telephone service,

properly conﬁgure the HT704 to use that ser-

vice, and periodically test your conﬁgura-

tion to conﬁrm that it works as You expect.

If You do not do so, it is Your responsibility to

purchase traditional wireless or landline tele-

phone services to access Emergency Servic-

es.

GRANDSTREAM DOES NOT PROVIDE CON-

NECTIONS TO EMERGENCY SERVICES VIA THE

HT704. NEITHER GRANDSTREAM NOR ITS OF-

FICERS, EMPLOYEES OR AFFILIATES MAY BE

HELD LIABLE FOR ANY CLAIM, DAMAGE, OR

LOSS, AND YOU HEREBY WAIVE ANY AND ALL

SUCH CLAIMS OR CAUSES OF ACTION ARIS-

ING FROM OR RELATING TO YOUR INABILITY

TO USE THE HT704 TO CONTACT EMERGENCY

SERVICES, AND YOUR FAILURE TO MAKE AD-

DITIONAL ARRANGEMENTS TO ACCESS EMER-

GENCY SERVICES IN ACCORDANCE WITH

THE IMMEDIATELY PRECEDING PARAGRAPH.

~2~

PRECAUTIONS

PACKAGE CONTENTS

Power Adapter

QUICKSTART GUIDE

12V

• Do not attempt to open, disassemble, or modify the

device

• Do not use a third party power adapter

• Do not expose this device to temperatures outside

range of -10 °C to +55 °C

• Do not expose the HT704 to environments

outside of the following humidity range: 10-90%RH

(non-condensing)

• Do NOT power cycle the HantyTone during system

boot up or ﬁrmware upgrade. You may corrupt ﬁrm-

ware images and cause the unit to malfunction.

Handy Tone

1 X Ethernet Cable Stand

~3~

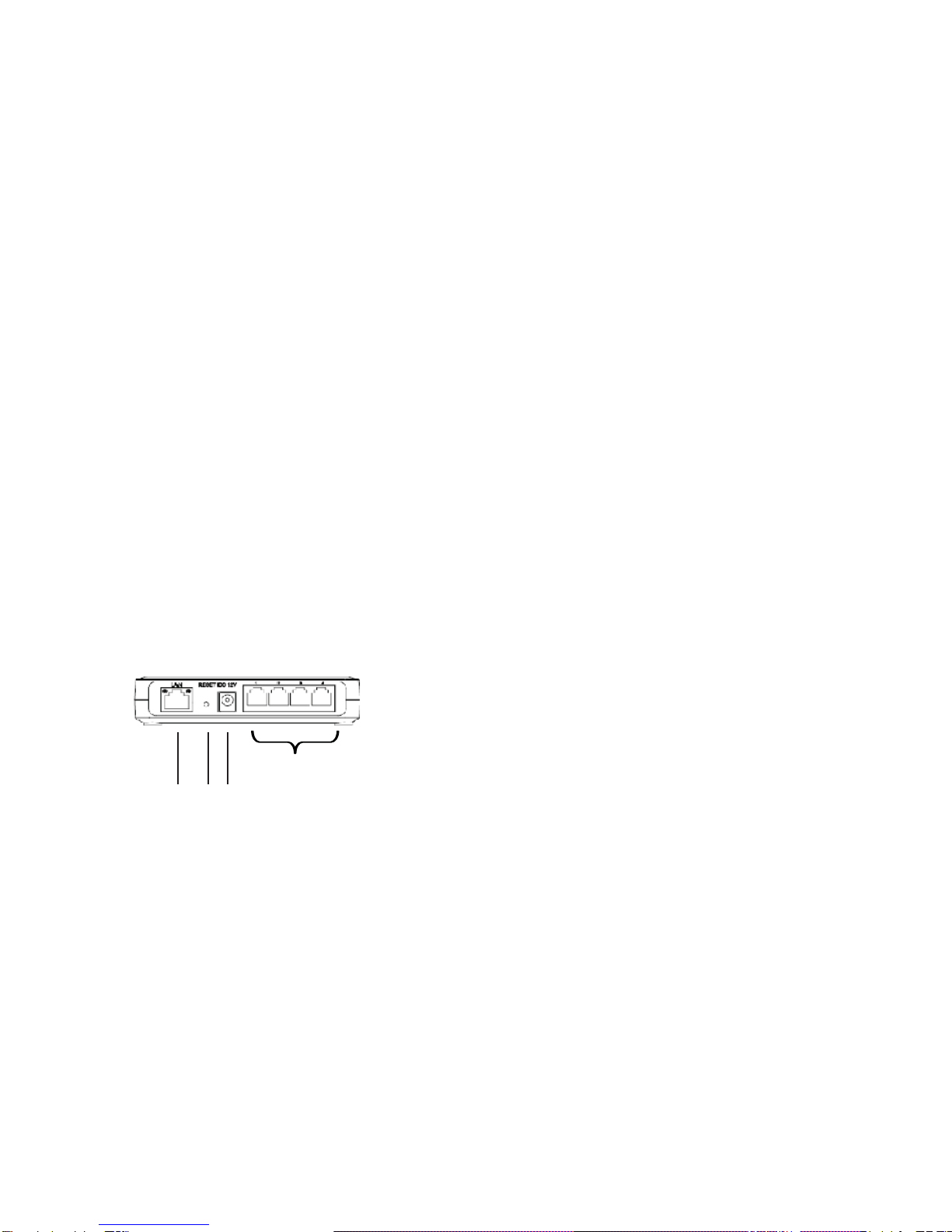

CONNECTING THE HT704

Refer to the illustration below when following the

instructions on the next page.

OVERVIEW

Grandstream HandyTone Analog Telephone Adapt-

ers/IAD series offers a comprehensive line of afford-

able VoIP access devices based on Grandstream’s

innovative and proprietary technology platform. The

HandyTone series offers the entry-level IP Telephony

user superb audio quality, rich functionalities, interop-

erability with the leading 3rd party VoIP providers, and

compatibility with most service providers. The Handy-

Tone series is compact, works with any cordless phone

and fax machines and offers the simplicity of plug and

dial, making it ideal for the basic IP telephony user

LAN Port Reset Power

PHONE 1/2/3/4

~4~

HT704 CONFIGURATION

1. Connect a standard touch-tone analog

telephone (or fax machine) to PHONE 1/2/3/4 port.

2. Insert the Ethernet cable into the LAN port of

HandyTone and connect the other end of the Ether-

net cable to an uplink port (a router, a modem, etc.).

3. UsingtheHandyToneembeddedwebserver

orIVR(InteractiveVoicePrompt)menu,youcanfurther

conﬁgure the phone using either a static IP or DHCP.

CONNECTING THE HANDYTONE

1. From the analog phone, press *** to get into

the IVR menu. Enter option 02 to obtain the Handy-

Tone’s IP address.

2. Type the HandyTone’s IP address in your PC

browser.

3. Log in using password “admin” to conﬁgure

the HandyTone.

Conﬁgure using Interactive Voice Prompt

~5~

• IP address, subnet mask and gateway IP if using

static IP.

• SIP server and/or Outbound Proxy FQDN or IP

address.

• User subscriber information: User ID, Authentica-

tion ID, Password

• HandyTone supports “Plug-n-Call” if your ITSP

(Internet Telephony Service Provider) provides

this automatic provisioning service. Ensure the

HandyTone has an internet connection (either

DHCP or static IP in your internet ready network),

then power up the device.

• Please contact your ITSP for additional settings

that may be necessary to conﬁgure the device.

You will need the following information to conﬁgure

the HandyTone via the web browser:

Application Diagram

There are three scenarios where the HT704 can be ef-

fectively used to enable any business to leverage the

beneﬁts of VoIP and the Internet.

~6~

Please download the user manual and FAQ for

more detailed conﬁguration instructions:

http://www.grandstream.com/products
