General Information
This fully automated pellet heating boiler is intended for heating domestic houses
and industrial and commercial spaces. Boiler plate with information on technical

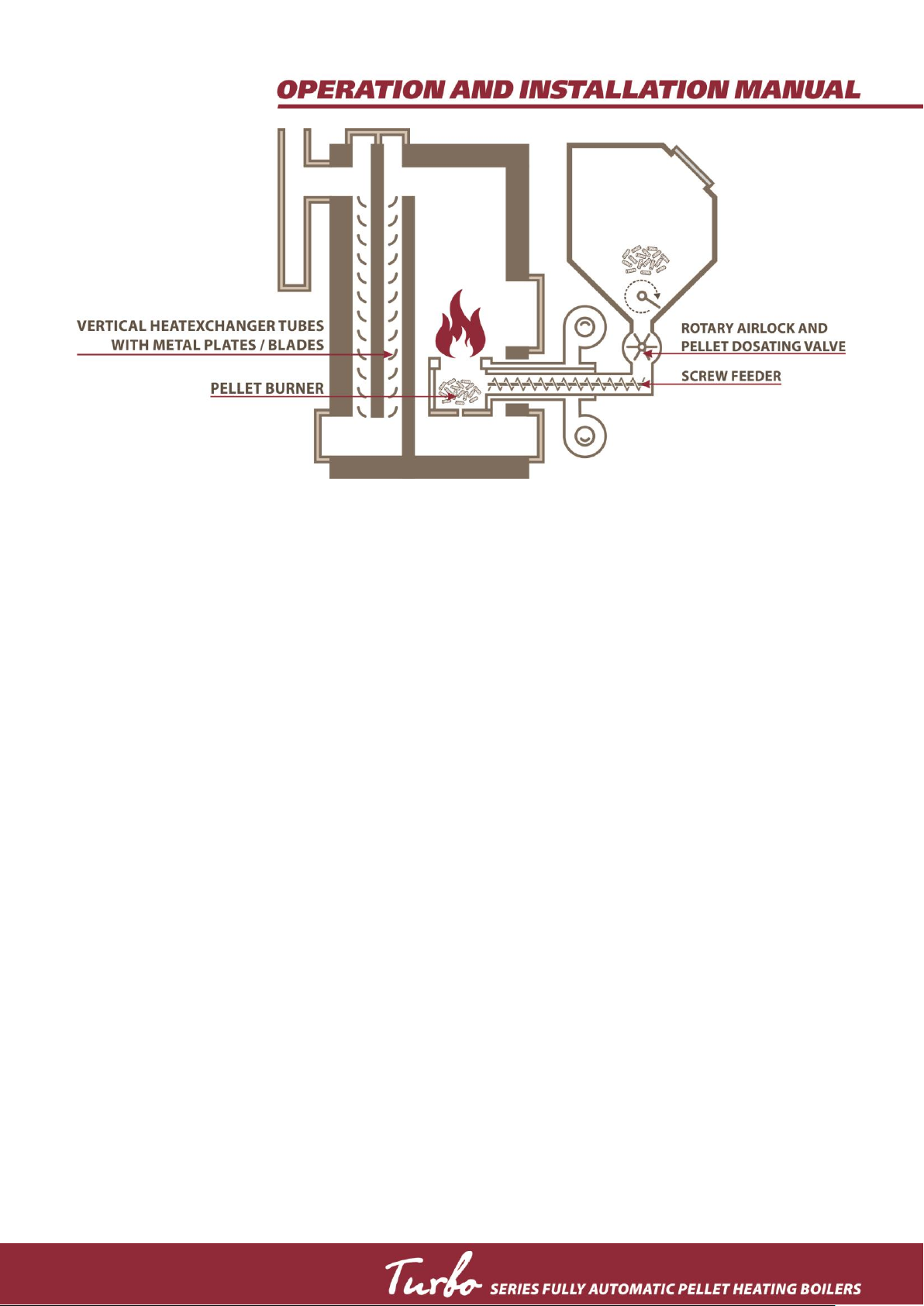

data of the boiler is located at the rear of the boiler. The unique boiler
construction guarantees efficient combustion and heat exchange (coefficients of
performance: 93% for combustion and 93% for heat exchange). Heating boiler is
equipped with automatic ignition, self-cleaning pellet burner and self-cleaning
heat exchanger. Boiler control system, with the help of built-in oxygen sensor
(lambda probe), precisely regulates the amount of air necessary for efficient and
economic combustion of different wood and biomass pellets.
Turbo series pellet heating boilers with output of 200, 300 and 500kw are
equipped with ladder for convenient access to vertical heat exchanger tubes
during maintenance.
Pellet hopper may be fed manually (capacity of the largest pellet hopper is
600kg) or automatically via pneumatic pellet transportation system that ensures
regular pellet supply from the pellet storage container (silo) to the pellet hopper.
To achieve a higher heat output, boiler may be connected to several pellet
heating boilers in parallel connection as well as alternative heating sources (heat
pumps, solar panels) and other types of heating boilers (gas, diesel).
Pellet heating boiler may be additionally equipped with: pneumatic pellet
transportation system Pneimo, pellet storage container Silo and the following
boiler control system options:
Management and control by internet and/or texting
Cascade management of several boilers
Home and away
Hot water preparation (single loop)
Management of two separate heating loops
Solar panel management
The following standards have been applied in boiler design and construction: LVS
EN 12953-1, EN 303-5, ISO 12100:2010, Directive 97/23/EC.
