Gradus Group VELLO FlexFrame Manuel utilisateur
FLEXFRAME
SOFTBOX
FOR PORTABLE FLASHES
USER MANUAL
2

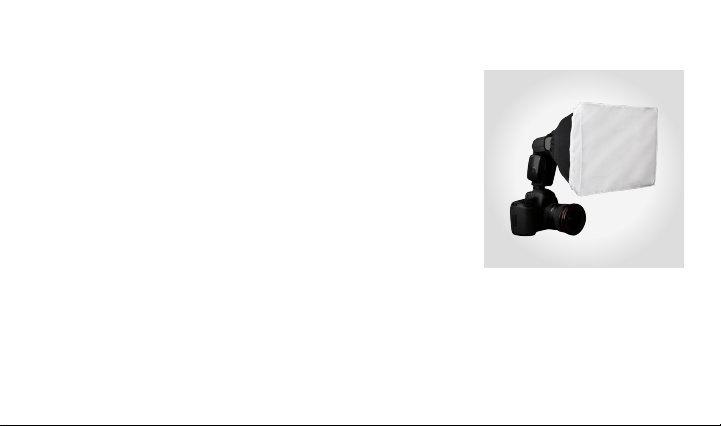

The Vello FlexFrame Softbox for
Portable Flash diuses the light from
a speedlight and improves the tonal
quality illuminating the subject. The
removable front diuser can reduce
shadows and hot spots where the
shoe-mount flash creates unflattering
light harshness. Unique to this small
and portable softbox is the fiberglass
frame incorporating jointed rods for
quick setup and easy folding. A touch
fastener cinch strap is included for
securely mounting the softbox onto
the head of a portable flash unit. This
is a perfect tool for an intermediate or
professional photographer who wants to
put a new look into their photography.
THANK YOU FOR CHOOSING VELLO
3
SPECIFICATIONS
Dimensions (H × W × D) 8"× 12"× 7"(20 × 30 × 18 cm)
Weight 6.4 oz. (188 g)
• Please read and follow these
instructions and keep this manual in
a safe place.
• Keep this unit away from water and
any flammable gas or liquid.
• Handle this unit with care.
• Keep this unit away from children.
• Make sure this item is intact and that
no parts are missing.
• All photos in this manual are for
illustrative purposes only.
PRECAUTIONS
4
Touch Fastener Cinch Strap:
Included is the Touch Fastener Cinch
Strap which wraps around the head
of your speedlight so you can mount
the softbox quickly and securely.
Removable Front Diuser:
The removable front diuser
softens the output of your portable
flash unit to reduce or eliminate
harsh shadows on your subject.
Silver Reflective Interior:
The silver reflective interior
maximizes the spread of the light
output, resulting in increased
image punchiness and contrast.
Durable Fiberglass Frame:
The inner frame of the softbox is
composed of fiberglass jointed rods,
ideal for quick setups or storage
while being durable to handle.
Mounting Tabs:
The mounting tabs allow fast
attachment to the portable flash
unit via four touch-tab fasteners.
Drawstring Carrying Case:
The included carrying case provides
for transport and protection.
KEY FEATURES
Front
Back
1
2
3
3
5
OVERVIEW

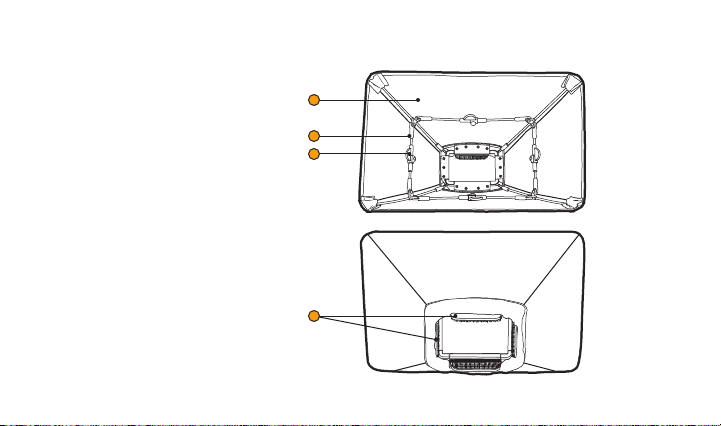

1. Silver Reflective Interior
2. Durable Fiberglass Frame
3. Frame Assembly Tab
4. Mounting Tabs
Also Included
• Touch Fastener Cinch Strap
• Removable Front Diuser
• Drawstring Carrying Case
6
Opening the FlexFrame Softbox
1. Grab opposing corners of the softbox
and its fiberglass frame, and gently
spread outward until you can clearly
see all four of the jointed rods.
Attaching the FlexFrame
Softbox to Your Portable Flash
1. Wrap the touch fastener cinch strap
around the head of the flash unit with
the edge of the cinch strap even with
the edge of the flash head. Make sure
this is done with the rubber side
touching the flash head.
INSTRUCTIONS
2. On each of the fiberglass rods is an
assembly tab. Push the tab down until
the rod locks in place. Do this for
each of the four rods.
7
2. Place the bottom of the flash head
against the bottom mounting tab of
the softbox, just about halfway into
the softbox.
3. Gently lift the top mounting tab and
fit the flash head into the softbox.
4. The FlexFrame softbox should now
be mounted onto your portable flash.
You can make micro adjustments to
fit the desired position.
5. Mount the flash unit with attached
FlexFrame softbox to your camera’s
hot-shoe.
8
Removing the FlexFrame Softbox
1. Using two or three fingers, lift up
the top mounting tab on the softbox
and remove from the touch fastener
cinch strap.
Ax the Front Diuser
1. Wrap the front diuser around two
corners of the softbox.
2. Pull the front diuser around the
other two corners.
9
Closing the FlexFrame Softbox
1. Each of the four fiberglass jointed
rods has a tab. Pull each tab, upward,
until the joint releases.
2. Continue rocking the softbox forward
until it disengages fully from the touch
fastener cinch strap on the head of
the portable flash.
2. Place your hands around the
four corners of the softbox and
gently squeeze all four corners
simultaneously inward.
10
The softbox will not open.
Check each of the jointed rods
and make sure they are intact.
The softbox will not collapse.
Check the jointed rods and make
sure that each assembly tab has been
released from its fixed position.
TROUBLESHOOTING
3. For storage, place the softbox in the
provided drawstring bag. Then place
the cinch strap and front diuser
inside for safekeeping.
