Graco MAGNUM PROJECT PAINTER PLUS Manuel utilisateur

SETUP

START UP – FLUSHING

Connect hose to gun. Remove

red cap, connect hose to sprayer.

Securely tighten.

Read Owner’s Manual for complete

instructions and warnings.

This quick guide is not a substitute for reading

and understanding all instruction manuals and

warning labels supplied with the equipment.

Manuals are available at magnum.graco.com

Follow pressure

relief procedure and wear

protective equipment

including but not limited to

protective eye wear.

SKIN INJECTION

HAZARD: Keep clear

of spray tip and leaks.

Engage trigger lock

when not spraying.

FIRE AND EXPLOSION

HAZARD: Follow

ﬁre and explosion

warnings as listed in

your manual.

Turn Power Switch

OFF

and plug

sprayer into grounded outlet.

Turn gun trigger lock to locked

position. Unthread spray tip

and guard assembly.

Separate small, clear drain tube

from large suction tube and place

into waste pail.

Turn Pressure Control Knob

to lowest setting.

Allow ﬂuid to ﬂow out drain tube

for 30-60 seconds. Turn Power

Switch

OFF

Flip the Prime/Spray Valve up to

PRIME

and turn the Pressure Control Knob to

Prime/Clean setting. Turn Power Switch

Electric Airless Sprayer

PROJECT PAINTER PLUS™

QUICK GUIDE

Submerge suction tube in water

if spraying water-based material

or ﬂushing ﬂuid if spraying

oil-based.

FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS INJURY, AMPUTATION, OR DEATH.

START UP – FILL PUMP, GUN & HOSE WITH PAINT

Trigger gun into waste pail, ﬂip Prime/Spray Valve down to

SPRAY

and turn Power Switch

When paint comes out of the gun, release trigger. Turn gun trigger lock to locked position. Thread spray tip and guard

assembly to gun.

Attach drain tube to suction tube and turn Pressure Control Knob to Spray Setting. Start at lowest

setting and increase until pattern is evenly distributed, no gaps at edge.

YOU ARE NOW READY TO SPRAY!

Submerge suction tube in paint. Turn Power

Switch

and wait to see paint coming into

the drain tube. Turn Power Switch

OFF

1500 psi

103 bar/10.3 MPa

2800 psi

193 bar/19.3 MPa

Good

spray pattern

tails- gaps at edges

pressure

too low

ti28255a

ti28252a

CLEAN UP: WATER-BASED PAINTS (see Owner’s Manual for oil-based paints)

Turn Power Switch

OFF

. Place suction and drain tubes in waste pail. Flip Prime/Spray Valve up to

PRIME

Turn Pressure Control Knob to Prime/Clean setting. Trigger gun into waste pail.

Unscrew inlet strainer from suction tube and place

in waste pail for cleaning. Thread Power Flush

attachment to suction tube. Turn Power Switch

and let water run through drain tube for

20 seconds. Turn Power Switch

OFF

Turn Pressure Control Knob to lowest setting and release

trigger. Turn gun trigger lock to locked position. Flip Prime/

Spray Valve up to

PRIME

. Turn Power Switch

OFF

With the trigger lock in locked position, unthread spray tip and

guard assembly from gun. Place in waste pail for further cleaning.

TO SAVE PAINT IN HOSE

: Trigger gun into paint pail,

ﬂip Prime/Spray Valve down to

SPRAY

and turn Power

Switch

. When water comes out of gun, keep gun

triggered and aim into waste pail. Continue to ﬂush until

water runs clear.

Clean spray tip, guard, inlet strainer with

brush. Remove gun ﬁlter and clean.

Reassemble gun ﬁlter, spray tip and guard.

Thread Power Flush™attachment onto

garden hose, turn water on. Rinse paint

off of suction and drain tubes,

inlet screen and spray tip/guard.

ti28255a

ti28252a

ti28255a

ti28252a

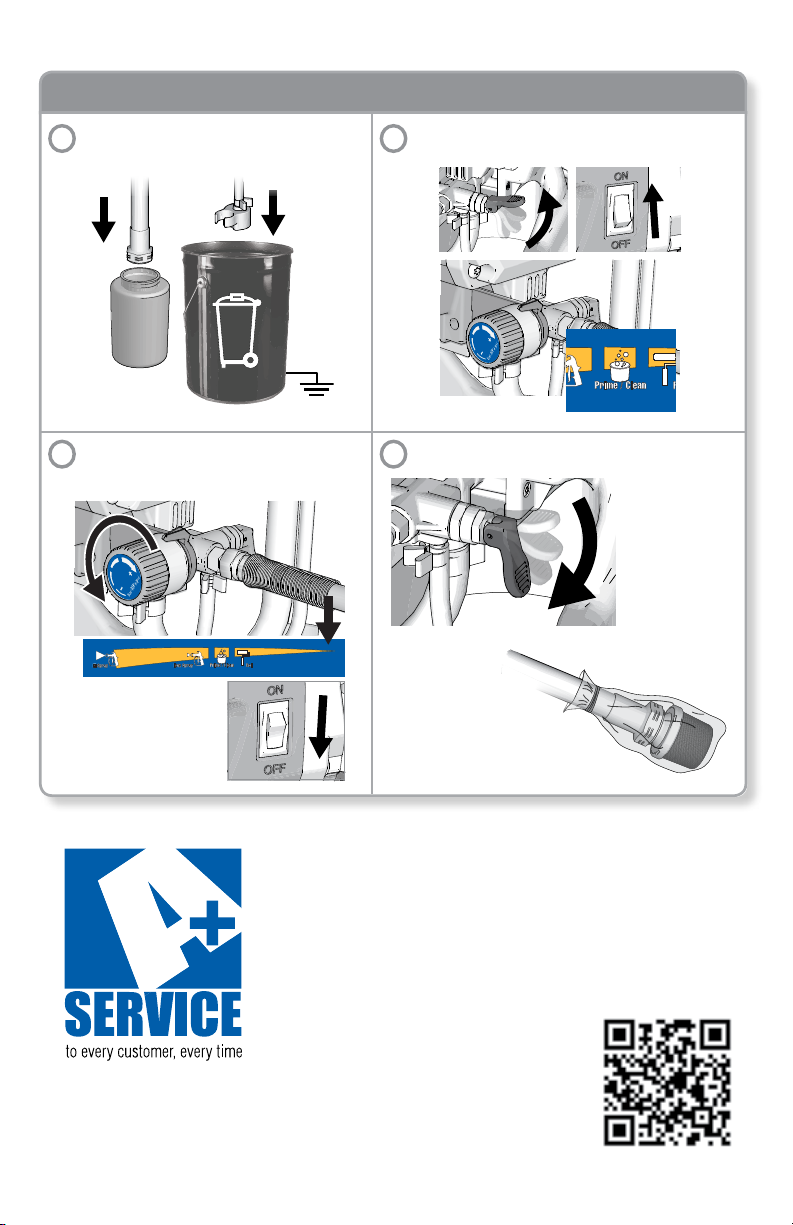

STORAGE FLUID

Remove Power Flush attachment from suction tube.

Submerge suction tube in Pump Armor.™

Flip Prime/Spray Valve up to PRIME. Turn Power Switch

ON. Turn Pressure Control Knob to Prime/Clean setting.

When Pump Armor comes out of drain tube,

turn Pressure Control Knob to lowest setting

and Power Switch

OFF

Flip Prime/Spray Valve down to

SPRAY

and install

inlet strainer on suction tube for storage.

Every Graco purchase comes

with A+ Customer Service.

Questions?

(888)541-9788

www.magnum.graco.com/aplus

ti28249a

ti28250a

ti28255a

magnum.graco.com/p3op

3A3585 Revision A, February 2016. Original Instructions. This Quick Guide contains English.

Scan QR code for

Operational Video
