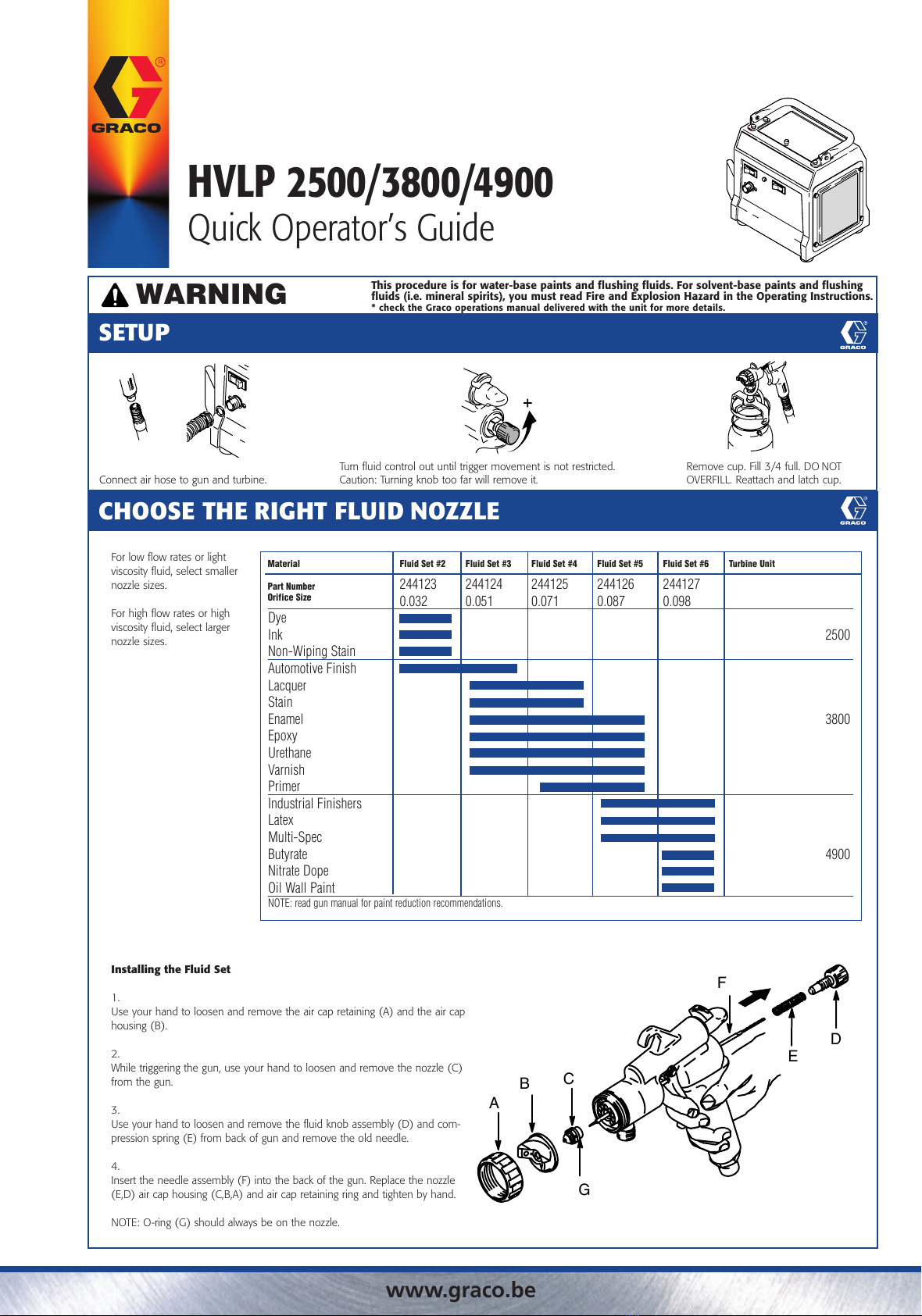

HVLP 2500/3800/4900

Quick Operator’s Guide

SETUP

This procedure is for water-base paints and flushing fluids. For solvent-base paints and flushing

fluids (i.e. mineral spirits), you must read Fire and Explosion Hazard in the Operating Instructions.

* check the Graco operations manual delivered with the unit for more details.

WARNING

Remove cup. Fill 3/4 full. DO NOT

OVERFILL. Reattach and latch cup.

Turn fluid control out until trigger movement is not restricted.

Caution: Turning knob too far will remove it.

Connect air hose to gun and turbine.

CHOOSE THE RIGHT FLUID NOZZLE

For low flow rates or light

viscosity fluid, select smaller

nozzle sizes.

For high flow rates or high

viscosity fluid, select larger

nozzle sizes.

Installing the Fluid Set

Use your hand to loosen and remove the air cap retaining (A) and the air cap

housing (B).

While triggering the gun, use your hand to loosen and remove the nozzle (C)

from the gun.

Use your hand to loosen and remove the fluid knob assembly (D) and com-

pression spring (E) from back of gun and remove the old needle.

Insert the needle assembly (F) into the back of the gun. Replace the nozzle

(E,D) air cap housing (C,B,A) and air cap retaining ring and tighten by hand.

NOTE: O-ring (G) should always be on the nozzle.

Material

Part Number

Orifice Size

Fluid Set #2 Fluid Set #3 Fluid Set #4 Fluid Set #5 Fluid Set #6 Turbine Unit

244123 244124 244125 244126 244127

0.032 0.051 0.071 0.087 0.098

Dye

Ink 2500

Non-Wiping Stain

Automotive Finish

Lacquer

Stain

Enamel 3800

Epoxy

Urethane

Varnish

Primer

Industrial Finishers

Latex

Multi-Spec

Butyrate 4900

Nitrate Dope

Oil Wall Paint

NOTE: read gun manual for paint reduction recommendations.

All manuals and user guides at all-guides.com

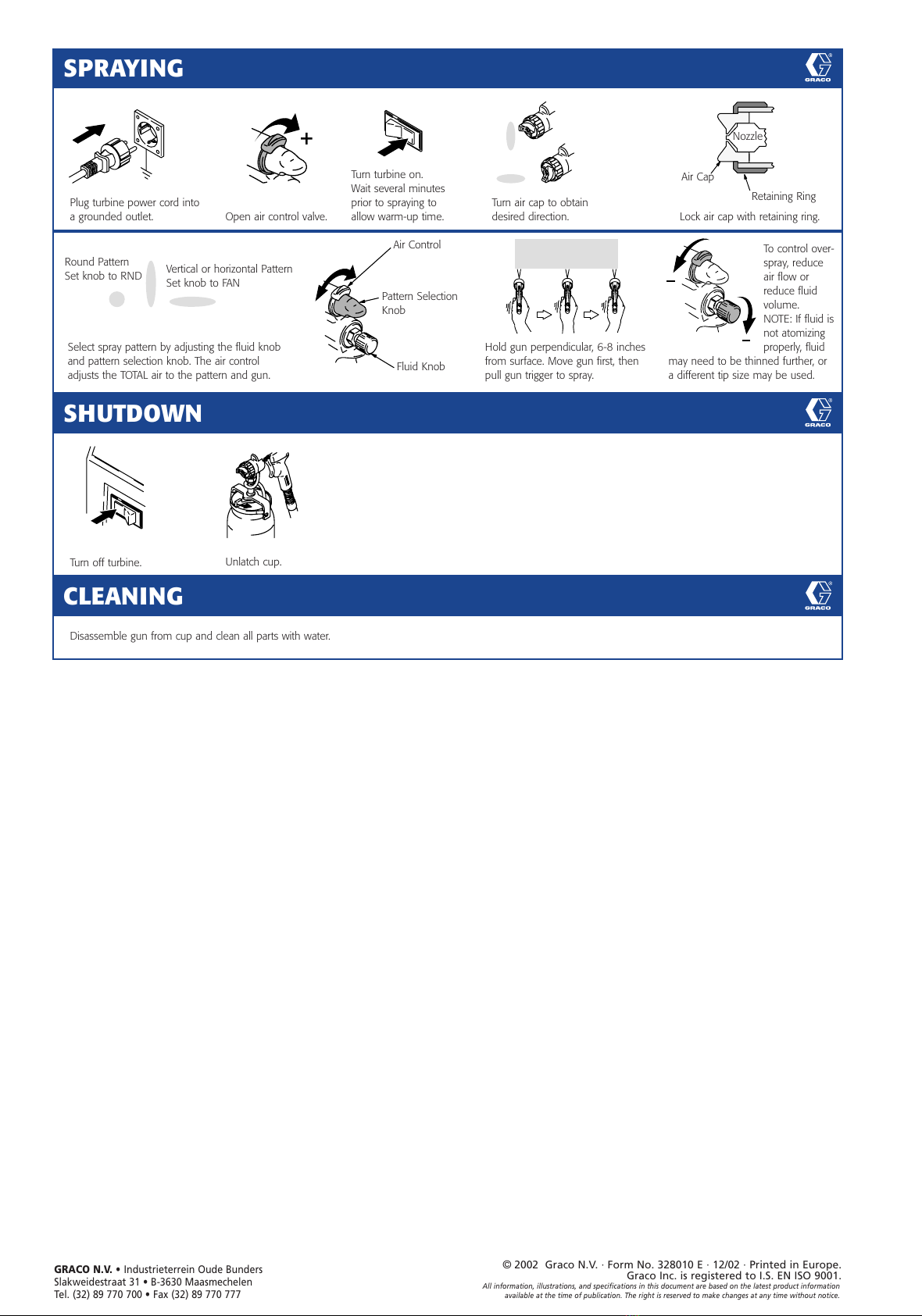

SPRAYING

Plug turbine power cord into

a grounded outlet.

GRACO N.V. • Industrieterrein Oude Bunders

Slakweidestraat 31 • B-3630 Maasmechelen

Tel. (32) 89 770 700 • Fax (32) 89 770 777 All information, illustrations, and specifications in this document are based on the latest product information

available at the time of publication. The right is reserved to make changes at any time without notice.

Graco Inc. is registered to I.S. EN ISO 9001.

Open air control valve.

Turn air cap to obtain

desired direction. Lock air cap with retaining ring.

Turn turbine on.

Wait several minutes

prior to spraying to

allow warm-up time.

Nozzle

Air Cap

Air Control

Pattern Selection

Knob

Fluid Knob

Retaining Ring

SHUTDOWN

Turn off turbine. Unlatch cup.

CLEANING

Disassemble gun from cup and clean all parts with water.

Round Pattern

Set knob to RND Vertical or horizontal Pattern

Set knob to FAN

Select spray pattern by adjusting the fluid knob

and pattern selection knob. The air control

adjusts the TOTAL air to the pattern and gun.

Hold gun perpendicular, 6-8 inches

from surface. Move gun first, then

pull gun trigger to spray.

To control over-

spray, reduce

air flow or

reduce fluid

volume.

NOTE: If fluid is

not atomizing

properly, fluid

may need to be thinned further, or

a different tip size may be used.
