Graco Hopper 24B250 Manuel utilisateur

313606A

Instructions

Hopper Kit 24B250 for

FinishPro™ 290 Sprayer

- This manual contains kit installation instructions only -

Pressure Relief Procedure

1. Turn Power switch OFF. Unplug sprayer.

2. Turn Spray/Prime valve to PRIME to relieve pres-

sure. Turn pressure control knob left (counterclock-

wise) to minimize pressure.

3. Trigger gun.

4. Put trigger safety in safety ON position.

NOTE: Leave Spray/Prime valve in the PRIME position

until you are ready to spray again.

If you suspect that the spray tip or hose is completely

clogged or that pressure has not been fully relieved after

following the steps above, VERY SLOWLY loosen the tip

guard retaining nut or hose end coupling to relieve pres-

sure gradually. Then loosen it completely. Clear the tip or

hose obstruction.

Important Safety Instructions

For detailed sprayer information and warnings,

see Operation manual 313316 included with

FinishPro 290 Sprayer.

To help prevent injection injuries, follow this procedure

when you stop spraying and before you service or

clean the sprayer, remove parts, or repair leaks.

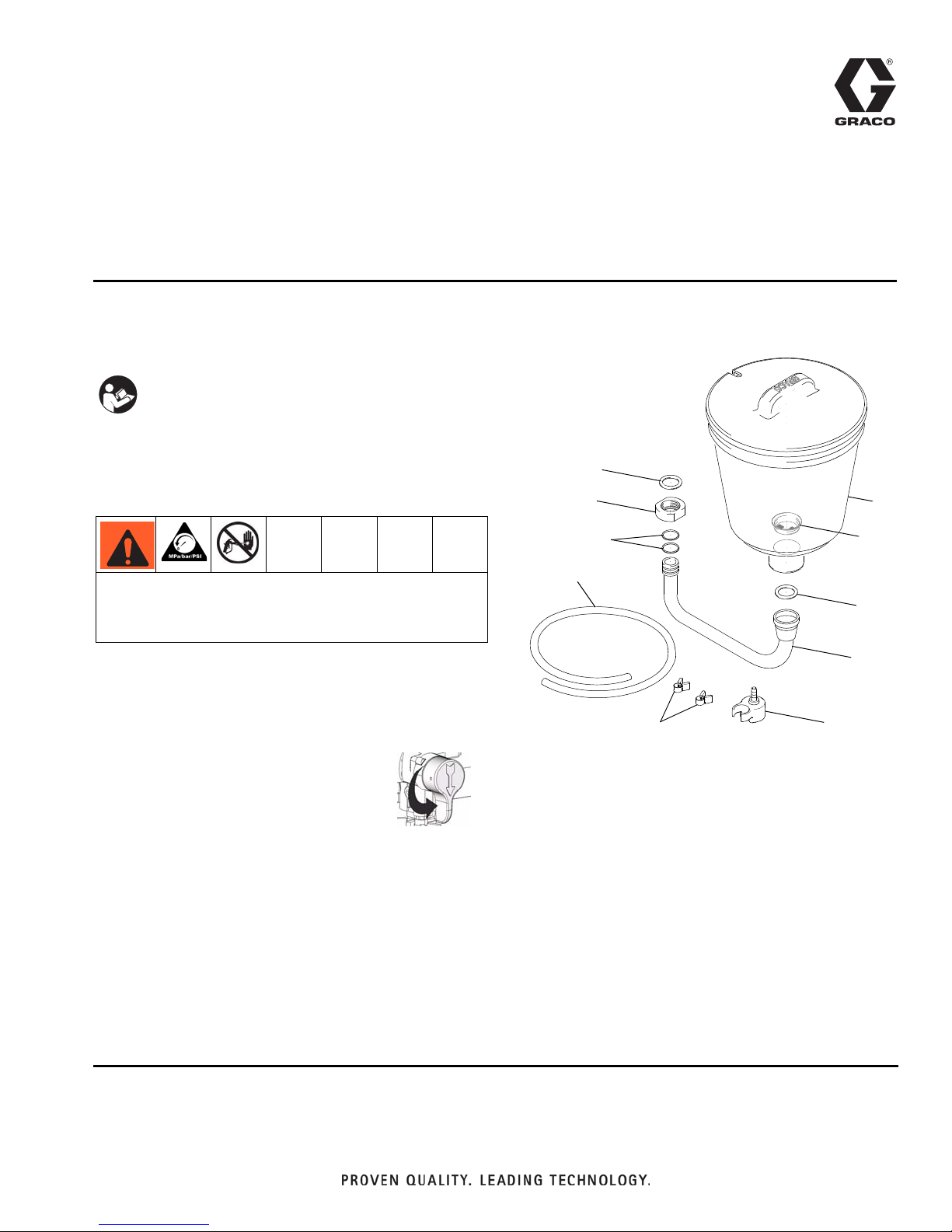

Ref. Part Description Qty.

1 188787 HOPPER, 1.5 gallon 1

2 112133 SCREEN, hopper 1

3 104938 PACKING, o-ring 1

4 257518 TUBE, inlet hopper 1

5 15B652 WASHER, suction 1

6 117559 O-RING 2

7 15E813 NUT, jam 1

8 15Y587 TUBE, drain, hopper kit 1

9 115489 CLAMP, drain tube 2

10 244035 DEFLECTOR, barbed 1

ti11868a

ti13684a

910

Hopper Kit 24B250

2313606A

Hopper Kit 24B250

Installation

1. Relieve pressure.

2. Loosen jam nut and remove suction set.

3. Remove drain tube.

4. Remove hopper lid. Insert hopper into pump.

5. Tighten jam nut until hopper does not move.

6. Replace drain tube with longer tube and place into

hopper. Push drain tube fully onto barbs with hose

clamps in place.

7. Replace hopper lid.

ti13688a

ti13687a

ti3134b ti13686a

ti13689a

ti13685a

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

This manual contains English. MM 313606

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

www.graco.com
