Graco GH 833 Manuel utilisateur

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

311493A

Instructions

GH833 Direct

Immersion Kit

- For installation of tower/bracket. -

Part No. 287843

Refer to GH833 operation manual. Before attempting

to install kit, follow Pressure Relief Procedure,

page 4.

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

311279

311283

311484

2311493A

Fixed Mounting (optional)

To prevent damaging the unit when transporting it in

a truck or on a trailer, Graco recommends fixed

mounting to the vehicle.

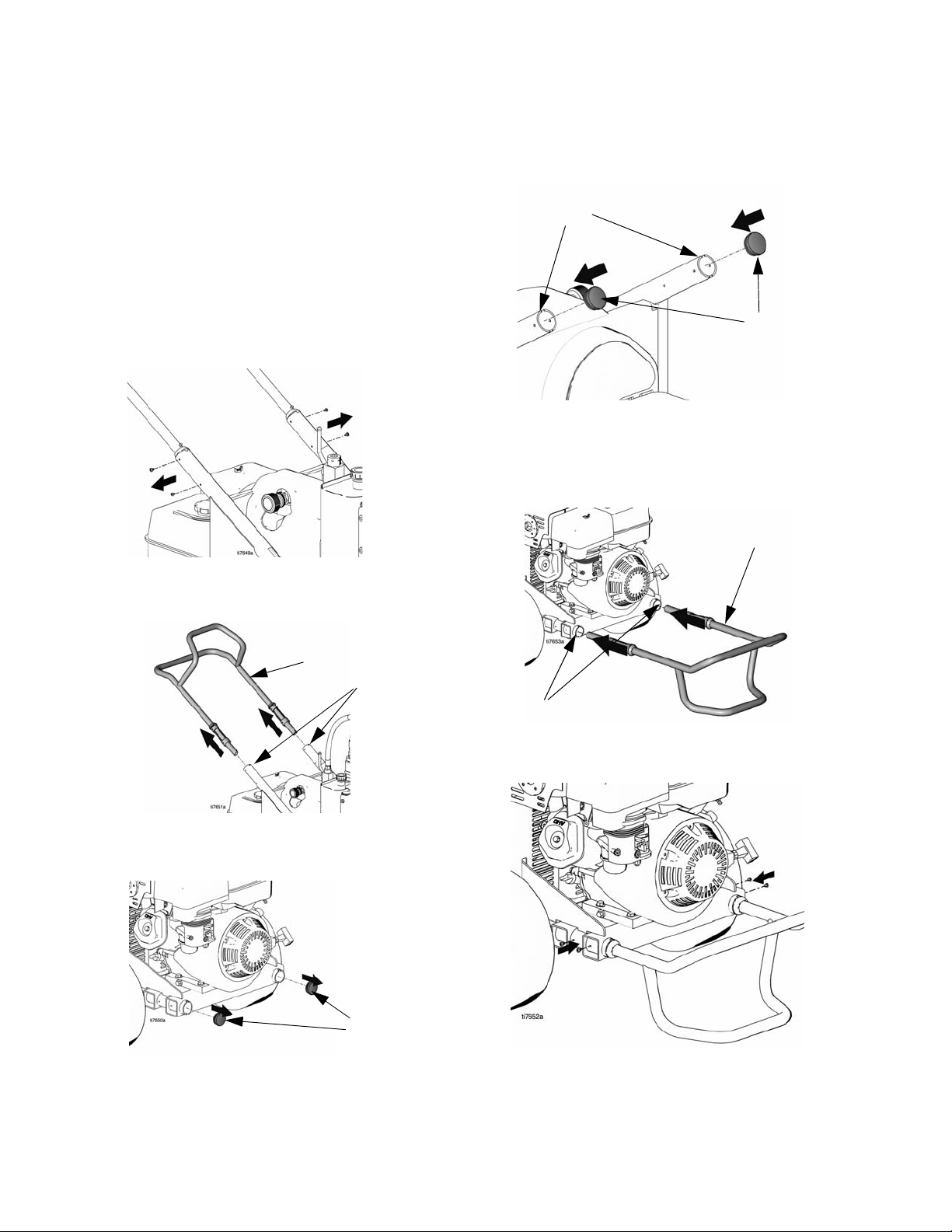

Repositioning Handle

Before you can secure the unit to a truck or trailer bed,

you must reposition the handle.

1. Using a phillips screwdriver, remove the handle

sleeve screws (4).

2. Remove handle assembly by pulling it out of upper

frame handle tubes.

3. Remove frame tube plugs (2) located behind the

wheels.

4. Insert plugs in upper frame handle tubes.

5. Insert handle assembly into lower frame tubes. The

hose bracket should face down. Adjust to

appropriate in/out location.

6. Install sleeve screws (4) in lower frame tubes.

handle

upper

frame

handle

tubes

plugs

upper frame handle

tubes

handle

lower frame tubes

311493A 3

Securing Unit to Vehicle Bed

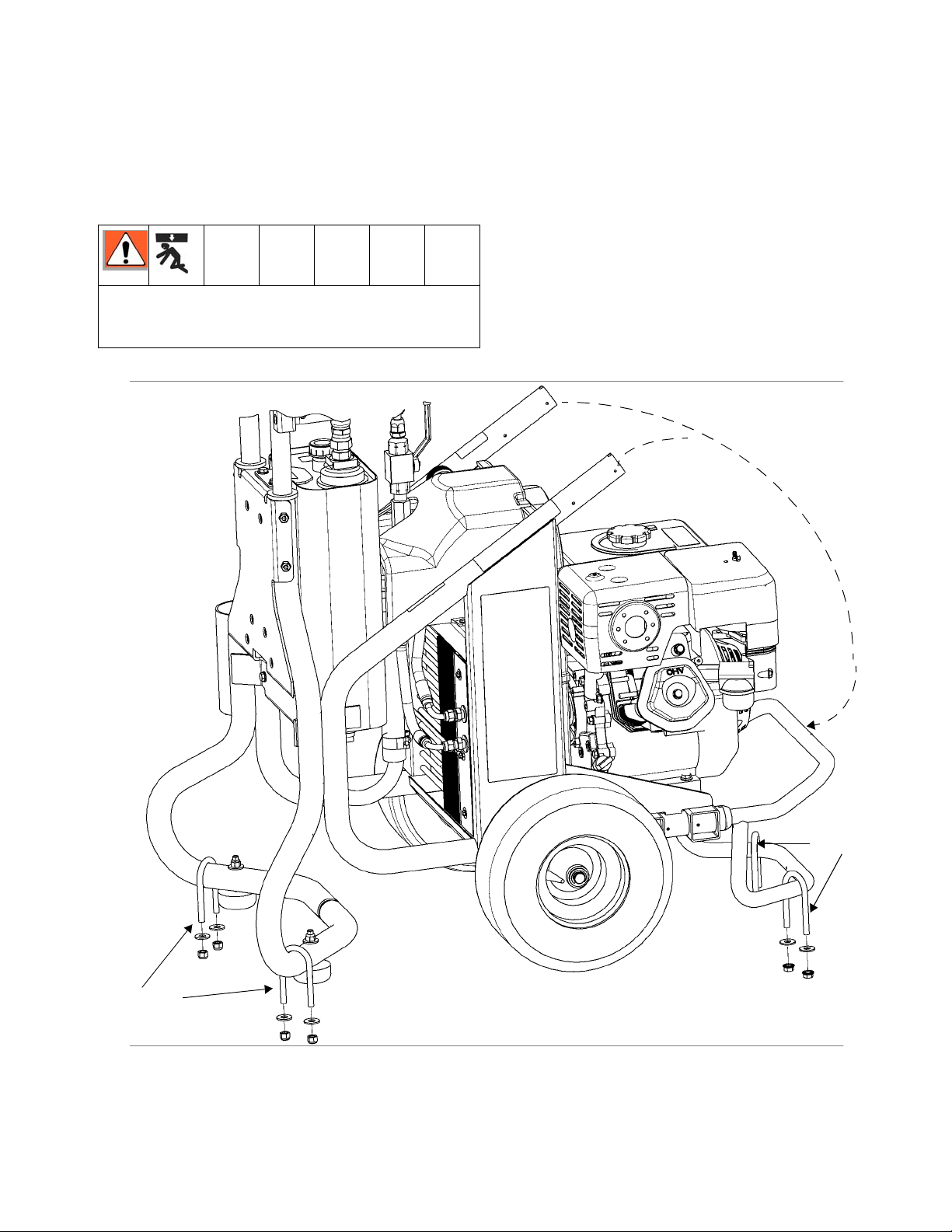

For fixed mounting, fasten U-bolts over sprayer frame as

indicated in the following illustration.

1. Reposition handle, steps 1-5, page 2.

2. Place U-bolts over sprayer frame and through holes

in vehicle bed. Place a washer and nut over bolt

end. Using a wrench, tighten nut securely.

Sprayer is a heavy piece of equipment. To avoid bodily

injury that could result from equpment moving when

transportating, always secure sprayer to vehicle.

U-bolts

Reposition Handle

4311493A

General Information

Pressure Relief Procedure

1. Engage trigger lock.

2. Set pump valve OFF.

3. Turn engine OFF.

4. Turn pressure to lowest setting.

5. Trigger gun to relieve pressure.

6. Turn Prime valve down.

Trigger Lock

Always engage the trigger lock when you stop spraying

to prevent the gun from being accidentally triggered by

hand or if dropped or bumped.

311493A 5

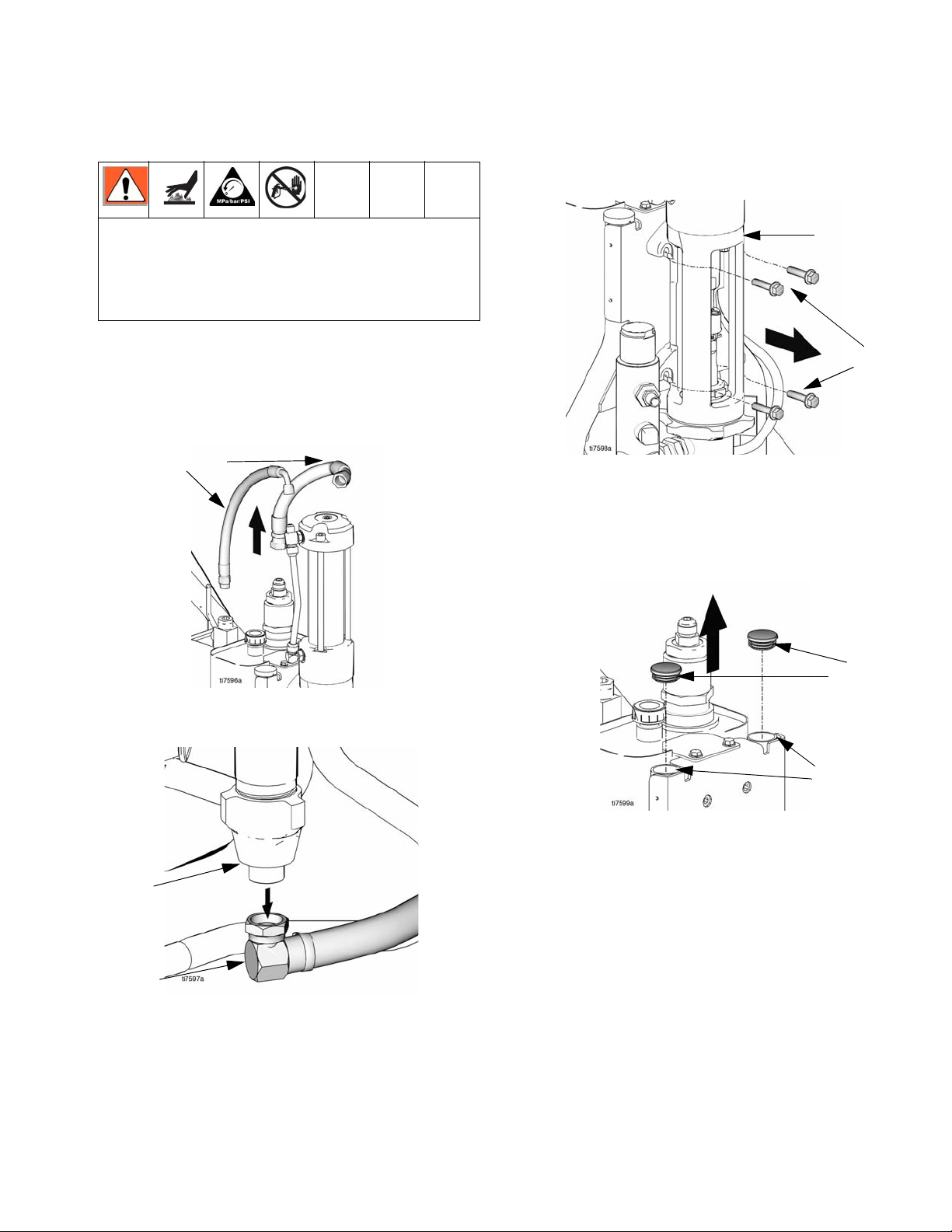

Removing Hydraulic Head and Pump

1. Follow Pressure Relief Procedure, page 4.

2. Allow unit to cool.

3. Remove (2) hydraulic lines from head and body.

4. Remove suction set from bottom of pump.

5. Remove (4) mounting bolts on pump assembly and

set assembly out of the way.

6. Remove (2) black plugs.

NOTE: Protect open hydraulic ports from debris and

contamination.

BURN HAZARD

Equipment surfaces and fluid that’s heated can

become very hot during operation. To avoid severe

burns, do not touch hot fluid or equipment. Wait until

equipment/fluid has cooled completely.

hydraulic lines

suction

set

pump

bolts

pump

assembly

hydraulic

ports

plugs

6311493A

Installing Direct Immersion Kit

1. Install tower/bracket into frame holes.

2. Install (4) retaining screws in frame to hold

tower/bracket in place. Torque to 165 +/- 10 in.-lbs

(13.8 ft.-lbs).

3. Install pump assembly over (4) frame bolts.

4. Torque bolts to 400 +/- 10 in-lbs (33.3 ft. lbs).

5. Install new, longer hydraulic lines (19, 20) from kit.

6. To purge air from hydraulic lines, increase pressure

enough to start hydraulic motor stroking and allow

fluid to circulate for 15 seconds. Turn pressure

down, turn prime valve horizontal (Off).

Pumping motion could result in bracket pulling out of

frame and cause serious injury. Always insert and

torque screws securely to insure this does not occur.

tower

bracket

frame

holes

frame bolts

pump

assembly

311493A 7

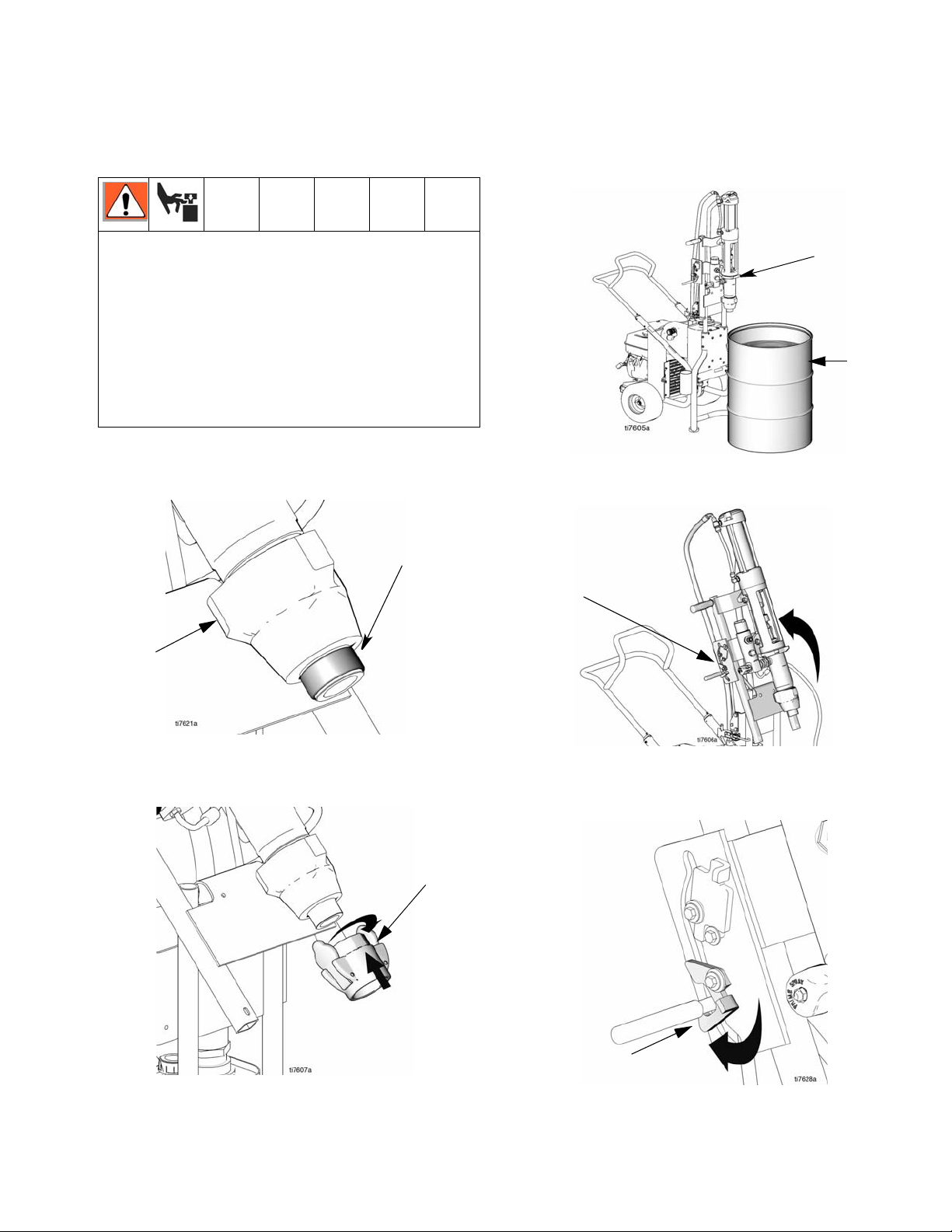

Using Direct Immersion

1. Apply pipe thread sealant (25) over male threads on

pump.

2. Attach female camlock (22) from kit over male

threads on pump. Tighten securely.

3. Position 55 gallon drum under pump assembly.

4. Unclamp and tilt tower/bracket back to first position.

5. Lock clamp into 1st position.

6. Install strainer (23) to bottom of intake tube (24).

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other

body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards

or covers removed.

• Pressurized equipment can start without warning.

Before checking, moving, or servicing equipment,

follow the Pressure Relief Procedure in this man-

ual. Disconnect power or air supply.

apply

sealant

pump

assembly

drum

clamp

1st position

8311493A

7. Instal intake tube (24). Lock camlocks (22) to hold

tube securely in place.

8. Lower tube into 55 gallon drum.

9. Lock tower/bracket in place.

10. Ready to use.

Changing Drums

1. Tilt tower/bracket back and clamp securely in first

position.

2. Unlock camlocks (22) and remove intake tube (24).

clamp

311493A 9

3. Move unit and align new drum under pump

assembly.

4. Install intake tube (24). Lock camlocks (22) to hold

tube securely in place.

5. Lower tube into 55 gallon drum.

6. Lock tower/bracket in place.

7. Ready to use.

pump

assembly

drum

10 311493A

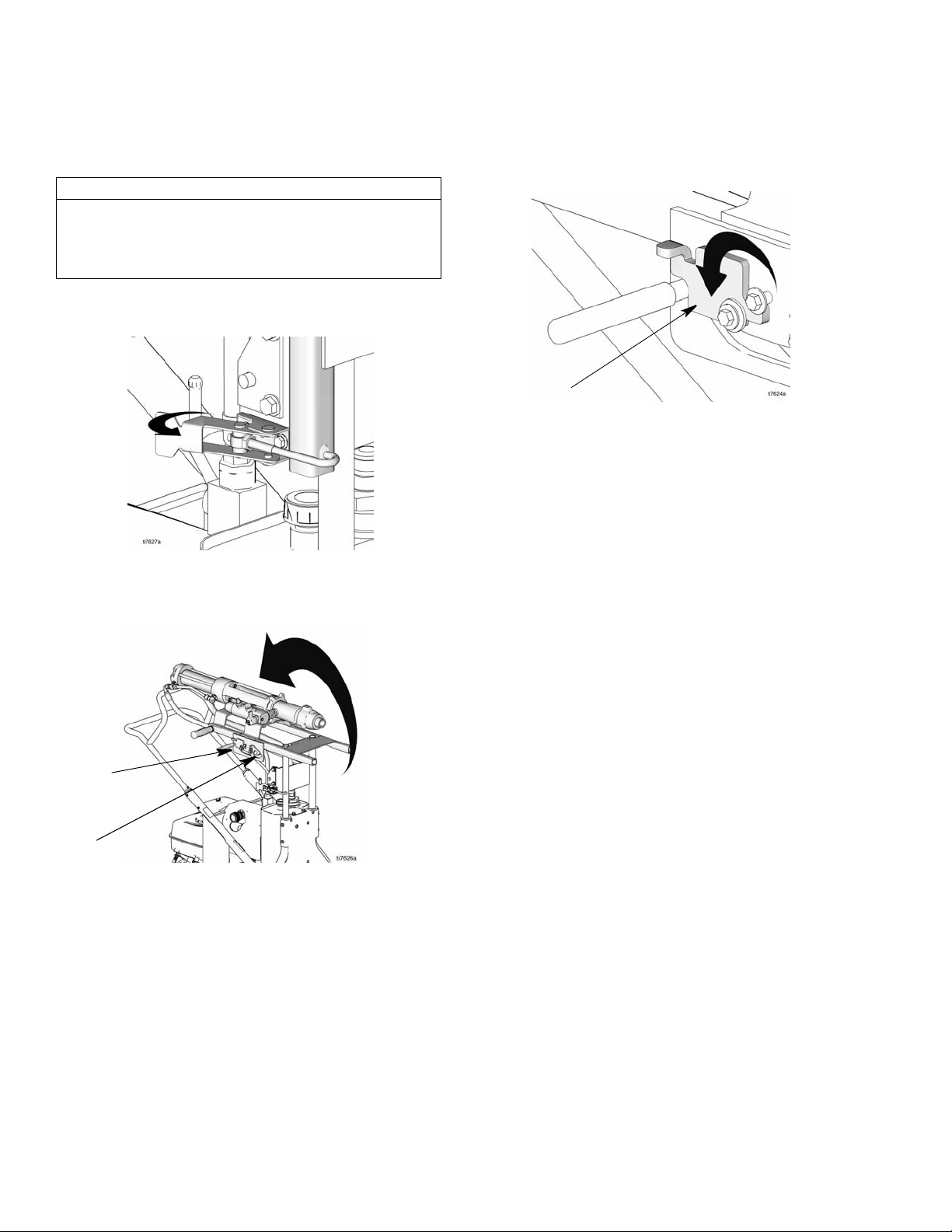

Transporting Unit

1. Unlock tower/bracket.

2. Tip tower/bracket back 90° to 2nd position for

transporting.

3. Lock in place.

CAUTION

Do not transport unit with head in vertical position.

When transporting unit securely tie down in vehicle or

follow instructions for fixed mounting to vehicle, page

1st

position

2nd

position

2nd position
