Graco AllControl 288711 Manuel utilisateur

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

312290A

Instructions

AllControl Repair Kits 288711, 289210

Model 288711: Use with MAGNUM Project Painter 7 Sprayers

Model 289210: Use with MAGNUM Project Painter 5 Sprayers

Maximum Working Pressure: 3000 psi (21 MPa, 207 bar)

Important Safety Instructions

Read all warnings and instructions in this manual. Save these instructions. For detailed sprayer

information and warnings, see your Operation manual.

To reduce the risk of fluid injection or splashing in the

eyes or on the skin, relieve all fluid pressure in

system before you install, remove, or replace any

parts. See the Pressure Relief Procedure provided

in your Operating Instruction manual.

CAUTION

When repairing or cleaning the pump, never sub-

merge the pump in water or allow fluid to enter the

pressure control

2312290A

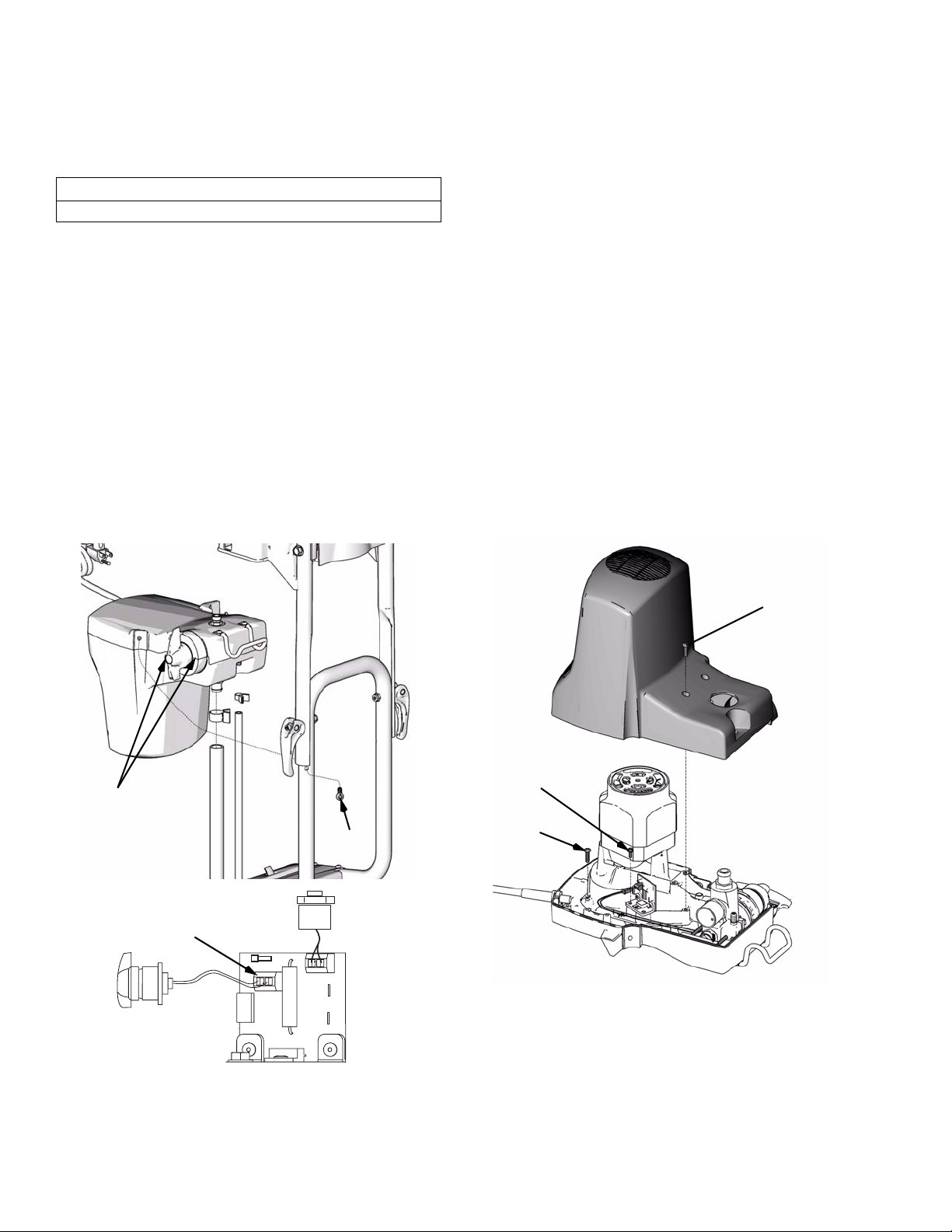

Project Painter 7: 261805

Disassembly

1 Unplug electrical cord, and relieve pressure.

2 Remove suction tube, drain line and coupled hose.

3CutAllControl labels at two places where upper and

lower housings mate (A).

4 Fig. 1. Remove two screws (B) (support sprayer with

hand) and remove sprayer from frame.

5 Fig. 2. Put AllControl knob in ROLL position. Remove

four screws (C) and motor shroud.

6 Fig. 1. Squeeze pressure control connector (D) and

disconnect from control board.

7 Fig. 2. Remove one screw (E) and control board.

8 Remove four screws (F) from pump housing.

9 Turn sprayer with drive housing face up. Wiggle drive

housing and remove.

10 Fig. 3. Remove two screws (G) from pressure control

mounting plate.

11 Remove pressure control assembly from pump housing.

FIG. 1

Assembly

1 Grease o-ring on pressure control assembly. Push

pressure control down into machined slots in pump

housing. Ensure wires are not pinched. Secure with two

screws (G). Torque to 40 ±5 in-lb.

2 Align gears in drive housing with pump housing and

assemble housings. Keep drive housing and pump

housing together and turn sprayer with drive housing face

down,

3 Install four screws (F) and secure pump housing to drive

housing. Torque 30 ±5 in-lb.

4 Install control board with one screw (E). Torque 30 ±5

in-lb.

5PlugAllControl harness into control board (D). Align

electrical cord strain relief in drive housing.

6PutAllControl knob in ROLL position. Install four screws

7 Install sprayer in frame with two screws (B).

Torque 75 ±5 in-lb.

8 Remove old labels and install new labels (A).

9 Install coupled hose, drain line and suction tube.

FIG. 2

CAUTION

Be careful not to damage wires on disassembly/assembly.

PP7 WIRING DIAGRAM

ALL CONTROL

AUTO PRIME

10A FUSE

ti10242a

ti10227a

ti10240a

312290A 3

FIG. 3

ti10287a

4312290A

Project Painter 5: 261800

Disassembly

1 Unplug electrical cord, and relieve pressure.

2 Remove suction tube, drain line and coupled hose.

3 Fig. 4. Cut AllControl labels at two places where upper

and lower housings mate (A).

4 Remove four screws (B) and base tube

5 Fig. 5. Stand sprayer in upright position. Remove four front

cover screws (C). Put

AllControl

knob in

ROLL

position.

6 Fig. 5. Remove front cover subassembly from base and

place face down on bench.

7 Fig. 4. Disconnect pressure control connector (D) from

control board.

8 Remove six screws (E) from pump housing.

9 Fig. 6. Turn sprayer with drive housing face up. Wiggle

drive housing and remove.

10 Remove two screws (F) from pressure control mounting

plate.

11 Remove pressure control assembly from pump housing.

FIG. 4

Assembly

1 Grease o-ring on pressure control assembly. Push

pressure control down into machined slots in pump

housing. Secure with two screws (F). Torque to 40 ±5 in-lb.

2 Align gears in drive housing with pump housing and

assemble housings. Keep drive housing and pump

housing together and turn sprayer with drive housing face

down,

3 Install pump housing to drive housing with six screws (E).

Torque 29 ±3 in-lb.

4PutAllControl knob in ROLL position.

5PlugAllControl harness connector (D) into control board.

Align electrical cord strain relief in drive housing.

6 Install sprayer in base with four screws (C).

Torque 29 ±3 in-lb.

7 Install base tube on frame with four screws (B).

Torque 29 ±3 in-lb.

8 Remove old labels and install new labels (A).

9 Install coupled hose, drain line and suction tube.

FIG. 5

CAUTION

Be careful not to damage wires on disassembly/assembly.

PP5 WIRING DIAGRAM

ALL CONTROL

10A FUSE

ti10241a

ti10288a

ti10289a

312290A 5

FIG. 6

ti10290a

6312290A

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

www.graco.com

6/2007
