Graco 4EVER DLX SNUGLOCK Manuel utilisateur

Do not install or use this child restraint until you read and understand the

instructions in this manual.

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF

SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.

www.gracobaby.com

NWL0000814217A 7/18

4EVER

®DLX

4-IN-1 CAR SEAT

1-A Quick Guide to Your Manual

1-B Welcome to the Graco Family

1-C Right Mode of Use

1-D Before You Begin

If You Need Help

Certification

Car Seat’s Useful Life

Vehicle Seat Protection

Warm Weather Use

1-E Safety Warnings

1 Important Pages 6-27

2 Features Pages 28-33

4-A Forward-Facing Use

4-B Install Forward-Facing with InRightTM LATCH

4-C Install Forward-Facing with the Vehicle Seat Belt

4 Forward-Facing Pages 47-64

3-A Rear-Facing Use

3-B Install Rear-Facing with InRightTM LATCH

3-C Install Rear-Facing with Vehicle Seat Belt

3 Rear-Facing Pages 34-46

6-A Securing Child 5-Point Harness

6-B Securing Child Highback Booster

6-C Securing Child Backless Booster

6 Securing Child Pages 81-97

Moving the InRightTM LATCH Strap

Pages 98-101

5-A Booster Use

5-B Install Highback Booster

5-C Install Backless Booster

5 Booster Pages 65-80

9-A How to Remove LATCH and Top Tether

9-B Choosing Vehicle Seat Location

9-C Unsafe Vehicle Seat Location

9-D Vehicle Seat Belts

10-A Cleaning RapidRemoveTM Seat Pad

10-B Cleaning the Buckle

10-C Cleaning Harness and LATCH Straps

9 Vehicle Information Pages 103-113

8 Accessories Page 102

10 Care & Cleaning Pages 114-117

1-A Quick Guide to Your Manual

This car seat is for children: Rear-Facing: 4-40 lb (1.8-18 kg)

Forward-Facing: 22-65 lb (10-30 kg)

Highback Booster: 40-100 lb (18.1-45 kg)

Backless Booster: 40-120 lb (18.1-54 kg)

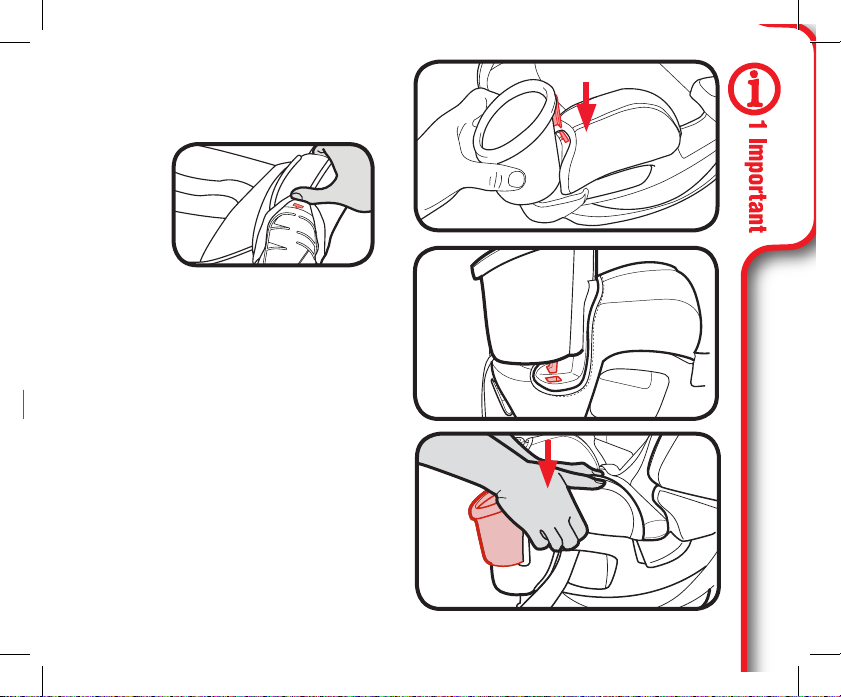

Install Cup Holders

Cup holders must be installed.

To attach the cup holders, match the

right cup holder (find the letter R on the

bottom of the cup holder) to the right

side of the seat and the left “L” to the

left.

• Infants who weigh less than 22 lb (10 kg) MUST be rear-facing. Review section 1-C

for more information.

Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.

According to the AAP, these infants may suffer breathing issues if improperly reclined in

a car seat. When rear-facing, use the corrected age for preemies. Graco advises that you

have your physician or hospital staff evaluate your infant and recommend the proper car

seat or car bed before you and your infant leave the hospital.

This car seat is for children: Rear-Facing: 4-40 lb (1.8-18 kg)

Forward-Facing: 22-65 lb (10-30 kg)

Highback Booster: 40-100 lb (18.1-45 kg)

Backless Booster: 40-120 lb (18.1-54 kg)

Move the fabric aside and align the tab

behind the cup holder with the slot in

the seat.

Align the tab on the bottom of the cup

holder with the hole in the seat.

Use both hands to push down hard

on the cup holder. You will hear a

“Click” when they are secured in

place.

continue next page

Get to Know Your Car Seat

What Seating Location Should I Use?

Review section 2-A to see all of the features of this car seat.

The best seating location for this car seat is one that:

• Is recommended by your vehicle owner’s manual, and

• Results in a secure installation of this car seat.

Some vehicles have specific requirements for where the car seat can be

installed, so be sure to check your vehicle owner’s manual for available

seating positions, if any. For example, sometimes the center rear seat has a

lap belt only vehicle seat belt, which cannot be used when this car seat is in

Booster mode.

Review section 9-C, 9-D of this manual AND your vehicle owner’s manual.

NEVER place this child restraint rear-facing in a vehicle

seating location that has an active front air bag.

In the event there is no back seat, review your vehicle owner’s

manual to see how to use your child restraint.

Which Installation Method Should I Use?

This car seat can be installed in your vehicle using either the vehicle seat

belt OR the LATCH system. Both are equally safe to use. DO NOT USE BOTH

AT THE SAME TIME IN THE 5-POINT HARNESS MODE. Graco allows the

securing of the car seat with LATCH system in the booster mode, only if the

vehicle manufacture allows it.

Vehicle Seat Belt: Review section 9 and your vehicle owner’s manual to

learn how to install your car seat with the vehicle seat belts.

LATCH: The LATCH system allows you to securely attach your safety seat

in your car without using the vehicle seat belt and possibly to get a better

fit. All 2003 and newer model year vehicles are required to have a LATCH

system, although some manufacturers began including LATCH earlier. Some

vehicle owner manuals use the term ISOFIX to identify the LATCH system.

According to crash statistics, the safest

place for your child in any vehicle is the

back seat. The center of the back seat can

be the safest during a possible side impact.

LATCH consists of lower anchors and top tether anchors, which are built-

in to your vehicle, and connecting hooks that are built-in to your car seat.

Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the

child seat to the vehicle. Top tethers are used IN ADDITION to the lower

anchors OR the vehicle’s seat belt to secure a forward-facing car seat to

the vehicle.

Review your vehicle’s owner manual for exact location and use.

What is LATCH?

Vehicle Top Tether

Anchor Points

Vehicle Lower

Anchor Points

Typical seat in a passenger

vehicle. Other vehicle types

may have different LATCH

locations.

Vehicle Seat Bight

continue next page
