Graco ISPC021BE Manuel utilisateur
READ THIS MANUAL
KEEP INSTRUCTIONS FOR FUTURE USE.
Do not install or use this infant restraint until you
read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN
A SUDDEN STOP OR CRASH.
© 2004 Graco ISPC021BE 07/04 US
Infant Restraint/Carrier
Owner’s Manual
2
1.0 Warnings to Parents and Other Users . . . . . . . . . . . . . . . .4-5
2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .6
2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .8-15
3.1 3-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.2 5-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3 Removing andAttaching Base . . . . . . . . . . . . . . . . . . . . .13
3.4 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.5 Attaching Canopy (certain models) . . . . . . . . . . . . . . . . .14
3.6 Head Support (certain models) . . . . . . . . . . . . . . . . . . . .15
3.7 Cold Weather Boot (certain models) . . . . . . . . . . . . . . . .15
4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .16-20
4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .16
4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .18
4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .19
4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .20
5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .21-26
5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .21
5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .22
5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .23
5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .24
5.3 LATCH locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3
6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-40
6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .27
6.1.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.1.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .29
6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .31
6.2.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .32
6.2.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .33
6.3 Installing Infant Restraint/Base Using Vehicle Belt . . . . . .34
6.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .37
6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .38
7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .41-43
7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .42
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45
4
No infant restraint can guarantee protection from injury in every
situation. However, proper use of this infant restraint reduces the
risk of serious injury or death to your child.
Failure to properly use this infant restraint increases the risk of
serious injury or death in a sharp turn, sudden stop or crash.
Your child’s safety depends on you installing and using this
infant restraint correctly.
Even if using this infant restraint seems easy to figure out on your
own, it is very important to READ THE OWNER’S MANUAL.
The manual is located in the back pocket of the infant restraint.
You must also read your vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing a suitable location in your vehicle. Some seating
positions, such as those equipped with air bags, may not be
safe locations for this infant restraint.
2. Inserting the harness straps in the proper slots for your child.
3. Properly securing your child in the infant restraint.
4. Placing infant restraint/base in a rear-facing position.
1.0 Warnings to Parents and
Other Users
5
5. Properly routing the vehicle seat belt or LATCH.
6. Properly reclining the infant restraint.
7. Properly securing the infant restraint in the vehicle using a
seat belt designed to restrain an infant restraint or by using
LATCH. Many seat belts are NOT safe to use with infant
restraints, even though they can easily be threaded through
the infant restraint!
6
Model Number:
Manufactured in:
Purchase Date:
2.1 Register Your Infant Restraint
Please fill in the above information. The numbers can be found on a
label underneath your infant restraint. Fill out the prepaid registration
postcard attached to the seat cover and mail it today.
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address and model number to:
Graco Children’s Products Inc.
150 Oaklands Blvd.
Exton, PA19341
or call 1-800-345-4109
• Call the U.S. Government’sAuto Safety Hotline
at 1-800-424-9393 (202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Graco: 1-800-345-4109 or www.gracobaby.com
2.2 Recall Information
2.0 Registration Information
7
2.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service
Department with any questions you may have concerning parts, use,
or maintenance. When you contact us, please have your product’s
model and serial numbers ready so that we may help you
efficiently. These numbers can be found on a sticker on the
underside of your infant restraint.
USA: 1-800-345-4109 or www.gracobaby.com
Canada: 1-800-667-8184 Montreal: 514-344-3533
8

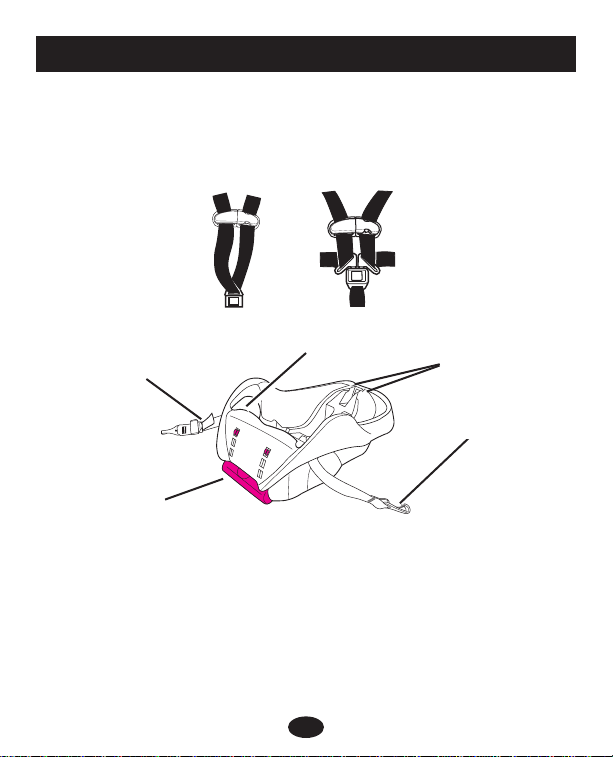

Vehicle belt/LATCH* path
Each model of the infant restraint comes with different harness
options. To adjust your infant restraint properly, it is very
important to follow the instructions that are appropriate for the
model you have purchased.
3.0 Features and Components
OR 5-Point Harness3-Point Harness
United States Federal Motor Vehicle Safety Standards have defined a
new system for installing car seats in vehicles. The system is called
LATCH.
* LATCH may be used IN PLACE of vehicle belt ONLY if vehicle is equipped
with LATCH anchor points. Please refer to vehicle owners manual for
LATCH locations.
Base
Adjustable Foot
LATCH Connectors
Adjustment Belt LATCH
Storage
Bars
9
3.1 3-Point Harness Model
Handle
Harness
slots
Vehicle belt
hook
Handle
adjustment
button
Harness
clip
Harness
buckle Harness
straps

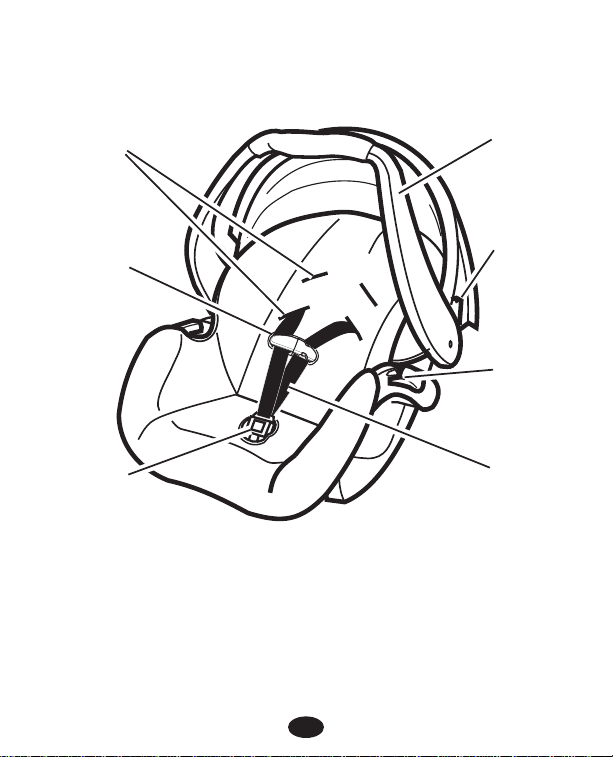

FRONT VIEW: 3-POINT HARNESS
10

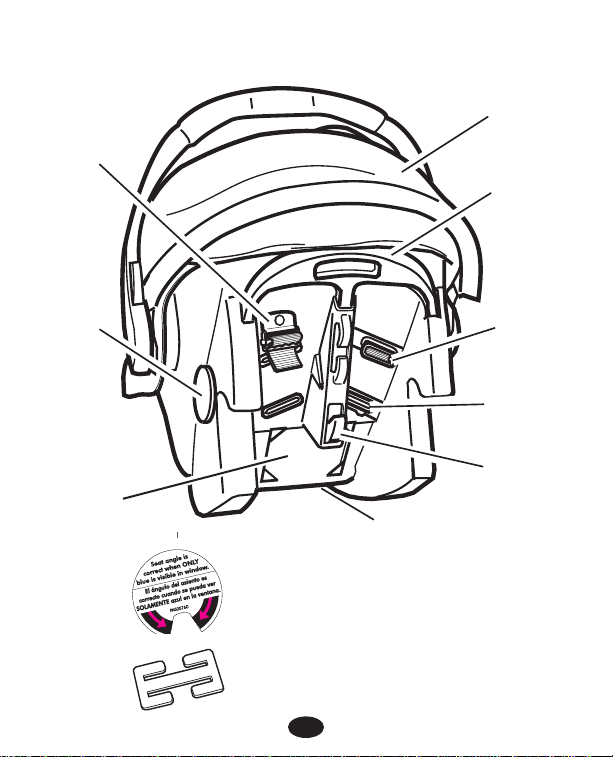

REAR VIEW: 3-POINT HARNESS
Canopy
(on certain models)
Harness
slot
Release
handle
Attachment
latch
Level
indicator*
Owner’s
manual
pocket Locking
clip**
Harness
anchor
buckle
Harness
tightener
The level indicator is attached to the side of
the infant restraint, and indicates whether or
not the infant restraint is properly reclined.
The locking clip is stored on the bottom of
the infant restraint. You will need to use it
with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator
