Gossen MetraWatt E-Clip 1 Manuel utilisateur

User manual

E-Clip 1 / E-Clip 2

Current Clamps

20 751 208

3-349-447-03

1/11.20

E-Clip 1 / E-Clip 2 Current Clamps

Table of contents

1. WARNINGS..............................................................................................................2

2. DESCRIPTION OF CURRENT CLAMPS.................................................................3

3. MAINTENANCE.......................................................................................................3

3.1. INSPECTION.............................................................................................................3

3.2. CLEANING ...............................................................................................................4

3.3. SERVICE AND CALIBRATION.......................................................................................4

4. CURRENT CLAMP OPERATION............................................................................4

4.1. SUBSTITUTE ELECTRIC MODEL FOR CURRENT CLAMPS.................................................4

4.2. TYPICAL APPLICATIONS.............................................................................................5

5. SPECIFICATIONS ...................................................................................................6

5.1. GENERAL PURPOSE CURRENT CLAMP WITH CURRENT OUTPUT .....................................6

5.2. SENSITIVE CURRENT CLAMPS WITH CURRENT OUTPUT.................................................6

5.3. GENERAL (ALL TYPES)..............................................................................................7

1. Warnings

To ensure a high level of operator's safety during using of current clamps the following warnings

have to be considered:

Do not use the current clamp if any damage is noticed!

Do not leave open nodes of the current clamp with current output (E-Clip 1, E-Clip 2)

during measurement to avoid damage and electric shock on secondary side, never

enclose conductor in the jaw unless the clamp is connected to measuring instrument!

Only a competent, authorized person is allowed to carry out service intervention!

Consider all generally known precautions in order to avoid risk of electric shock

while dealing with electric installations!

Do not extend hands over safety barrier to prevent of electric shock! Only handles are

allowed to be touched during measurement!

Symbol on the current clamp indicates the possibility to use the current clamp on

non-insulated conductors.



Symbol on the current clamp indicates the possibility of a hazardous live

condition if the operator ignores the required safety measures.

If the current clamp is used in a manner not specified in this User manual, the

provided protection can be impaired!

E-Clip 1 / E-Clip 2 Current Clamps

2. Description of current clamps

The E-Clip 1and E-Clip 2 are 1000/1 ratio current clamps for measuring alternating currents in

the range from 1 mA to 1000 A (depending on the type).

They can be connected to any power analyzer, energy analyzer, harmonics analyzer,

multimeter, earth resistance meters, electrical installation testers and other measuring

instruments with compatible voltage or current inputs.

In chapter 4 some typical current clamp applications are described.

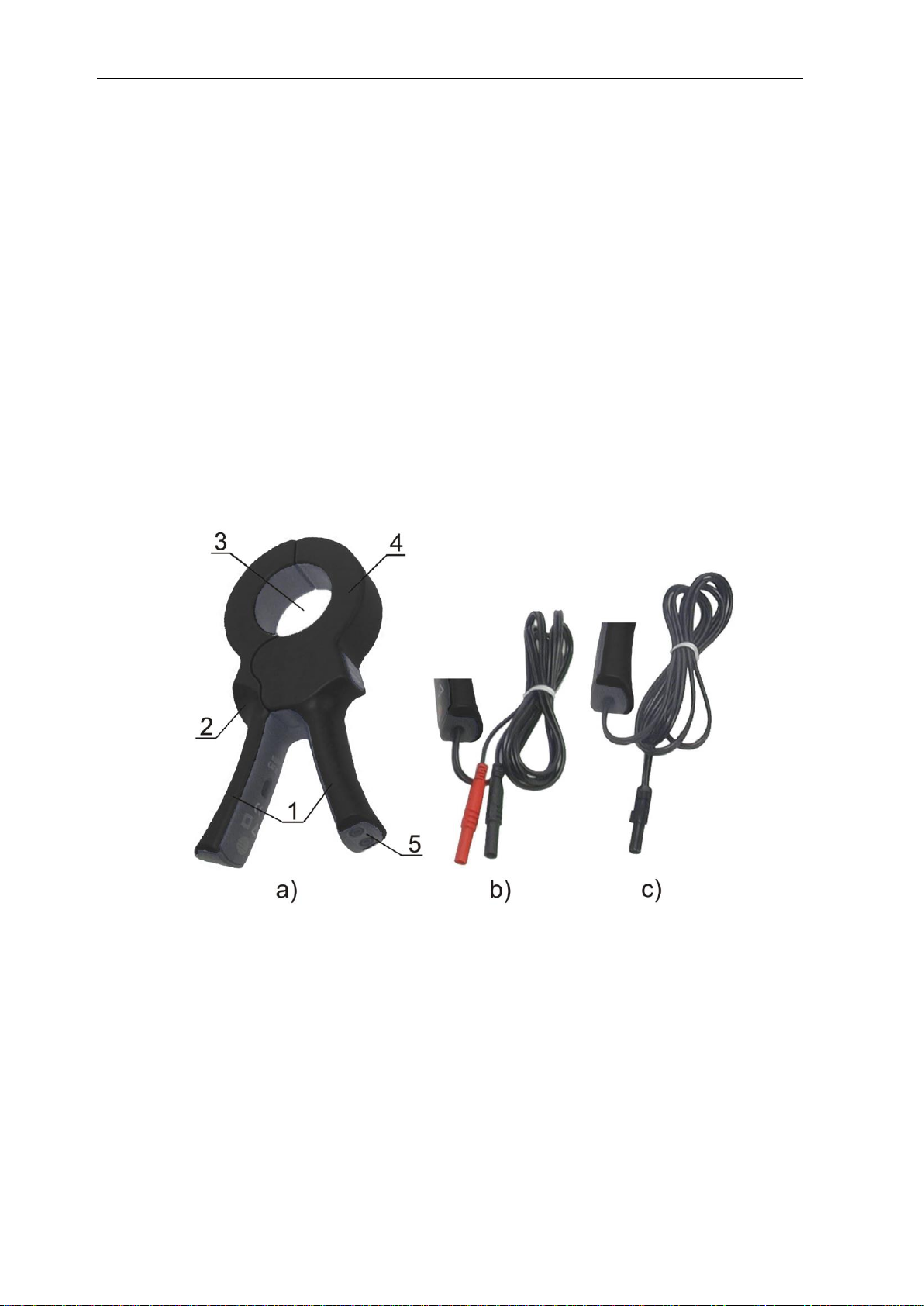

The current transducer is housed in a plastic case that maintains the protection class defined in

technical specifications. It consists of:

1. Handles,

2. Safety barrier,

3. Conductor opening,

4. Current transformer,

5. Connection with:

a) Safety banana sokets (E-Clip 2),

b) Cable connection (length = 1.5 m) with safety banana terminals

(E-Clip 1),

3. Maintenance

3.1. Inspection

To maintain operator safety and ensure reliability of the current clamp it is good practice to

inspect it on a regular basis. Check that the enclosure and optional connection are without

defects such as scratches or breaks.

Jaw surface must be clean. Pollution on jaw surfaces reduces the current clamp sensitivity.

E-Clip 1 / E-Clip 2 Current Clamps

3.2. Cleaning

Use a soft cloth moistened with soapy water or alcohol to clean non-metallic surface of the

current clamps and leave them to dry totally before using it.

Notes!

Do not use liquids based on petrol or hydrocarbons!

Do not spill cleaning liquid over the current clamps!

To clean jaw cut surfaces use slightly oiled soft cloth.

3.3. Service and calibration

It is essential that your clamp is regularly calibrated in order to guarantee the technical

specification listed in this User manual. We recommend 2-year calibration interval.

Metrel encloses an original calibration certificate with every new instrument and clamp.

For recalibration and repairs under or out of warranty time please contact your distributor for

further information.

4. Current clamp operation

4.1. Substitute electric model for current clamps

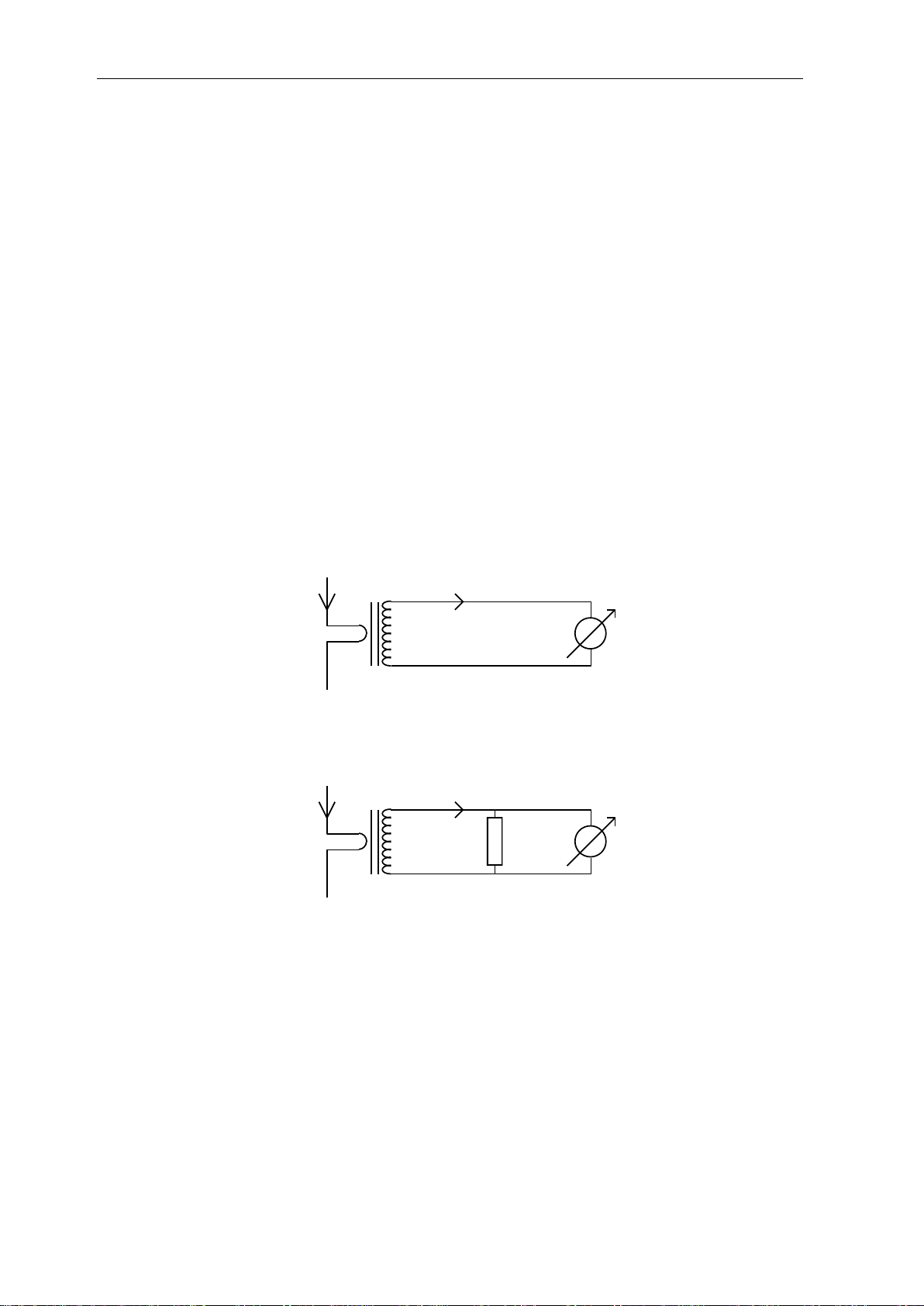

Equivalent circuit diagram for current clamp measurement:

Im Is

Clamp

current transformer

Clamp

current transformer

Symbols on circuit diagrams have following meaning:

Measured (AC) current, primary current

Measured current, current transformer secondary current

Number of primary turns - normally N1=1 for current clamps

Number of secondary turns (1000 for all types)

A-meter

Measuring resistor

V-meter

E-Clip 1 / E-Clip 2 Current Clamps

Clamp current transformer must always have a low impedance load on its secondary side. This

loading is realized with an A-meter (for current sensors with current output). Current clamp with

voltage output already contains the load resistor and its output voltage is proportional to

measured current.

The N1:N2 ratio (primary to secondary winding turns ratio) defines the step-down current ratio

and sensitivity of current clamps. For N2 = 1000 the sensitivity is defined as

1 mA / 1 A, i.e.: 1 mA of output current is generated from 1 A primary current for

N1 = 1. The general formula for sensitivity are given below:

II mS 

for current output, and

Lm R



for voltage output.

N1 is always integer and means number of passes of conductor carrying measured current

through conductor opening of current clamp.

4.2. Typical applications

Some typical applications of current measurement for standard sensitive current clamps

(E-Clip 2) in combination with appropriate measuring instrument:

-Harmonic analysis,

-Measuring electrical power,

-Measuring current and energy consumption,

-Functional testing of appliances, machines,

-Measuring equipment inrush current, etc.

Additional applications related to low current measurements can be covered with high sensitive

type current clamps (E-Clip 1):

-Measurement of PE leakage current,

-Measurement of differential current and/or current difference,

-Contactless measurement of earth resistance,

-Determining problems in lighting and grounding systems.

E-Clip 1 / E-Clip 2 Current Clamps

5. Specifications

5.1. General purpose current clamp with current output

Type: E-Clip 2

Rated current: 1000 A

Current ratio : 1000:1

Output:1 mA/A, safety banana sockets



4 mm

Electrical characteristics (at R = 1 ):

Measuring range: 0.2 A ÷ 1200 A

Output signal: 0.2 mA ÷ 1.2 A (0.2 A ÷ 1200 A)

Accuracy and phase error:

Primary current [A]

0.1 ÷ 10

200

1000

1200

Accuracy of output current [%]

2.5

2

1.5

0.9

0.7

Phase error []

n.a.

3

1.7

0.9

0.7

Frequency range:

40 Hz ÷ 5 kHz

Continuity of measurements:

1000 A r.m.s. (f < 1 kHz) continuous

1200 A r.m.s. (40 min / 20 min intermitted)

Load impedance:

10 

Working voltage:

600 V max.

Influence of neighbor conductor:

<1 mA/A at 50 Hz

Influence of conductor position

<0.3 % at f < 400 Hz

Influence of loading:

2 to 10 : 1 % and 1 

Influence of DC current offset:

<2.5 % for IDC < 30 A

5.2. Sensitive current clamps with current output

Type: E-Clip 1

Rated current: 1000 A

Current ratio : 1000:1

Output: 1 mA/A, safety banana plugs



4mm

Electrical characteristics (R = 1 )

Current measuring range: 0.001 A ÷ 1200 A

Output signal: 1 A ÷ 1.2 A (1 mA ÷ 1200 A)

Accuracy and phase error

Primary current [A]

0.1m ÷ 100m

0.1 ÷ 1

1 ÷ 10

10 ÷ 100

100 ÷ 1200

Accuracy of output current

[%]

3

2

1.2

1

0.5

Phase error []

n.a.

2.2

1

0.7

Frequency range:

40 Hz..5 kHz

Continuity of measurements:

1000 A r.m.s. (f < 1kHz) continuous

1200 A r.m.s. (40 min / 20 min intermitted)

Load impedance:

10 

Working voltage:

600 V max.

Influence of neighbor conductor:

<1 mA/A at 50 Hz

E-Clip 1 / E-Clip 2 Current Clamps

Influence of conductor position

<0.3 % at f < 400 Hz

Influence of loading:

2 to 10 : 1 % and 1

Influence of DC current offset:

<2.5 % for IDC < 15 A

5.3. General (all types)

Safety specification

Over voltage category: 600 V CAT III,

Pollution degree: 2

Double insulation

Environment conditions

Working temperature: -10 C ÷ 50 C

Storage temperature: -30 C ÷ 70 C

Humidity: 0 % ÷ 85 %, linearly decreasing for T

> 35 C

Altitude: working 0 to 2000 m

Applied standards

Safety: EN/IEC 61010-1

EN/IEC 61010-2-32

Mechanical data

Jaw opening: 52 mm

Maximum conductor sizes:

cable: 50 mm

bar: 1 bar 50 mm x 5 mm,

4 bars 30 mm x 5 mm

Flammability of plastic housing:

UL94 –UV1

Dimension: 220 mm x 120 mm x 48 mm

Weight: 600 g

Other outputs availability

Contact manufacturer or local distributor for

further information.

Repair and Replacement Parts Service

DKD Calibration Lab

and Rental Instrument Service

When you need service, please contact:

GMC-I Service GmbH

Service-Center

Beuthener Straße 41

90471 Nürnberg ● Germany

Phone +49 911 8602-0

Fax +49 911 8602-253

E-Mail service@gossenmetrawatt.com

This address is only valid in Germany.

Please contact our representatives or subsidiaries for service in other countries.

Product Support

When you need support, please contact:

Gossen Metrawatt GmbH

Product Support Hotline

Phone +49 911 8602-931

Fax +49 911 8602-709

E-Mail support@gossenmetrawatt.com

 

Telefon+49 911 8602-111

Gossen Metrawatt GmbH Telefax +49 911 8602-777

Südwestpark 15 E-Mail info@gossenmetrawatt.com

90449 Nürnberg ● Germany www.gossenmetrawatt.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gossen MetraWatt Instrument de mesure

Gossen MetraWatt

Gossen MetraWatt Luna-Pro sbc Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt MAVOWATT 210 ROGOWSKI Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt PROFITEST PV 1500 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt DIGISKY Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt MAVO-MONITOR Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt SECULIFE ES TECH Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRACLIP 41 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt SECULIFE IA Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt MAVOSPEC BASE Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRISO C Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt DIGISKY Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt MAVOWATT 4 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRISO PRO Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt MAVOMASTER Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRA HIT 22S Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRISO G1000 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRACLIP 88 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt LonWorks ENERGYMID U228 W1 Series Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt lunasix Mode d’emploi

Gossen MetraWatt

Gossen MetraWatt LonWorks U128-W1 Series Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt mavolog pro Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRACLIP EARTH Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRISO G1000A Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt PROFITEST MBASE MTECH Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
