XB4CDGX

CD Karaoke

User Guide

IMPORTANT: Please read all instructions carefully before use and keep for future reference

CDG522E XB4CDGX.indd 1 2009/8/25 4:54:46 PM

Introduction

Thank you for choosing this Goodmans CD Karaoke.

Your CD Karaoke will provide you with fun and entertainment. It can let you be

the “star” while singing with your favorite recordings and also display the song

lyrics on your TV screen.

It’s really easy to use; here are a few of the features:

Lyrics on TV screen - displays song lyrics when playing CD+G discs.

Auto Voice Control - lets you replace the original singer’s voice with your own

voice when playing a karaoke CD.

Balance Control - lets you adjust the balance between the prerecorded original

singer’s voice and the music when playing a karaoke CD.

Echo Control - lets you add an echo effect to your voice.

Auxiliary Input - lets you connect an auxiliary device such as an MP3 player so

you sing along to your favourite tracks.

Safety is important

Use of any electrical equipment should be undertaken with care. Please

read the safety section on page 10-12 before using your CD Karaoke. This

appliance is for household use only.

What’s in the box?

Contents

Introduction......................................................................................................1

What’s in the box...............................................................................................2

01 Your CD Karaoke........................................................................................3

02 Making Connections....................................................................................4

03 CD or CD+G Operation...............................................................................5CD or CD+G Operation...............................................................................5...............................................................................5

04 AdditionalFeatures......................................................................................7

05 Troubleshooting........................................................................................8Troubleshooting........................................................................................8........................................................................................8

05 Speciﬁcations...........................................................................................9Speciﬁcations...........................................................................................9.................................................................................9

07 Warnings.................................................................................................10.................................................................................................10..............................................................................10

08 Guarantee.................................................................................................13Guarantee.................................................................................................13..............................................................................13

CD Karaoke

This User Guide

MicrophoneScart Cable

Your CD Karaoke

Top

Front

Rear

MIC holder

CD Door

HANDLE

STANDBY

indicator

LED display

PROGRAM

indicator

REPEAT

indicator

PLAY/PAUSE

indicator

MIC VOLUME Knob

AUTO VOICE CONTROL Knob

BALANCE Knob

FUNCTION Switch

PLAY / PAUSE Button

SKIP Forward Button

MASTER VOLUME Control &

STANDBY-ON Button

ECHO +/– Buttons

SCART OUT Socket

AUDIO IN Sockets

Mains Power Cord

SKIP Backward Button

STOP Button

PROGRAM Button

REPEAT Button

MIC 1

MIC 2

SPEAKER

HANDLE

Making Connections

CONNECTING POWER

Connect the 3 pin plug to a suitable mains wall outlet.

VIDEO CONNECTION

Please follow the steps below to display CDG lyrics on the TV screen:

1 Locate the scart cable.

2 Connect the scart cable to the SCART OUT socket of the back of the CD

Karaoke.

3 Connect the other end of the scart cable to the SCART IN socket on your TV

or VCR.

DON’T FORGET!

The sound from the CD Karaoke will also be heard through the speakers on

the TV set.

It is recommended not to have the volume of the TV set too high when using

the CD Karaoke.

DON’T FORGET!

When connecting the CD Karaoke to your TV set, you must specify the

correct input on your TV.

This is usually shown on the TV remote control as “AV”, “INPUT”, “AUX” or

“EXT” etc.

If you have difﬁculty in seeing the song lyrics from the Karaoke CD after

connecting to your TV set, please consult the user guide for your TV, or

alternatively contact our customer helpline on 0871 230 1777 for advice.

CD and CD+G Operation

Handling CDs

To remove a disc from its storage case, press

down on the centre of the case and lift the

disc out, holding it carefully by the edges.

Fingerprints and dust should be carefully wiped off the disc’s recorded surface

with a soft cloth before use.

DON’T FORGET!

Never use chemicals such as record sprays, antistatic sprays, benzene, or

thinners to clean compact discs.

These chemicals can damage the disc’s surface.

Switching On

Auto Power Off

1Press the

If no audio signal is continuously detected from CD or Aux In for more than

30 minutes, the unit will power-off automatically.

STANDBY/ON button to turn the unit ON.

To turn the CD Karaoke off, press the STANDBY/ON button again to turn the

unit off, the STANDBY indiicator will light.

Adjusting the Volume

1Rotate the MASTER VOLUME control to adjust the volume to a comfortable

level.

Playing a CD or CD+G Disc

1Slide the FUNCTION switch to the CD position.

2Lift up the CD door and carefully place a CD or CD+G onto the central

spindle.

DON’T FORGET!

Place the CD label side upwards

3Close the CD door. After a few seconds the display will show the total

number of tracks on the disc.

DON’T FORGET!

If no CD, or a scratched or dirty CD is loaded, the display will show “NO”.

CD and CD+G Operation

Playing/Pausing a track

1Press the PLAY/PAUSE button to begin playback of the ﬁrst track. The

Play/Pause indicator will light.

2To pause playback , press the PLAY/PAUSE button. The Play/Pause

indicator will ﬂash.

3To resume playback, press the PLAY/PAUSE button again.

4To stop playback of the CD, press the STOP button. The total number of

tracks will be shown in the display.

DON’T FORGET!

If you are playing a CD+G disc, the song lyrics will be displayed when you

connect the CD Karaoke to your TV set with the supplied scart lead.

Skipping Tracks

1During playback, press the SKIP / buttons to skip to the next or

previous track.

Searching tracks (audio CD only)

1 During playback, press and hold the SKIP / buttons to search

forwards or backwards through the current track.

2 To resume playback, release the SKIP / buttons.

Repeating Tracks

1 During playback, to repeat the current track, press the REPEAT button once.

The Repeat indicator will ﬂash.

2 To repeat all tracks on the disc, press the REPEAT button twice. The Repeat

indicator will stay lit.

3 To cancel the Repeat function, press the REPEAT button again. The Repeat

indicator will turn off.

Programming Tracks

1 In STOP mode, press the PROGRAM button. The Program indicator will

ﬂash and “0” will show in the display.

2 Use the SKIP / buttons to select the ﬁrst track you wish to

program.

3 Press the PROGRAM button to enter this into the memory.

4 Repeat steps 2and 3until all the desired tracks are programmed into the

memory.

DON’T FORGET!

A maximum of 20 tracks can be programmed into the memory.

5To begin playback of the programmed tracks, press the PLAY/PAUSE

button.

6To clear the programmed tracks, press the STOP button twice.

Additional Features

Auto Voice Control

To replace the original singer’s voice with your own when a pre-recorded

multiplex karaoke disc is used:

1Rotate the Mic VOLUME to the desired level.

2Rotate the AUTO VOICE CONTROL to achieve a balance between playback

and microphone volume levels.

DON’T FORGET!

When the AUTO VOICE CONTROL is selected, the pre-recorded

singer’s voice on the karaoke CD will mute when you start to sing into the

microphone.

Balance Control

To adjust the balance between the original singer’s voice and the music when a

pre-recorded multiplex karaoke disc is used:

1Turn the BALANCE CONTROL between music and vocal to achieve the

desired effect.

Echo Control

1In stop mode or playback mode, press the ECHO + or - buttons to increase

or decrease the echo effect.

The echo effect value will show in the display.

DON’T FORGET!

There are 8 levels of echo effect available

2 When the desired echo level is reached, the display will return to the current

track number after a few seconds.

Auxiliary In Sockets

You can connect an auxiliary device to the CD Karaoke in the following way:

1Connect an RCA/Phono type lead to the AUDIO IN sockets on the rear of

the CD Karaoke.

2Connect the other end to your auxiliary device.

3Slide the FUNCTION switch to the AUX position.

4Turn on the auxiliary device and play the content in the usual way. The

sound will be heard through the CD Karaoke’s speaker.

Troubleshooting

Problem

No power.

No sound.

CD not reading corectly,

“”, “ ” or “ ” are

displayed.

No sound - if audio is

going through TV or VCR.

No song lyrics appear on

screen.

Possible Cause

No power plug connection at

the AC outlet.

Volume control is set to minimum.

The wrong function is selected.

Disc is inserted upside down.

Disc is dirty.

Disc is scratched.

A nonstandard disc is inserted.

Moisture has formed inside on the

CD lens.

Source Selection on TV or VCR is

not correct.

Scart lead is not connected properly

to the TV.

Source selector on TV is not set to

AV input.

Solution

Insert the power plug into the AC outlet.

Turn up the volume.

Select the correct function.

Insert disc correctly.

Wipe clean with soft cloth.

Use a new disc.

Only use discs bearing standard logo .

Wait about 20 to 30 minutes to let it dry out.

Follow directions of “Video Connection”.

Connect the scart cable to the SCART socket

and to the TV SCART IN.

Select the AV input on your TV.

Need extra help?

Don’t worry we are just at the other end of

the phone. If you are experiencing problems

using your new product, before returing it to

the retailer, just call 0871 230 1777.

Need a spare parts?

In the unlikely event of you needing spare

parts, please contact our spares department

on: 0871 230 0790

Speciﬁcations

Model Number •XB4CDGX

Power source •AC 230V ~ 50Hz

Power consumption •18W

Frequency response •100 – 18,000 Hz

Power Output •5W

Speaker •3” 4 ohms

Microphone •-74 dB 600ohms impedance

with ø6.3mm dynamic microphone

Unit dimensions •192 (D) x 199.3 (W) x 281.2 (H) mm

Unit weight •approx. 2.5 kgs

IMPORTANT: Due to continual revision and improvements to our products

design, speciﬁcations arer subject to change wihtout notice.

Autres manuels pour XB4CDGX

Table des matières

Autres manuels Goodmans Système de karaoké

Goodmans

Goodmans XB16CDGBT Manuel utilisateur

Goodmans

Goodmans XB25CDG Manuel utilisateur

Goodmans

Goodmans XB4CDGX Manuel utilisateur

Goodmans

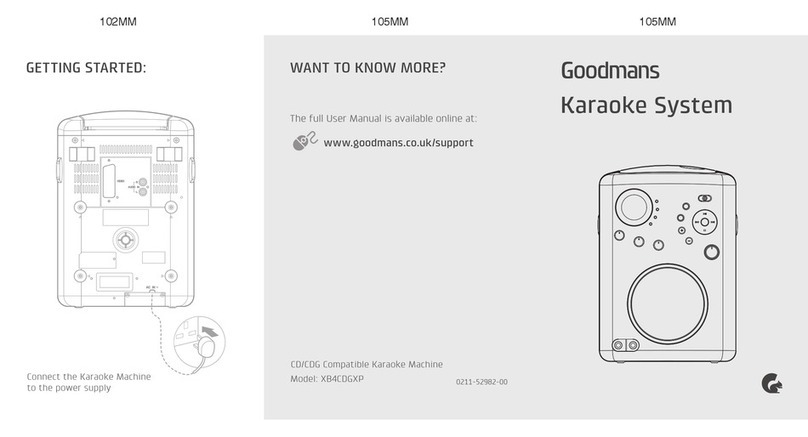

Goodmans XB4CDGXP Manuel utilisateur

Goodmans

Goodmans XB13CDG Manuel utilisateur

Goodmans

Goodmans XB12DCDG Manuel utilisateur

Goodmans

Goodmans XB13CDG Manuel utilisateur

Goodmans

Goodmans X2BCDG Manuel utilisateur

Goodmans

Goodmans XB6CDG Mode d’emploi

Goodmans

Goodmans XB16CDGBT Manuel utilisateur

Goodmans

Goodmans XB5CDG Manuel utilisateur

Goodmans

Goodmans XB13CDG Manuel utilisateur

Goodmans

Goodmans XB9CDG Manuel utilisateur

Goodmans

Goodmans XB7CDGIP Manuel utilisateur

Goodmans

Goodmans XB6CDG Manuel utilisateur

Goodmans

Goodmans XB9CDG Manuel utilisateur

Goodmans

Goodmans 339562 Manuel utilisateur

Manuels Système de karaoké populaires d'autres marques

The Singing Machine

The Singing Machine STVG-519 Manuel utilisateur

Memorex

Memorex MKS2430 Manuel utilisateur

Tosing

Tosing 008 Manuel utilisateur

Karma

Karma KSTATION Manuel utilisateur

The Singing Machine

The Singing Machine SML2250 Manuel utilisateur

LG HT902TR-XK Manuel utilisateur

Karaoke Warehouse

Karaoke Warehouse Player 2000 Manuel utilisateur

VocoPro

VocoPro DVG-888K II Manuel utilisateur

ION

ION DISCOVER KEYBOARD USB Manuel utilisateur

The Singing Machine

The Singing Machine SMVG-620 Manuel utilisateur

Singsation

Singsation CENTER STAGE FREESTYLE Manuel utilisateur

RSQ

RSQ NEO K-2 Manuel utilisateur

VocoPro

VocoPro BRIDGE Manuel utilisateur

The Singing Machine

The Singing Machine SMK1010 Manuel utilisateur

MASINGO

MASINGO Illuminato Q4 Manuel utilisateur

auna

auna DisGo Manuel utilisateur

auna

auna Karaoke Star 2 Manuel utilisateur

DAPAudio

DAPAudio DVMP-150 Manuel utilisateur
