GoMax Electronics CV-900S Manuel utilisateur

VGA to CVBS Scaler Converter

User Manual

rev: 150605

Made in Taiwan

CV-900S

Safety and Notice

The CV-900S VGA to CVBS Scaler Converter has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all

electronic equipments, the CV-900S should be used with care. Please read and follow the safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

TABLE OF CONTENTS

INTRODUCTION................................................................................................................1

FEATURES........................................................................................................................1

PACKAGE CONTENTS...................................................................................................1

SPECIFICATIONS..............................................................................................................2

PANEL DESCRIPTION ......................................................................................................3

CONNECTION DIAGRAM.................................................................................................. 4

LIMITED WARRANTY........................................................................................................5

INTRODUCTION

The CV-900S VGA to CVBS Scaler Converter offers an easy and instant approach for converting analog

PC video (VGA) to analog video (CVBS) in real time. With this module, CVBS based receivers such as TV

can be readily connected to VGA based devices such as PC.

FEATURES

Maximum pixel rate : 165MHz

Supports nosie reduction and video enhancement features

USB firmware upgradable for expanding compatibility

Wall-mount housing design for easy installation

PACKAGE CONTENTS

1x CV-900S

1x 5V/2A power supply unit

1x User Manual

SPECIFICATIONS

Model Name

CV-900S

Technical

Role of usage

VGA to CVBS Converter

Frequency bandwidth

165MHz

Audio support

N/A

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

4-layer board [impedance control — differential 100Ω; single 50Ω]

Firmware update

Feasible via USB Port

CEC Channel

N/A

Input

1x VGA

Output

1x BNC(CVBS)

VGA connector

HD-15 [15-pin D-sub female]

BNC connector

75Ω inter-locked socket

USB connector

Mini B

Mechanical

CV-900S

Housing

Metal enclosure

Dimensions

[L x D x H]

Model

124 x 82 x 28mm [4.8” x 3.2” x 1.1”]

Package

198 x 152 x 74mm [7.8” x 6” x 2.9”]

Carton

420 x 400 x 300mm [16.5” x 15.7” x 11.8”]

Weight

Model

282g [9.9oz]

Package

537g [18.9oz]

Fixedness

Wall-mounting case with screws

Power supply

5V 2A DC

Power consumption

1.325 W

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60

C [-4~140

Relative humidity

20~90% RH [no condensation]

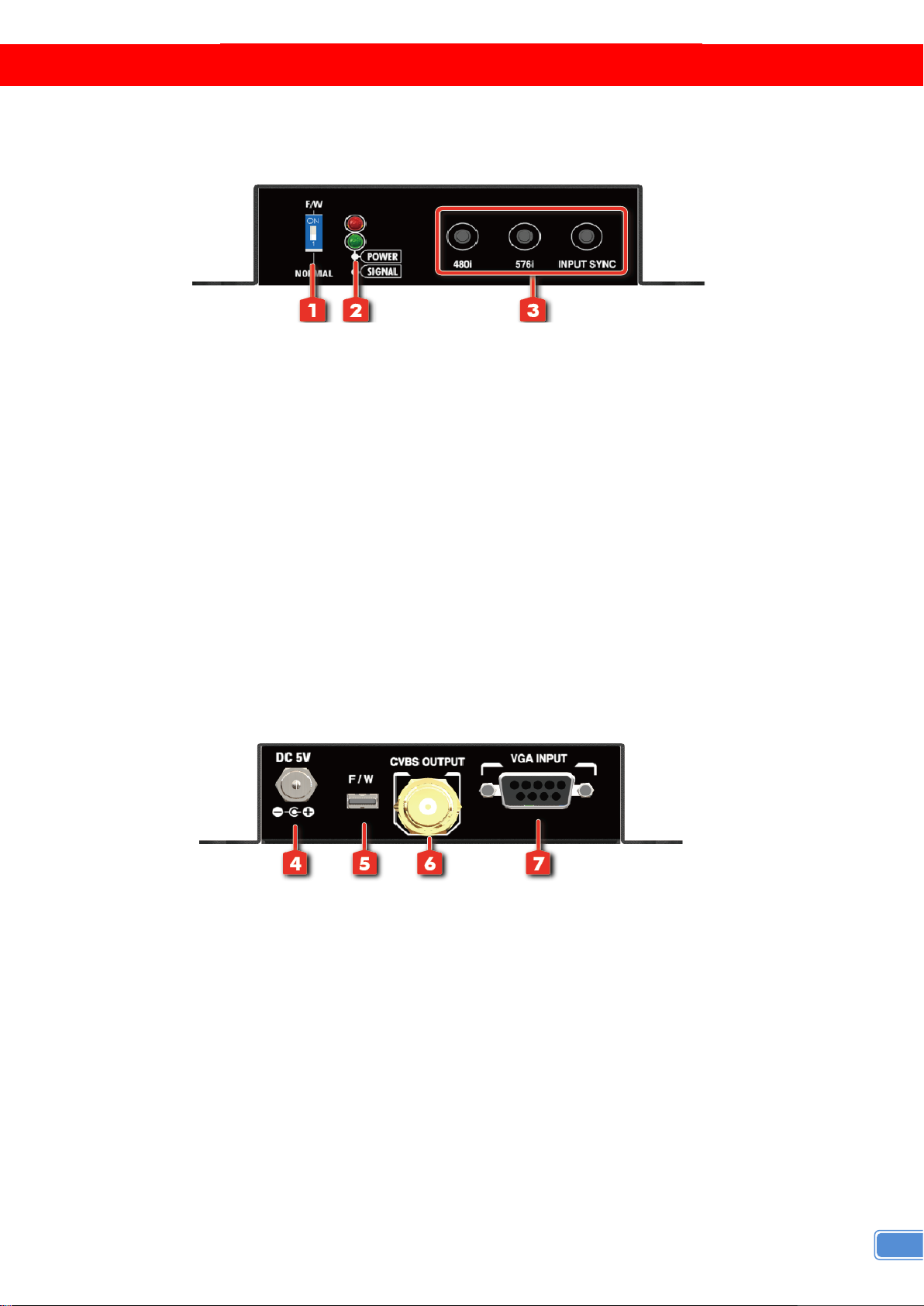

PANEL DESCRIPTION

Front Panel

1. DIP SWITCH: For firmware update

ON []: firmware update mode

OFF []: normal mode

2. LED INDICATOR:

[green]: signal indicator LED

[red]: power indicator LED.

3. PUSH BUTTON

[LEFT]: Output Resolution 480i

[MID]: Output Resolution 576i

[RIGHT]: Input signal information

Rear Panel

4. +5V DC: Interlocking power jack for 5V DC power supply unit

5. Mini USB: F/W update

6. CVBS OUT: connect to CVBS receiver

7. VGA IN: connect to a VGA source

CONNECTION DIAGRAM

LIMITED WARRANTY

The SELLER warrants the CV-900S VGA to CVBS Scaler Converter to be free from defects in the

material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.

Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its

option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,

abuse or any unauthorized modifications including static discharge and power surges.

Unit that fails under conditions other than those covered will be repaired at the current price of parts

and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment

to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss

or damage in transit. Under no circumstances will a unit be accepted without a return authorization

number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations, any

other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly

disclaimed.

Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible

for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be

free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However, The

SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The

SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting

from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the

technical information contained herein regarding the CV-900S features and specifications is

subject to change without further notice.
