Goldstar WG1005R Manuel utilisateur

PRECAUTIONS

IMPORTANT

• Please read this owner's manual carefully and thoroughly

before installing and operating your room air conditioner.

• Please retain this owner's manual for future reference after

reading it thoroughly.

• Antes de instalar y poner en marcha su ventilador de

casa, haga el favor de leer cuidadosamente esta

instrucción de Usuario.

• Luego de su lectura, guarde este manual para el futuro

usuario para las referencias.

ENGLISH ESPAÑOL

OWNER’S MANUAL

MANUAL DEL PROPIETARIO

ROOM AIR CONDITIONER

OOM AIR CONDITIONER

AIRE A

AIRE ACONDICIONADOR

CONDICIONADOR

Models/Modelo WG8005R,WG1005R

www.goldstarappliances.com

2Room Air Conditioner

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of the product.

Dealer's Name

Date Purchased

■Staple your receipt to this page in the event you need it

to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

Safety Precautions..........................3

Before Operation ............................7

Introduction ....................................8

Symbols Used in this Manual ........8

Features ........................................8

Electrical Safety

Temporary Use of an

Adapter ........................................11

Temporary Use of an

Extension Cord ............................11

Installation ....................................12

Window Requirements ................13

Size ...........................................13

Select the best location ..........13

Preparation of Chassis ...............14

Unit Installation ............................15

Operating Instructions .................17

Location and Function

of Controls....................................17

Remote Control Operations ........18

Remote Controller .......................19

Additional Features.......................20

Air Direction ..............................20

Drain Pipe..................................20

Maintenance and Service ............21

Air Filter ....................................21

Cleaning the Air Conditioner .....21

How to Remove the

Front Grille .................................22

Common Problems and

Solutions.......................................23

Troubleshooting ............................24

Window-Type Air Conditioner Owner’s Manual

TABLE OF CONTENTS

PRECAUTION

•Contact an Authorized Service Center for repair or

maintenance of this unit. Call 1-800-243-0000 to

locate the nearest ASC.

•This air conditioner is not intended for use by young

children or invalids without supervision.

•Young children should be supervised to ensure that

they do not play with the air conditioner.

•If the power cord requires replacement, have an

Authorized Servicer install an exact replacement part.

•Installation work must be performed in accordance

with the National Electric Code by qualified and

authorized personnel only.

............................9

Electrical Data ...............................9

4Room Air Conditioner

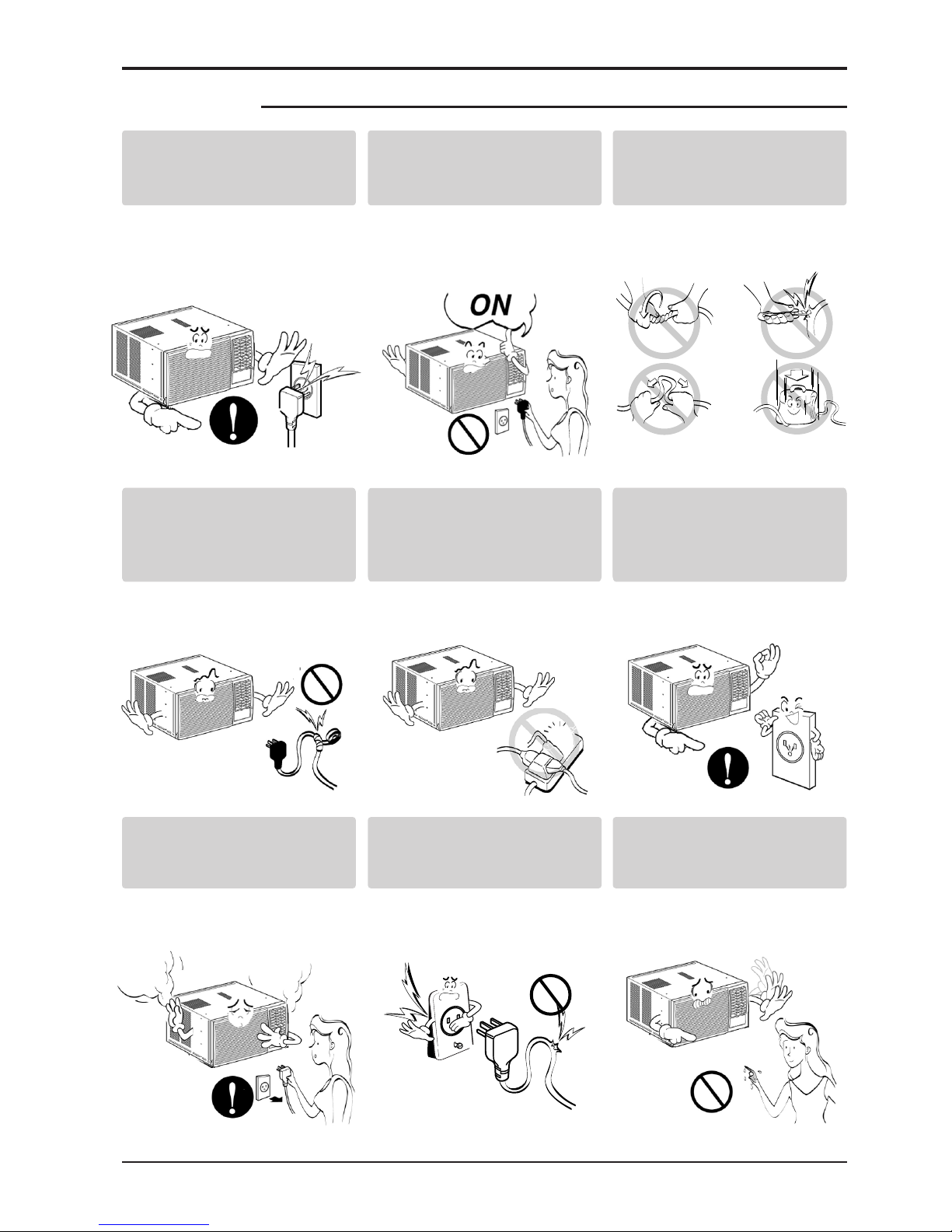

Safety Precautions

■Operation

Plug in the power plug

properly.

•Otherwise, it will cause

electric shock or fire.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

•It will cause electric shock or

fire.

Do not damage or use an

unspecified power cord.

•It will cause electric shock or

fire.

Unplug the unit if strange

sounds, odors, or smoke

come from it.

•Otherwise it may cause fire

and electric shock accident.

Do not use the socket if it is

loose or damaged.

•It may cause fire and electric

shock.

Do not operate with wet

hands or in damp

environment.

•It will cause electric shock.

Use the air conditioner on a

single outlet circuit.(see page 7.)

Do not share the outlet with

other appliances.

•

It will cause electric shock or

fire.

Do not modify power corDo not modify poDo not modify po dwer cor

length.

Do not modify po

•

•• It will cause electric shoc

•k or

fire.

Always plug into a

grounded outlet.

•No•• grounding•may cause

electric shock.

Owner’s Manual 7

ENGLISH

Before Operation

1. Plug in the power cord properly.

2. Use a dedicated circuit. Overloading the line could create a fire hazard.

3. Do not use an extension cord. See page 11for more details.

4. Do not start/stop operation by plugging/unplugging the power cord.

5. If the power cord is damaged and requires replacement, have an Authorized

Servicer install an exact replacement part.

1. Being exposed to direct airflow for an extended period of time could be

hazardous to your health. Do not expose occupants, pets, or plants to direct

airflow for extended periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used

together with stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g.

preserving precision devices, food, pets, plants, and art objects). Such usage

could damage the items.

4.The air conditioner is a consumer comfort appliance, not a precision climate

control system.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can

occur when handling sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can

destroy the insulation, leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned

off.The fan rotates at a very high speed during operation.There is a

possibility of injury if the unit’s power is accidentally triggered on while

cleaning inner parts of the unit.

For repair and maintenance, contact an Authorized Service Center. See the

warranty page for details or call (800) 243-0000. Have your model number and

serial number available.They should be written on page 2 of this manual.

Before Operation

Preparing for Operation

Usage

Cleaning and Maintenance

Service

8Room Air Conditioner

Introduction

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the

air conditioner.

This symbol indicates special notes.

WARNING: This appliance should be installed in accordance with

national Electric Code.

Introduction

Symbols Used in this Manual

Features

CABINET

FRONT GRILLE

AIR FILTER

AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

EVAPORATOR

CONTROL BOARD

EVAPORATOR

CONTROL BOARD

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

CABINET

FRONT

AIR FILTER

AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

REMOTE

CONTROLLER

Tip!

GRILLE

Electrical Safety

ENGLISH

Electrical Safety

Electrical Data

115V~ 230V~

Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

Use Wall Receptacle Power Supply

Standard 125V, 3-wire grounding

receptacle rated 15A, 125V AC

Standard 250V, 3-wire grounding

receptacle rated 15A, 250V AC

Use 15 AMP. time

delay fuse or 15 AMP.

circuit breaker.

Use 20 AMP. time

delay fuse or 20 AMP.

circuit breaker.

Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

Use of extension cords

Because of potential safety hazards, we

strongly discourage the use of an extension

cord. However, if you wish to use an

extension cord, use a CSA certified/UL-listed

3-wire (grounding) extension cord, rated 15A,

125V.

All wiring should be made in accordance with

local electrical codes and regulations.

Aluminum house wiring may pose special

problems. Consult a qualified electrician.

NOTICE

ELECTRICAL SAFETY

IMPORTANT GROUNDING INSTRUCTIONS

Air conditioner has a three-prong grounding plug on

its power supply cord, which must be plugged into

properly grounded three-prong wall receptacle for

your protection against possible shock hazard.

230, 208, and 230/208 VOLT UNITS

These units are equipped with a three-prong

grounding plug on the power supply cord, which

must be plugged into a matching properly grounded

three-prong wall receptacle for your protection

against possible shock hazard. If such an outlet is

not present, one must be installed by a qualified

electrician in accordance with the National Electrical

Code and local codes and ordinances.

DO NOT USE AN EXTENSION CORD on 230,

208, and 230/208 Volt units.

NOTICE

WARNING: This appliance must be properly grounded.

The power cord of this appliance is equipped with a three-prong grounding plug.

To minimize the risk of electric shock, use the plug with a standard three-slot

grounding wall power outlet. If the power outlet does not include a grounding slot,

have a qualified electrician replace the outlet before you use the room air

conditioner.

WARNING: Changing the outlet without making the appropriate wiring

changes will create an unsafe condition that could result in fire or

electrical shock. Refer all such work to a licensed and qualified

electrician.

WARNING: Do not cut or remove the grounding prong from the power

plug.

WARNING: Attaching the adapter ground terminal to the wall

receptacle cover screw does not ground the appliance unless the

cover screw is metal and not insulated, and the wall receptacle is

grounded through the house wiring.

WARNING: If you have any doubt whether the air conditioner is

properly grounded, have the wall receptacle and circuit checked by a

qualified electrician.

Electrical Safety

Preferred method

Ensure proper ground

exists before use

Electrical Safety

Room Air Conditioner10

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Goldstar Climatiseur

Goldstar

Goldstar M1203R Manuel utilisateur

Goldstar

Goldstar GWHD6500R Manuel utilisateur

Goldstar

Goldstar GP120CE Mode d’emploi

Goldstar

Goldstar GWHD6507R Manuel utilisateur

Goldstar

Goldstar GWHD5000 Manuel utilisateur

Goldstar

Goldstar WG5005R Manuel utilisateur

Goldstar

Goldstar GP100CE Mode d’emploi

Goldstar

Goldstar WG8005R Manuel utilisateur

Goldstar

Goldstar WG6007R Manuel utilisateur

Goldstar

Goldstar GWHD6500R Manuel utilisateur

Goldstar

Goldstar R-5100 Manuel utilisateur

Goldstar

Goldstar LXA1210ACL Manuel utilisateur

Goldstar

Goldstar R8000 Manuel utilisateur

Goldstar

Goldstar GP100CE Mode d’emploi

Goldstar

Goldstar LWC061JGMK1 Manuel utilisateur

Goldstar

Goldstar KG6000R Manuel utilisateur

Goldstar

Goldstar R1804H Manuel utilisateur

Goldstar

Goldstar BG8000ER Manuel utilisateur

Goldstar

Goldstar BG8000ER Manuel utilisateur

Goldstar

Goldstar LW-C1230XL Manuel utilisateur

Goldstar

Goldstar R7003 Manuel utilisateur

Goldstar

Goldstar RI000 Manuel utilisateur

Goldstar

Goldstar WG1800R Manuel utilisateur

Goldstar

Goldstar WG5005 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
