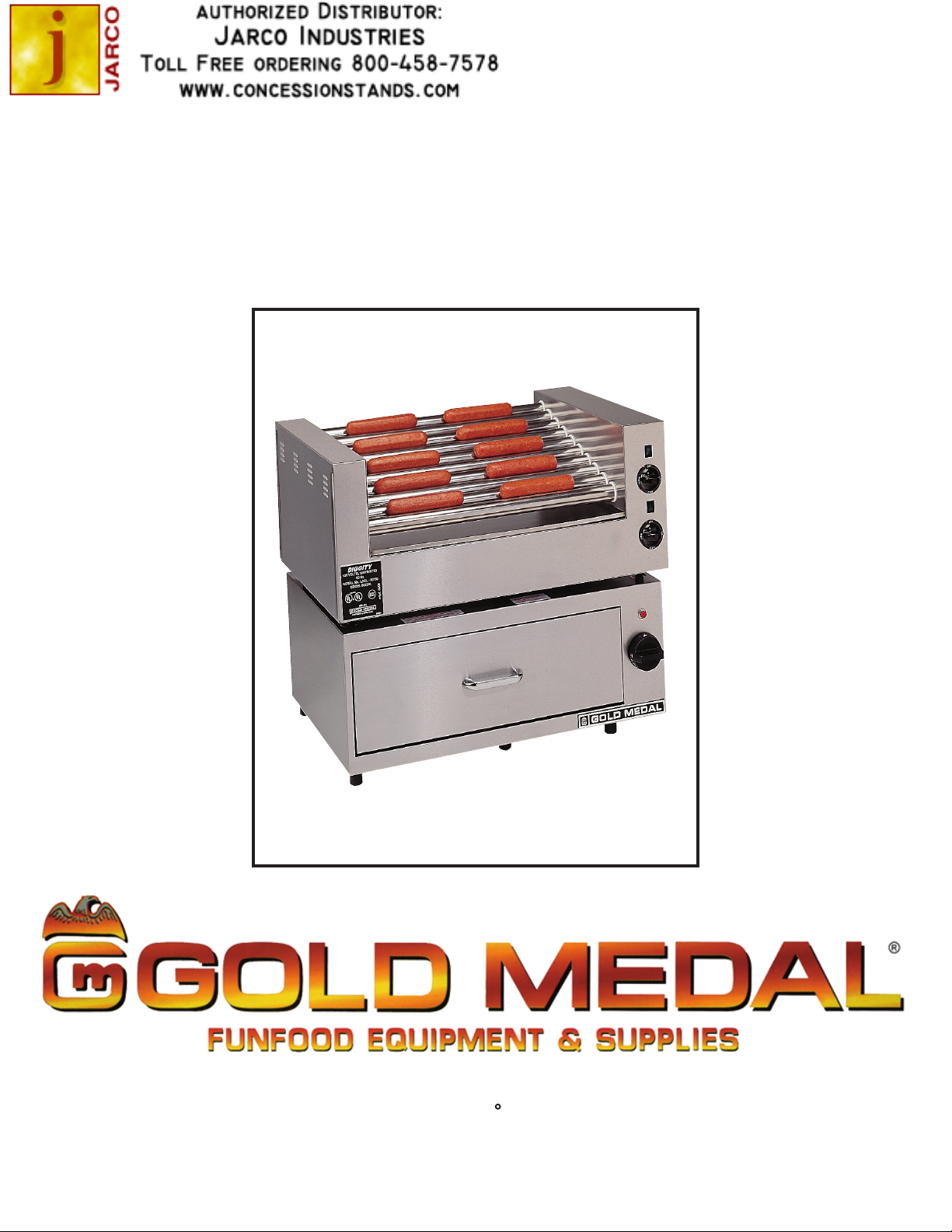

Roller Dog
Instruction Manual
Model #8023, Model #8024 and Model #8025
Model #8023SL, Model #8024SL and Model #8025SL
Part No. 87630
Revised Mar. 2000
Cincinnati, OH 45241-4807 USA
e-mail: [email protected] www.gmpopcorn.com
SAFETY PRECAUTIONS
NOTE
The information, specifications and illustrations contained in this manual represent
the latest data available at time of publication. Right is reserved to make changes as
re uired at the discretion of Gold Medal Products Company without notice.
Any alterations to this equipment will void the warranty and
may cause a dangerous situation. NEVER make alterations
to the equipment.
Make sure all machine switches are in the OFF position
efore plugging the equipment into a receptacle.
Always wear safety glasses when servicing this equipment.
Machine must e properly grounded to prevent electrical shock
to personnel.
Do NOT immerse the kettle, warmer, or any other part of this
equipment in water.
Always unplug the equipment efore cleaning or servicing.
This equipment is designed and sold for commercial use only. This
equipment is not to be used by the consumer in home use. Do not allow
direct contact of this equipment by the public when used in food service
locations. Only personnel trained and experienced in the equipment
operation may operate this equipment.
Carefully read all installation instructions before operating the equipment.
To avoid serious urns, do NOT touch the kettle while it is hot.
Hot Dog Roller Grill
MANUAL P/N 87630
1
INSTALLATION
Install the Roller Dog in a level position. Connect the lead-in cord to a suita le outlet of correct
voltage.
CONNECTION LOAD
A.C. only. Wattage and voltage as indicated on nameplate. Use grounded 120V A.C. circuit.
OPERATING PROCEDURES
1. Place hot dogs on rollers. Turn heat to designated temperature. Left kno controls the heat of
one set of five (5) rollers and the right controls the other set of five (5) rollers.
2. For low heat, set control(s) to LOW using one or oth sets of rollers. For high capacity, set
control(s) to MEDIUM or HIGH using oth sets of rollers.
CARE AND CLEANING INSTRUCTIONS
Although corrosion resistant, stainless steel should e cleaned daily to prevent pitting. Do NOT use
steel wool to clean, stainless steel wool can e used.
1. ! ! UNPLUG THE POWER CORD FROM THE OUTLET ! !
2. Remove any remaining hot dogs from rollers.
3. Remove drip pans and clean thoroughly.
4. Use a mild detergent, soap and water, or soda-water to clean the roller grill. Rinse after
washing and dry thoroughly efore using.
5. For stu orn spots or stains a mild household a rasive cleaner can e used. When
applying a rasive cleaners always ru in the direction of the grain to preserve metal
finish.
6. When unit has een thoroughly cleaned, rinsed and dried, reinsert drip pans eneath the
rollers.
7. The unit is now cleaned and ready for operation.
Hot Dog Roller Grill
MANUAL P/N 87630
2
MAINTENANCE INSTRUCTIONS
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED
ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE
FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT
INTENDED FOR THE OPERATOR.
Adequate eye protection must e used when servicing this
equipment to prevent the possi ility of injury.
Do NOT immerse the equipment in water.
Unplug your machine efore servicing.
REPLACING THE HEAT ELEMENT
1. Remove the four (4) screws on the ottom of unit which secure the end covers to the unit.
Withdraw the end covers from the housing y pulling them downward and out of the unit.
2. Unscrew the five (5) screws which fasten the conductor plate (P/N 87898) to the heat ele-
ments at the non-chained end of the elements.
3. Unscrew the screw which holds the other end of the heat element in place.
4. Turn the heat element 90 degrees and withdraw it from the roller tu e.
5. Install a new heat element in the same manner in which it was withdrawn from the roller
tu e. The heat element should e oriented such that the heat element is situated approxi-
mately in-line with the center of the roller tu e. The screw lugs at each end of the heat
element should e oriented vertically.
6. Reinstall the screw and fasten to the heat element at the chained end of the roller tu e.
7. Reinstall the five (5) screws and fasten the conductor plate to the heat elements. Be sure
that all five heat elements are installed similarly.
8. Reinstall the end covers.
Hot Dog Roller Grill
MANUAL P/N 87630
3
ORDERING SPARE PARTS
1. Identify the needed part y checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part num er, part name, and quantity needed.
3. Please include your model name and machine serial num er (located on the machine
nameplate) with your order.

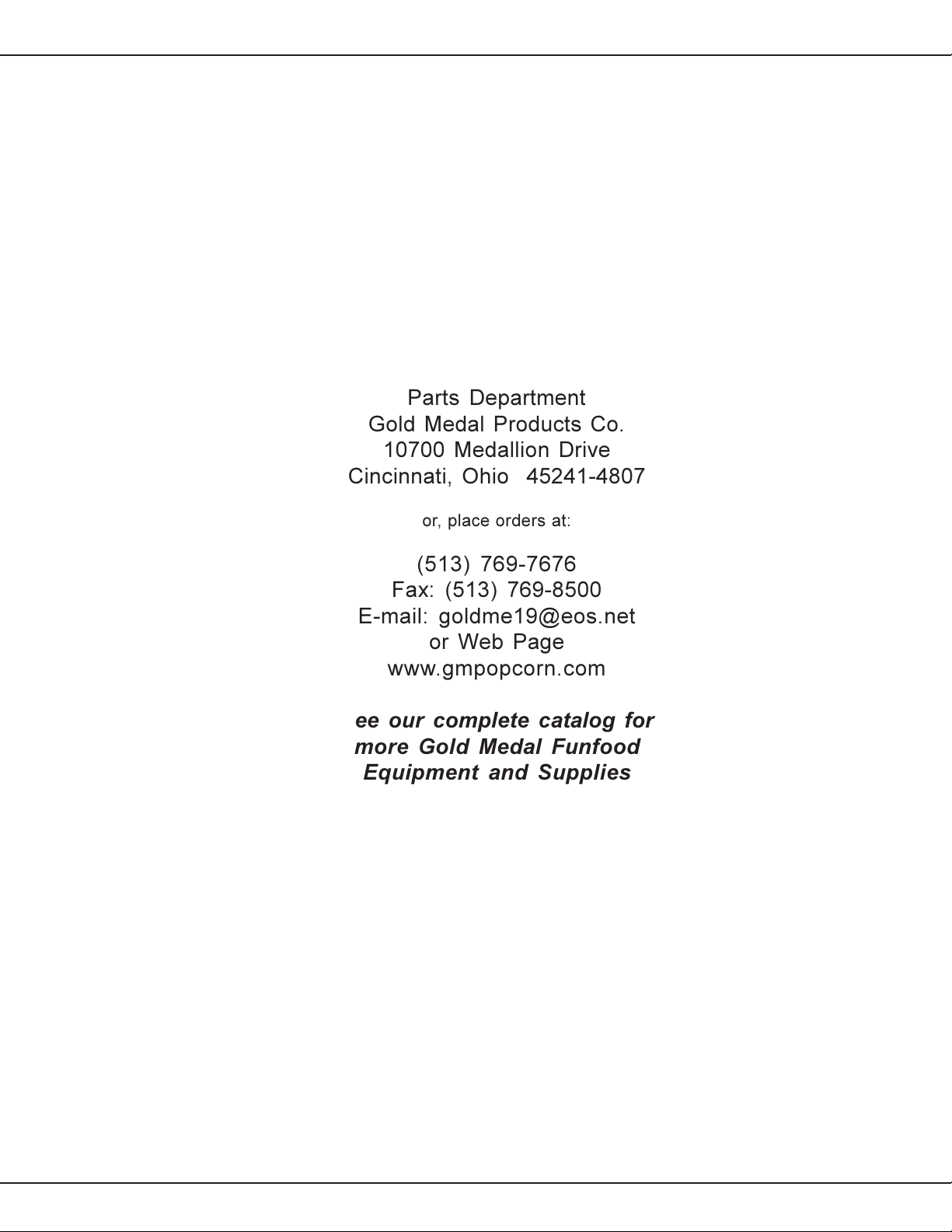

4. Address all parts orders to:
Pa ts Depa tment
Gold Medal P oducts Co.
10700 Medallion D ive
Cincinnati, Ohio 45241-4807
or, place orders at:
(513) 769-7676
Fax: (513) 769-8500
o Web Page
www.gmpopco n.com
See our complete catalog for
more Gold Medal Funfood
Equipment and Supplies
Jarco Industries
order toll free 800-458-7578
or order online at www.concessionstands.com
Hot Dog Roller Grill
MANUAL P/N 87630
4

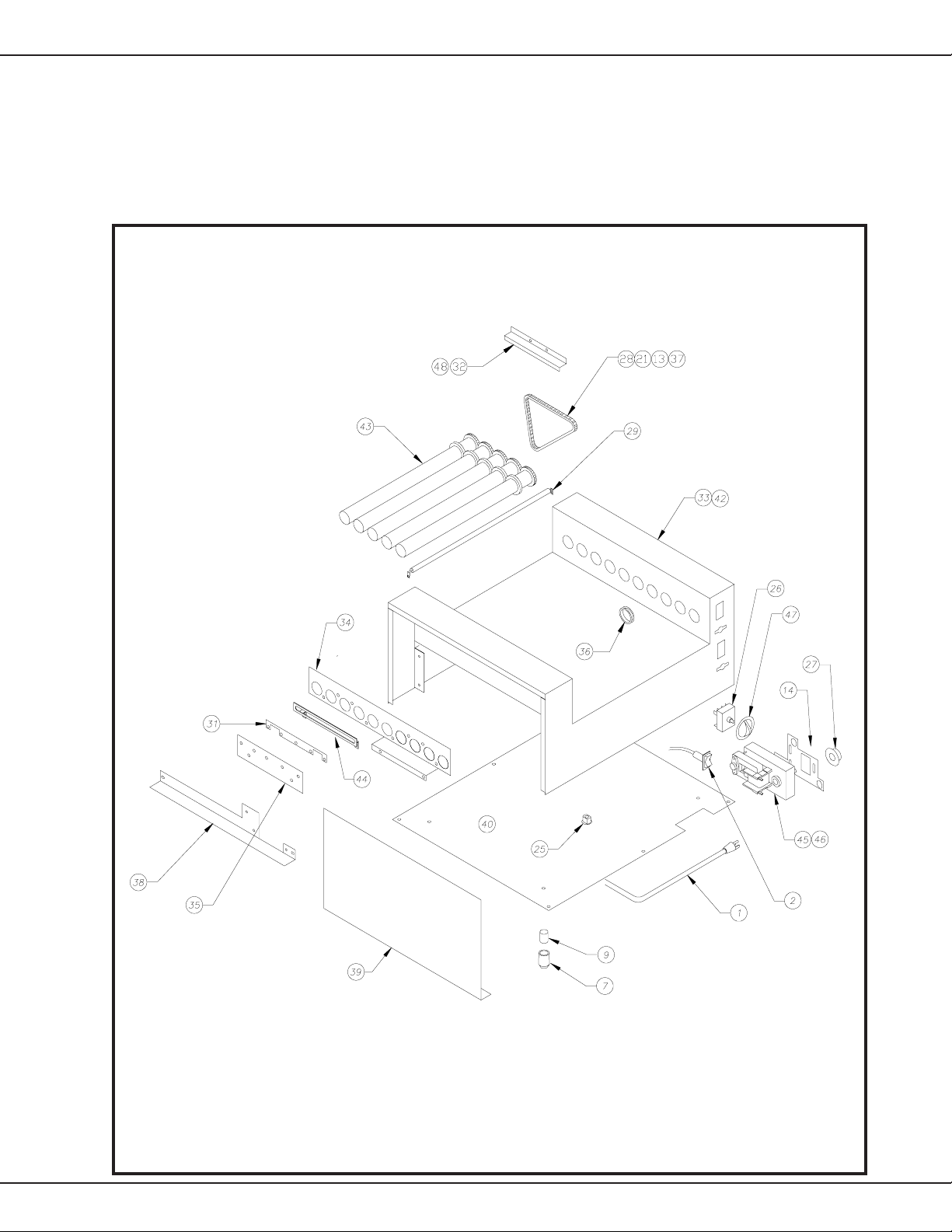

ROLLER DOG ASSEMBLY
Hot Dog Roller Grill
MANUAL P/N 87630
5
PARTS LIST ROLLER DOG ASSEMBLY
Model # 023 024 025
023SL 024SL 025SL
Item No. Part No. Part No. Part No. Description Quantity
1 2203 Power Cord 1
2 40320 Rocker Switch 2
3 42044 # Screw
4 42 2 #10 Screw 6
5 47010 Safe Operating Instructions 1
6 47130 # Screw 6
7 47155 Rubber Feet 4
7314 # Screw 6
9 4732 Glide Feet 4
10 67137 Wiring Diagram Label 1
11 7630 Manual 1
12 67204 Motor Grommet 6
13 7591 Drive Chain ** 2
14 7594 Motor Plate 2
15 6719 67213 67214 Carton 1
16 74117 # Washer 1
17 74143 #10 Nut 1
1 74149 # Nut 1
19 74150 # Lock Washer 6
20 76097 Unplug to Clean, Label 1
21 7044 Master Link 2
22 70 7 Warning Label 4
23 7092 Tongs 1
24 7149 Caution Label 2
25 7163 Strain Relief 1
26 7352 Heat Switch 2
27 7353 Sprocket 2
2 7590 Lower Drive Chain *** 1
29 67172 7376 735 Heat Element 10
30 7392 Set Screw 2
31 7 9 Conductor Plate 2
32 7933 Outer Chain Support 2
33 7910 7906 790 Main Body Weldment *** 1
34 7901 Assembly Mtg. Bracket 2
35 7 99 Insulator Board 2
36 7479 Teflon Bearing 20
37 7591 Upper Drive Chain *** 1
3 7595 Mtg. Bracket 2
39 7601 End Cover 2
40 7647 7602 7634 Bottom Cover 1
41 7646 7606 7636 Drip Pan 1
42 7903 7912 7914 Main Body Weldment ** 1
43 7650 7593 7633 Roller Assembly 10
44 7900 Element Support 2
45 7531 Motor CW 1
46 7532 Motor CCW 1
47 7540 Knob 2
4 7934 Inner Chain Support 2
NOTE: Part Numbers are the same unless otherwise noted.
** 023, 024, 025 ONLY
*** 023SL, 024SL, 025SL ONLY
Hot Dog Roller Grill
MANUAL P/N 87630
6

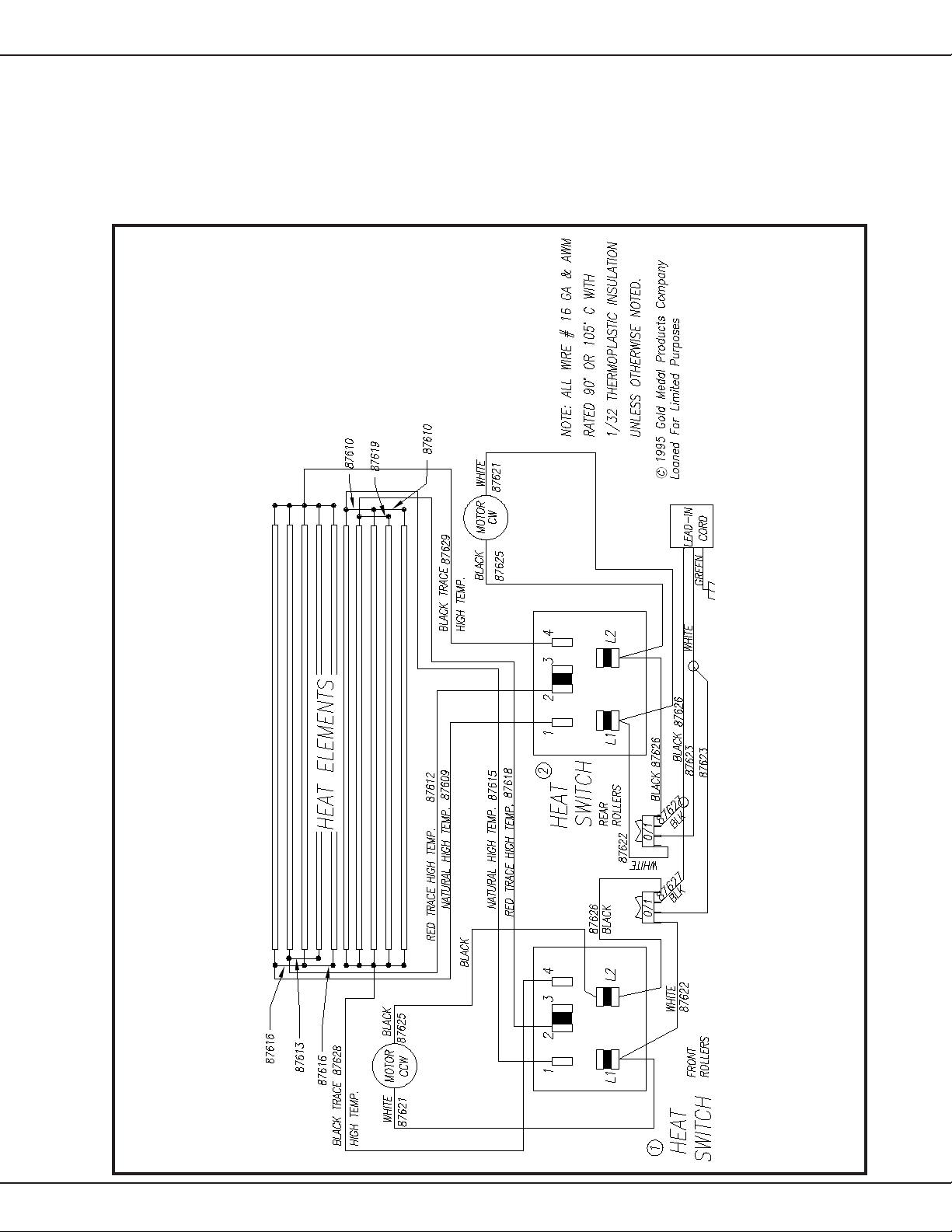

WIRING DIAGRAM
