Goldair GBQS250 Manuel utilisateur

For model: GBQS250

SUPREMO 6 BURNER BARBECUE

OPERATING INSTRUCTIONS

USE OUTDOORS ONLY

This BBQ shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas,

where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.

Any outdoor enclosure in which the BBQ is used shall comply with one of the following:

•An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. See

Figure 1.

•Within a partial enclosure that includes an overhead cover and no more than two walls. See Figure 2 & 3.

•Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply:

- At least 25% of the total wall area is completely open; and

-At least 30% of the remaining wall area is open and unrestricted. See Figure 4 & 5.

•In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and

unrestricted.

The following diagrams provide a diagrammatic representation of outdoor areas. Rectangular areas have been used in

these figures - the same principles apply to any other shaped area

Figure 1 - Enclosure with walls on all sides but Figure 2 - Partial Enclosure with overhead cover and

no overhead cover no more than two walls

Figure 3 - Partial Enclosure with overhead cover and Figure 4 - Open side at least 25% of total wall area.

no more than two walls 30 % or more in total of the remaining wall area is

open and unrestricted.

Figure 5 - Open side at least 25% of total wall area.

30 percent or more in total of the remaining wall

area is open and unrestricted

30 31

NO. Description Figure QTY NO. Description Figure QTY

Side Table

Warming Rack

Hood

Cart Bracket

Side Panel

Magnet

Knob

Knob base

Right Door

Body

Cooking Grid

Flame Tamer

Back Left Leg

Front Left Leg

Back Panel

Door Bracket

Lock Caster

Bottom Tray

Left Door

Door Handle

Door Axle

Catser

Front Right Leg

Back Right Leg

Side Handle

Grease Tray

NO. Description Figure QTY

Side Burner Rack

Side Burner

Electric Pole

Clip 2

Screw

(M6X10)

Screw

(M4X12)

Screw

(M3X10)

Nut (M3)

Side Burner Table

Side Burner Cover

Step 1

M6X10

A16Pcs

M6X10

A4Pcs

Back Right

Front Right

Back Left

Front Let

Step 2

M6X10

A4Pcs

M3X10

D2Pcs

E2Pcs

(M3)

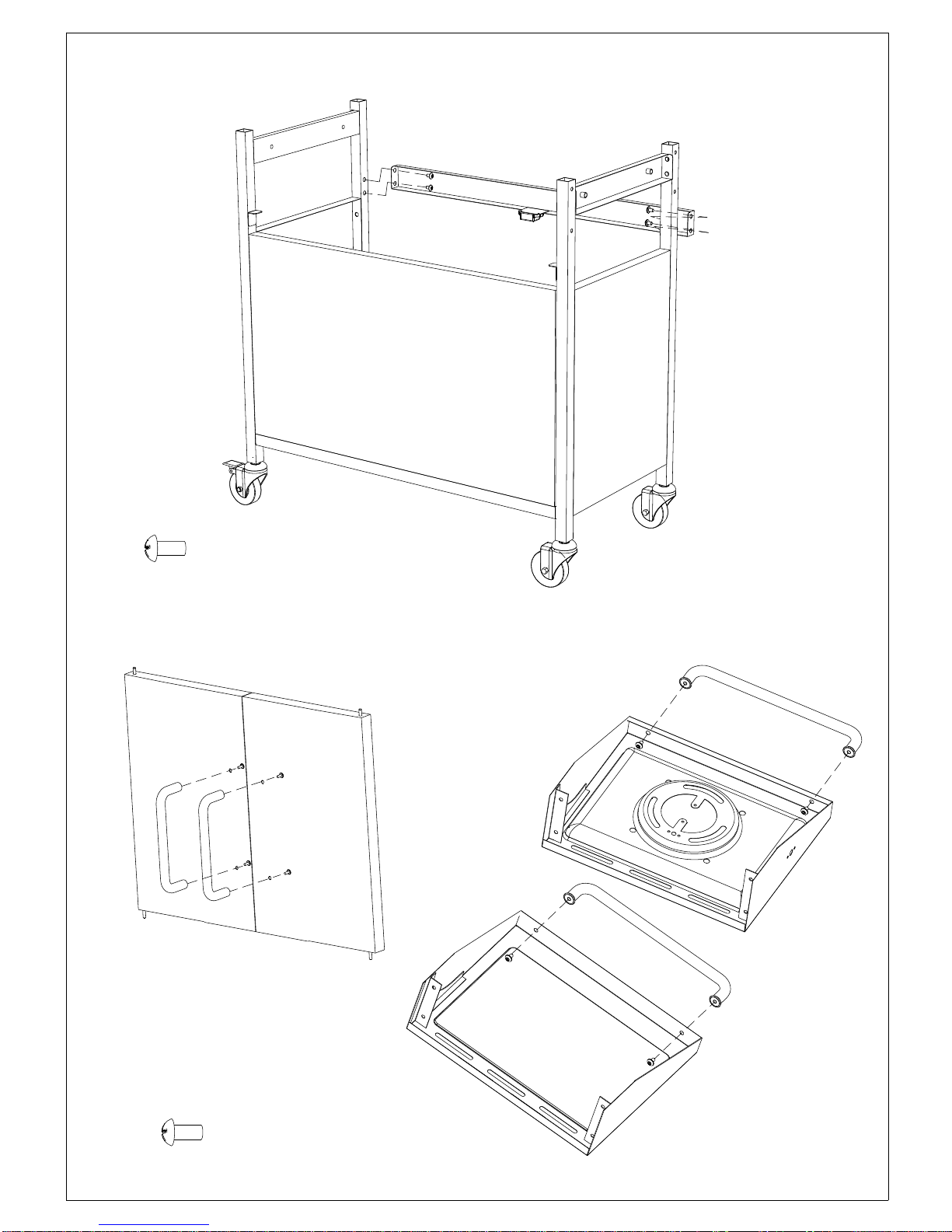

Step 3

Step 4

M6X10

A4Pcs

M6X10

A8Pcs

Step 5

Step 6

M6X10

A8Pcs

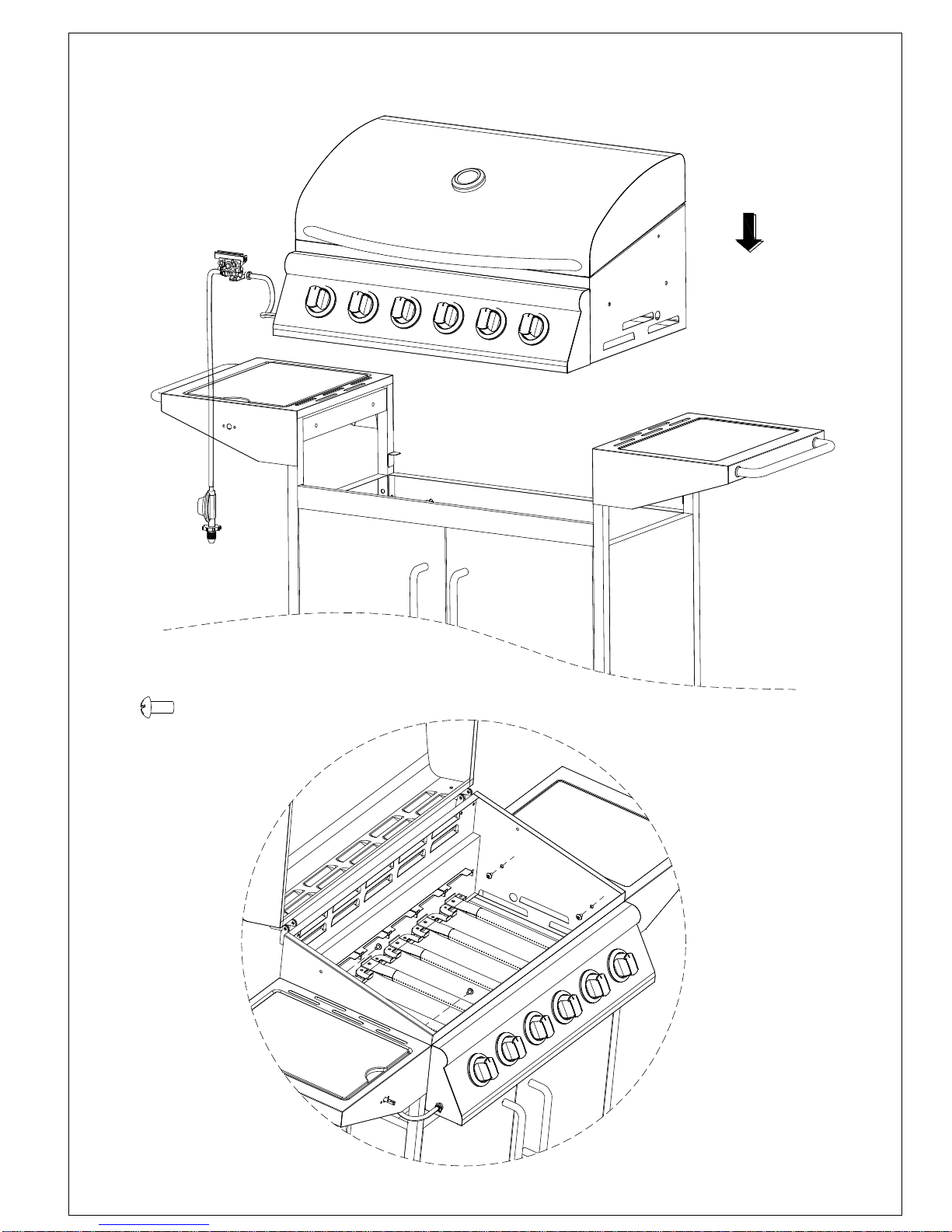

Step 7

Step 8

M6X10

A4Pcs

Step 9

Step 10
