Godox TT600 Manuel utilisateur

迅丽机顶闪光灯

Thinklite Camera Flash

INSTRUCTION MANUAL

说明手册

中英文双语 / Chinese English Bilingual

在使用本产品之前：

请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将来

查询参考。

Before using this product:

Please read this user manual carefully in order to ensure your safety

and the proper operation of this product. Keep for future reference.

- 19 -

Foreword

Thank you for purchasing a GODOX product.

TT600 camera ash adopts Godox wireless X system and 2.4G ratio

transmission, which is compatible with AD360II-C、AD360II-N、

TT685C、TT685N、X1T-C、X1T-N, etc. Fit all DSLR camera

brands e.g. Canon, Nikon, Sony, etc.

This TT600 camera ash features:

• GN60 (m ISO 100, @200mm). Adjust from 1/1 to 1/128 in

1/3rd stops

• Built-in 2.4G wireless transmission to support transmitting and

receiving

• High speed sync, wireless remote control, multi flash and

manual focus assist

• Stable consistency and color temperature with good even

lighting

• User-friendly LCD display & control panel

- 20 -

For Your Safety

• Always keep this product dry. Do not use in rain or in damp

conditions.

• This product contains high-voltage electronic parts. Touching

the high-voltage circuit inside it may result in electric shock. Do

not disassemble. Should repairs become necessary, this

product must be sent to an authorized maintenance center.

• Stop using this product if it breaks open due to extrusion,

falling or strong hit. Otherwise, electric shock may occur if you

touch the electronic parts inside it.

• Do not re the ash directly into the eyes (especially those of

babies) within short distances. Otherwise visual impairment

may occur. When taking pictures for babies, keep the ash unit

at least 1 meter (3.3 feet) away from them. Using bounce ash

to reduce light intensity is also recommended.

• Do not use the ash unit in the presence of ammable gases,

chemicals and other similar materials. In certain circumstances,

these materials may be sensitive to the strong light emitting

from this ash unit and re or electromagnetic interference may

result.

• Do not leave or store the ash unit in places where the ambient

temperature reads over 50°C (e.g. in automobile). Otherwise

the electronic parts may be damaged.

- 21 -

Thinklite Camera Flash

Conventions used in this Manual

● This manual is based on the assumption that both the camera and

camera ash’s power switches are powered on.

● Reference page numbers are indicated by “p.**”.

● The following alert symbols are used in this manual:

The Caution symbol gives supplemental information.

The Note symbol indicates a warning to prevent shooting problem.

Electronic Camera Flash

- 22 -

Foreword

For Your Safety

Name of Parts

Body

Control Panel

LCD Panel

What’s in the Box of TT600?

Separately Sold Accessories

Attaching to a Camera

Using the Flash

Power Management

Flash Output

ZOOM: Setting the Flash Coverage

M Mode

Multi Mode: Stroboscopic Flash

S1 Mode

S2 Mode

Hi-Speed Sync Triggering

Custom Function----Focus Assist Beam

Buzz Function

Wireless Flash Shooting: Ratio (2.4G)

Transmission

Wireless Control Function

Sync Triggering

Custom Function----Sleep Function

C.Fn Setting Custom Functions

Protection Function

Advanced Application

Technical Data

Maintenance

Contents

- 23 -

Name of Parts

● Body

01. Catchlight Panel

02. Built-In Wide Panel

(Retracted)

03. Flash Head

04. Optic Control Sensor

05. Focus Assist Beam

● Control Panel

11. < >Mode Selection Button/

Wireless Mode Selection

(Long Keypress)

12. < >Zoom / Function Custom

Button (Long Keypress)

13. < >Group/ Channel Setting

(Long Keypress)

14. < >Select Dial

06. Wireless Control Port

07. Sync Cord Jack

08. Hotshoe

09. Lock Ring

10. Battery Compartment

15. < > Set Button

16. ON/OFF Power Switch

17. < >Test Button / Flash

Ready Indicator

18. < >Focus Assist Beam /

High Speed Sync Button

(Long Keypress)

- 24 -

Name of Parts

● LCD Panel

19. <M>Manual Flash Mode

20. <S1>S1 Slave Flash Triggering

21. <S2>S2 Slave Flash Triggering

22. <Multi>Multi/Stroboscopic

Flash Mode

23. < >High Speed Sync

Triggering

24. < > Battery Level Indication

25. < > Sound Beep Indication

26. < >Sleep Status

27. < >Overtemperature

Indication

28. < >Wireless Signal

Transmission

29. < >Focus Assist Beam

Indicator

30. Channel

31. Group

23 21 242528

2627 2919

- 25 -

● What’s in the Box of TT600?

1. Flash unit 2. Mini stand 3. Protection case

4. Instruction manual

● Separately Sold Accessories

The product can be used in combination with the following

accessories sold separately, so as to achieve best photography

effects: Cells II high speed trigger, FT-16S power & trigger

control, Car charger, Mini softbox, White & Silver Reector,

Honeycomb, Color gels, Snoot, etc.

- 26 -

Using the Flash

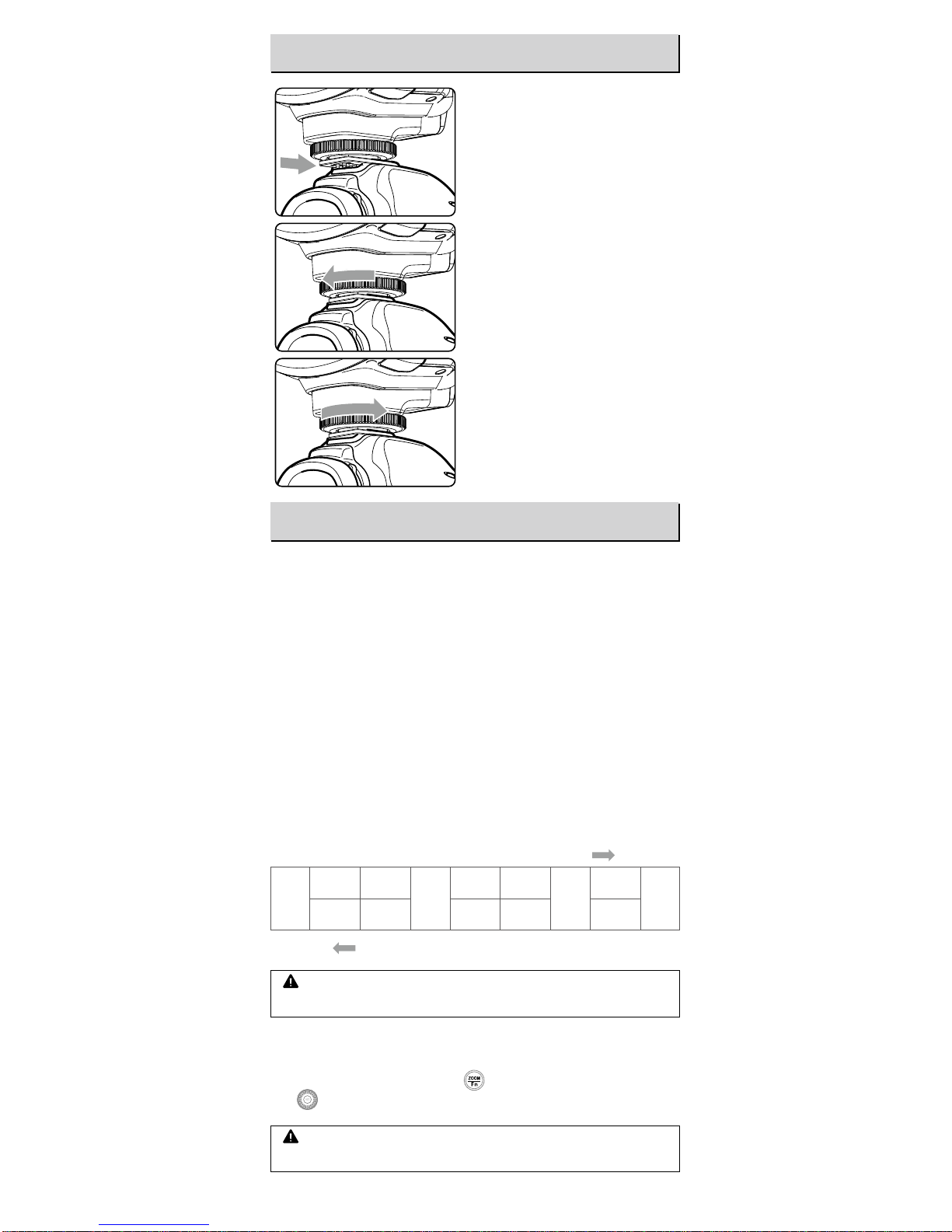

Attach the Camera Flash.

● Slip the camera ash’s

mounting foot into the camera’s

hotshoe all the way.

Secure the Camera Flash.

● Rotate the locking screw on

the mounting foot until it locks

up.

Detach the Camera Flash.

● Rotate the locking screw

on the mounting foot until it is

loosened.

1.Power Management

Use ON/OFF Power Switch to power the ash unit on or off. Turn

off if it will not be used for an extended period of time. This ash

unit has Sleep Function and will enter into sleep status when there

is no operation for a long time. For Sleep Function setting, see the

following instruction.

2.Flash Output

● Flash output can be varied from 1/128th power to 1/1 full power

in 1/3 stop increments. To obtain a correct ash exposure, use

a hand-held ash meter to determine the required ash output.

● Adjust the power output by rotating Select Dial . The following

table makes it easier to see how the stop changes in terms off/

stop when you increase or decrease the ash output:

3. ZOOM: Setting the Flash Coverage

The ash coverage can be set to match the lens focal length from

24 mm to 200 mm. Press < > button and rotate Select Dial

<> to change the ash coverage.

Attaching to a Camera

Figures displayed when reducing ash output level

Figures displayed when increasing ash output level

When setting the ash coverage, make sure it covers the lens

focal length so that the picture will not have a dark periphery.

When “OF” is shown on the LCD display, it means no ash

output and ash ring is turned off.

1/1

1/1-0.3 1/1-0.7

1/2

1/2-0.3 1/2-0.7

1/4

...

1/2+0.7 1/2+0.3 1/4+0.7 1/4+0.3 ...

- 27 -

Using the Flash

4. M Mode: Manual Mode

Press MODE Selection Button < > to enter M mode. In this

mode, you can set the ash unit onto your camera hot shoe or your

trigger hot shoe for ring. Before shooting, adjust the ash power

output. When the camera’s shutter is pressed, the ash will re

synchronously. Slave triggering mode is not available in M mode.

5. Multi Mode: Stroboscopic Flash

Press Mode Selection Button < > to enter Multi mode

(Stroboscopic ash). With stroboscopic ash, a rapid series of

ashes is red. It can be used to capture multiple images of a

moving subject in a single photograph. You can set the ring

frequency (number of ashes per sec. expressed as Hz), the

number of ashes, and the ash output. For setting procedures,

see the following:

Calculating the Shutter Speed

During stroboscopic ash, the shutter remains open until the ring

stops. Use the provided formula to calculate the shutter speed

required to capture the full sequence of ashes:

Number of ashes / Firing frequency = Shutter speed

For example, if the number of ashes is 10 and the ring frequency

is 5 Hz, the shutter speed should be at least 2 sec.

Note:

● Stroboscopic ash is most effective with a highly reective

subject against a dark background.

● Using a tripod and a remote switch is recommended.

● A ash output of 1/1 or 1/2 cannot be set for stroboscopic

ash.

● Stroboscopic ash can be used with “buLb”.

Press the Mode Selection

Button < > so that “Multi” is

displayed.

Press Set Button < > to

select the item to be set. The

item blinks.

Rotate Select Dial < > to

set a desired number.
