BISCUIT JOINER

BJ600

INSTRUCTION MANUAL

Contents

Warranty Power Tools

Whilst every effort is made to ensure your complete

satisfaction with this tool, occasionally, due to the mass

manufacturing techniques, a tool may not live up to our

required level of performance and you may need the

assistance of our service department.

The product is warranted for a 2-year repair warranty for

home domestic use from the date of original purchase.

If found to be defective in materials or workmanship, the

tool will be repaired free of charge.

small freight charge may apply. Proof of purchase is

essential. We reserve the right to reject any claim where

the purchase cannot be verified.

This warranty does not include damage or defects to the

tool caused by or resulting from abuse, accidents,

alterations or commercial or business use. It also does not

cover any bonus items or included accessories. Only the

power tool is covered under this warranty.

With continuing product development, changes may have

occurred which render the product received slightly

different to that shown in this instruction manual.

Please ensure that you store your receipt in a safe place.

Conditions apply to the above warranty. For full details of

the warranty terms and conditions please refer to our

website – www.gmcompany.com

For prompt service we suggest you log your service

request online - www.gmcservice.com.au, should you

not have access to the internet, please contact our

service department on 1300 880 001 (Australia)

or 0800 445 721 (New Zealand).

Warranty 2

Introduction 3

Environmental protection 3

Description of symbols 3

Specifications 3

Safety instructions 4

Additional safety rules for biscuit joiners 5

Contents of carton 6

Unpacking 6

Know your product 7

Overview 8

Adjusting the cutting depth 8

Adjusting the secondary handle 9

Fitting the height and bevel adjustment fence 9

Adjusting the bevel angle 9

Adjusting the cutting height 9

Anti-slip rubber grips 9

Changing the blade 10

Turning on and off 10

Dust extraction 11

Operation overview 11

Operation – Making a cut 11

Making an edge to edge joint 12

Making a mitre joint 12

Making a corner joint 13

Making a T-joint 13

Maintenance 13

Cleaning 13

Trouble shooting 14

Description of symbols

The rating plate on your tool may show symbols.

These represent important information about the

product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Double insulated for additional protection.

Conforms to relevant standards

for electromagnetic compatibility.

Specifications

Nominal voltage: 230-240V ~ 50Hz

Input power: 600W

No load speed: 11000 min-1

Depth of cut: 8mm, 10mm, 12mm, 14mm

Thickness of cut: 4mm

Biscuit size: #0, #10, #20

Blade size: Ø100mm 6TCT

Bore size: Ø22mm

Bevel fence: 0–90º

Height of cut adjustment: 7mm to 30mm

Insulation class: Double insulated

Weight: 2.8kg

Introduction

Your new GMC power tool will more than satisfy

your expectations. It has been manufactured under

stringent GMC Quality Standards to meet superior

performance criteria.

You will find your new tool easy and safe to operate,

and, with proper care, it will give you many years

of dependable service.

CAUTION. Carefully read through this entire Instruction

Manual before using your new GMC Power Tool. Take

special care to heed the Cautions and Warnings.

Your GMC power tool has many features that will make

your job faster and easier. Safety, performance, and

dependability have been given top priority in the

development of this tool, making it easy to maintain

and operate.

Environmental protection

Recycle unwanted materials instead

of disposing of them as waste. All tools,

hoses and packaging should be sorted,

taken to the local recycling centre and

disposed of in an environmentally safe way.

General safety rules

WARNING Read all instructions. Failure to follow all

instructions listed below may result in electric shock,

fire and/or serious injury. The term “power tool” in all of

the warnings listed below refers to your mains operated

(corded) power tool or battery operated (cordless)

power tool.

Save these instructions.

1. Work area

a. Keep work area clean and well lit. Cluttered and dark

areas invite accidents.

b. Do not operate power tools in explosive

atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which

may ignite the dust or fumes.

c. Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock

if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of

electric shock.

d. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving

parts. Damaged or entangled cords increase the risk of

electric shock.

e. When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under the

influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in

serious personal injury.

b. Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing protection used for

appropriate conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the

off position before plugging in. Carrying power tools with

your finger on the switch or plugging in power tools that

have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to

a rotating part of the power tool may result in personal

injury.

e. Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

f. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

g. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of these devices

can reduce dust related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job

better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before

making any adjustments, changing accessories, or

storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained

users.

e. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and

any other condition that may affect the power tools

operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly

maintained power tools.

f. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc.,

in accordance with these instructions and in the

manner intended for the particular type of power

tool, taking into account the working conditions and

the work to be performed. Use of the power tool for

operations different from those intended could result in a

hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

Additional safety rules for biscuit joiners

• Hold tool by insulated gripping surfaces when performing an

operation where the cutting tools may contact hidden wiring

or its own cord. Contact with a “live” wire will make exposed

metal parts of the tool “live” and shock the operator.

• Fully unwind cable drum extensions to avoid potential

overheating.

• When an extension cable is required, you must ensure

that it has the right ampere rating for your power tool

and is in safe electrical condition.

• Ensure your mains supply voltage is the same as your

tool rating plate voltage.

• If possible, always use clamps or a vice to hold your work.

• Always switch off before you put the biscuit joiner down.

• Ensure that the lighting is adequate.

• Keep the area free of tripping hazards.

• Do not let anyone under 18 years operate this tool.

• Only use accessory blades that are in good condition.

• Do not touch the blade after operation. It will be hot.

• Keep yours hands away from under the workpiece.

• Never use your hands to remove chips or waste close by

the blade.

• Rags, cloths, cord, string and the like should never be left

around the work area.

• Support the work properly.

• Periodically check that all nuts, bolts and other fixings are

properly tightened.

• When using the tool, use safety equipment including

safety glasses or shield, ear protection, and protective

clothing including safety gloves. Wear a dust mask if the

operation creates dust.

• If in doubt, do not plug in the tool.

• Using a power source with a voltage less than the

nameplate rating is harmful to the motor.

Wear goggles

Wear earmuffs

Wear a breathing mask

The tool must be used only for its prescribed purpose.

Any use other than those mentioned in this Manual will

be considered a case of misuse. The user and not the

manufacturer shall be liable for any damage or injury

resulting from such cases of misuse.

To use this tool properly, you must observe the safety

regulations, the assembly instructions and the operating

instruction to be found in this Manual. All persons who use

and service the machine have to be acquainted with this

manual and must be informed about its potential hazards.

Children should be supervised at all times if they are in the

area in which the tool is being used. It is also imperative

that you observe the accident prevention regulations in

force in your area. The same applies for general rules of

occupational health and safety.

The manufacturer shall not be liable for any changes made

to the tool nor for any damage resulting from such changes.

Even when the tool is used as prescribed it is not possible

to eliminate all residual risk factors. The following hazards

may arise in connection with the tools construction and

design:

Damage to the lungs if an effective dust mask is not worn.

Damage to the hearing if effective ear protection is not worn.

Contents of carton

The GMC BJ600 biscuit joiner is supplied with the following

accessories as standard

• Pin wrench

• Allen key

• Dust extraction adaptor

• Dust bag

Unpacking

Due to modern mass production techniques, it is unlikely

that your GMC Power Tool is faulty or that a part is missing.

If you find anything wrong, do not operate the tool until the

parts have been replaced or the fault has been rectified.

Failure to do so could result in serious personal injury.

Know your product

1. On/off switch

2. Spindle lock button

3. Main handle

4. Secondary handle

5. Depth of cut adjustment knob

6. Main fence

7. Height and bevel

adjustment fence

8. Bevel scale

9. Bevel adjustment knob

10. Height scale

11. Height adjustment knob

12. Dust extraction port

13. Dust extraction adaptor

14. Dust bag

13 4

8 9

Overview

The biscuit joiner is designed for the cutting and joining

of dressed timber. It provides an accurate, effective and

convenient alternative to other means of jointing such as

dowelling and can be particularly useful for edge jointing long

boards of natural wood or manufactured sheeting.

The 100mm TCT blade is plunged into the wood to the

required depth, which is pre-set depending on the biscuit to

be used.

Biscuit No. Width Length

#0 16mm 48mm

#10 20mm 52mm

#20 24mm 60mm

PVA wood glue is applied and the biscuit is inserted into

the elliptical slot that is left by the blade. As the glue sets,

the water content in the glue is absorbed into and expands

the biscuit, resulting in an extremely strong joint.

Note. You must use PVA glue designed for woodworking

applications

The adjustable fence allows the height and angle of the

blade to be positioned to suit different joint requirements.

The depth of cut can be set on the depth of cut control dial,

depending on the biscuit to be used. The joiner can also be

used to create a continuous groove, the width of which can

be increased simply by adjusting the fence up or down and

carrying out several passes.

Adjusting the cutting depth

The depth of cut can be set to match the dimensions of the

particular size biscuit being used.

The numbers on the depth adjustment dial (0, 10 & 20)

coincide with the three most common biscuit sizes. The

letter ‘M’ stands for maximum depth capacity of the tool.

The table below indicates the cutting depth for each setting.

Depth Setting Depth of Cut

0 8mm

10 10mm

20 12mm

Max 14mm

The width of a biscuit may vary slightly due to variances in

manufacture. The blade has been designed to allow fitment

of up to the largest biscuits in the slot cut.

1. To select a depth, align the

appropriate number with the

mark on the tool’s housing

that matches with the size

of biscuit you will be using.

Rotate the depth adjustment

dial (5) to the desired position

until it “clicks” into place (fig A).

#0 = 16mm x 48mm

#10 = 20mm x 52mm

#20 = 24mm x 60mm

#10

#20

Adjusting the secondary handle

1. Using an Allen key loosen the set screw on each side of

the handle (fig B).

2. Position the handle to the desired position (fig C).

3. Tighten the 2 hex screws to secure the handle in position.

Fitting the height and

bevel adjustment fence

1. Attach the height and bevel

adjustment fence to the main

fence by sliding it over the top

of the main fence (fig D).

Adjusting the bevel angle

The adjustable tilt feature allows

slots to be cut on a bevelled edge.

1. Loosen the bevel adjustment knob (9) by rotating it in an

anti-clockwise direction (fig E).

2. Move the fence to the desired angle between 0° and 90°

using the bevel scale (8) and pointer as

a guide (fig F).

3. Tighten the bevel adjustment

knob (9) to secure the

fence in position (fig G).

Adjusting the cutting

height

The height of the fence can be

adjusted to let you make biscuit

slots at different depths down

from the surface of the workpiece.

1. Ensure that the fence is set at 0°.

2. Position fence (7) to the desired height using the scale

(10) on the main fence as a guide (fig H).

3. Tighten the height adjustment knob (10) by rotating it in a

clockwise direction to secure the fence in position (fig I).

Anti-slip rubber grips

Biscuit jointers tend to pull to the

right when making a cut. The

anti-slip rubber grips have been

provided to reduce this effect

and help keep the biscuit joiner

steady on the workpiece (fig J).

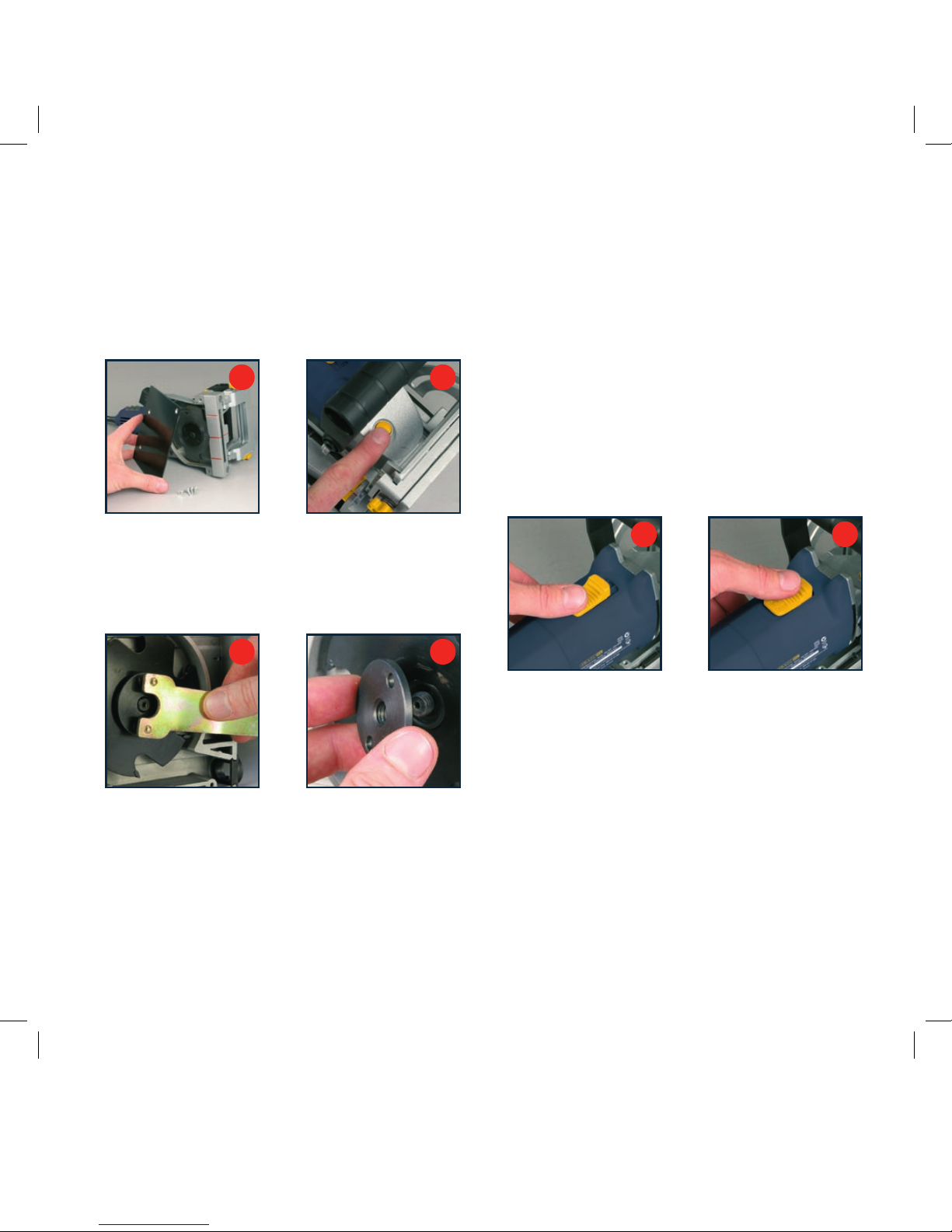

Changing the blade

CAUTION. Always ensure that the biscuit joiner is switched

off and unplugged from the power supply before making any

adjustments.

1. Loosen and remove the 4 screws on the base of the

biscuit joiner.

2. Remove the base plate to reveal the blade (fig K).

3. Whilst holding the spindle lock button (2) rotate the blade

by hand until the blade locks in place (fig L).

4. Whilst depressing the spindle lock button, turn the blade

flange anti-clockwise using the pin wrench provided

(fig M).

5. Remove the outer blade flange (fig N).

6. Remove the blade from the inner flange.

7. Clean the blade flanges thoroughly before mounting the

new blade. Wipe a drop of oil onto the inner and outer

flange where they will touch the blade.

8. Mount the new blade onto the spindle and against the

inner flange.

9. Replace the outer flange and tighten.

10. Ensure that the spindle lock button is released.

WARNING. The direction in which the blade rotates has to

be the same as the direction of the arrow marked on

the housing.

IMPORTANT. After replacing the cutting blade, check that it

runs freely by first testing if it spins by hand.

11. Replace the base plate and secure with the 4 screws.

12. Plug the machine into a power socket and run the

biscuit joiner under no load to check that it runs

smoothly before using it to cut any material.

Turning on and off

1. Connect the plug to the power point.

2. Push the on/off switch (1) forward and up over the

latching ramp to lock the switch on (fig O).

3. Once cutting is finished, pull in and release the on/off

switch (1) to stop the motor (fig P).

WARNING. The blade continues to turn for a few seconds

even though the switch is turned off. Keep your hands well

away from the moving blade.

Table des matières

Autres manuels GMC Laminoir

GMC

GMC BJ110M Manuel utilisateur

Manuels Laminoir populaires d'autres marques

Matrix

Matrix BJ 850-100/1 Manuel utilisateur

Chicago Electric

Chicago Electric 38648 Manuel d'installation

Triton

Triton TC850DWL Instructions de montage

Craftsman

Craftsman 315.175501 Manuel utilisateur

DeWalt

DeWalt DCW682 Manuel utilisateur

Triton

Triton BJA 300 Guide rapide

Ferm-Omega Tools

Ferm-Omega Tools FBJ-710 Manuel utilisateur

Ferm

Ferm FBJ-710P Manuel utilisateur

DeWalt

DeWalt DW682K Manuel utilisateur

Wen

Wen JN8504 Manuel utilisateur

Craftsman

Craftsman 17550 - 3.5 Amp Detail Biscuit Jointer Manuel utilisateur

Parkside

Parkside PFDFA 20-Li A1 Manuel utilisateur

Ryobi

Ryobi EBJ900K Manuel d'utilisation

Silverline

Silverline 128999 Manuel utilisateur

Ferm

Ferm BJM1009 Manuel utilisateur

Lamello

Lamello Top 21 Manuel utilisateur

Lamello

Lamello Classic X Manuel utilisateur

Casals

Casals JS104 Manuel utilisateur
