982.690001/000 07.06

Glow-worm, Nottingham Road, Belper, Derbyshire. DE56 1JT

www.glow-worm.co.uk

To be left with the user

Instructions for Use

High Efficiency Condensing Combination Boilers

Betacom

Supplied By www.heating spares.co Tel. 0161 620 6677

2www.glow-worm.co.uk

WARNING

GAS LEAK OR FAULT

Turn off the gas emergency control valve immediately. Eliminate all sources of ignition, i.e.smoking,

blowlamps, hot air guns etc. Do not operate electrical lights or switches either on or off.

Open all doors and windows, ventilate the area.

SHEETMETAL PARTS

This boiler contains metal parts (components) and care should be taken when handling and cleaning,

with particular regard to edges.

SEALED COMPONENTS

Under no circumstances must the User interfere with or adjust sealed parts.

Glow-worm service call: 01773 828100 Technical helpline: 01773 828300

General and Sales enquiries Tel: 01773 824639 Fax: 01773 820569

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk 3

Betacom 24

G.C. No. 47-019-04

Betacom 30

G.C. No. 47-019-05

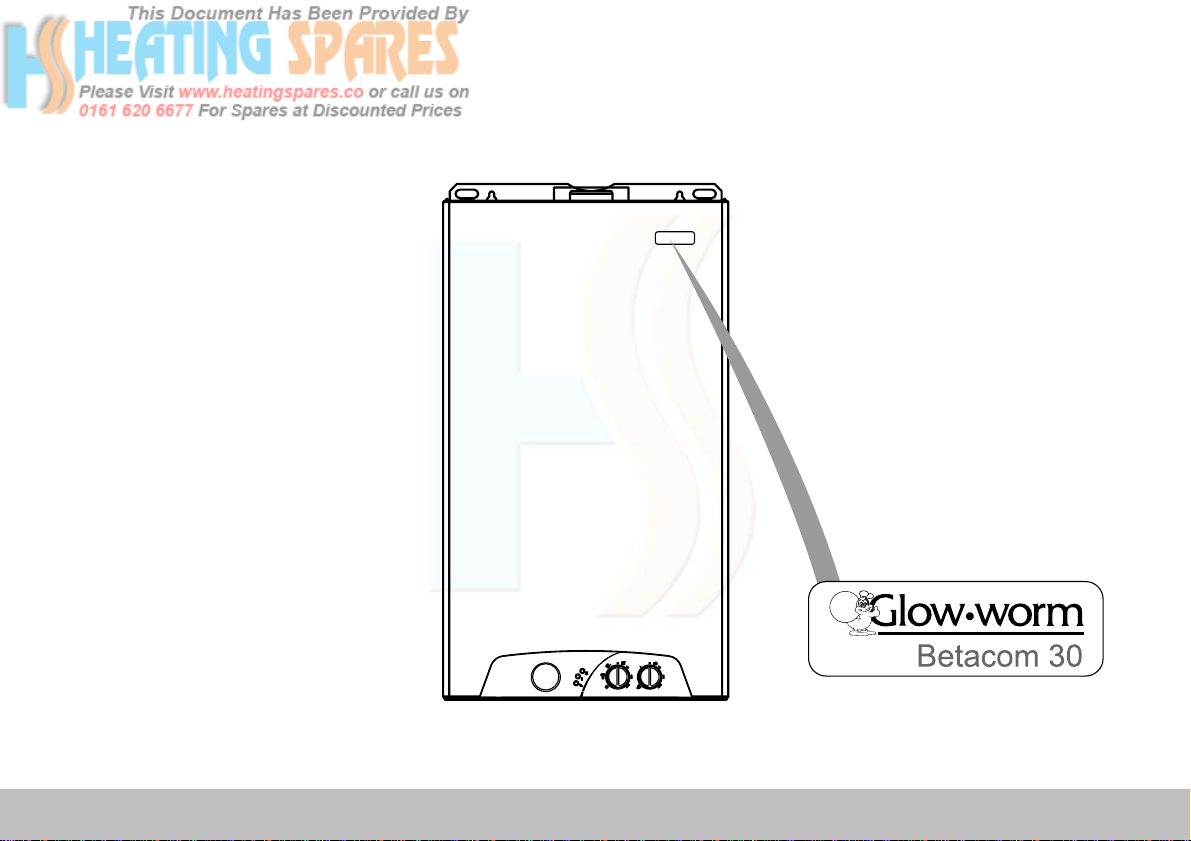

Position of name

badge (typical shown)

Supplied By www.heating spares.co Tel. 0161 620 6677

4www.glow-worm.co.uk

Important Information 5

Boiler Design 6

Boiler Safety Devices 7

Maintenance 8

Boiler Operation 9

CONTENTS

Theseinstructionsareanintegralpartoftheboilerandmust,tocomplywiththecurrentissueoftheGasSafety

(Installation and Use) Regulations, be left with the user.

Please read these instructions and follow them carefully for the safe and economical use of your boiler.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk 5

Gas Safety (Installation and Use) Regulations

In your own interests and that of safety, it is the Law that ALL gas

appliances have been installed by a competent person in accord-

ance with the current issue of the regulations.

Control of Substances Hazardous to Health

Under Section 6 of The Health and Safety at Work Act 1974, we are

required to provide information on substances hazardous to health.

Theadhesivesandsealantsusedinthisappliancearecuredandgive

no known hazard in this state.

Electrical Connection

The boiler MUST be earthed.

The boiler MUST be connected to a permanent 230V ac, 50Hz

supply.

Connectionof thewhole electricalsystem ofthe boiler,including any

heating controls, to the electrical supply must be through one

common isolator and must be fused to 3 Amps maximum.

The colours of three core flexible cable are, blue - neutral, brown -

live, green and yellow - earth.

Gas Category

Thisboilerisfor use onlyonG20naturalgasor G31 propanewiththe

appropriate conversion kit.

Testing and Certification

This boiler is certificated to the current issue of EN 483 for perform-

ance and safety.

Itisimportantthatnoalterationismadetotheboilerunlessapproved,

in writing, by Glow-worm.

Any alteration not approved by Glow-worm, could invalidate the

certification, boiler warranty and may also infringe the current issue

of the statutory requirements.

CE Mark

Thisboilermeetsthe requirementsofStatutoryInstrument,No.3083

of the Boiler (Efficiency) Regulations, and therefore is deemed to

meet the requirements of Directive 92/42/EEC on the efficiency

requirements for new hot water boilers fired with liquid or gaseous

fuels.

Type test for purposes of Regulation 5 certified by: Notified body

0087.

Product/production certified by: Notified body 0086.

The CE mark on this appliance shows compliance with:

1. Directive 90/396/EEC on the approximation of the laws of the

Member States relating to appliances burning gaseous fuels.

2. Directive 73/23/EEC on the harmonisation of the Laws of the

Member States relating to electrical equipment designed for use

within certain voltage limits.

3. Directive 89/336/EEC on the approximation of the Laws of the

Member States relating to electromagnetic compatibility.

Important Information

IMPORTANT NOTE

ALL electrical connections to the boiler

must be permanently fixed to a wall or a

sturdy support feature.

Supplied By www.heating spares.co Tel. 0161 620 6677

6www.glow-worm.co.uk

Description

These boilers are designed for use as part of a sealed water central

heating system with fully pumped circulation. The pump, expansion

vessel and associated safety devices are all fitted within the boiler.

Once the controls are set the boiler operates automatically.

Compartment or Cupboard Installations

Ventilationis notrequiredfor compartment orcupboardinstallations.

Do not use the compartment or cupboard for storage.

The minimum clearances to fixtures are shown in diagram 1.

Pluming from flue terminal

Like all condensing boilers it will produce a plume of condensation

from the flue terminal in cool weather. This is due to the high

efficiency and hence low flue gas temperature of the boiler. It is

normal and not a fault indication.

Electrical Supply Failure

The boiler will not work without an electrical supply and normal

operation of the boiler should resume when the electrical supply is

restored.

If the boiler does not resume normal operation, check the external

controls, it may be necessary, to "reset" the boiler, refer to the

following section, "Boiler Safety Devices".

Boiler Design

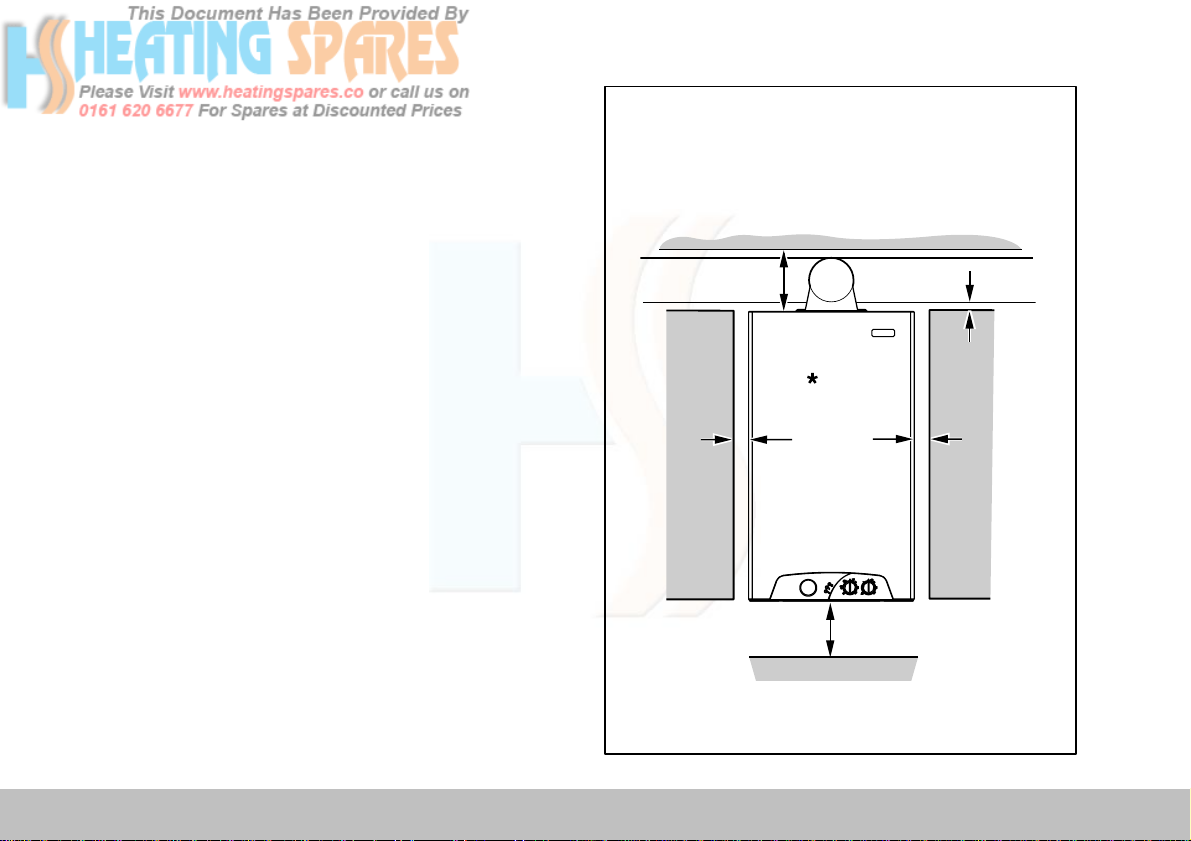

Diagram 1

*A removable compartment door can be placed a mini-

mum of 15mm in front of the appliance but there must be

a clearance of 600mm minimum from a fixed surface.

051 5

5050

200

006

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk 7

Boiler Safety Devices

Overheat Reset

The boiler is designed to lockout when an overheat happens. When

the boiler is locked out, the indicator lights steadly. To restart the

boiler, turn the left knob on position, wait one minute to cool down

the boiler, and then turn it on previous operating position (see

diagram 2).

If the boiler fails to resume normal operation and all external controls

are calling for heat, or if the boiler locks out again, then call your

Installation/Servicing company or Glow-worm service.

Frost Protection

With the gas and electric supplies ON and irrespective of any setting

of boiler’s control or room thermostat, the integral frost protection

devicewillignitetheburnerandoperatethepumpwhenthetempera-

ture of the boiler water falls below 5°C.

The burner will switch off when the temperature reaches 30°C.

NOTE: Any other exposed areas of the system should be protected

by a separate frost thermostat.

Condensate Drain Blockage

Asasafetyfeature theboilerwillstopworkingifthe condensatedrain

becomes blocked. During freezing conditions this may be due to the

forming of ice in the condense drain external to the house. Release

an ice blockage by the use of warm cloths on the pipe. The boiler

should then restart. Contact your Installation/Servicing company or

Glow-worm service if the fault persists.

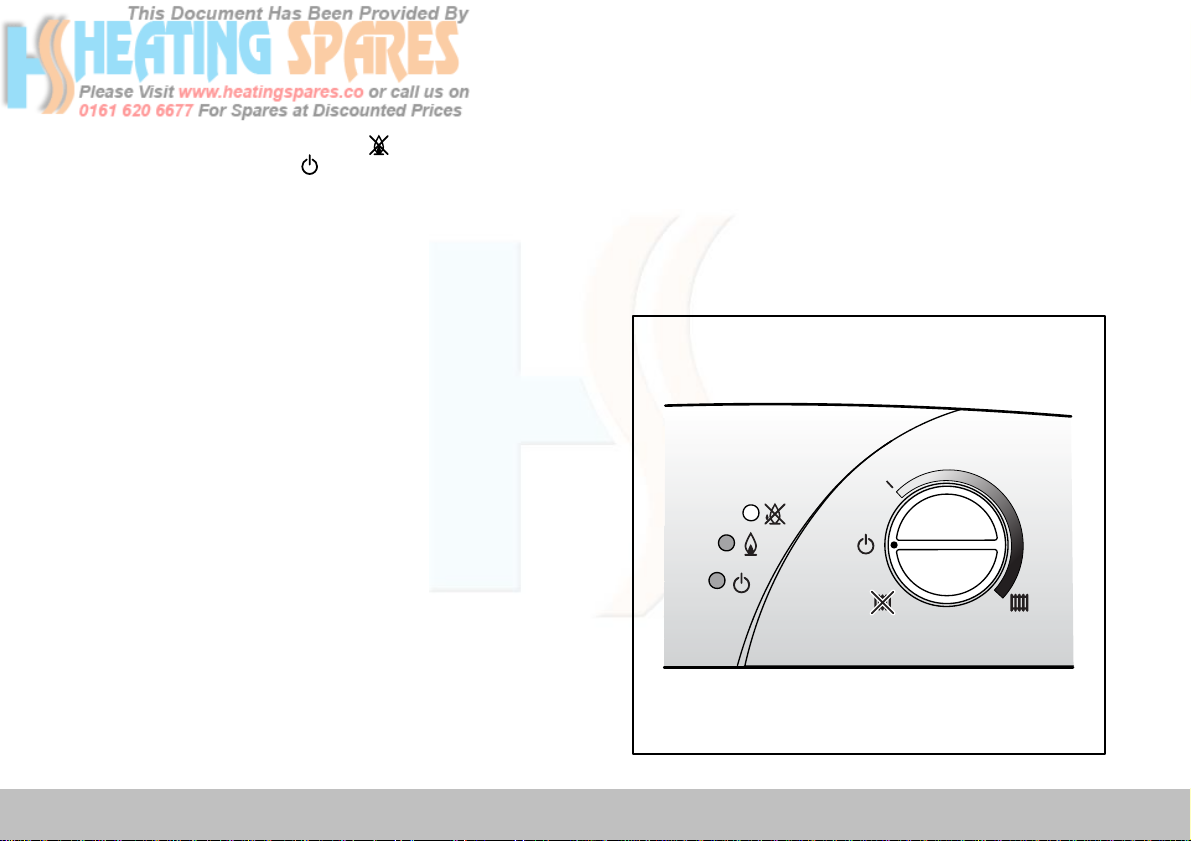

Diagram 2

Safety Discharge Valve

Asafetydischargevalveanddischargepipeisfittedtotheboiler.This

valve MUST not be touched. If there is any discharge from the pipe,

switch off the boiler electrical supply, then call your Installation/

Servicing company or Glow-worm service.

Supplied By www.heating spares.co Tel. 0161 620 6677

8www.glow-worm.co.uk

Maintenance

Sealed Water Systems

The draining, refilling and pressurising MUST be carried out by a

competent person, contact your Installation/Servicing company or

Glow-worm Service.

Spare Parts

REMEMBER, When replacing a part on this boiler, use only spare

partsthatyoucanbeassured conform tothesafetyandperformance

specification that we require. Do not use reconditioned or copy parts

that have not been clearly authorised by Glow-worm.

If replacement parts are required contact Glow-worm’s own service

organisation using the telephone number on the inside front cover of

this booklet.

Please quote the name of the boiler, this infomation will be on the

name badge on the front case.

If in doubt seek advice from the local gas company or Glow-worm’s

own service organisation using the telephone number on the inside

front cover of this booklet.

Servicing

To ensure the continued efficient and safe operation of the boiler it

is recommended that it is checked and serviced at regular intervals.

The frequency of servicing will depend upon the site conditions and

usage, but in general, once a year should be enough.

If this boiler is installed in a rented property in the UK there is a duty

of care imposed on the owner of the property by the current issue of

the Gas Safety (Installation and Use) Regulations, Section 35.

Servicing/maintenance should be carried out by a competent per-

son in accordance with the rules in force in the countries of

destination.

To obtain service, please call your installer or Glow-worm’s own

service organisation using the telephone number on the inside front

cover of this booklet.

Cleaning

The boiler casing can be cleaned using a mild liquid detergent with

a damp cloth, then a dry cloth to polish.

Do not use any form of abrasive or solvent cleaner as you may

damage the paintwork.

Frost Protection

If the mains electricity and gas services are to be turned off for any

long periods during severe weather, it is recommended that the

wholesystem,includingthe boiler,shouldbedrainedtoavoidtherisk

of freezing.

Supplied By www.heating spares.co Tel. 0161 620 6677

www.glow-worm.co.uk 9

Boiler Operation

Isolating Valves

1. Check that all isolating valves and the Gas cock, on theboiler

are open and that water flows from the hot water tap.

2. If you are in any doubt about the boiler being filled with water

contact your installer or Glow-worm's own service organisation

using the telephone number on the inside front cover of this

booklet. The boiler does not operate without water.

3. CheckthattheelectricalsupplytotheboilerisONandthatalltaps

are closed and there is no demand from any external controls.

4. The gauge, see diagram 3, will indicate the system pressure,

which should read at least 0.5bar (recommended 1.0bar,

max 1.5bar), if the pressure is less, then call your Installation/

Servicing company or Glow-worm service.

5. To operate or switch off the boiler follow the instructions as

described on the following pages.

6. Set any external controls as required.

Filling the Central heating system (filling loop)

Open the Central Heating (flow and return) isolation valves as

indicated on Diagram 3 and install the filling loop on its connection.

Gentlyopenthe fillinglooptapsuntil thecorrectpressureis indicated

by the gauge (recommended 1.0bar; min. 0.5bar; max. 1.5bar).

If the loss of pressure problem persists, you MUST contact your

Installation / Servicing company or Glow-worm Service.

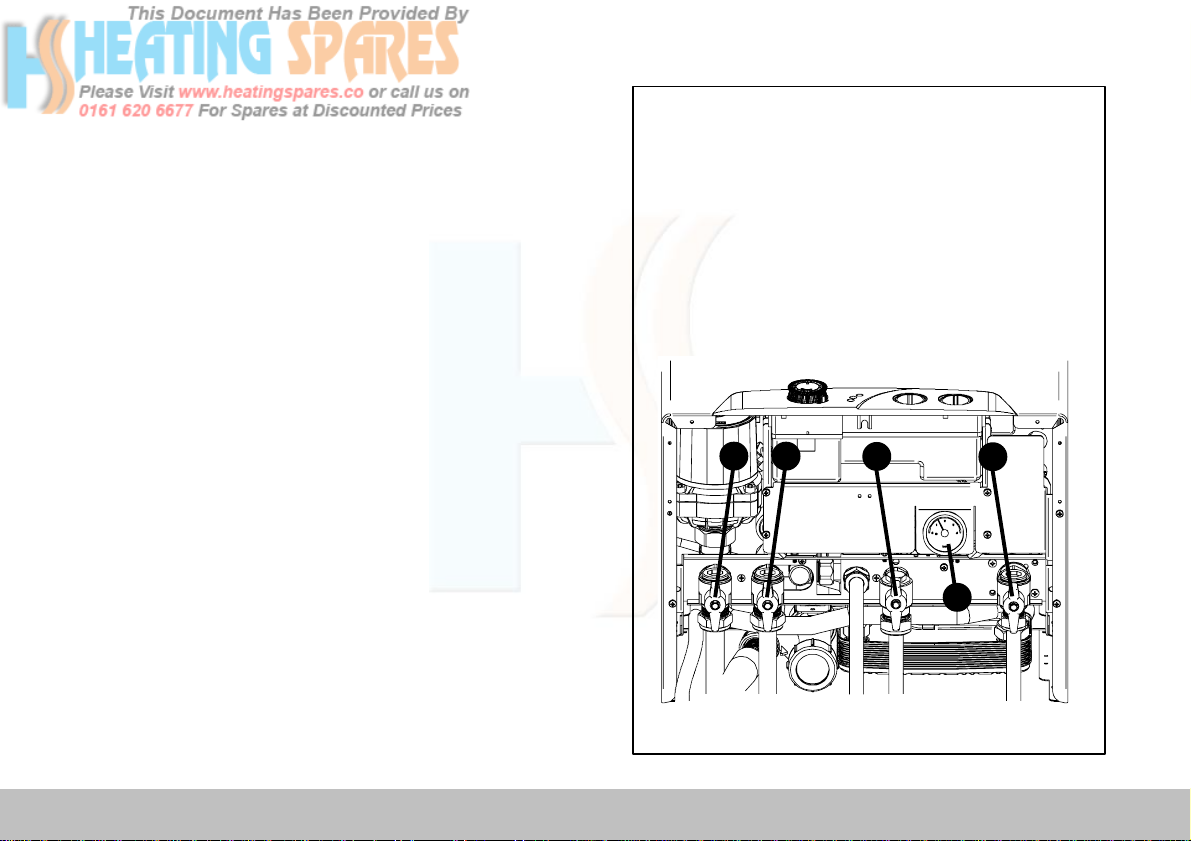

Diagram 3

Isolating Valves

ACentral heating - Return (open)

BCentral heating - Flow (open)

CCold water - Inlet (open)

DGas cock - (open)

EGauge (system pressure)

A B C D

Supplied By www.heating spares.co Tel. 0161 620 6677

10 www.glow-worm.co.uk

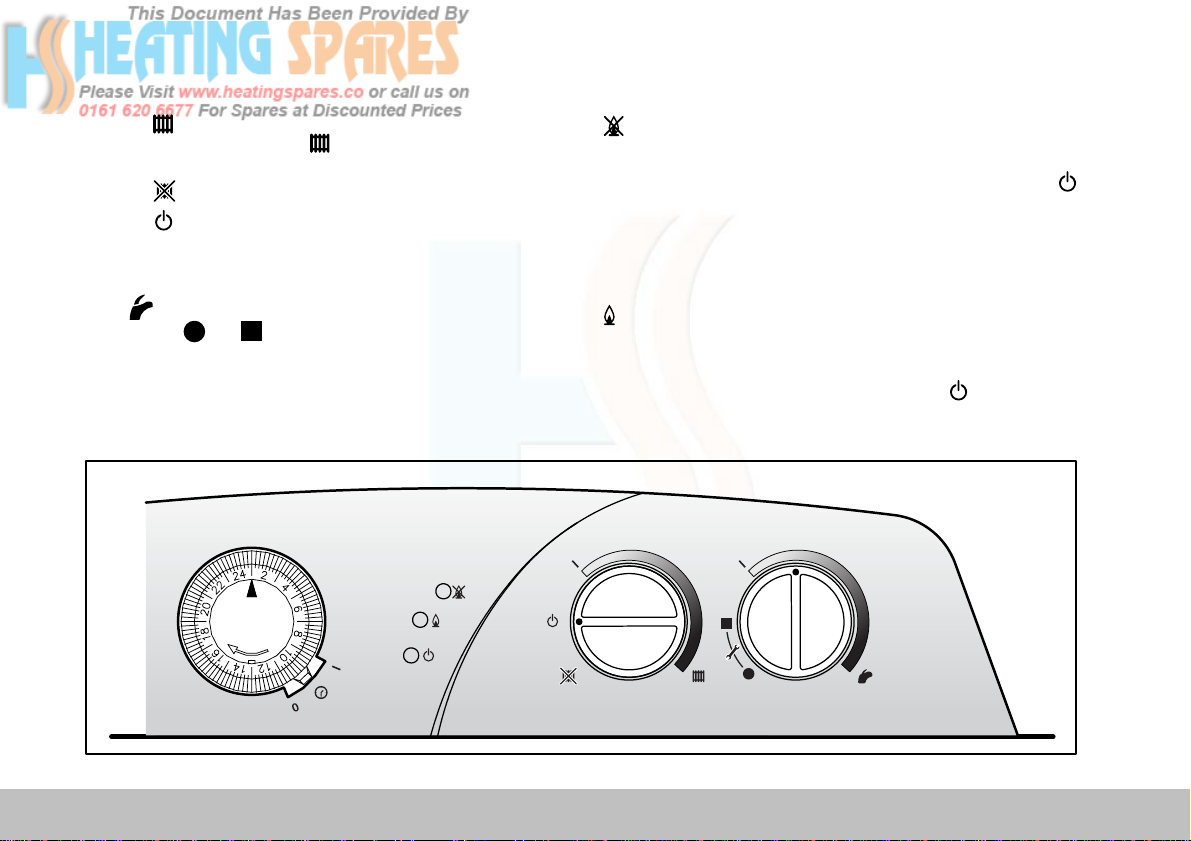

Central Heating knob (left one):

position - “Winter” to activate the boiler for heating and hot

water production; the scale determines the central heating

temperature (35 - 78°C);

position - “Summer” for hot water production only;

position - “Stand-by - Reset” to stand-by the boiler (frost

protection still active) and to reset eventual safety lock-out.

Hot Water knob (right one):

scale determines the hot water temperature (30 - 55°C).

Positions and are reserved to the Technician, so don’t

turn the knob on these position to avoid unpredictable behaviour

or malfuncions.

Boiler Operation - User Controls

Indicators

Boiler lockout indicator

OFF: no problems occoured.

ON: safety lockout. To reset the boiler, turn the left knob on

(reset) position, wait one minute to cool down the boiler, and then

turn it on previous operating position.

Flashing: 1) Hot Water knob on a position reserved to the

Technician; 2) Fault inside the boiler. Call your Installation/

Servicing company or Glow-worm service.

Burner indicator

ON: the flame is present on the burner.

Flashing: Error. Check the Hot Water knob for correct position

and reset the boiler by turning the left knob on (reset) position

for a few seconds.

Diagram 4

Autres manuels pour Betacom 24

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Glowworm Chaudière

Glowworm

Glowworm Swift flow 100 Manuel utilisateur

Glowworm

Glowworm Compact 24c-AS/1 Manuel utilisateur

Glowworm

Glowworm 30ci plus Guide de l'utilisateur

Glowworm

Glowworm Energy7 12s-A Manuel utilisateur

Glowworm

Glowworm Hideaway 80B FF Manuel utilisateur

Glowworm

Glowworm ULTIMATE 30c Fiche technique

Glowworm

Glowworm Easicom 3 24c Manuel utilisateur

Glowworm

Glowworm Micron 30FF Manuel d'utilisation

Glowworm

Glowworm Ultracom2 35 Store Manuel utilisateur

Glowworm

Glowworm ENERGY 12s -A Manuel utilisateur

Glowworm

Glowworm Energy7 25c -A Manuel utilisateur

Glowworm

Glowworm Hideaway 100B Manuel utilisateur

Glowworm

Glowworm 12 hxi G.C.No. 41-019-01 Manuel utilisateur

Glowworm

Glowworm Energy7 12r-A Manuel utilisateur

Glowworm

Glowworm 100sxi Manuel utilisateur

Glowworm

Glowworm Economy Plus Manuel

Glowworm

Glowworm swift flow 75e Manuel d'utilisation

Glowworm

Glowworm Ultimate 100FF Manuel d'utilisation

Glowworm

Glowworm Ultimate 70FF Manuel d'utilisation

Glowworm

Glowworm Betacom 24 Fiche technique

Glowworm

Glowworm Ultrapower sxi 100sx Manuel utilisateur

Glowworm

Glowworm Ultimate 50FF Manuel utilisateur

Glowworm

Glowworm Hideaway 120 Manuel d'utilisation

Glowworm

Glowworm Energy7 Series Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
