Global Sat ST-100 Series Manuel utilisateur

GlobalSat ST-100 Series

User Manual

Version 1.0

GlobalSat WorldCom Corporation

16F., No. 186, Jian 1st Rd., Zhonghe Dist.,

New Taipei City 23553, Taiwan

Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899

[email protected]

www.globalsat.com.tw

USGlobalSat Incorporated

14740 Yorba Court Chino, CA 91710

Tel: 888.323.8720 / Fax: 909.597.8532

[email protected]

TABLE OF CONTENTS

1. Warning .................................................................................................................................................3

2. Welcome................................................................................................................................................4

3. Introduction and Features...................................................................................................................5

3.1 Introduction.....................................................................................................................5

3.2 LED Indicators................................................................................................................6

4. Device Operation..................................................................................................................................7

4.1 Device charging ..............................................................................................................7

4.2 Power ..............................................................................................................................8

4.3 Help button......................................................................................................................9

5. Safety Information..............................................................................................................................10

6. Limited Warranty ................................................................................................................................ 11

7. FCC Statement....................................................................................................................................16

8. NCC Statement ...................................................................................................................................17

1. Warning

USE RESPONSIBLY. READ ALL INSTRUCTIONS AND

SAFETY INFORMATION BEFORE USE.

GlobalSat WorldCom Corporation / USGlobalSat, Inc., will not accept any responsibility

whatsoever for accidents or violations of local Laws resulting from failure to observe

common sense precautions and local laws. Your personal judgment, traffic regulations,

and common sense must always take precedence over any directions produced by GPS

receiver or the mapping software.

Indemnification:

User agrees to defend, indemnify and hold harmless GlobalSat WorldCom Corp. and USGlobalSat,

Inc., its officers, directors, employees and agents against and from any third party claims, actions,

damages or demands, including but not limited to, reasonable legal and accounting fees, resulting

from user's use or misuse of this product, violation of these Terms, or any activities related to this

product, or from user's violations of the rights of any other user of this product. Use of this Product is

at user's own risk.

2. Welcome

Thank you for purchasing the GlobalSat ST-100. The ST-100 is a sleek, compact and

feature rich asset monitoring tracking device. The ST-100 unit incorporates a wide array of

custom feature, functions and configurations for unique client requirements. We

appreciate your purchase of a GlobalSat WorldCom Product!

3. Introduction and Features

3.1 Introduction

ST-100 is a SIGFOXTM compliant RF Tracker which includes SigfoxTM certified module by

Wisol. It is designed for asset tracking, pet tracking, and personal monitoring of children

and elderly. It has built-in help button for emergency report which allows immediate

notification to the care giver/monitor. ST-100 is fully compatible with SIGOFXTM compliant

base station, making it the #1 choice for tracking application under the SIGFOXTM network.

SKU

Sigfox Frequency

RF Output Power

ST-100E

RC1: Europe 868 MHz

14 dBm

ST-100U

RC2: North America 915 MHz

22 dBm

ST-100J

RC3: Japan, Korea 920 MHz

14 dBm

ST-100A

RC4: Asia 923 MHz

22 dBm

1 Help Button

5 Power Button

2 Power LED

6 Battery Charging Contacts

3 Sigfox®LED

7 Lanyard Holes

4 GPS LED

3. Introduction and Features (Continued)

3.2 LED Indicators

Power Status LED

LED

Orange

Constantly

Lit

Orange Blinking

Red Constantly

Lit

Red Blinking

Quickly

State

ST-100 is

fully charged

ST-100 is

being charged.

Battery power

is low

USB

configuration

mode

Sigfox®LED

LED

Blinking Quickly

State

Data transmitting

GPS LED

LED

Blinking Quickly

(Once per second)

Blinking Slowly

(Once every 3 seconds)

State

ST-100 is searching for GPS fix

ST-100 receives GPS fix

4. Device Operation

4.1 Device charging

Using the device for the first time, rechargeable battery will require a complete 100%

charge before ST-100 is operable. To maximize your device’s battery life, proceed by

performing the steps listed below.

1. Connect the charging clip to ST-100's battery charging contacts and connect the

USB side to AC adaptor.

2. Allow at least 4 hours of battery charging time.

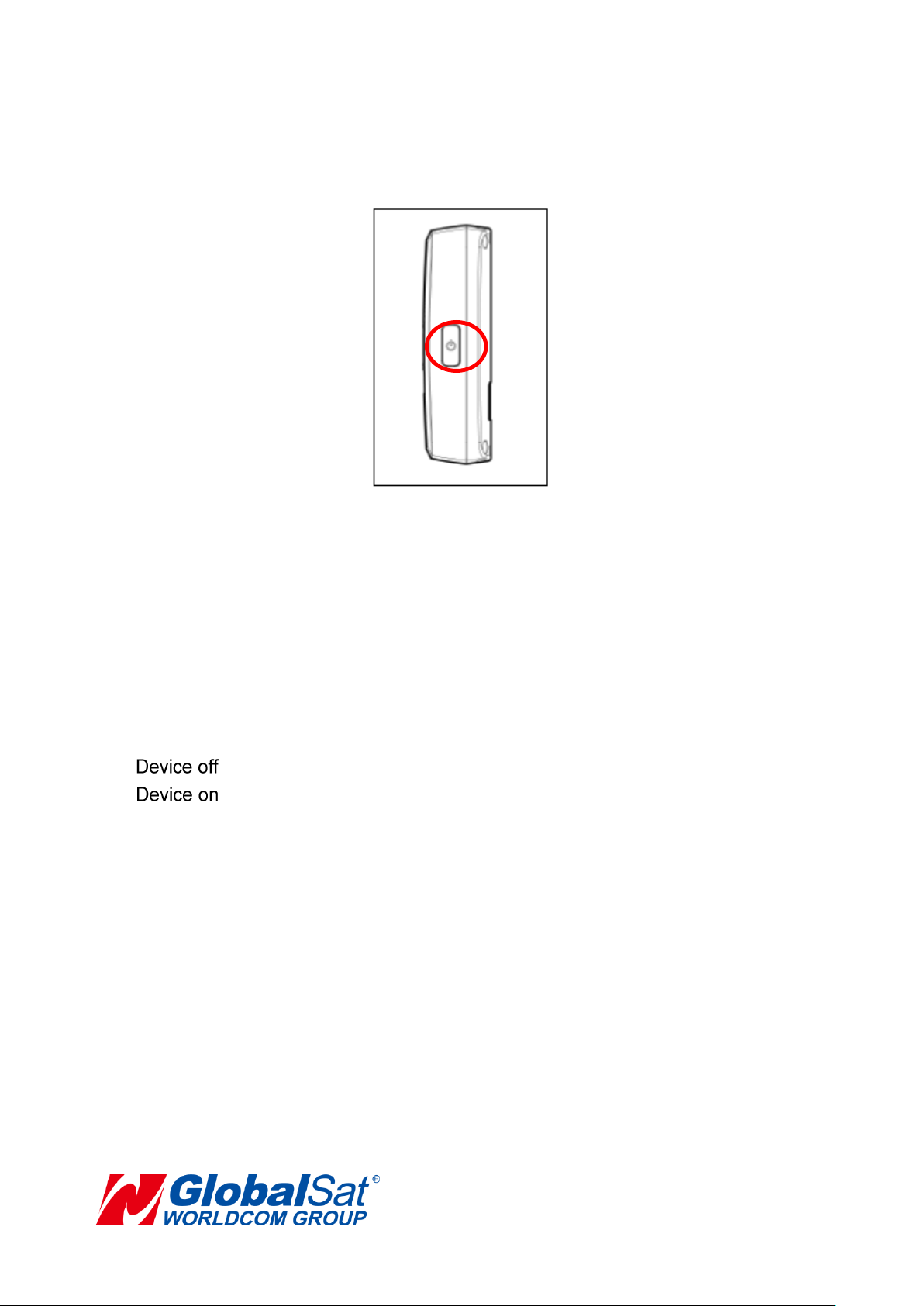

4.2 Power

1. To turn the device “ON”, press and hold the power button until the device vibrates..

2. To turn the device “OFF”, press and hold the power button until the device vibrates.

3. To perform a hard reset, press and hold the power button for 8 to 10 seconds.

Note: Short press power button to check ST-100 is On or Off.

：red LED blink 1 time.

：red LED blink 3 times.

4.3 Help button

When help button is long pressed, ST-100 will send the first help report immediately. Then

ST-100 would send help reports every 30 seconds (default value) continuously to SigfoxTM

base station till it gets server acknowledgement and GPS fix.

Note:

The SIGFOXTM requires a 1% transmit duty-cycle lower than the legal limit to avoid

network congestion. Abide by EU’s regulation, ST-100 should send help reports by

5-minute interval minimal.

5. Safety Information

Please consult your airline prior to the operation of this product in the aircraft. . Operating this

product in environments emitting intensive radio waves or radiation can affect the operation and

functionality of this product.

Avoid use in humid or rainy environment. Water ingress can disable or destroy this product

beyond repair.

Avoid using this product in a dusty environment. Dust ingress can compromise the products ability

to function.

Avoid situations that include Over-voltage, over charging, power cable damage may cause

overheating or potential fire disaster.

Never use any chemical or detergent to clean the Personal Tracker to prevent erosion of the surface

or paintwork.

In order to eliminate the risk of electric shock, make certain the charging cable is completely

inserted / seated, do not touch the power cable plug / connectors with wet or damp hands.

Do not charge the Device in any extreme cold or hot temperatures, which may cause damage to

the device.

Keep out of the reach of children during charging.

Avoid direct prolonged exposure to sunlight and high temperatures to avoid the potential

over-heating of the battery of this product, which may cause damage.

Please do not attempt to repair this device yourself, contact GlobalSat or USGlobalSat for

Technical Support.

Keep all the wires tidy in order to prevent damage or tangling.
