Global Sat ET-212 Manuel d'exploitation

Globalsat Technology Corporation

PRODUCT USER MANUAL

GPS ENGINE BOARD

ET-212

GlobalSat Technology Corporation

16, No.186,Chien 1 Road, 235Chung Ho City,Taipei Hsien, Taiwan ,R.O.C.

Tel: 886-2-8226-3799(Rep.) Fax: 886-2-8226-3899

Web: www.globalsat.com.tw E-mail:[email protected]

Features:

SiRF GSC2x high performance GPS Chip Set

Very high sensitivity (Tracking Sensitivity: -155 dBm)

Extremely fast TTFF (Time To First Fix) at low signal level

Compact size (28.2mm * 20 mm * 3.4mm) suitable for space-sensitive application

One size component, easy to mount on another PCB board

Support NMEA 0183 and SiRF binary protocol

Specification:

General

Chipset SiRF GSC2x

Frequency L1, 1575.42 MHz

C/A code 1.023 MHz chip rate

Channels 12 channel all-in-view tracking

Sensitivity -155 dBm

Accuracy

Position 10 meters, 2D RMS

5 meters, 2D RMS, WAAS enabled

Velocity 0.1 m/s

Time 1us synchronized to GPS time

Datum

Default WGS-84

Acquisition Time

Reacquisition 0.1 sec., average

Hot start 8 sec., average

Warm start 38 sec., average

Cold start 45 sec., average

Dynamic Conditions

Altitude 18,000 meters (60,000 feet) max

Velocity 515 meters /second (1000 knots) max

Acceleration Less than 4g

Jerk 20m/sec **3

Power

Main power input 3.3V +- 5% DC input

Power consumption 42 mA (With antenna)

Interface

Dimension 27.9mm * 20mm * 3.4mm

Baud rate 4,800 to 57,600 bps adjustable

Output message SiRF binary or

NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL

Antenna Active or passive antenna

Environmental

Operating Temp -40℃to +85℃

Pin Assignment

Pin description

* RF:

Connect to Patch Antenna

Connect to External Active Antenna

* VIN (DC power input):

This is the main DC supply for a 3.3V +- 5% DC input power module board.

* BATTERY (Backup battery):

This is the battery backup input that powers the SRAM and RTC when main

power is removed. Typical current draw is 15uA. Without an external backup battery,

the module/engine board will execute a cold star after every turn on. To achieve the

faster start-up offered by a hot or warm start, a battery backup must be connected.

The battery voltage should be between 2.0v and 5.0v.

* GPIO13:

User can use this I/O pin for special function.

For example, on/off LED

* TX:

This is the main transmits channel for outputting navigation and measurement

data to user’s navigation software or user written software.

Output TTL level, 0V ~ 2.85V

* RX:

This is the main receive channel for receiving software commands to the engine

board from SiRFdemo software or from user written software.

* GND:

GND provides the ground for the engine board. Connect all grounds.

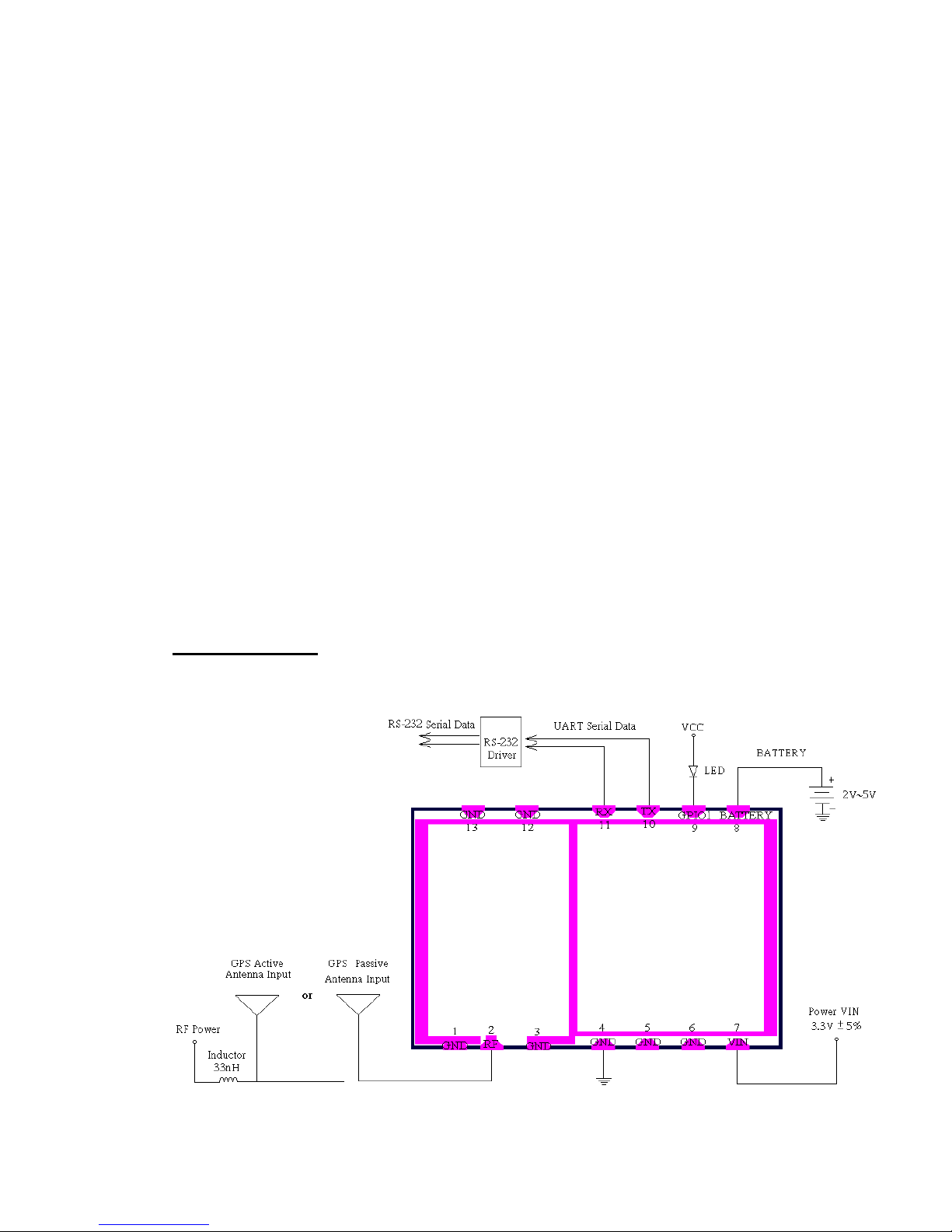

Application Circuit

Recommend Layout PAD

SOFTWARE COMMAND

NMEA Output Command

GGA-Global Positioning System Fixed Data

Table B-2 contains the values for the following example:

$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M,,,,0000*18

Table B-2 GGA Data Format

Name Exam

le Units Descri

tio

Messa

e ID $GPGGA GGA

rotocol heade

UTC Time 161229.487 hhmmss.sss

Latitude 3723.2475 ddmm.mmmm

/S Indicato

=north or S=south

Lon

itude 12158.3416 dddmm.mmm

E/W Indicato

W E=east or W=wes

Position Fix Indicato

1 See Table B-3

Satellites Use

07 Ran

e 0 to 12

HDOP 1.0 Horizontal Dilution of Precision

MSLAltitude19.0 meters

Units M meters

Geoid Se

aration1meters

Units M meters

e of Diff. Corr. second

ull fields when DGPS is not used

Diff. Ref. Station ID 0000

Checksu

*18

<CR><LF> End of messa

e termination

SiRF Technology Inc. does not support geoid corrections. Values are WGS84 ellipsoid heights.

Table B-3 Position Fix Indicator

Value Descri

tion

0 Fix not available or invali

1 GPS SPS Mode, fix vali

2 Differential GPS, SPS Mode , fix vali

3 GPS PPS Mode, fix vali

GLL-Geographic Position-Latitude/Longitude

Table B-4 contains the values for the following example:

$GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C

TableB-4GLLDataFormat

Name Exam

le Units Descri

tion

Messa

e ID $GPGLL GLL

rotocol heade

Latitude 3723.2475 ddmm.mmmm

/S Indicato

=north or S=south

Lon

itude 12158.3416 dddmm.mmm

E/W Indicato

W E=east or W=wes

UTC Position 161229.487 hhmmss.sss

Status A A=data valid or V=da

a not valid

Checksu

*2C

<CR><LF> End of messa

e termination

GSA-GNSS DOP and Active Satellites

Table B-5 contains the values for the following example:

$GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33

TableB-5GSADataFormat

Name Example Units Description

Message ID $GPGSA GSA protocol header

Mode1 A See Table B-6

Mode2 3 See Table B-7

Satellite Used107 Sv on Channel 1

Satellite Used102 Sv on Channel 2

…..

Satellite Used1Sv on Channel 12

PDOP 1.8 Position dilution of Precision

HDOP 1.0 Horizontal dilution of Precision

VDOP 1.5 Vertical dilution of Precision

Checksum *33

<CR><LF> End of message termination

1. Satellite used in solution.

TableB-6Mode1

Value Description

M Manual-forced to operate in 2D or 3D mode

A 2Dautomatic-allowed to automatically switch 2D/3D

TableB-7Mode2

Value Description

1 Fix Not Available

2 2D

3 3D

GSV-GNSS Satellites in View

Table B-8 contains the values for the following example:

$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71

$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41

TableB-8GSVDataFormat

Name Exam

le Descri

tio

Messa

e ID $GPGSV GSV

rotocol heade

umber of Messa

es12 Ran

e 1 to 3

Messa

e Numbe

11 Ran

e 1 to 3

Satellites in View 07

Satellite ID 07 Channel 1

(

Ran

e 1 to 32

)

Elevation 79 de

rees Channel 1

(

Maximum90

)

Azimuth 048 de

rees Channel 1

(

True

Ran

e 0 to 359

)

SNR

(

C/No

)

42 dBHz Ran

e 0 to 99

null when not trackin

……. …….

Satellite ID 27 Channel 4

(

Ran

e 1 to 32

)

Elevation 27 De

rees Channel 4

(

Maximum90

)

Azimuth 138 De

rees Channel 4

(

True

Ran

e 0 to 359

)

SNR

(

C/No

)

42 dBHz Ran

e 0 to 99

null when not trackin

Checksu

*71

<CR><LF> End of messa

e termination

Depending on the number of satellites tracked multiple messages of GSV data may be required.

RMC-Recommended Minimum Specific GNSS Data

Table B-10 contains the values for the following example:

$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598,,*10

TableB-10RMCDataFormat

Name Exam

le Units Descri

tio

Messa

e ID $GPRMC RMC

rotocol heade

UTC Time 161229.487 hhmmss.sss

Status A A=data valid or V=data not valid

Latitude 3723.2475 ddmm.mmmm

/S Indicator

=north or S=south

Lon

itude 12158.3416 dddmm.mmm

E/W Indicato

W E=east or W=wes

eed Over Ground 0.13 knots

Course Over Ground 309.62 de

rees True

Date 120598 ddmm

netic Variation2de

rees E=east or W=wes

Checksu

*10

<CR><LF> End of messa

e termination

SiRF Technology Inc. does not support magnetic declination. All “course over ground” data are

geodetic WGS48 directions.

VTG-Course Over Ground and Ground Speed

$GPVTG,309.62,T,,M,0.13,N,0.2,K*6E

Name Exam

le Units Descri

tio

Messa

e ID $GPVTG VTG

rotocol heade

Course 309.62 de

rees Measured headin

Reference T True

Course de

rees Measured headin

Reference M Ma

netic

eed 0.13 knots Measured horizontal s

eed

Units

Knots

eed 0.2 Km/h

Measured horizontal s

eed

Units K Kilometers

er hou

Checksu

*6E

<CR><LF> End of messa

e termination
