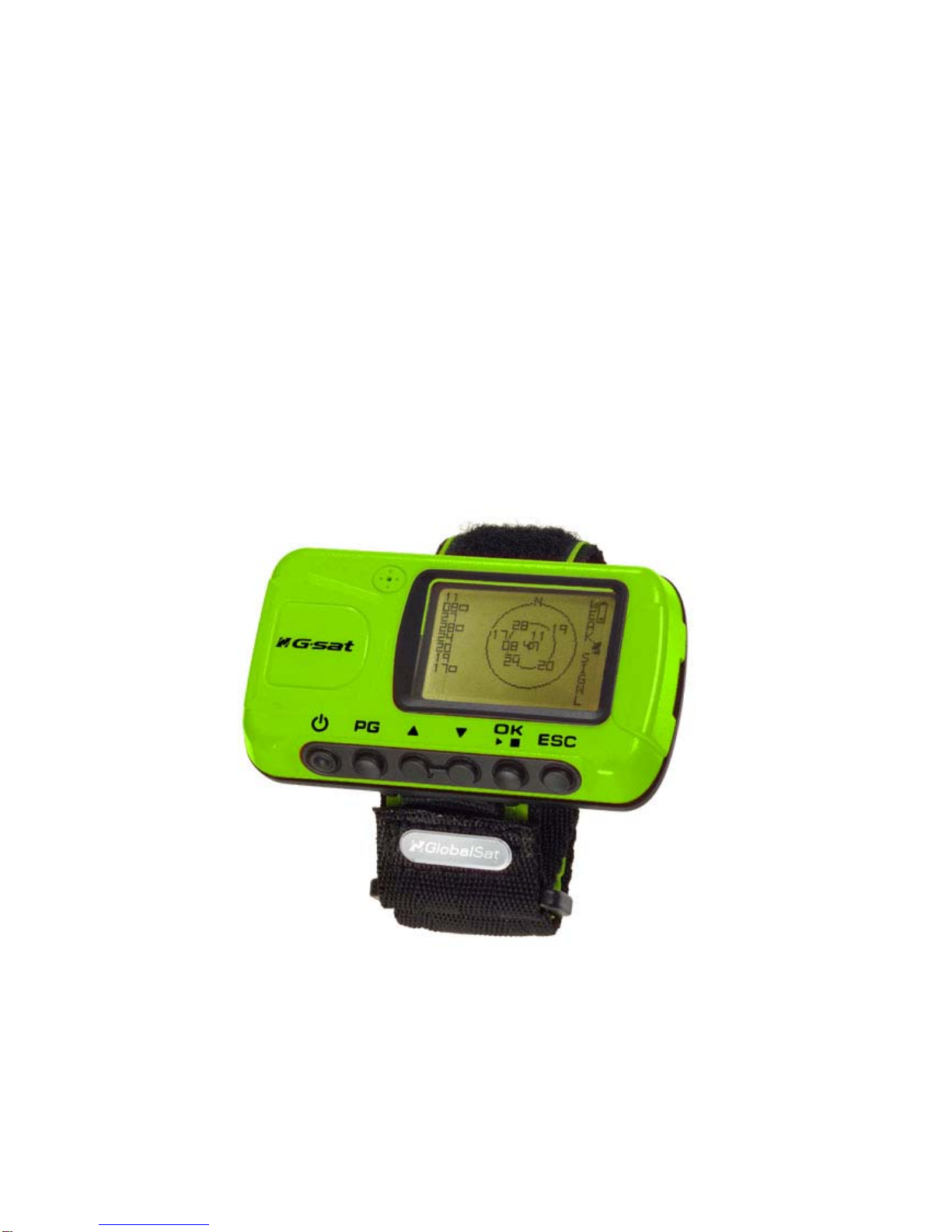

Global Sat GH-601 Manuel utilisateur
Wrist Type GPS for Outdoor
Training / GPS Receiver
GH-601
User Manual Version 1.41
GH-601 page 2
Table of Content
1 Introduction........................................................... 4
2 Features ................................................................. 4
3 Application Software .............................................. 5
4 Accessories ............................................................ 5
5 Front panel description .......................................... 6
6 Charging the GH-601.............................................. 7
7 Starting up your GH-601 ........................................ 8
Changing the Mode ................................................................8
Setting the Time Zone.........................................................10
Using the GH-601 Buttons..................................................11
8 GH-601 Main Functions ........................................ 13
9 Sport Record ........................................................ 14
Review your performance record......................................14
To save your training data..................................................14
10 Navigation.......................................................... 15
Show your location and record the route where you run
..................................................................................................15
GH-601 page 3
Save Waypoint ......................................................................16
Find Waypoint........................................................................17
STOP GOTO............................................................................18
ALERTS....................................................................................18
GPS INFO................................................................................19
11 GPS Mouse.......................................................... 19
To use your GH-601 as a GPS Receiver...........................19
12 Configuration ..................................................... 20
Configure your system........................................................20
Upload your performance record to PC............................21
Update your firmware in GH-601......................................21
GH-601 page 4
1Introduction
Globalsat GH-601 provides a fully-sealed, waterproof, large LCD wrist-watch device,
as well as a GPS navigation function that locates and tracks points from start to stop. It
is adopted for people who exercise for broad kinds of outdoor sports, such as Jogging,
Running, Biking, Snow Skiing, etc. It also can be used as GPS receiver by USB
interface.
2Features
1. Built-in SiRF Star III high performance GPS chipset. Excellent sensitivity for
position fixing even with a weak signal status.
2. Built-in rechargeable high capacity lithium-ion battery.
3. Large LCD for easy reading.
4. WAAS/ ENGOS support.
5. Waterproof, rigid design to avoid careless damage.
6. Records all history of self-training by defined day.
7. GH-600 series can be used as a GPS receiver with an easy setup.
8. The firmware of the GH-601 can be upgraded through PC.
Navigation: Tracking your route as crumb method; marking and saving your tracking
points by a special algorithm; finding specified locations.
GH-601 page 5
3Application Software
1. Supporting operating system such as Windows 98 /2000 /XP.
2. Smart training database management designed for easy of use.
3. Easy to use perform firmware upgrades.
4Accessories
1. User’s manual
2. USB cable (For charging and data download)
3. PC software CD
4. AC/DC 5V charger (Optional)
GH-601 page 6
5Front panel description
GH-601 page 7
6Charging the GH-601
The GH-601 operates on a built-in Li-ion battery. You must charge the internal battery
when the battery runs out.
1. To charge the battery, please connect one end of mini-USB cable to PC USB
port and the other end to the mini-USB port of GH-601.
2. Or connect one end of mini-USB cable to AC adaptor and the other end to the
mini-USB port of GH-601.
3. When the GH-601 is fully charged, the battery icon scale will be filled. GH-601
can operate up to 16 hours when the battery is fully charged.
4. GH-601 icons
Battery: The battery icon indicates how much battery power is
left.A full battery icon indicates a fully-charged battery.
Timer icon: When speedometer feature of GH-601 is being
used, the timer icon will be displayed under the battery icon.
Satellite Dish icon: When the GH-601 has acquired enough
signal strength from satellites to position your GPS location,
this icon appears steady (not blinking) just below the timer icon.
The icon appears blinking when it is searching for satellite
signal. If you turn off GPS, this icon will not be shown on the
screen.
GH-601 page 8
7Starting up your GH-601
After the GH-601 is completely charged, it is ready for use.
1. Press and hold the POWER button until the welcome screen is displayed.
2. Allow the GH-601 time to track satellites the first time you use it. Leave the
GH-601 outside and face a clear view of the sky and it will be easy to acquire
satellite signals within 5 seconds.
Note. Should the GH-601 become hung up or frozen, please press and hold the
POWER button for 14 seconds to shutdown, and again to restart.
Welcome screen
Changing the Mode
1. Press the PG button to cycle through the various modes of the GH-601. The
three default modes: Speedometer, Menu and Location modes can be cycled
through by pressing PG button. If the Map mode is enabled, then this mode will
also be cycled through.
GH-601 page 9
Speedometer mode Menu mode
Location mode Map mode (If enabled)
2. Speedometer Mode: The Speedometer mode allows you to start or stop the
timer, reset the timer and split a lap. It also provides access to two screens:
The Timer screen displays “TIME OF DAY”, “SPEED” and “ELEVATION” of
you workout.
The countdown screen displays the time you spent of workout and average
speed and distance of you workout.
3. Menu Mode: The Menu Mode provides access to features and settings.
4. Location Mode: The Location Mode provides your current location for your
reference.
GH-601 page 10
5. Map Mode: The Map Mode, when enabled through the Navigation menu,
displays where you are going and where you have been on a graphic map.
Setting the Time Zone
When the GH-601 is ready for use; you may need to check the Time Zone selection.
To change the time zone follow steps below:
1. Press PG button to display the Menu mode.
2. The current date and time are displayed on the bottom of the screen. When the
GH-601 established a GPS fix, the GMT is selected as the default Time Zone.
3. To change the Time Zone, use UP/DOWN buttons to select ‘select time zone’
and press OK.
4. Use UP/DOWN buttons to select time offset from GMT as +12,+11…-11,-12 and
press OK.
