GIT EDR G1ZHDDM001 Manuel utilisateur

EDR User’s Manual

CONTENTS

Section 1. Getting Started

Read me first............................................................................................................................. 4

Introduction ........................................................................................................................ 4

Copyright............................................................................................................................ 4

Disclaimer .......................................................................................................................... 4

Introduction to EDR .................................................................................................................. 5

The Purpose of EDR (Event Data Recorder) ................................................................... 5

Composition of EDR........................................................................................................... 5

Safety warnings and cautions before use ............................................................................... 6

Section 2. Components of EDR

Components of EDR.................................................................................................................. 9

Section 3. Basic Features

Specifications and features .................................................................................................... 16

General features .............................................................................................................. 16

PC Interface ..................................................................................................................... 16

VCI (Vehicle Communication Interface) ......................................................................... 17

Added Interface ............................................................................................................... 17

Main Components ............................................................................................................ 17

Power On/off method and switch operation.......................................................................... 18

Turning on the VCI module............................................................................................. 18

VCI Display Operation ..................................................................................................... 19

Turning off the VCI module ............................................................................................ 19

Installation of VCI module and DLC main cable.................................................................... 20

Installation of main DLC cable ........................................................................................ 20

Installation of VCI module............................................................................................... 22

Installation of USB cable................................................................................................. 23

Section 4. Default behavior

Start-up procedures............................................................................................................... 26

Start EDR.......................................................................................................................... 26

Main screen layout ................................................................................................................. 27

Main screen layout .......................................................................................................... 27

Tab Menu ......................................................................................................................... 28

Select Vehicle ......................................................................................................................... 29

Select vehicle................................................................................................................... 29

EDR User’s Manual

vehicle search menu description .................................................................................... 30

Choose the vehicle by VIN.............................................................................................. 31

Method to choose vehicle and adapter........................................................................... 32

Enter Additional information ........................................................................................... 33

Check connector part number......................................................................................... 34

Retrieve ............................................................................................................................ 35

Retrieve completed.......................................................................................................... 36

PDF file save.................................................................................................................... 37

Open saved file ................................................................................................................ 38

Initial screen .................................................................................................................... 39

Summary of each event in one page .............................................................................. 40

Configuration .................................................................................................................... 43

Internet Update................................................................................................................. 44

Section 5. Appendix

Disposal of old electrical and electronic equipment............................................................. 46

EDR User’s Manual

Read me first

Introduction to EDR

Safety warnings and cautions before use

단원1시작하기

Section 1 Getting Started

EDR User’s Manual

Read me first

G e t t i n g S t a r t e d

Read me first

Thank you for purchasing the EDR(Event Data Recorder). Read the instructions thoroughly for proper

operation of your EDR(Event Data Recorder)

this manual may be reproduced in any form without the prior written permission of Global Information

Technology Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

EDR specifications and manual are subject to change without notice. Global Information technology

Co., Ltd. assumes no liability for damage incurred directly or indirectly from error, omission or

discrepancies between the computer, VCI and the User Manual.

Introduction

Disclaimer

EDR User’s Manual

Introduction to EDR

G e t t i n g S t a r t e d

Introduction to EDR

The Purpose of EDR (Event Data Recorder)

EDR is to confirm and analyze to collect the data when colliding with a vehicle.

Aim of EDR is below.

1. A detailed investigation of collision status

2. An accurate analysis of a safety device performance

(Relevant laws: part 563 of title 49, Code of Federal Regulations)

Composition of EDR

EDR(Event Data Recorder), is composed of VCI(Vehicle Communication Interface), ACU connector,

EDR software.

VCI : Module for vehicle Electronic Control Unit (ECU) communication.

EDR software : The program for reading and analyzing Event Data which communication with

airbag ECU.

ACU connector : Module for connect between ECU and VCI.

EDR User’s Manual

Safety warnings and cautions before use

G e t t i n g S t a r t e d

Safety warnings and cautions before use

This section contains WARNINGS and CAUTIONS for the safe use of your EDR. Please read the

following contents before use.

WARNING

This indicates items for which incorrect handling may result in a major accident involving serious

injury or death.

Set up the VCI module in a safe place in the vehicle. Avoid contact or disturbing other

equipment and parts during vehicle operation.

Do not use another High Power electrical supply device for power input on the VCI module

except the car battery (7~35VDC).

Be sure to tighten the link between the electric supply cable and the battery extension cable to

prevent detachment during use.

Install trigger module in a safe location to avoid disturbing normal vehicle operation.

Connection between VCI equipment, DLC main cable and adapter cable connections must

remain tight in order to avoid separation during normal vehicle operation.

Do not disassemble VCI module.

EDR User’s Manual

CAUTION

This indicates items for which incorrect handling may lead to injury or damage to property. Under

certain conditions more serious consequences may result.

Always use the VCI module in its rubber shield and keep inner VCI module away from liquids

and other contaminants.

Do not drop or shock the VCI module, damage may result.

Do not leave tools or heavy objects on the VCI module.

ALWAYS check positive and negative Battery cables before attaching the extension cable to the

power supply cable.

Beware of contacting any hot or moving engine parts or belts while using the extension cable

and power cable with the equipment.

Unplugging the DLC and USB cables from the VCI module must only be done after releasing the

cable connector lock tab(s).

USB cable must be connected to VCI module in order to upgrade VCI firmware.

Place all parts and supplies inside the storage case when not in use.

When plugging or unplugging any of the cable connectors on the VCI equipment, use the cable

connector handle and confirm the lock tab(s) are released.

EDR User’s Manual

EDR Components

단원1시작하기

Section 2 Components of EDR

EDR User’s Manual

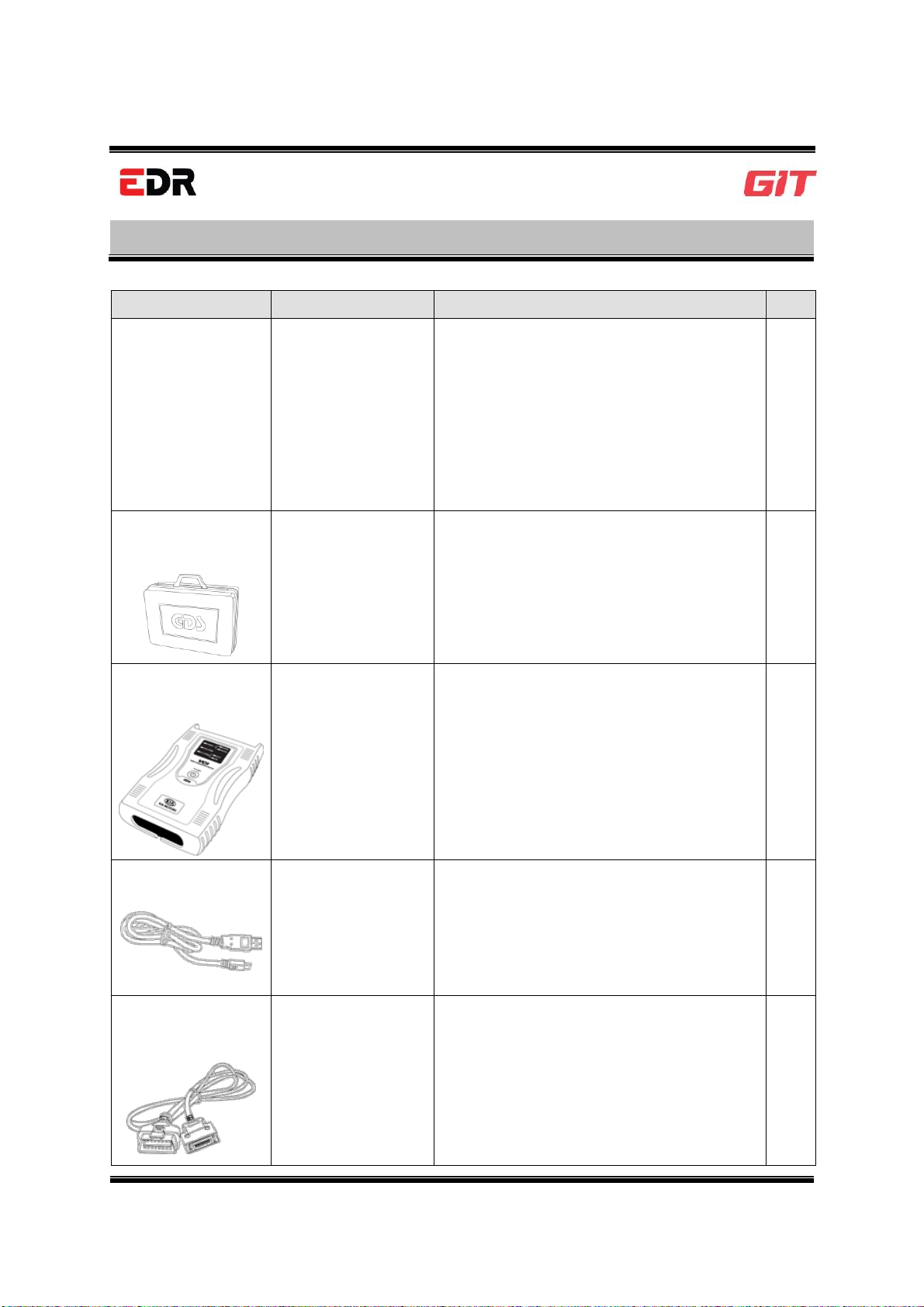

Components of EDR

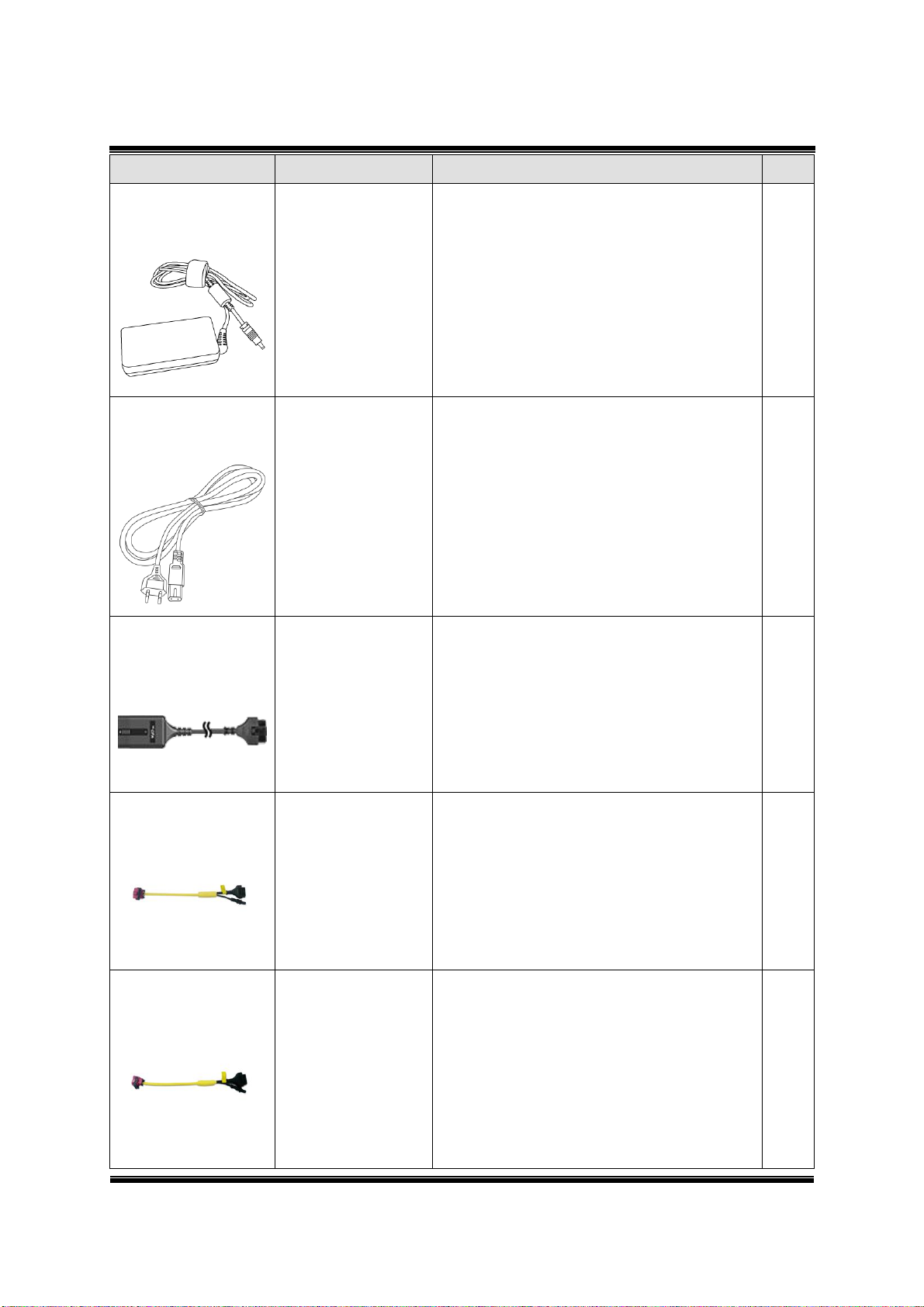

Part name

Part number

Description

Qty.

EDR program DVD

G1ZHDDM001 : Hyundai

G1ZKDDM001 : Kia

G1ZGDDM001 : General

G1ZLDDM001 : R&D

EDR program DVD

* HDD : 200 MB

* OS : Windows XP (Windows VISTA(32bit,

64bit), Windows 7(32bit, 64bit)

* CPU : 2 GHz

* USB : 1.1

* Memory : 1 GB RAM

Carrying Case

G1GKNHA001

Carrying Case for keeping or moving the EDR

products.

Assy.-VCI module

G1CHDMK050

VCI module for scan-tool functions.

Cable-Mini USB

G1MDDCA105

Cable for communication between VCI and

Information Terminal(Laptop).

Length 3.5m.

Cable-DLC [26pin -

16pin]

G1CDDCA001

DLC main cable for communication between

VCI module and (16pin) OBD-II diagnosis

connector on vehicle.

Length 2.0m.

EDR User’s Manual

Part name

Part number

Description

Qty.

AC/DC adapter

G1CDDPA011

Adapter for supplying power to the VCI main

module from AC power

AC power cable

G1CDKCA001

Cable for AC/DC adapter

Standard format: IEC 60320 C13

CFCI module

G1DDDME001

Used to communicate with CAN-FD applied

vehicles.

Adapter[36pin]

G1ZDDPA001

Adapter for communication with AM vehicle.

Length 0.4m.

Color: Yellow

Adapter[36pin]

G1ZDDPA002

Adapter for communication with SL vehicles.

Length 0.4m.

Color: Yellow
