G-TAP M Series

Hardware Guide

GigaVUE M Series

Product Version: 2.3.01 and above

Document Version: 1.0

(See Change Notes for document updates.)

Information in this document is subject to change without notice. The software described in

this document is furnished under a license agreement or nondisclosure agreement. No part

of this publication may be reproduced, transcribed, translated into any language, stored in a

retrieval system, or transmitted in any form or any means without the written permission of

Gigamon Inc..

Trademark Attributions

Gigamon and the Gigamon logo are trademarks of Gigamon in the United States and/or

other countries. Gigamon trademarks can be found at www.gigamon.com/legal-

trademarks. All other trademarks are the trademarks of their respective owners.

Gigamon Inc.

3300 Olcott Street

Santa Clara, CA 95054

408.831.4000

Contents

G-TAP M Series Hardware Guide 1

Contents 3

About This Guide 4

Installing and Removing G-TAP M Series Modules 4

Installing G-TAP M Series Modules in a G-TAP M Series Chassis 5

Removing G-TAP M Series Modules 6

Connecting G-TAP M Series Modules 6

Disconnecting Fiber from the Modules 6

Routing and Port Labels 6

Port Labels 8

Connecting G-TAP M Series Breakout Panels 9

PNL-M341 Breakout Panel Connection 9

Connecting the PNL-M341 or PNL-M343 for Breakout 12

Connecting the PNL-M341 or PNL-M343 for Aggregation 12

G-TAP M Series TAP Module Specifications 13

Features and Benefits 13

G-TAP M Series TAP Module Specifications 13

Physical Weight and Dimensions 17

Electrical Characteristics 17

Troubleshooting and Best Practices 18

Common Issues and Troubleshooting 18

Generic Troubleshooting Steps 19

Best Practices 21

Additional Sources of Information 22

Documentation 22

Documentation Feedback 25

Contact Technical Support 26

Contact Sales 26

The Gigamon Community 27

Glossary 28

Contents 3

G-TAP M Series Hardware Guide

About This Guide

This guide describes how to rack mount, assemble, and connect the Gigamon Tapping

Access Point (G-TAP) M Series modules manufactured by Gigamon®Inc.

The G-TAP M Series modules contain from one to six passive, optical splitter TAPs for

common optical media and speeds. Similar to the rest of the G-TAP line, the G-TAP M

Series modules provide visibility to 1Gb, 10Gb, 25Gb, 40Gb, and 100Gb traffic.

The G-TAP M Series modules are built to access multimode short-range links and single-

mode, long-range links. The optical TAPs of the modules provide a duplication of

production network traffic for analytic and security tools.

The G-TAP M Series modules have the following capabilities:

■The number of modules that can be installed in a G-TAP M Series chassis are:

oUp to six modules can be installed in a G-TAP M Series TAP-M200, which is a 1

Rackmount Unit (RU) chassis.

oUp to three modules can be installed in a G-TAP M Series TAP-M100T, which is a

1/2 RU chassis.

oUp to two multimode unidirectional TAP modules from the TAP-Mxx1ULT family

can be installed in a G-TAP M Series TAP-M202ULT, which is a 1 RU chassis.

■Visibility to higher-density links leveraging higher speed optics.

■Completely passive. The G-TAP M Series modules never require power, software, or

configuration.

■LC Duplex connectors or MPO/MTP connectors for network links leading directly

into the Gigamon Visibility Platform.

■Integration with all GigaVUE nodes.

There are also two G-TAP M Series breakout panels that provide for the breakout or

aggregation of GigaVUE ports.

Installing and Removing G-TAP M Series

Modules

A G-TAP M Series module consists of one, two, three, four, or six TAPs and installs into

either a 1 RU G-TAP M Series chassis (TAP-M200 or TAP-M202ULT), or a 1/2 RU G-TAP M

Series chassis (TAP-M100T). A G-TAP M Series chassis can contain up to six M Series

modules. G-TAP M Series TAPs using MPO/MTP connectors have up to three TAPs per

module. TAPs using LC connectors have up to six TAPs per module as shown in Figure 1

G-TAP M Series Module with Six TAPs and LC Connectors.

Contents 4

G-TAP M Series Hardware Guide

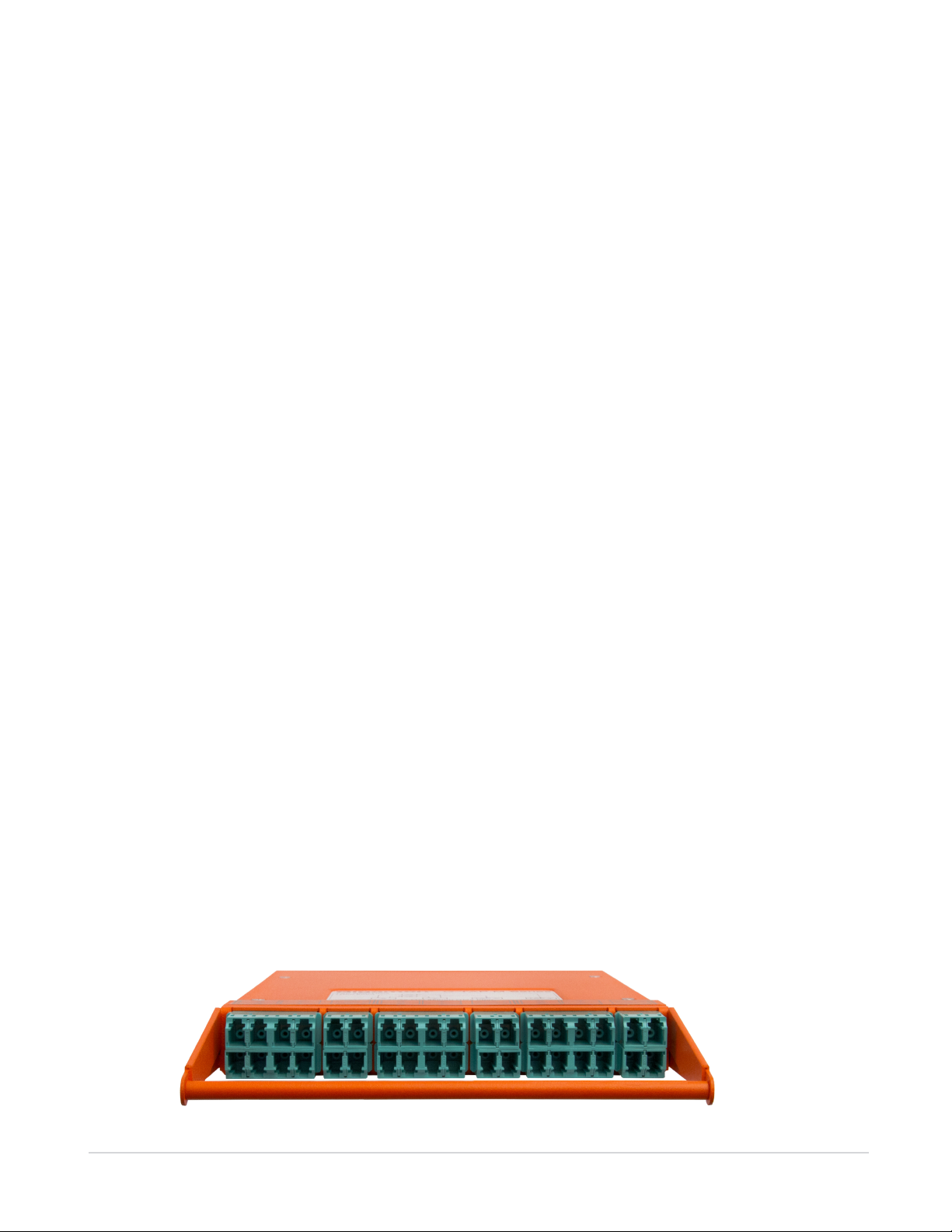

Figure 1 G-TAP M Series Module with Six TAPs and LC Connectors

The following chapter discusses the process for installing and removing the G-TAP M

Series modules.

Installing G-TAP M Series Modules in a G-TAP M Series Chassis

To install G-TAP M Series modules in a G-TAP M Series chassis, do the following:

1. Install the G-TAP M Series chassis in a rack. Following figures show examples of 1RU

G-TAP M Series TAP-M200 chassis, TAP-M202ULT chassis, and 1/2RU G-TAP M Series

TAP-M100T chassis that are empty.

NOTE:You can either flush mount the rack or install it with a 3in setback.

Figure 2 Empty 1RU G-TAP M Series TAP-M200 chassis

Figure 3 Empty 1RU G-TAP M Series TAP-M202ULT chassis

Figure 4 Empty 1/2RU G-TAP M Series TAP-M100T chassis

2. Hold the module by the handle and gently slide it into one of the slots in the

chassis.

3. Push the module into the slot until it is seated. Magnets inside the chassis hold the

module in place.

4. Repeat steps 2 and 3 for each module to be inserted into the chassis. Following

figures show the G-TAP M Series chassis with modules installed in each slot.

Figure 5 G-TAP M Series TAP-M200 Chassis with Modules Installed

Figure 6 G-TAP M Series TAP-M202ULT Chassis with Modules Installed

Figure 7 G-TAP M Series TAP-M100T Chassis with Modules Installed

Contents 5

G-TAP M Series Hardware Guide

Removing G-TAP M Series Modules

To remove a G-TAP M Series module, do the following:

1. Hold the module by the handle and pull it forward to release it from the magnets

inside the chassis.

2. Gently slide the module out of its slot.

Connecting G-TAP M Series Modules

Links are tapped with G-TAP M Series by disconnecting an existing link between two

network devices (for example, the connection between an access switch and a

distribution network) and reconnecting the link so that network data flows through one

TAP.

Disconnecting Fiber from the Modules

LC Duplex or MPO/MTP connectors are easily accessed when connected to the module.

Merely pull the TAP module out of the G-TAP M Series chassis by 3in or 4in. This alleviates

the need for special connector latches or extraction tools.

Routing and Port Labels

A module has a set of either three, four, or six TAPs, depending on which module is used.

Each TAP has an X port, a Y port, and two TAP ports. The ports are indicated by the

orange label on the top panel to assist with the proper connections of the TAP to the

network. Each module also has a routing diagram on the top panel. The breakout panels

PNL-M341 and PNL-M343 also have routing and port labels.

There are two types of TAPs—Fused TAPs and Thin Film TAPs. Following table provides

the list of TAPs under each type:

Fused TAPs Thin Film TAPs

M251 M251T, M251LT, and M251ULT

M253 M253T, M253LT, and M253ULT

M271 M271T, M271LT, M271ULT

M273 M273T, M273LT, and M273ULT

M473 M252LT, M261LT, M262LT, M263LT, and

M272LT

M451T, M451ULT, M453T, and M473T

M471, M471T, M471ULT, and M471-SR10

Table 1: Fused and Thin Film TAPs

Routing Labels

Contents 6

G-TAP M Series Hardware Guide

Figure Figure 8Routing Diagram for Fused Type TAPs shows the routing diagram that is

on the top panel of the Fused type G-TAP models. Refer to the Connecting G-TAP M

Series Modules for the list of Fused TAPs.

Figure 8 Routing Diagram for Fused Type TAPs

Figure Figure 9Routing Diagram for Thin Film Type TAPs shows the routing diagram that

is on the top panel of Thin Film type G-TAP models. Refer to the Connecting G-TAP M

Series Modules for the list of Thin Film TAPs.

Figure 9 Routing Diagram for Thin Film Type TAPs

Figure Figure 10Routing Diagram for G-TAP M506A or G-TAP M506T shows the routing

diagram that is on the top panel of the G-TAPM506A or G-TAP M506T.

Figure 10 Routing Diagram for G-TAP M506A or G-TAP M506T

Figure Figure 11Routing Diagram for Breakout Panels PNL-M341, PNL-M341T, PNL-M343,

and PNL-M343T shows the routing diagram that is on the top panel of breakout panels

PNL-M341, PNL-M341T, PNL-M343, and PNL-M343T.

Contents 7

G-TAP M Series Hardware Guide

Figure 11 Routing Diagram for Breakout Panels PNL-M341, PNL-M341T, PNL-M343, and

PNL-M343T

Port Labels

Figure Figure 12Port Label for G-TAP M251, M 251T, M253T, M271, M271T, M273, M273T,

M453, and M473 shows the port label that is on the top panel of G-TAP models M251,

M251T, M253T, M271, M271T, M273, M273T, M453, and M473.

Figure 12 Port Label for G-TAP M251, M 251T, M253T, M271, M271T, M273, M273T, M453, and

M473

Figure Figure 13Port Label for G-TAP M451, M451T, M453T, M471, M471T, M471-SR10, and

M473T shows the port label that is on the top panel of G-TAP models M451, M451T, M453T,

M471, M471T, M47 1-SR10, and M473T.

Figure 13 Port Label for G-TAP M451, M451T, M453T, M471, M471T, M471-SR10, and M473T

Figure Figure 14Port Label for G-TAP M251LT, M252LT, M253LT, M253ULT, M261LT, M262LT,

M263LT, M271LT, M272LT, M273LT, and M273ULT shows the port label that is on the top

panel of G-TAP models M251LT, M252LT, M253LT, M253ULT, M261LT, M262LT, M263LT,

M271LT, M272LT, M273LT, and M273ULT.

Figure 14 Port Label for G-TAP M251LT, M252LT, M253LT, M253ULT, M261LT, M262LT,

M263LT, M271LT, M272LT, M273LT, and M273ULT

Figure Figure 15Port Label for G-TAP M251ULT and M271ULT shows the port label that is

on top of G-TAP model M251ULT and M271ULT.

Contents 8

G-TAP M Series Hardware Guide

Figure 15 Port Label for G-TAP M251ULT and M271ULT

Figure Figure 16Port Label for G-TAP M451ULT and M471ULT shows the port label that is

on top of G-TAP model M451ULT and M471ULT.

Figure 16 Port Label for G-TAP M451ULT and M471ULT

Figure Figure 17Port Label for G-TAP M506A and G-TAP M506T shows the port label that

is on top of G-TAP model M506A and M506T.

Figure 17 Port Label for G-TAP M506A and G-TAP M506T

Figure Figure 18Port Label for Breakout Panels PNL-M341, PNL-M341T, PNL-M343, and

PNL-M343T shows the port label that is on the top panel of breakout panels PNL-M341,

PNL-M341T, PNL-M343, and PNL-M343T.

Figure 18 Port Label for Breakout Panels PNL-M341, PNL-M341T, PNL-M343, and PNL-

M343T

Connecting G-TAP M Series Breakout Panels

Breakout panels are used to breakout single ports to multiple ports or to aggregate

multiple ports to a single port.

There are two G-TAP M Series breakout panels available:

■PNL-M341

■PNL-M343

This section provides the following information:

■Connecting G-TAP M Series Breakout Panels

PNL-M341 Breakout Panel Connection

The PNL-M341 is a Multimode (MM) breakout panel with a granularity of three breakouts

per module. It provides three MPO ports for 40Gb/100Gb SR4 optics and 12 LC ports for

10Gb/25Gb SR optics.

NOTE:Purchase MPO and LC patch cables separately

Contents 9

G-TAP M Series Hardware Guide

The PNL-M341 breakout panel contains three breakout modules labeled A, B, and C, and

can be used for the breakout of a 40Gb port to four 10Gb links or for the aggregation of

four 10Gb links to a 40Gb port, or for the breakout of a 100Gb port to four 25Gb links or for

the aggregation of four 25Gb links to a 100Gb port.

Refer to Figure 19PNL-M341 Connections for Breakout for an example of using the PNL-

M341 breakout panel to breakout a single 40Gb tool port to multiple 10Gb fiber outputs.

Figure 19 PNL-M341 Connections for Breakout

Refer to Figure 20PNL-M341 Connected to a TA10 for Aggregationfor an example of using

the PNL-M341 breakout panel to aggregate multiple ports to a single tool port.

Figure 20 PNL-M341 Connected to a TA10 for Aggregation

Contents 10

G-TAP M Series Hardware Guide

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigamon Matériel réseau

Gigamon

Gigamon GigaVUE TA Series Manuel

Gigamon

Gigamon GigaVUE H Series Manuel utilisateur

Gigamon

Gigamon GigaVUE TA Series Manuel

Gigamon

Gigamon GigaVUE-FM Series Instructions d'installation

Gigamon

Gigamon GigaVUE TA Series Manuel

Gigamon

Gigamon GigaVUE-TA100-CXP Manuel utilisateur

Gigamon

Gigamon GigaVUE TA Series Manuel

Gigamon

Gigamon GigaVUE H Series Manuel utilisateur

Gigamon

Gigamon GigaVUE H Series Manuel

Gigamon

Gigamon GFM-HW1-FM010 Manuel utilisateur

Gigamon

Gigamon GigaVUE H Series Manuel

Gigamon

Gigamon GigaVUE-HC1-PLUS Manuel utilisateur

Gigamon

Gigamon GigaVUE TA Series Manuel

Gigamon

Gigamon GigaVUE-HC3 Manuel

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
