GigaFast

HomePlug Broadband Internet Router

PE904-R

User Manual

GigaFast

The contents of this publication may not be reproduced in any part or as

a whole, stored, transcribed in an information retrieval system,

translated into any language, or transmitted in any form or by any

means, mechanical, magnetic, electronic, optical, photocopying,

manual, or otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered

trademarks of their respective companies. They are used for

identification purpose only. Specifications are subject to be changed

without prior notice.

GigaFast

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against radio interference in a

commercial environment. This equipment can generate, use and radiate radio

frequency energy and, if not installed and used in accordance with the

instructions in this manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause interference, in which case the user, at his own expense, will be required

to take whatever measures are necessary to correct the interference.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022/A1 Class B, and EN 50082-1. This meets the essential

protection requirements of the European Council Directive 89/336/EEC on the

approximation of the laws of the member states relation to electromagnetic

compatibility.

GigaFast

Table of Content

Chapter 1: Introduction to the Broadband Powerline Router......6

Overview..........................................................................6

Features...........................................................................7

Panel ..............................................................................10

Wire Diagram ...............................................................12

Chapter 2: Quick installs ..............................................................13

Overview........................................................................13

Cable internet setup......................................................14

DSL internet setup........................................................19

Part 3 Macintosh Setup................................................21

Part 4 Powerline Setup.................................................23

Chapter 3: Basic Configuration....................................................25

Section 1 – Broadband Router Device Status.............25

Section 2 – Broadband Router Device Info.................26

Section 3 - Administration ...........................................27

Section 4 – WAN (Wide Area Network) .....................31

Section 5 – LAN (Local Area Network) ......................32

Chapter 4 – Advanced Configuration...........................................34

Section 1 – Access Control..........................................34

Section 2 – MAC Filter...............................................36

Section 3 – Service Time.............................................37

Section 4 – URL Blocking ..........................................40

Section 5 – Virtual Server..........................................41

Section 6 – DMZ..........................................................42

Section 7 – Auto 2-Way Application .........................43

Section 8 – Dynamic DNS...........................................45

GigaFast

Appendix A: Cabling and Pin Assignment..................................46

Appendix B: Technical Information ............................................49

Appendix C: Frequently Asked Questions (FAQ) .......................50

Appendix D: IP Addressing...........................................................60

What is an IP Addresses?.............................................................60

Dynamic IP Addressing................................................................60

Static IP Addressing.....................................................................60

Checking IP Address in Windows 98 / SE / ME / 2000 / XP .....61

Setting IP Address on Windows 98 / SE / ME............................64

Setting IP Address on Windows 2000 / XP.................................68

Releasing and Renew IP Address in Windows 98 / SE / ME.....72

Releasing and Renew IP Address in Windows 2000 / XP..........75

Appendix E: Local Area Network................................................79

Sharing Files (Windows 98SE / ME / 2000 / XP)........................79

Sharing Drives on Windows 98 / SE / ME / 2000 / XP...............84

Accessing Other Computers Shared Files on Windows 98/SE/ME/ 2000/XP......88

Sharing Printers on Windows 98 / SE / ME / 2000 / XP............91

Network Printer Installation for Windows 98/ SE / ME/ 2000 /XP ......95

Connecting to Internet on Windows 98 / SE / ME...................105

Accessing the Internet using Windows 2000 / XP....................112

Appendix F: Glossary..................................................................119

Appendix G: Warranty Info........................................................122

Appendix H: Contact Information..............................................123

GigaFast

Chapter 1: Introduction to the Broadband Powerline

Router

Overview

Congratulations on your purchase of this outstanding Gigafast PE 904-

R Homeplug Broadband Internet Router. Despite the fact that no one

enjoys pulling Ethernet cables out of neither the box nor buying

expensive cables. Users can now experience a total network solution

with the Gigafast HomePlug. This product is the perfect option to

connect a group of PCs to a high-speed Broadband Internet connection

or to an Ethernet based Backbone (ETTH/ETTB: Ethernet to the

Home/Building), while enjoying the usability with the easy to use

HomePlug products. Configurable as a DHCP server, this product is the

only externally recognized server device on your local area network

(LAN). Thus even a non-technical person will easily configure it to

meet other popular applications.

The Gigafast PE904-R Homeplug Broadband Internet Router operates

on the HomePlug Powerline Specification 1.0 standard, providing up to

14 Mbps bandwidth over home AC wiring. Since the home power

lines are the most pervasive medium in households with multiple

outlets in every room, the Homeplug Broadband Internet Router allows

multiple home desktops and notebooks to be networked to share

internet connection, printers, files, and play games without any

additional wiring.

This product does not only provide a complete solution to share the

Internet bandwidth, it also serves as an Internet Firewall to protect your

LAN data from being accessed by outside intruder/hacker. Since all

incoming data packets can be analyzed or monitored, all unwanted

Chapter1

GigaFast

packets may be filtered-out and be recorded as an intrusion event.

PE904-R can also be configured to block some internal LAN user’s

access to the Internet for management purpose.

For security, all Gigafast HomePlug devices are equipped with 56-bit

DES encryption. The private home power grid plus encryption makes

HomePlug significantly more secure than competing technologies.

The Gigafast PE904-R Homeplug Broadband Internet Router is the best

solution for No-New-Wires home networking. With easy Plug and

Play installation, and the reliability of Gigafast Ethernet’s products, the

Gigafast Homeplug Broadband Internet Router is the best solution for

high speed networking.

Features

zConnects to 10/100M Broadband (cable or DSL) modem

or Ethernet backbone for Internet Surfing.

zMultiple WAN connection type:

Static IP : for lease line or router-router

interconnect.

DHCP client : for most cable modem service.

PPPoE : for Dial-upADSL service,

PPTP client : for some European Dial-up ADSL

or L2-VPN application

zEquipped with a 3-port 10/100M switched Hub for LAN

users.

zDHCPServer/ DNS proxy support (can save an extra

PC/Server in LAN).

All the networked computers in LAN can retrieve TCP/IP

setting (IP address, subnet mask, gateway, DNS)

Chapter1

GigaFast

automatically from this device.

zSimultaneously act as both DHCP Server on the LAN and

a DHCPClient on the WAN for most easy application.

zConnects multiple LAN PCs to the Internet with only one

dynamic-assigned IP address (NAT mode) or a range of

legal IPaddress (NAT/Routing mode)

zWeb-based configuring

it is configurable through any networked computer’s web

browsers using Internet Explorer or Netscape browser.

zAllow/Deny remote administration through WAN

connection by Web browser.

zFirewall capability to protect LAN PCs from outside

intruder access/attack.

Avoid unwanted packet from WAN (Wide Area Network) and

provide a system event log to record intrusion information.

(Date/Time, Source IP address & Port)

zVirtual Server (Port forwarding) function

Internet servers (WWW, FTP, E-mail …) in LAN could be

virtually exposed to WAN for outside Internet user access.

This is a useful and secure network deployment for Internet

servers.

zDMZ (De-Militarized Zone) Host

Administrator can expose a host PC in LAN to the Internet

without any firewall protection mechanism. This option

allows a full two-way communication between the local host

PC and remote Internet node. (ex. bi-directional games,

video/audio conferences …)

zAllows a user to have up to 14 Mbps bandwidth over

standard home power lines

zIt is estimated range of 300 meters in wall power lines

zThere is no problem for the HomePlug passing through

circuit breaker

Chapter1

GigaFast

zUses IEEE802.3 computer interface

zPlug-and-Play installation

zBuilt in internal power supply

zHomePlug Powerline Specification 1.0 compliant

z56-bit DES encryption assure data security

zEncryption done by hardware, with no sacrifice

Package Content

zOne PE904-R Homeplug Broadband Internet Router

zOne power cable

zOne Warranty card

zOne paper manual OR manual CD

Requirement

•One Ethernet based broadband Internet connection

(Cable/ADSL modem or other router)

•Microsoft Internet Explorer browser (V.4.75 or above)

•Standard home power line wiring

•One or more HomePlug Units connected to your

computer. (For setup Powerline network )

•One PC with a network card and TCP/IP protocol stack

Installed

Chapter1

GigaFast

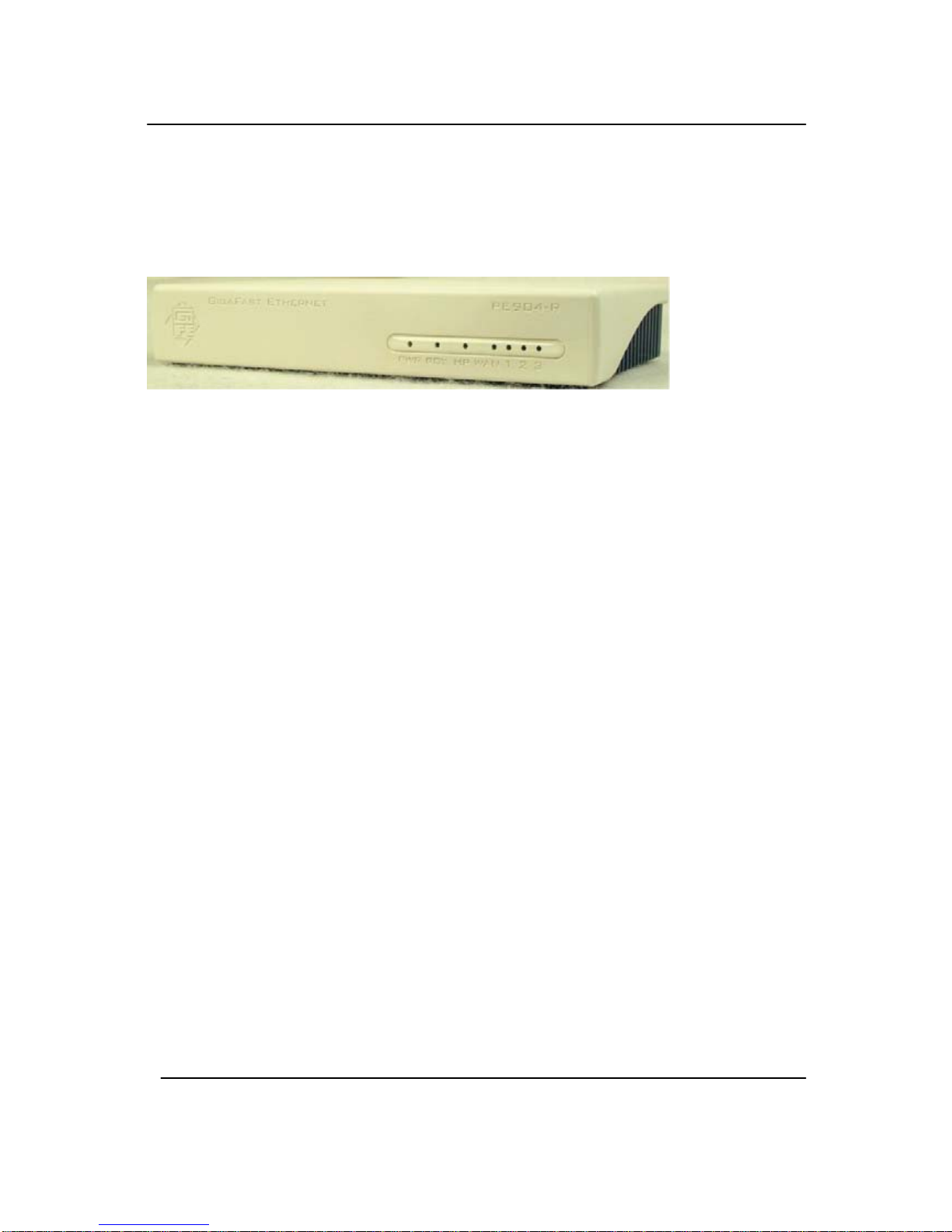

Panel

Front

PWR: On – Receive power

Off – Doesn’t receive power

RDY: Blinking fast – Self testing

Blinking every second – Ready to Go

HP: On – Detect other HomePlug devices

Off – Doesn’t detect other HomePlug devices

WAN: On – Detect Ethernet connection ( Modem, Switch,

Computer…)

Off – Doesn’t detect Ethernet connection

Ethernet LED 1-3: Blinking: Ethernet activity

On: Detect Ethernet connection

Off: Doesn’t detect Ethernet connection

Chapter1

Table des matières

Autres manuels Gigafast Routeur réseau

Gigafast

Gigafast EF1600-SI Manuel utilisateur

Gigafast

Gigafast EE500-S Manuel utilisateur

Gigafast

Gigafast PE902-EBx Manuel utilisateur

Gigafast

Gigafast EE400-RP Manuel utilisateur

Gigafast

Gigafast PE 903-EB Manuel utilisateur

Gigafast

Gigafast EE410-R Manuel utilisateur

Gigafast

Gigafast EE2400-SV Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
