Gigabyte Poseidon GZ-XA1CA-STB Manuel utilisateur
20070301-GZXA1CA-STBSTS
rev. 1002
Poseidon
GZ-XA1CA-STB
GZ-XA1CA-STS
User’s Manual
The following are not covered by the warranty
1. Incorrect use or use of the product for any purpose other than its intended use.
2. Nonobservance of the proper operation provided. (e.g. over-clocking)
3. Malfunction due to interference from other devices.
4. Unauthorized modification of the product.
5. Consequential damage to other objects due to the product’s fault.
6. Malfunction arising from casualties (earthquake, thunder, fire, or flood).
7. The warranty label of the product has been removed or damaged.
8. The devices inside, including power supply, hard disk, CD-ROM drive, motherboard,
ventilator, etc, are not detached from the casing prior to the transportation of the computer
product, resulting in damage to the chassis or computer-related devices.
9. Any loss arising from nonobservance of the proper operation provided is not covered by the
warranty.
Poseidon Introduction
The chassis of Gigabyte Poseidon series is made by high-end Aluminum bezel design with dual 12cm
(front and rear) silent fans to offer the best ventilation for the system. The internal cable management
and tool-free design provide users with easer installation procedures and computer system
management. Using the patent 2 colors front projector light with changeable LED colors (blue/white)
and the see-through/air inlet side panel, users can customize their own style. For further information
and specifications of the Poseidon series, please download them from Gigabyte’s website.
Caution
Failure to wear gloves during installation of computer products may cause damage to personnel
and devices. Incorrect connector installation may possibly burn out the motherboard and other
components. Be sure to observe the instructions on installation in the manual.
Contents
1 Components Introduction..................................................................................................... 4
1-1 Chassis’s Internal Structure ............................................................................. 4
1-2 Side Panel Introduction.................................................................................... 6
1-3 Front and Rear Panel Instruction ..................................................................... 7
2 Features.................................................................................................................................. 8
3 Specification .......................................................................................................................... 8
4 Installation Instruction .......................................................................................................... 9
4-1 Installation of Power Supply............................................................................. 9
4-2 Installation of Motherboard............................................................................... 9
4-3 Installation of Interface Card .......................................................................... 10
4-4 Installation of Front I/O Panel......................................................................... 11
4-5 Chassis’s Internal Structure ........................................................................... 12
4-6 Installation of 5.25” Front Device Bay ............................................................ 13
4-7 Installation of 3.5” Front Device Bay .............................................................. 13
4-8 Installation of Built-in HDD (Hard Disc Drive)................................................. 14
4-9 Power cable installation of the front projector light......................................... 14
4-10 DIY Front Bracket of Projector Light .............................................................. 15
4-11 Foot Stand Instruction.................................................................................... 16
4-12 Liquid Cooling System Support...................................................................... 17
4-13 Recommended Air Cooling ............................................................................ 17
4
EnglishEnglishEnglishEnglishDeutschDeutschEnglish
PCI tool-free fastener
Motherboard/panel card
Power supply
1

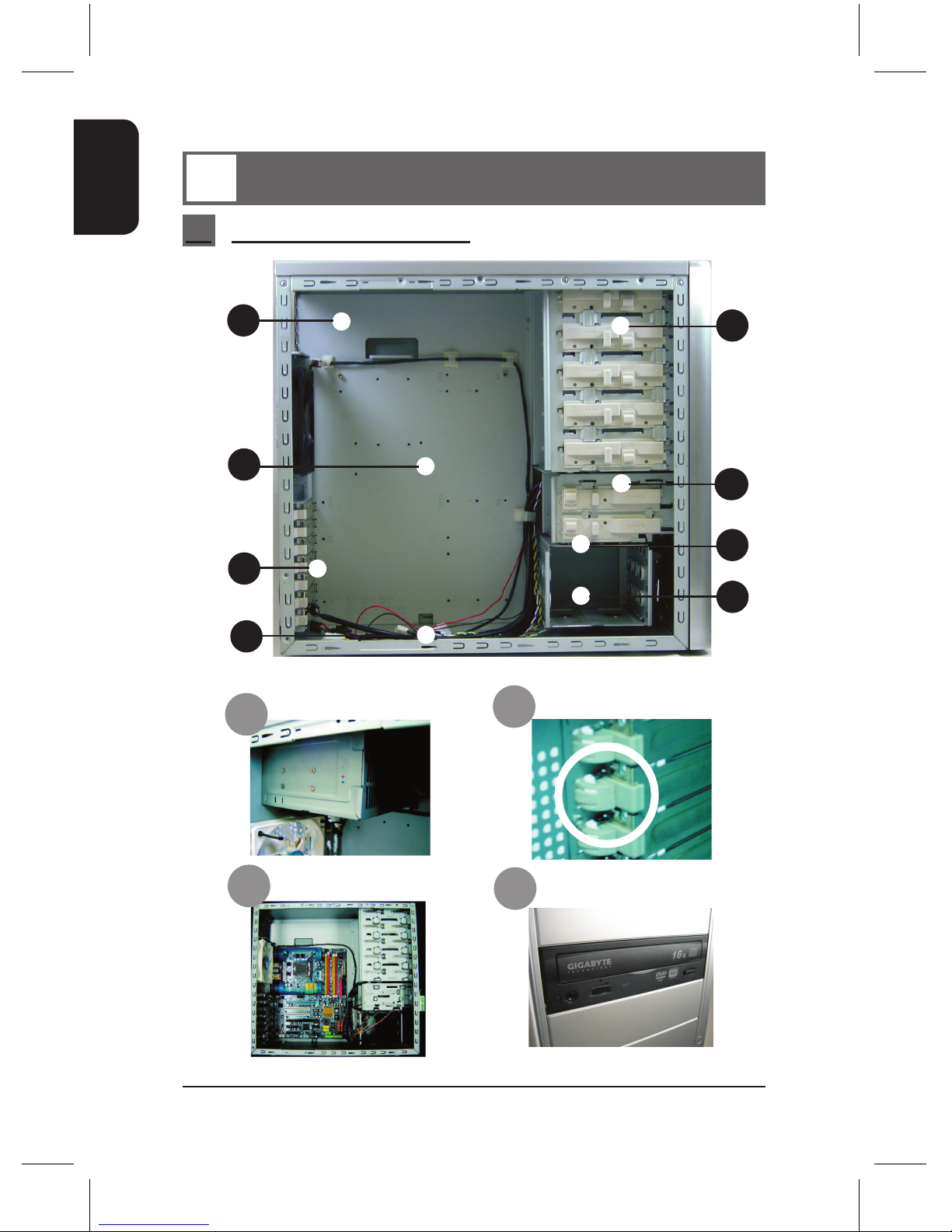

1Components Introduction
1-1 Chassis’s Internal Structure
3
6
7
2
8
4
5
1
3
2
45.25” Front device bay
5
EnglishDeutschDeutschEnglishEnglishEnglishEnglish

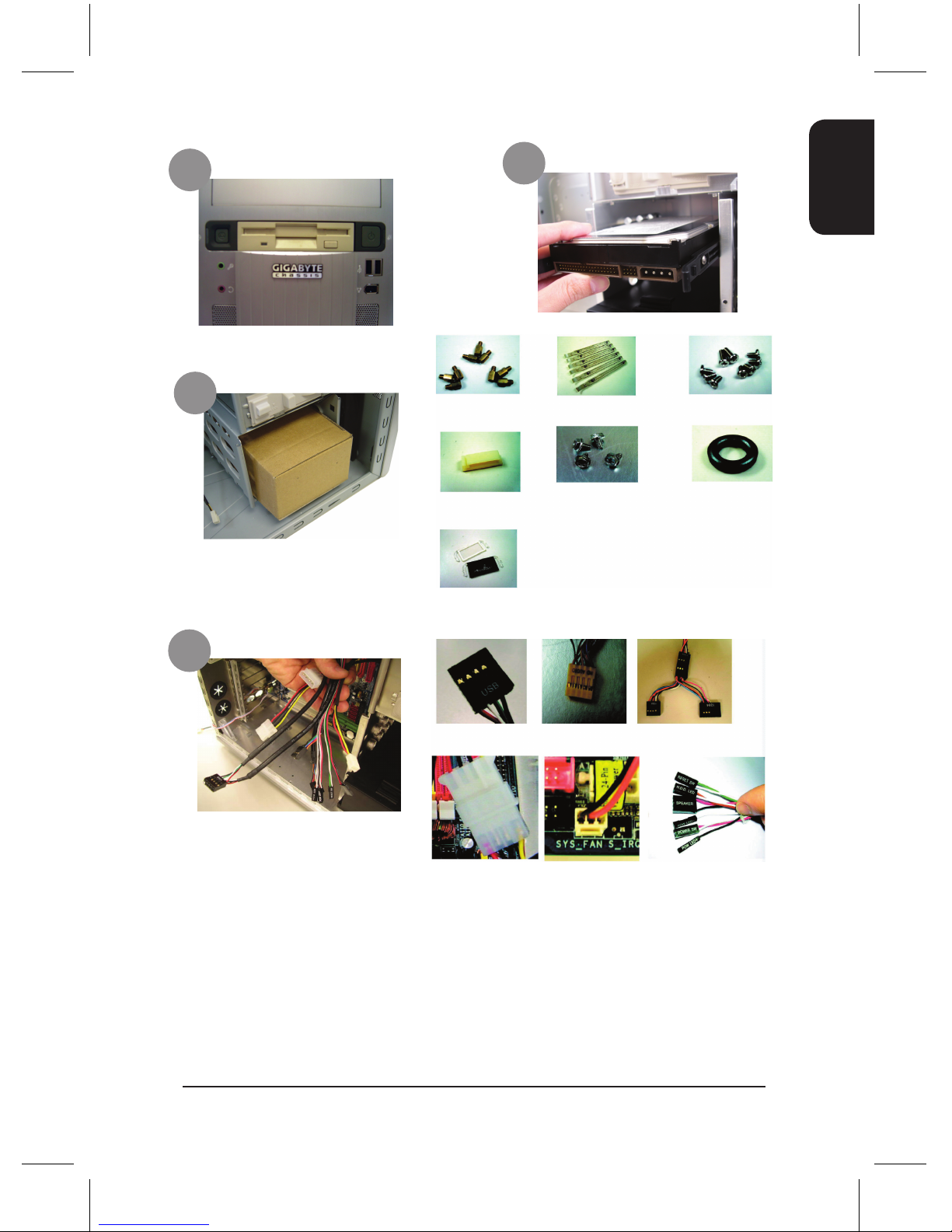

Build-in hard disk
Accessory box
Front cable kit
8
3.5” Floppy
(Refer to the right figures for the
attachments in the tool enclosure)
b. HD AUDIO
a.USB 2.0 c.IEEE1394
a. Standoff x 9 b. Securing runner x 6 c. Motherboard secur-
ing screw x 9
d. Wire clamp x 1 e. Power supply
securing screw x 4
f. Magnet ring x 1
e. Power supply of
front and rear fans
f. Basic chassis power
switch control cable
kit
(Refer to the right figures for the
cable connectors)
56
7
g. DIY transparent projector panel x 1
(Equipped with Poseidon at shipment)
d. Power supply of the
front projector light
6
EnglishEnglishEnglishEnglishDeutschDeutschEnglish

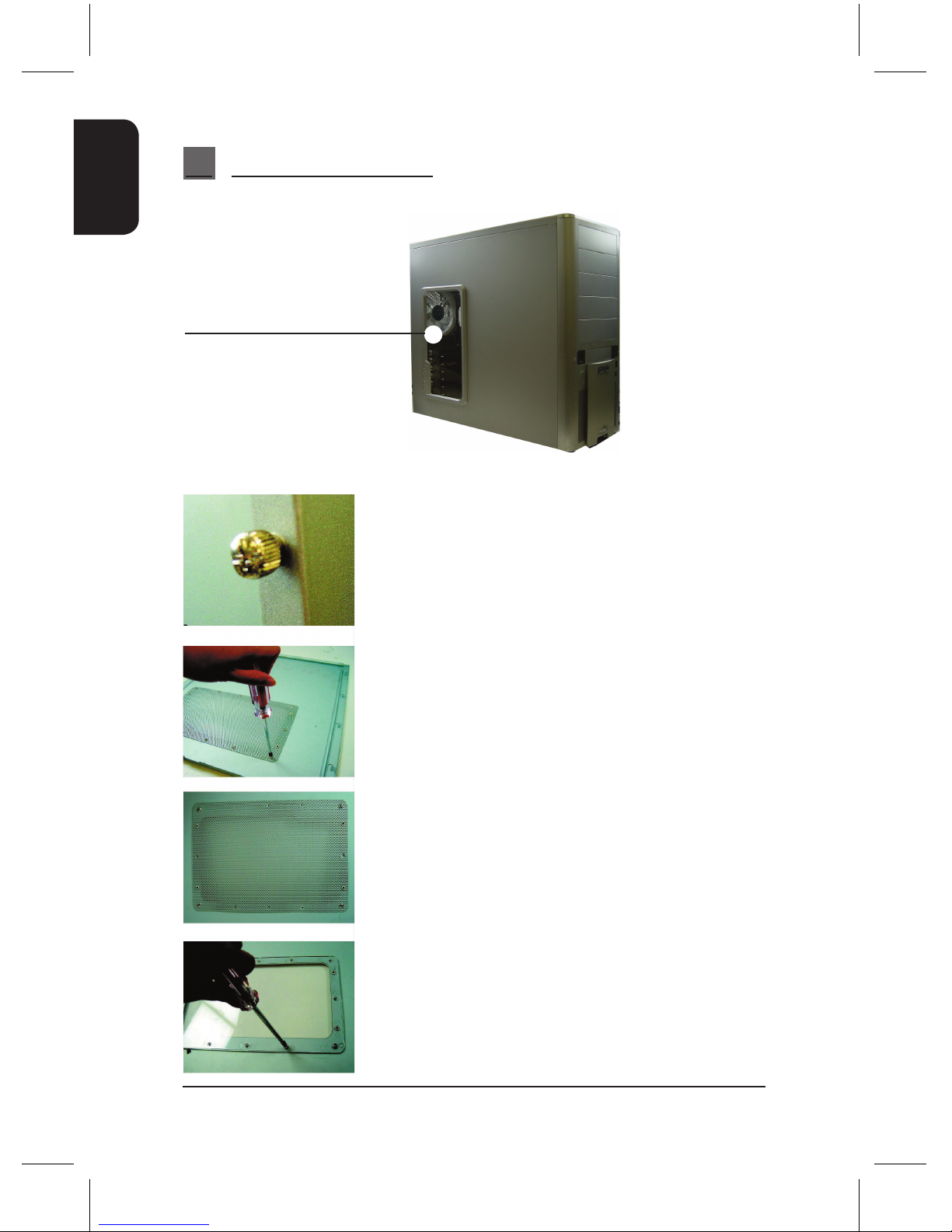

1-2 Side Panel Introduction
See-through side panel installation
complete figure (A-1)
(Factory default: vent side panel)
1-2-1 To replace the See-through side panel:
Step 1: Release 4 screws at the rear of the side panel to
remove the panel.
Step 2: Remove the factory default perforated side panel.
Step 3: Draw out the perforated side panel.
Step 4: Place and screw the See-through side panel properly
to complete the installation procedure.
7
EnglishDeutschDeutschEnglishEnglishEnglishEnglish

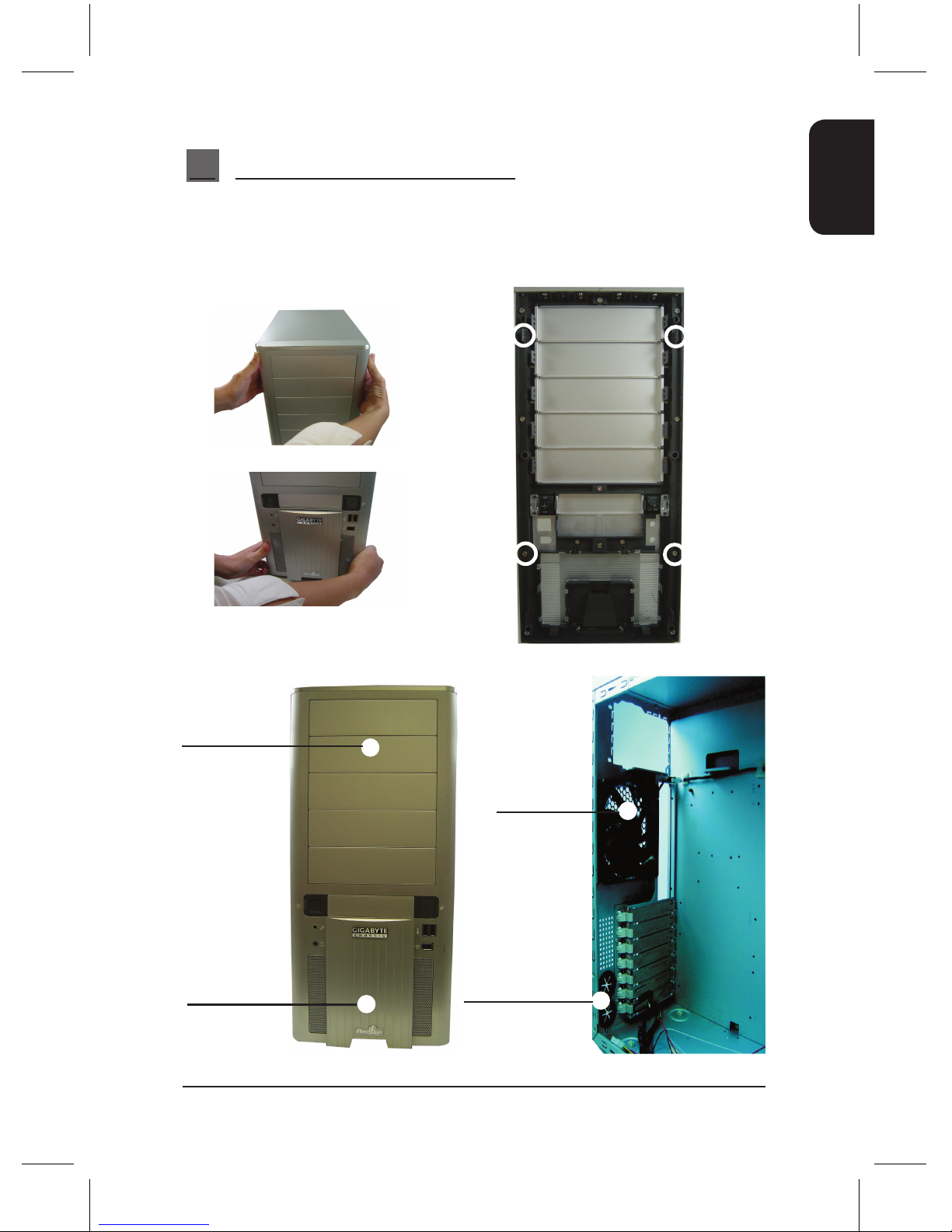

1-3-1 To remove front panel:
Step 1: Remove the left and right side panels ( see Step 1-2-1 on Page 6) and slightly pull out
both sides of the upper (see, Figure a) and lower (see Figure b) fasteners (see Figure c).
Figure a
Figure c
Rear panel (C)
Drainage outlet(C-2)
Rear fan (C-1)
1-3 Front and Rear Panel Instruction
Front panel (B)
Front panel (B-1)
Front fan (B-2)
Figure b
8
EnglishEnglishEnglishEnglishDeutschDeutschEnglish
2Features
- High quality design -
(Patent Pending)Customizable light beam
projector w/ changeable LED color (Blue/White)
Hign-end Aluminum bezel design
Skidproof & shockproof foot stand
- Complete support -
Front bezel I/O (USBx2,IEEE1394x1, HD
audiox1)
Dual 12cm silent & shockproof fan
(Rear fan w/ LED)
Supports water cooling systems
- Integration of cooling technology -
(Patent pending)Integrated side panel
(See-through & elegant vent design)
Quad-ways front air-inlet design
- Convenience of assembly -
Internal Cable Management - provide users clean
assembly environment
Tool-less design & Hassle-Free Assembly
3Specification
Model : GZ-XA1CA-STB/GZ-XA1CA-STS
Case Type : Mid-Tower
Dimension : 200 x 440 x 495mm (W x H x D)
Front bezel Material : Aluminum
Color : Silver / Black
Side Panel : Elegant Vent Design
Body Material : SECC
Net Weight : 8 kg
5.25" drive bay (External) : 5
3.5" drive bay (External) : 1
3.5" drive bay (Internal) : 3
Expansion Slot : 7
Compatible MB : ATX / Micro ATX
System Fan (front) : 120 mm silent fan x1
System Fan (rear) : 120 mm silent fan w/ blue LEDs x1
I / O Ports : USB2.0 x2 / IEEE 1394 x1 / HD audio x1 set
Optional Thermal Solutions :
GIGABYTE Liquid Cooling - 3D Galaxy Series
GIGABYTE Air Cooling - G-Power Lite Series
- 3D Rocket Series
9
EnglishDeutschDeutschEnglishEnglishEnglishEnglish

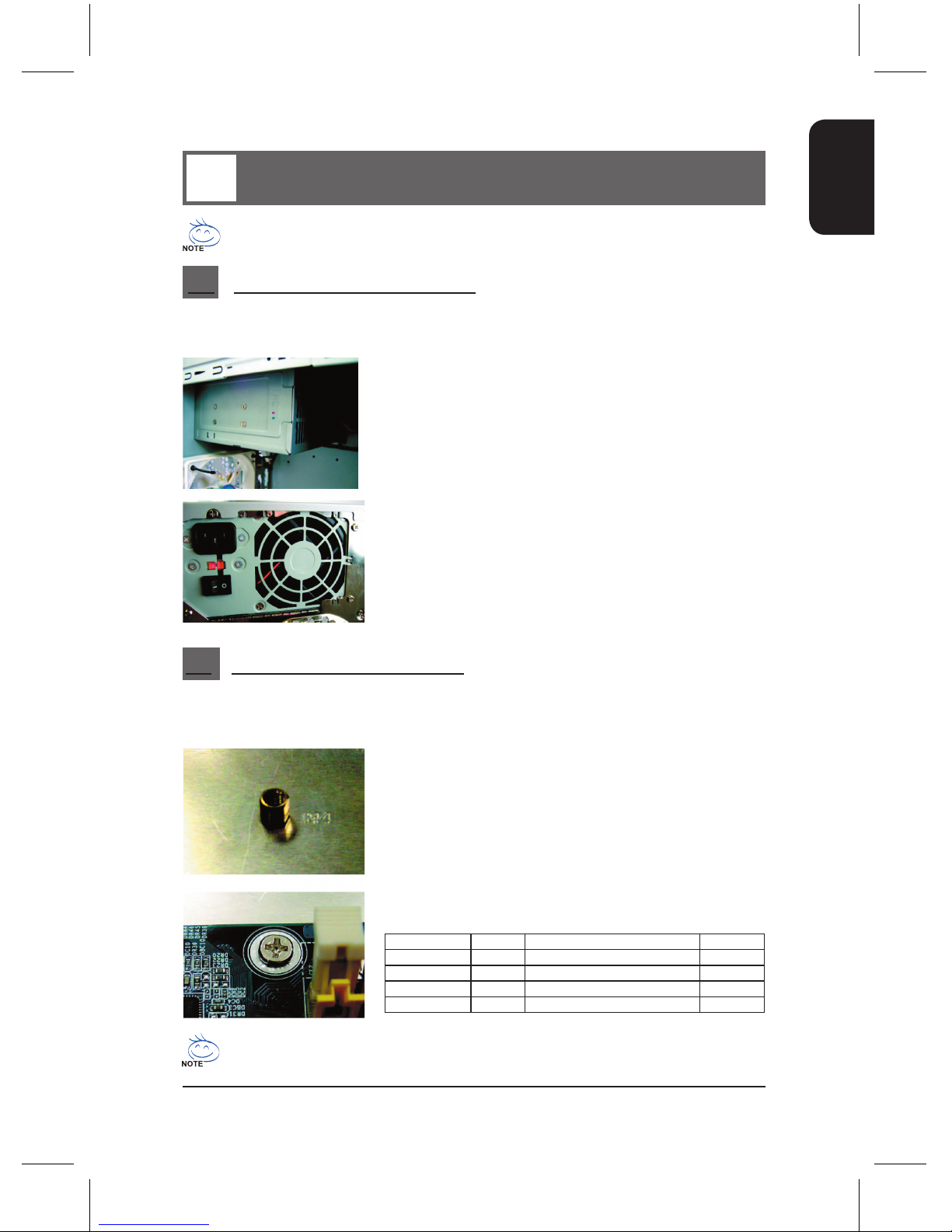

Please follow the reference sections for installation.
To facilitate the installation, it is recommended to place the Poseidon chassis upright on the table.
Required tool: Power supply securing screw x 4.
4-1-1 Please remove the left side panel before placing the
power supply into the chassis.
4-1-2 Use screws to secure the power supply from the rear
side.
4-2 Installation of Motherboard

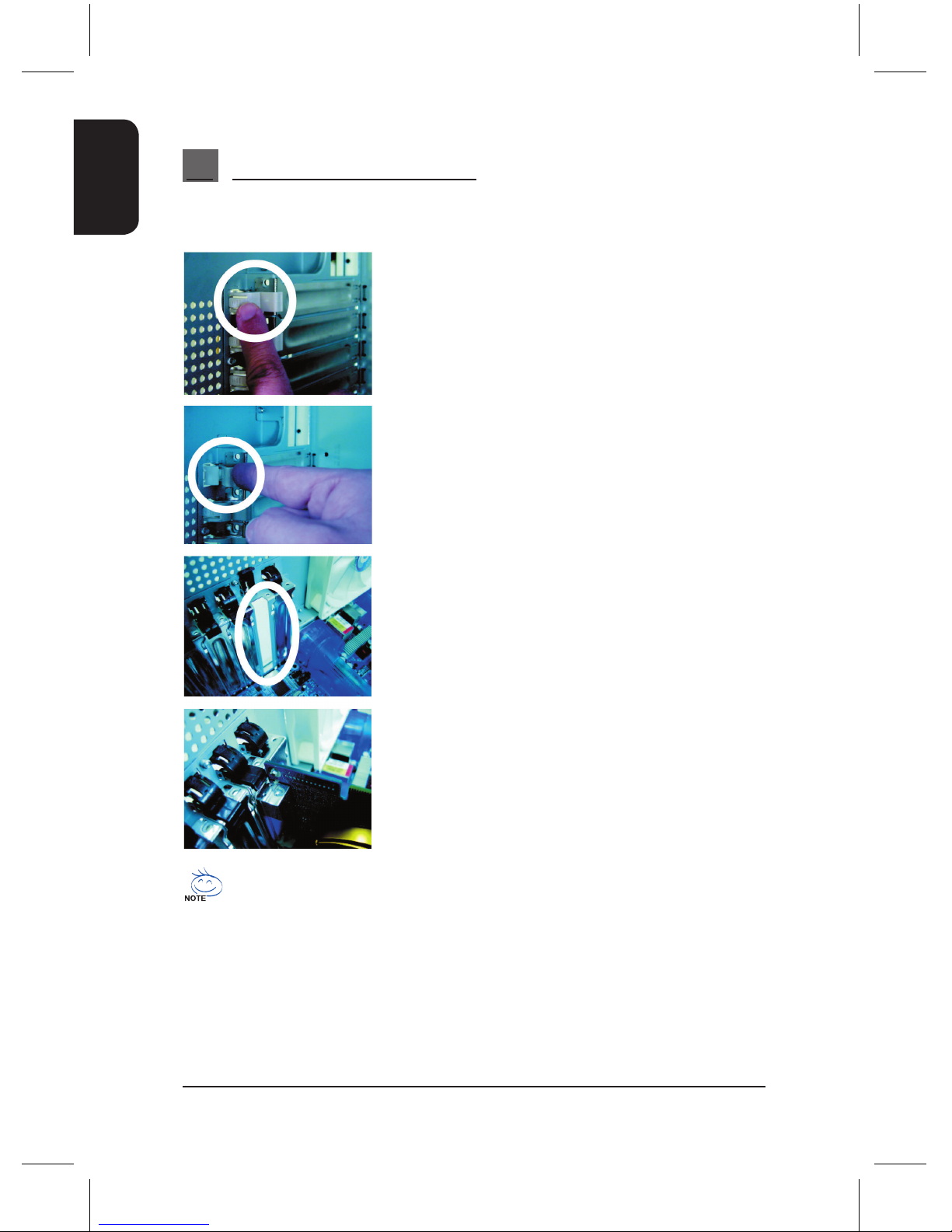

The
Poseidon
is compatible with the ATX/Micro ATX motherboard. Please confirm the dimension
and specifications of the motherboard before installation.
Required tool: motherboard standoffs x 9 and securing screws x 9
4 Installation Instruction
4-1 Installation of Power Supply
4-2-1 According to motherboard specifications, select proper
screw holes, engage the standoffs into the correspond-
ing holes of the chassis.
4-2-2 Secure the motherboard with securing screws.
Motherboard Code Motherboard securing screw Standoffs
ATX A1-A9 9 9
MINI ATX M1-M9 9 9
MICRO ATX U1-U9 9 9
FLEX ATX F1-F6 6 6
Select proper rear I/O panel of the motherboard (typically supplied by motherboard manu-
factures).
10
EnglishEnglishEnglishEnglishDeutschDeutschEnglish
The
Poseidon
supports tool-free installation of interface cards, e.g. Graphic card and Network
Card, etc.
Required tool: None
4-3-1 Unlock securing fasteners of the PCI socket; push
the fastener downwards first.
4-3-3 Remove the internally attached dust-proof PCI cover.
4-3-4 Insert the interface card into the expansion slot with
care.
Make sure all interface cards are fully seated in the corresponding slots.
4-3 Installation of Interface Card
4-3-2 And then, push the fastener upwards.
