Giant neos pro Manuel utilisateur
- English -
Content
Introduction
Unit
Parts
Installation
General Operation
Display
Compatible Sensor
Pairing
Searching
Record Reminder
Reset Computer
1
3
5
7
13
15
Reset Trip Data
Enter Setting Mode
Set Clock
Set Odometer
Set Wheel Size
Set Stopwatch
Set Countdown Distance
Set Heart Rate Limit
Set Altitude
Set User Data
Set Unit
17
19
21
23
25
27
29
31
33
35
37
41
43
45
Set Smart EL
Power Calibration
Mode / Sub Mode Functions
Clock
Date
Ride Time
Stopwatch
View Lap Data
ODO
Distance Countdown
Cadence
47
49
51
53
55
Heart Rate
Calories
Current Altitude
Set Home Altitude
Ascent%
Average
Maximum Speed
Bike1 / Bike2
Power
Temperature
Trouble Shooting
Technical Specification
Introduction
Thanks for purchasing a Giant Neos PRO computer, it is an ANT+ digital
multi-function computer. It is compatible with all ANT+ sport transmission
devices, including Giant RideSense which is integrated in selected Giant
bikes.
For your own safety, please do not stare at the computer screen while riding, it
may cause a dangerous situation during the ride.
With digital ANT+ sport transmission, you can get the information from digital
speed/cadence sensor and digital heart rate belt. Please make sure you pair
these sensors before you start riding. With the Stopwatch function, you can
record your trip data in the computer and with PC-link docking upload/download
the data to Giant RideSync software for training analysis and management.
If you have any questions regarding this product, please visit our website at
www.giant-bicycle.com or contact your local dealer. Enjoy the ride!
Introduction
1 2
Unit / Parts
Unit / Parts
Neos PRO computer package contains 1 unit and 8 parts, Neos PRO+
computer package have additional PC-link docking and Heart Rate Belt.
1. Computer Unit
2. Base Mount
3. Rubber Pad
4. Battery Cap
5. CR2032 Battery
6. O-ring
7. Extended Mount + 2 x C-clamp pads (for ø31.8 and 29.7mm handle bar)
8. 2 x Screws for Extended Mount
9. Zip Tides x 3
10. PC-link Docking (Neos PRO+ Only)
11. Heart Rate Belt (Neos PRO+ Only)
3 4
3V
CR2032
+
1 2
3
5
6
4
9
11
10
X3
8
7
X2
Installation
To install the battery, use a coin to open and close the battery cap.
Computer can be mounted in 3 different positions: (A) Extened Mount (B)
Stem (C) Handle Bar.
Installation
3V
CR2032
+
6
5
4
1
1
11
2
22
3
8
7
A.
CLICK
PUL L
C.B.
10 10
A
.
C.
B.
3
5 6
General Operation / Display
GENERAL OPERATION / DISPLAY
There are 4 main keys on the computer unit.
EL key: Manual key for backlight
M key: Operates the Mode functions, it also can be pressed on the bottom of unit when
it is mounted.
S key: Operates the Sub Mode funtions in Mode display.
U key: Operates the Upper Mode functions.
1. Current Speed
Display the current speed in km/h or m/h.
2. Upper Mode
Press U key to display: Ride Time / Distance Travelled / Current Cadence (if paired) /
Current Heart Rate (if paired) / Current Altitude / Current Power (if paired)
3. Mode
Press M key to display: Clock / Ride Time/ Stopwatch / Distance Travelled / Current
Cadence (if paired) / Current Heart Rate (if paired) / Current Altitude / Gradient % / Ave.
Speed / Current Power (if paired) / Max. Temperature
4. Current Temperature
Display the current temperature in °C or °F.
5. Bike1 / Bike2
Indicate the display data for Bike1 or Bike2
CLICK
7 8
General Operation / Display
6. Pacer
The pace arrow shows the comparison between current speed and average speed. If
the current speed is above or equal to average speed, the up arrow displays; if the
current speed below the average speed, the down arrow appears.
7. Service Interval Reminder
In any mode, if Travelled Distance > 500km, it will appear to remind the user to
maintain the bike. It is independent of trip distance & odometer. To turn off the icon by
pressing the M Key for 2 seconds or it will turn off automatically after 50km.
8. Low Battery Indicator
In any mode, if battery < 2.7V, the low battery sign will display.
9.Sensor Sleep
If no speed sensor magnet is detected for more than 20 minutes, the current speed will
display dash bars. If no cadence sensor magnet is detected more than 20 minutes, it
will display dash bars in cadence mode. If no heart rate monitor is detected for more
than 3 minutes, in heart rate mode, it will display dash bars.
10. % Distance Countdown Bar
Shows the percentage of whole pre-set countdown distance. It only works with
Distance Countdown feature (see p.25-26 )
11. Stopwatch Running & Data Recording
STP icon keeps blinking when the stopwatch is running and data is recording.
9 10
General Operation / Display
General Operation / Display

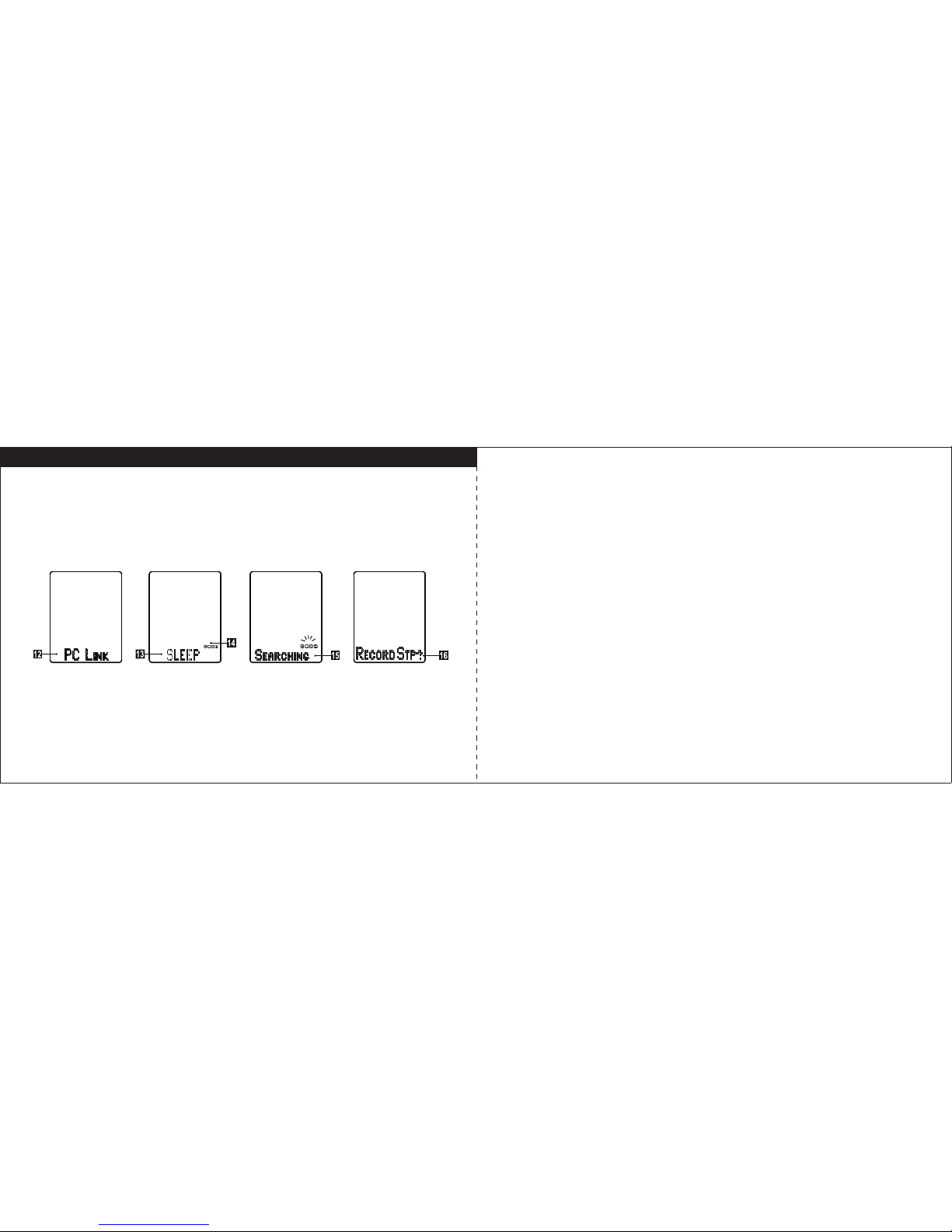

12. PC Link Mode
If the computer unit is placed into the USB cradle, it will enter the PC-link mode
automatically for data upload & download.
13. Sleep Mode
The computer unit will turn to SLEEP mode after all sensors sleep more than 5
minutes.
14. Paired Sensor Icons
The sensors icons will display in sleep mode if the sensor was paired previously.
C: cadence sensor, Heart: Heart rate monitor, S: speed sensor, P: power meter. If
the computer can’t find the sensors, please make sure the sensor is reacting with
magnet while pairing or it is not in sleep mode.
15. Searching
If the computer is not in SLEEP mode, but on the mount, when you move the bike,
the computer wil automatically start searching. The longest time for searching is
30 seconds, effective distance for transmission is within 1 meter.
16. Record Reminder
After searching, Record Reminder will show “Record STP?” (Record Stopwatch) to
ask you want to record the trip data. Press M key to confirm it or press U key to
decline it. To stop recording by pressing M key for 3sec or it will automatically stop
after all sensors go sleep.
11 12
Compatible Sensor
Neos PRO computer is compatible with all ANT+ 2.4G digital transmission
device sensors, including Giant Ride Sense sensor in selected Giant bikes or
2 in 1 sensor in accessories. The sensor is not included in the package. Pair
the sensor with computer unit before starting to ride.

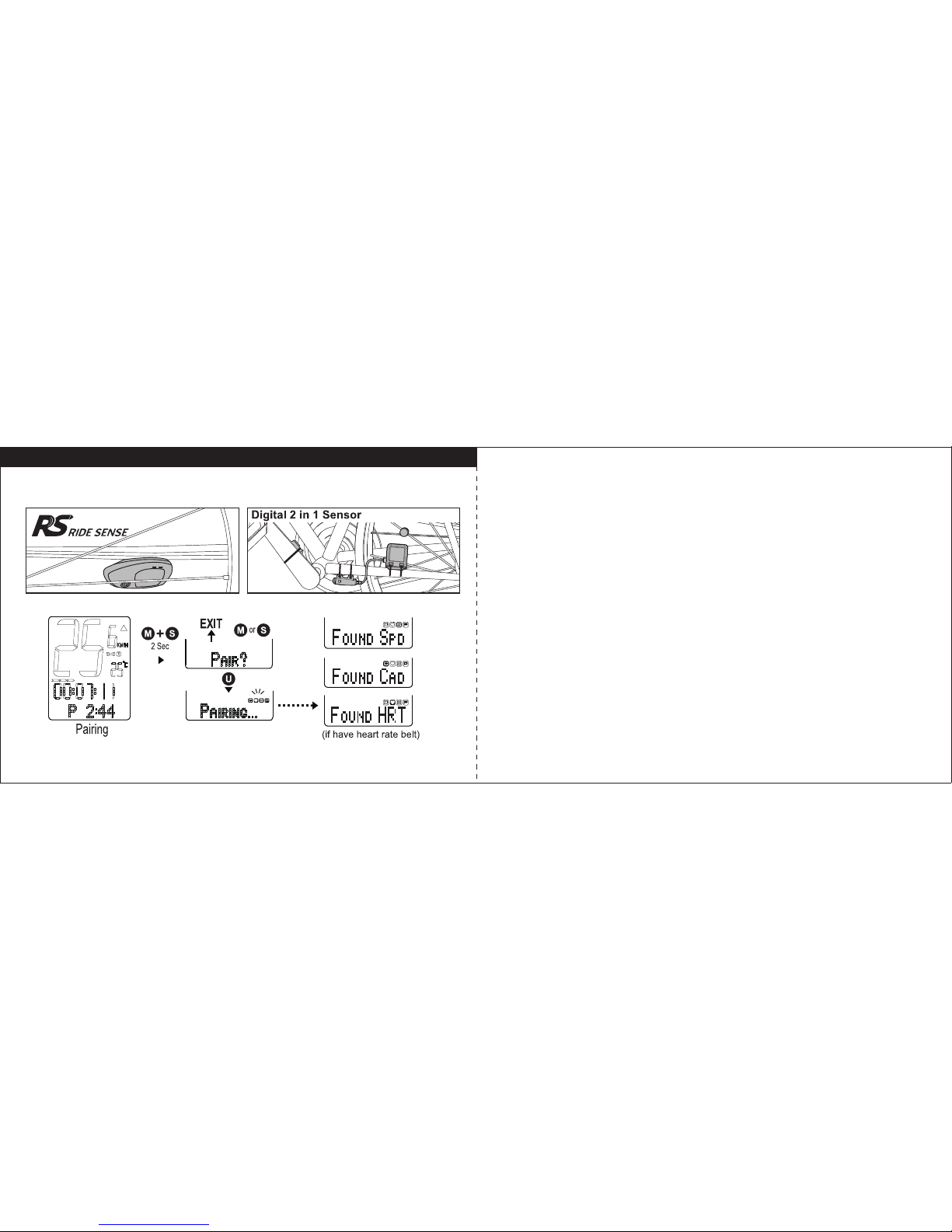

Pairing
Press M+S keys for 2 seconds to enter the pairing mode. Press U key to
confirm and it will start pairing automatically. It will display paired with the
closest device, or press S or M key to release the pairing mode. The longest
time for pairing is 1 minutes, effective distance for transmission is within 1
meter.
Compatible Sensor / Pairing
13 14
2 in 1 Sensor

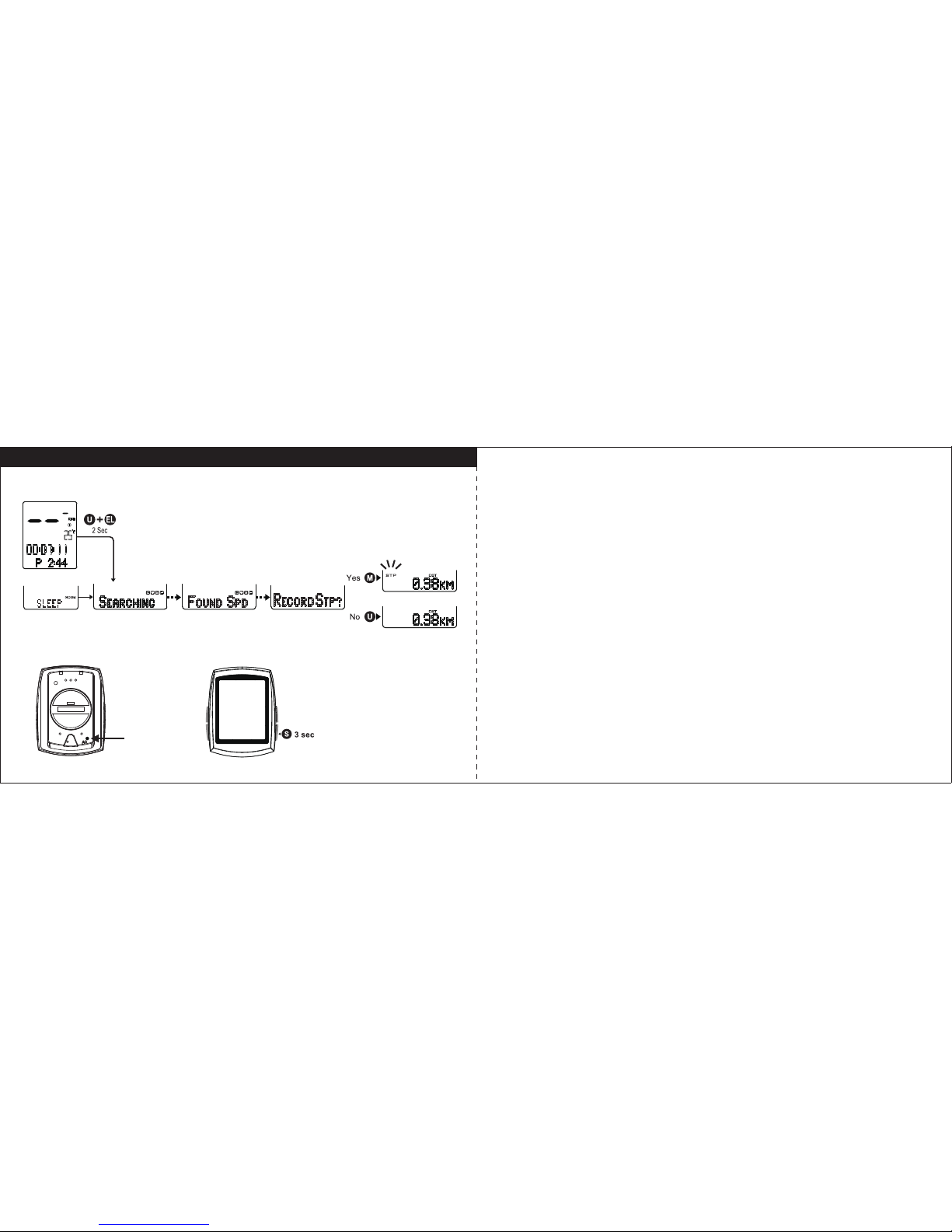

Searching / Record Reminder / Reset Computer / Reset Trip Data
15 16
Searching
In Sleep mode, When bike is moving or press U+EL keys for 2 seconds, computer
will start searching for paired devices. The longest time for searching is 30 seconds,
effective distance for transmission is 1 meter.
Record Reminder
After searching, Record Reminder will show “Record STP?” (Record Stopwatch)
to ask you if you want to record the trip data. Press M key to confirm it or press U key
to decline it. To Stop STP recording by pressing M key for 3 seconds.
Reset Computer
When the computer is not working or the screen is blank after installing the
battery, press the AC button at back of unit to reset the computer back to original
setting.
Reset Trip Data
In any mode, hold S key for 3 seconds, to reset all trip data.
Reset Trip data
Reset Computer
