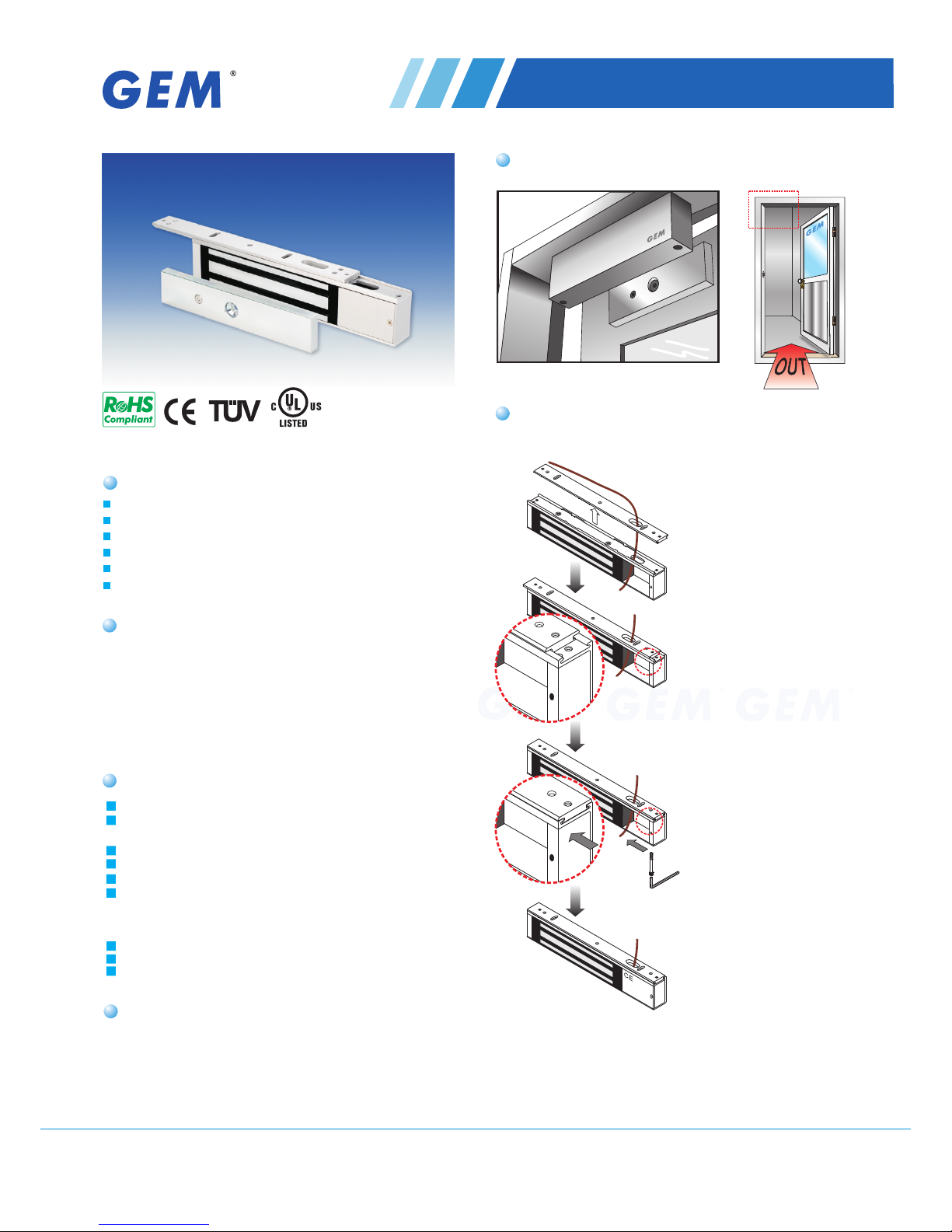

Gianni Industries EM-NH350 Manuel utilisateur

EM-NH350

Midi Electromagnetic Lock

Statement

EM-NH350 is designed for surface mount on

out-swing doors. Its slide-in mounting plate

simplifies the process of installation and firmly

secures the magnet. EM-NH350M comes with

magnetic bond sensor indicating locked and

unlocked status.

Specification

Operating Voltage: 12/24 VDC

Current Draw: 500mA/12VDC;250mA/24VDC

(at 20ºC)

Operating Temperature: -10~55ºC (14~131ºF)

Humidity: 0~95% non-condensing.

Holding Force: Up to 800 lbs (363 Kg)

Dimensions:

Magnet:(L) 265, (W) 52, (D) 29 mm

Armature Plate:(L) 185, (W) 45, (D) 14 mm

Mounting Plate:(L) 265, (W) 29, (D) 6.5 mm

Finishes for magnet and armature plate: Zinc plated

Epoxy Potting Compound: E87252 (S), UL94V-0

Net Weight: 3.0 Kg

Patent:

ZL 2006 2 0122522.X

Nr.20 2006 012 052.1

M308308

GB 06 16099.8

06 07229 (France)

GIANNI INDUSTRIES, INC.

Special Mounting Plate design

DM-CA-EM-NH350 Ver. G Published on 2011.09.01

Features

Holding force up to 800lbs

MOV provides spike and surge protection

Aluminum anodized casing

Mounting plate & housing for easy installation

Dual voltage 12 or 24 VDC (selectable)

Anti-Residual magnetism function

Cable

1 . P a s s t h e p o w e r c a b l e

through the mounting plate

and the hole of the maglock.

4.Use the Allen wrench and

fixing screws to tighten the

mounting plate and maglock.

2.Place the mounting plate

above the maglock. Leave a

length of 1 cm from either end

of the maglock.

3.Slide the mounting plate

into the maglocks. Fit the

maglock from the bottom to

the mounting plate.

Regular Installation

The product is warranted against defects in material and

workmanship while used in normal service for a period of 5

years from the date of sale to the original client. The GEM

policy is one of continual development and improvement;

therefore GEM reserves the right to change specifications

without notice.

Warranty

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw

Magnet

Armature

Door Frame

Door

Leaf

Outswing

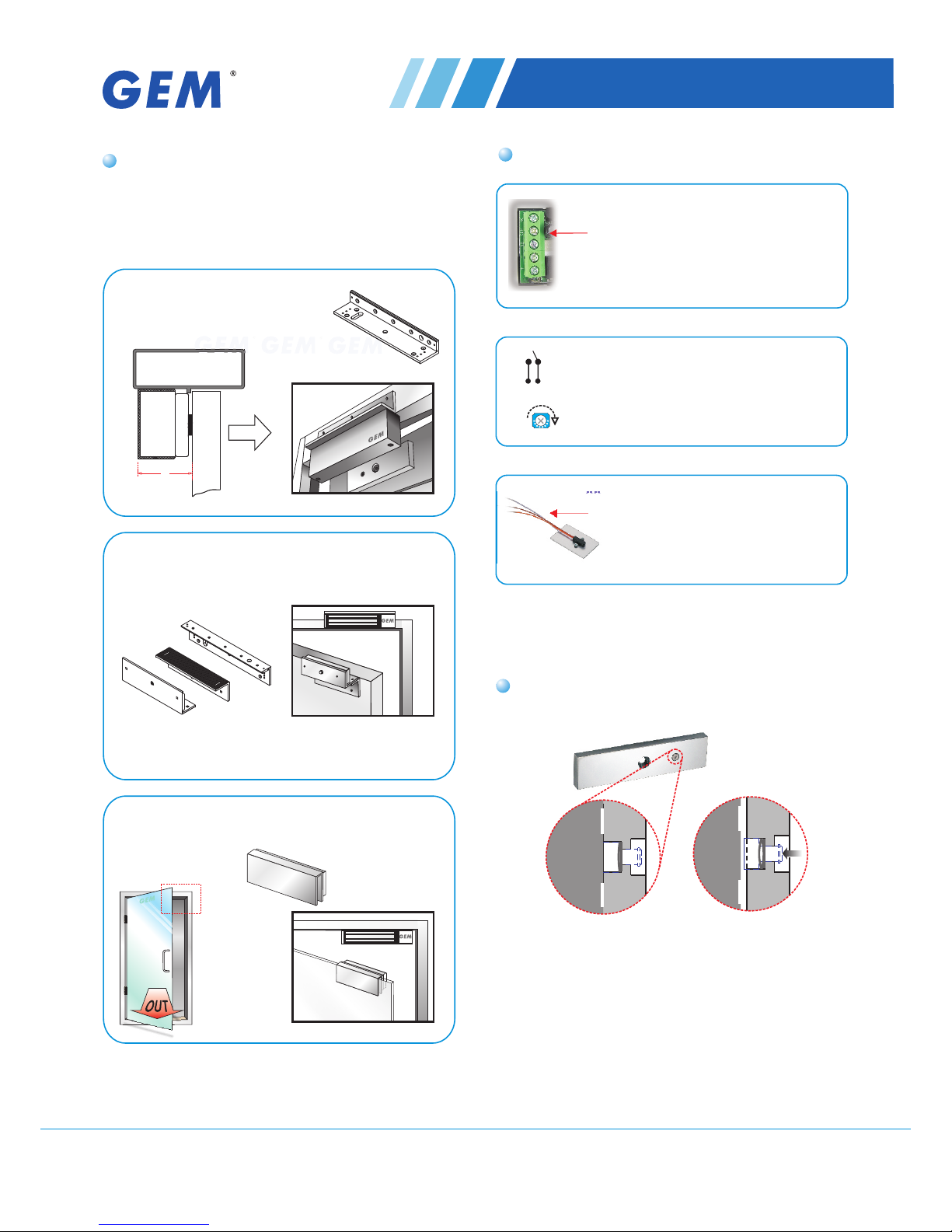

Optional Brackets

L-bracket for narrow door frames

When < 48 mm ,must

install with "L" brackets.

"A"

L-NH350M

LZ-bracket for inswing doors

U-bracket for frameless glass doors

UBK-013 For 10~12mm thickness of glass door

LZ-NH-350N

DM-CA-EM-NH350 Ver. G Published on 2011.09.01

EM-NH350

Midi Electromagnetic Lock

GIANNI INDUSTRIES, INC.

Operating Features

48 mm

Bracket installation is according to door swing

direction and door frame type , e.g. narrow frame

door , frameless glass door , inswing door , etc.

UBK-013

xxxxx-TD: Relock time delay

Ensure the automatic lock mode after

the door is closed properly and it can

be adjusted from 1 to 80 seconds.

xxxxx-M: Bond sensor output

Indicate the locked & unlocked status with

visible LED indicator.

Bond sensor output

SPDT rated: 0.5A/125VAC;1A/24VDC

Timer Adjust

Shorten

Trigger

: Door status xxxxx-DS

Door Status Sensor indicates the door

is in an open or closed status.

Door status output

SPDT rated: 0.2A/12VDC

Anti-residual statement

Magnet Armature

(Power Off)

Magnet Armature

(Power On)

Anti-residual statement

Our electromagnet locks feature Anti-Residual Magnetism

(ARM) which ensures the door can be opened without any

resistance from left over magnetism imparted to the armature

plate

No. 13, Zhongxing Rd., Tucheng Dist., New Taipei

City 236,Taiwan (R.O.C.)

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: inquiry@gianni.com.tw

Website: gianni.tw
