Ghost Controls ZombieLock Manuel utilisateur
5 Rapid beeps
These beeps occur only once when you are attempting to activate the unit via your
remote control. If after pressing your remote control you get a series 5 beeps, pause, 5
beeps, pause without pressing the remote see the 5 beep error code document.
Do you currently have a Zombie lock connected to your system? If yes proceed to step 1.
If you have removed your Zombie Lock please follow step 3 instructions.
Step 1 Make sure all your lock wires are secure. Turn the system off, remove the red, black, and blue
wires from the control board. Inspect and replace the wires back into the terminals.Turn the system on
and test with your remote control. If the issue persists proceed to step 3.

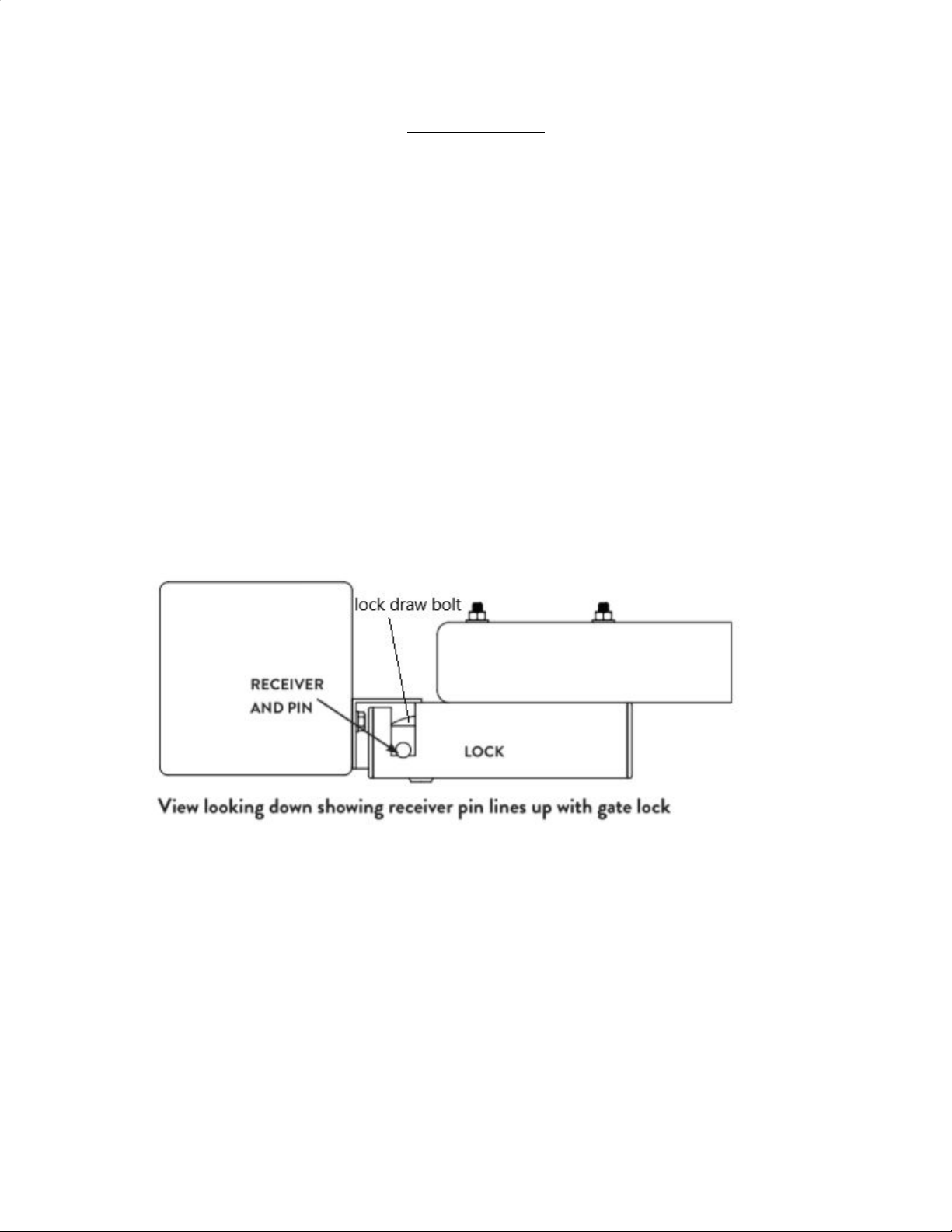

Step 2 Check for binding at the closed position between the receiver lock pin and lock. If the pin is
resting against the lock draw bolt you will need to readjust your gate closed position. Please refer to your
installation manual for the automatic gate opener and the Zombie Lock Manual.
Step 3 How do I reset the Ghost Controls System when a ZombieLock is missing or removed?
Example Scenarios:
1. I previously had a Ghost Controls AXZL ZombieLock installed and now I have removed
it for some reason or another. How do I get my Ghost Controls system to work again
now that I have removed the AXZL ZombieLock from the installation?
2. I currently have a Ghost Controls AXZL ZombieLock on my gate but I have
disconnected the wires from the control board. I want to manually keep the
ZombieLock open using the key.
Follow the below procedure:
If your system is not off already, turn the system control board OFF using the switch on
the outside bottom of the system control box.

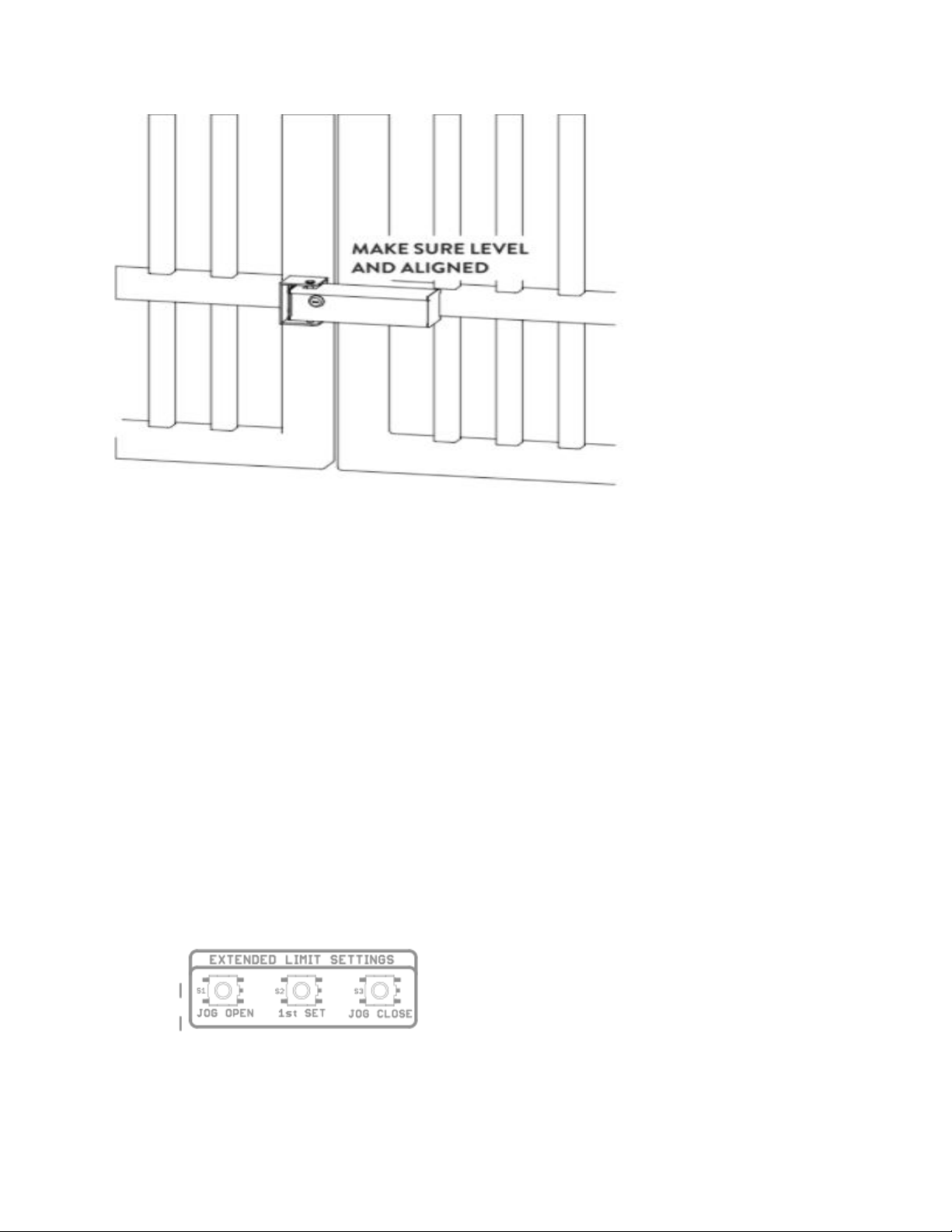

Hold down BOTH the “JOG OPEN” and “JOG CLOSE” for the 1st Arm.
Turn the system control board ON and continue to hold the JOG OPEN and JOG CLOSE
buttons down for approximately 6-8 seconds.
Your system has now reset.
Test your system operation with the Remote Transmitter.
