Before You

Use This

Machine

Before you can send or receive fax messages,

please take about 30 minutes to set up your machine.

Set up your machine using the following procedures.

Preparing the

Toner Cassette

Continued on next page

WARNING:

• Disconnect the power plug (by pulling the plug, not

the cable) if the power cable or plug becomes frayed

or otherwise damaged.

• To avoid hazardous electric shock or laser radiation

exposure, do not remove any covers or screws other

than those specified in this manual.

• Turn off the power and disconnect the power plug (by

pulling the plug, not the cable) if any of the following

occurs:

• You spill something into the machine.

• You suspect that your machine needs service or re-

pair.

• The external housing of your machine has been dam-

aged.

• Disposal can take place at our authorized dealer.

CAUTION:

• Protect the machine from dampness or wet weather,

such as rain and snow.

• Do not allow paper clips, staples, or other small me-

tallic objects to fall inside the machine.

• For environmental reasons, do not dispose of the ma-

chine or expended supply waste at household waste

collection points. Disposal can take place at an au-

thorized dealer.

• The inside of the machine could be very hot. Do not

touch the parts with a label indicating the “hot sur-

face”. Otherwise an injury might occur.

• Our products are engineered to meet high standards

of quality and functionality, and we recommend that

you use only the expendable supplies available at an

authorized dealer.

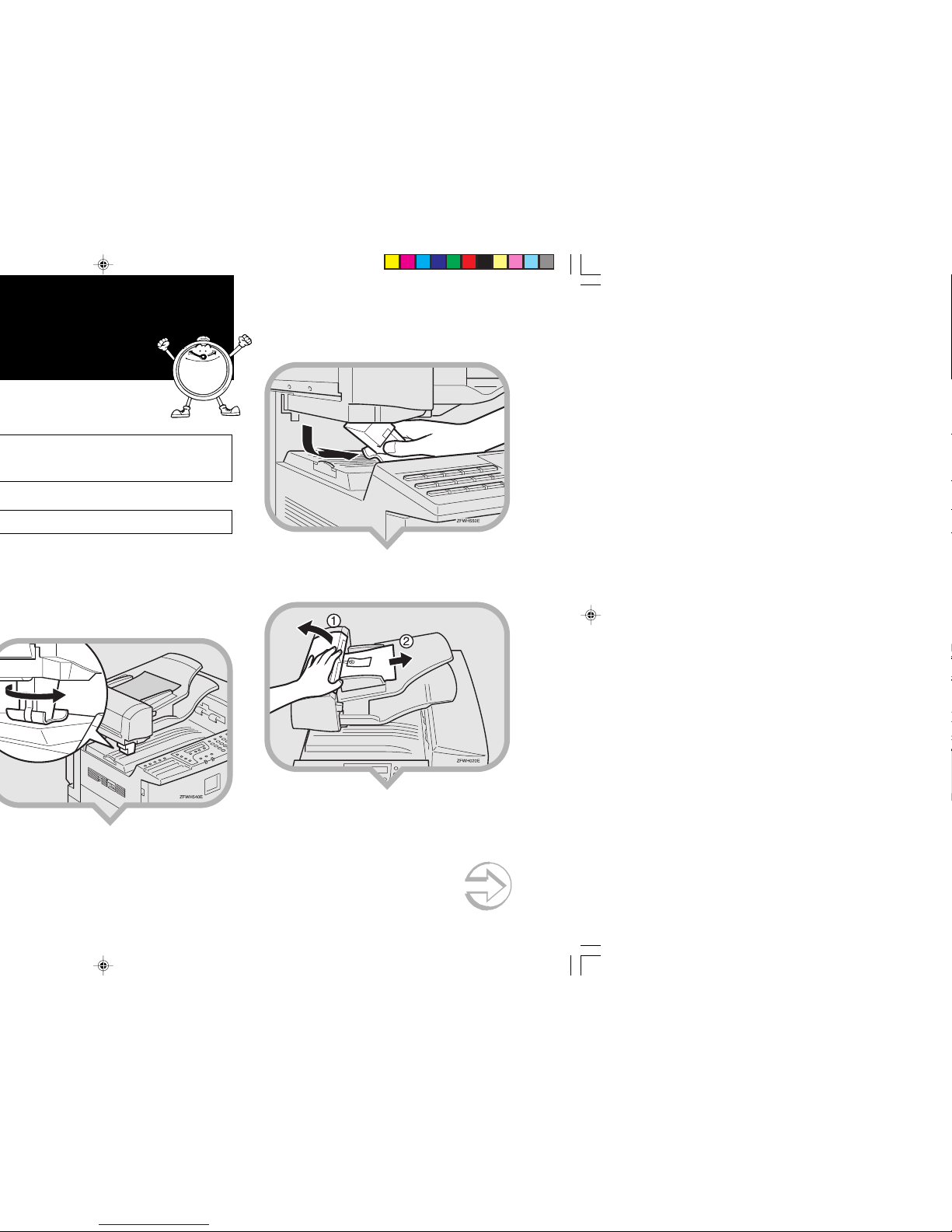

1.Remove the plastic wrapping sheet from

the machine, and then remove all shipping

tape.

2.Turn the fixing material 90°counterclock-

wise.

WARNING:

• Do not incinerate spilled toner or used toner. Toner

dust might ignite when exposed to an open flame.

• Dispose of the used toner cartridge in accordance with

the local regulations.

CAUTION:

• Keep toner (used or unused) and toner cartridge out

of the reach of children.

3.Remove the fixing material to the right.

4.Open the Document Feeder (ADF) and take

out the protective sheet.

Continued on next page

5.Remove the fixing material from the axis.

6.Close the Document Feeder (ADF) and

make sure it locks securely into place.

7.Open the front cover.

.Hold the cassette horizontally and shake it

gently from side to side a few times.

.Remove the tape from the toner cassette.

8.Remove the fixing material.

9.Push the lever (햲) and pull out the toner

cassette holding 햲and 햳.

.Remove the fixing material.

.Return the toner cassette.

Push the toner cassette in until it locks

securely into place.

.Pull the two red tags to remove the plastic

strips.

.Close the front cover.

Keep going...

5.Push the paper tray firmly until it locks into

place.

6.Stick the appropriate tray-number decal

and paper size decal on the locations

indicated in the illustration.

7.If you changed the paper size of the paper

tray, set the paper size with the User Tools.

Reference

TSee “Changing the Paper Size Setting” in the

Advanced Features manual.

3.Push the metal base plate firmly down until

it locks into place.

4. Load the paper into the paper tray.

Preparing the

Main Paper

Tray

1.Pull the paper tray out of the

main unit.

2.If necessary, adjust the paper size.

As a default, the paper size in the tray is set

as 81/2" 11".

Reference

TTo change the paper size in the paper tray, see

“Changing the Paper Size in the Main paper tray”

in the Advanced Features manual.

햲Turn off the power switch of the machine.

햳Unplug the power cord of the machine

from the outlet.

햴Unplug the telephone line from the

machine.

Note

After the installation, plug the power cord of the

machine back into the outlet, turn the power switch

on, and then connect the telephone line to the

machine.

1.Remove the tape at [A], and then remove

the tape and cardboard at [B].

2.Pull the paper tray part out of the unit, and

then remove the tape and cardboard at [C].

3.If necessary, adjust the paper size of the

paper tray.

Reference

TFor information about changing paper size, see

“Changing the Paper Size in the Optional Paper

Tray Unit” in the Advanced Features manual.

4.Push the paper tray in until it stops.

Continued on next page

Installing the Optional

Paper Tray Unit

If you install the Optional Paper Tray Unit later, read the

following WARNING, CA UTION and Impor tant, and then

perform 햲to 햴.

WARNING:

• Connect the power cord directly into a wall outlet and

never use an extension cord.

CAUTION:

• Unplug the power cord from the wall outlet before you

move the machine.

While moving the machine, you should take care that

the power cord will not be damaged under the

machine.Unplug the power cord from the wall outlet

before you move the machine. While moving the ma-

chine, you should take care that the power cord will

not be damaged under the machine.

• When you disconnect the power plug from the wall

outlet, always pull the plug (not the cable).

Important

• Do not plug or unplug the power cord with

wet hands or an electric shock might occur.

• Check the facsimile machine nameplate to

confirm the model code.

• Make sure that 100% is shown on the display

before you turn the power switch off or unplug

the power cord. Fax files programmed in

memory will be deleted 12 hours after you turn

the power switch off or unplug the power cord.

• Do not pull two paper trays out at the same

time. Having two paper trays filled with paper

in a fully extended position could cause the

machine to fall over.

Installing the

Optional

Memory Card

If you install the optional memory card later, read the

following Important, and then perform 햲.

Important

• Turn the power switch off before installing

cards or they could be damaged.

• Fax files programmed in memory will not be

deleted while the optional memory card is

installed.

• When you install the optional memory card to

the machine, make sure that 100% is shown

on the display and turn off the power switch.

햲Turn off the power switch.

6.Stick the appropriate tray-number decal

and paper-size decal on the locations

indicated in the illustration.

7.If you changed the paper size of the paper

tray, set the paper size with the User Tools.

Reference

TFor information about setting paper size, see

“Changing the Paper Size Setting” in theAdvanced

Features manual.

After Setting the Paper Tray Unit

Reference

TFor information about loading paper, see “Loading

Paper in the Optional Paper Tray Unit” in theAdvanced

Features manual.

Continued on next page

5.There are two pins on the top of the Paper

Tray Unit that point straight up. On the

bottom of the machine there are two holes.

Align the holes over the pins and lower the

machine gently onto the Paper Tray Unit.

Note

• Two people are better for lifting the machine.

• Be careful not to pinch your fingers.

Important

When lifting the machine, use the inset grips

on both sides. The machine could be

damaged or cause injury if dropped.

2.Attach the memory card cover.

Insert the tab of the cover in the slot (햲),

and fix the cover with the screw (햳).

Note

• You can use a coin-like object to fix the screw.

Connecting the

Power and

Switching On 5

Note

• If "Call Service" appears on the display after the

power switch is turned on, turn the power switch

off, and check whether the tape has been removed

from the toner cassette and PCU.

See "1. Preparing the Toner Cassette".

1.Plug the cable into the outlet.

Warning

TPower requirements : 115V, 60Hz

TInsert the power plug securely into the outlet.

TMake sure that the outlet is near the machine and

readily accessible.

TDo not connect other equipment to the same outlet.

2.Turn the power switch on.

WARNING:

• Connect the power cord directly into a wall outlet and

never use an extension cord.

1.Insert the memory card carefully into the

slot on the left side of the machine.

Note

• Insert the Memory Card firmly or the machine may

not work properly.

Installing the

Optional

Handset

1.Remove the information card from the

holder.

2.Attach the holder to the bracket with the

two screws provided.

Note

• You can use a coin-like object to fix the screw.

3.Replace the information card.

4.Attach the bracket to the machine with the

two screws provided.

Note

• You can use a coin-like object to fix the screw.

Connecting the

Telephone

Line

There are similar sockets located at the left side

of the machine:

TEL:

For the optional handset or the external telephone

LINE: Telephone line connection

1.Insert the line cable into the socket labeled

“Line”.

Connect the other end to your telephone line.

Continued on next page

Initial Settings &

Adjustments

The following display appears after the power

is turned on for the first time. Do not turn off

the power until you have completed the

following procedure.

Year: Press OK

[2002]

Before using the machine, please adjust the fol-

lowing settings:

• Date & Time

• Line Type

• Own Name, Fax Header, Fax Number

Important

For mistakes, press the Cancel key, and then

the OK key to register again.

Note

When entering characters, use the following

keys.

ABC - YZ keys

(Quick Dial Keys 01-09 or 16-24)

Space key

(Quick Dial key 14 or 29)

Symbols key

(Quick Dial Keys 15 or 30)

Shift key

(Quick Dial key 13 or 28)

Number keys

Clear/Stop key

keys

Entering Letters

(A-Z, a-z)

Entering a Space

Entering Symbols

Switching between

uppercase and

lowercase

Entering digits

Deleting characters

Moving the cursor

1.Make sure the current year setting is

correct. If it is not, enter the year with the

number keys.

Year: Press OK

[2002]

2.Press the OK key.

3.Press or key to select the month.

Month: WV/O K

March

4.Press the OK key.

5.Insert the handset jack into the “TEL”

socket.

EN USA H555-8580

Table des matières

Autres manuels Gestetner Photocopieuse

Gestetner

Gestetner 3532 Instructions d'installation et d'entretien

Gestetner

Gestetner CS555 Manuel utilisateur

Gestetner

Gestetner 5499 Manuel utilisateur

Gestetner

Gestetner 9920 Manuel utilisateur

Gestetner

Gestetner 5308L Manuel utilisateur

Gestetner

Gestetner 1045 Instructions d'installation et d'entretien

Gestetner

Gestetner AO70 Manuel utilisateur

Gestetner

Gestetner DSm725e Instructions d'installation et d'entretien

Gestetner

Gestetner 2235 Manuel utilisateur

Gestetner

Gestetner DSm7110 Manuel utilisateur

Gestetner

Gestetner 3532 Manuel utilisateur

Gestetner

Gestetner F540 Manuel utilisateur

Gestetner

Gestetner DSm616 Instructions d'installation et d'entretien

Gestetner

Gestetner 3220 Manuel utilisateur

Gestetner

Gestetner 9870 Mode d'emploi

Gestetner

Gestetner DSm725e Manuel utilisateur

Gestetner

Gestetner 5499 Manuel utilisateur

Gestetner

Gestetner AO70 Manuel utilisateur

Gestetner

Gestetner DSm755 Instructions d'utilisation

Gestetner

Gestetner CS210 Manuel utilisateur

Gestetner

Gestetner 5309L Manuel de service

Gestetner

Gestetner CS213d Manuel utilisateur

Gestetner

Gestetner 5502 Manuel utilisateur

Gestetner

Gestetner CS210 Manuel utilisateur

Manuels Photocopieuse populaires d'autres marques

Canon

Canon iR1210 Manuel de référence

Ricoh

Ricoh FW740 Manuel utilisateur

Minolta

Minolta CF910 Manuel utilisateur

Ricoh

Ricoh B003 Manuel utilisateur

Xerox

Xerox EC70 Manuel utilisateur

Oce

Oce 9800 Manuel utilisateur

Olivetti

Olivetti d-Copia 1800 Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Canon

Canon iR5000i Manuel utilisateur

Telecrane

Telecrane F25 Manuel utilisateur

Xerox

Xerox WorkCentre Pro 40 Manuel utilisateur

Canon

Canon NP6317 Comment utiliser

Sharp

Sharp AR-5015 N Manuel utilisateur

Ricoh

Ricoh Di-C1 Manuel utilisateur

Mita

Mita MIP-2400 Manuel

Sharp

Sharp AL-2061 Manuel utilisateur

Muratec

Muratec MFX-C2280 Manuel utilisateur

Ricoh

Ricoh FT5034C Manuel utilisateur
