1. Basics
How to Make a Copy........................................................................
2. Area Editing Example (Only for Edit type)
Filling a Background Area with a Color ............................................
3. Area Editing Summary (Only for Edit type)
Other Area Editing Functions ...........................................................
4. Color Balance Adjustment
Adjusting the Color Balance .............................................................
5. Image Overlay (Only for Edit type)
Making a Leaflet...............................................................................
6. Front & Back Cover
Copying Front and Back Covers ......................................................
7. Summary
Features at a Glance........................................................................
Some limitations may apply to functions—for details please refer to the Operating Instructions.
The copy samples in this guide differ somewhat from actual copies due to printing effects.
page.2
page.4
page.6
page.8
page.10
page.12
page.14
This machine comes in two models which are referred to in this manual as Basic type and Edit
type.
Check the inside front cover of the Operating Instructions for the model you have before
reading this guide.
2
In this situation... Use this function...
You wish to make a copy in the same color
and the same size as your original.
Basics
This machine has the following functions:
• Auto Color Select
Selects a suitable color automatically.
• Auto Original Type Select
Selects a suitable original image type au-
tomatically.
• Auto Paper Select
Selectsasuitablepaper sizeautomatically.
How to Make a Copy
Set the
original.
Make sure that
following functions
are selected:
• [Auto Color Select]
• [Text / Photo]
• [Auto Paper Select]
• [Full Size]
*Auto Color Select and Auto Original Type Select
cannot be set together.
3
Tip

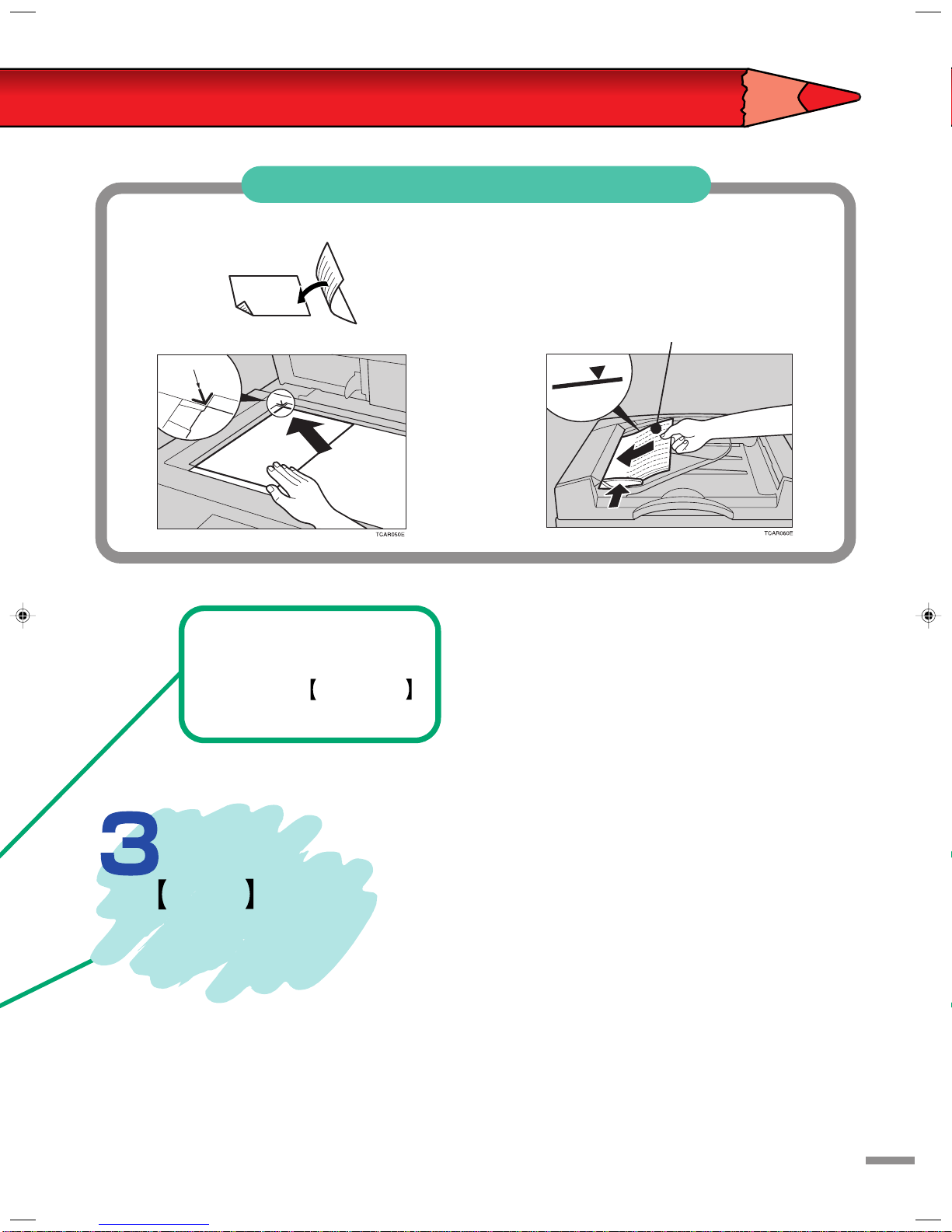

On the exposure glass(platen glass) In the document feeder
To check the number
ofcopiesmadesofar,
press the Counter
key .
Face down
Press the
Start key.
Face up
4
In this situation... Use this function...
You wish to fill the specified background of
your original with a selected color.
Area Editing Example (Only for Edit type)
The Color Background function inArea Ed-
itingmakescopieswith the designatedarea
filled in a selected color.
Filling a Background Area with a Col
Set the original
on the exposure glass
(platen glass).
*For information on other Area Editing features, see page 6 and 7.
Press the
[Area Editing]
key.
Select the
area shape,
then designate
the area.
5
h a Color
Select [Color
Creation] , then press the
[Color Background] key.
Select the
desired color,
then press the
[OK] key twice.
Press the
Start key.
Press the
[Confirm Selection]
key.
Press the
[Area Edit] key.
6
Area Editing Summary (Only for Edit type)
Other Area Editing Functions
Objective Area Selection Edit the Area Copy Result
Color Conversion
I wish to change the
color of an area.
GCARE10E
햲Select Rectangle .
햳Mark the first point with the editor
pen or your finger.
햴Mark the diagonally opposite cor-
ner of the area you wish to select.
햵Press the [Area Edit] key.
햶Press the [Color Creation] key.
햷Pressthe[Color Conversion] key.
햸Pressthecolor youwishtochange.
햹Press the color you wish to use.
햺Press the [OK] key.
햻Press the [OK] key.
Delete Area
I wish to delete an area. 햲Select R.A.Polygon .
햳Mark the first point with the editor
pen or your finger.
햴Mark the points.
햵Press the [Area Edit] key.
햶Press the [Delete Area] key.
햷Press the [OK] key.
Color Erase
I wish to remove color
from an area.
햲Select Polygon .
햳Mark the first point with the editor
pen or your finger.
햴Mark the points.
햵Press the [Area Edit] key.
햶Press the [Color Creation] key.
햷Press the [Color Erase] key.
햸Press the color you want to erase.
햹Press the [OK] key.
햺Press the [OK] key.
Save Area
I wish to blank out all ar-
eas except the selected
area.
햲Select R.A.Polygon .
햳Mark the first point with the editor
pen or your finger.
햴Mark the points.
햵Press the [Area Edit] key.
햶Press the [Save Area] key.
햷Press the [OK] key.
7
s
Objective Area Selection Edit the Area Copy Result
Paint
I wish to fill an area with
a selected color.
햲Select Closed Loop .
햳Touch on a point inside a closed
loop.
햴Press the [Area Edit] key.
햵Press the [Color Creation] key.
햶Press the [Paint] key.
햷Select the color you want to use.
햸Press the [OK] key.
햹Press the [OK] key.
Multi-Closed Loop
I wish to fill an area but
leaveaninternal partleft
unfilled.
햲Select Multi-Closed Loop .
햳Touch on a point inside a closed
loop.
햴Touch onapoint thatyou don’twant
to paint.
햵Press the [Area Edit] key.
햶Press the [Color Creation] key.
햷Press the [Paint] key.
햸Select the color you want to use.
햹Press the [OK] key.
햺Press the [OK] key.
Line
I wish to add a line. 햲Select Frame/Line,then selectLine
.
햳Mark the first point with the editor
pen or your finger.
햴Mark the last point.
햵Press the [Area Edit] key.
햶Select the color you want to use.
햷Select the line width.
햸Press the [OK] key.
8
In this situation... Use this function...
Copies are too yellow.
Color Balance Adjustment
The Color Balance function allows you to
control the overall color tone of copies.
Adjusting the Color Balance
Press the
Adjustment/Memory
key.
Set the
original. Adjust the
color tone.
9
Tip
You can alter up to three single colors by mixing them with adjacent
colors in the color circle.
1. Press the Adjustment/Memory key.
2. Press the [Color Adjustment] key.
3. Select the color that you want to adjust from the color circle.
4. Adjust the color with the [ ] or [ ] key.
5. Press the [OK] key.
Press the
[OK] key.
Press the
Start key.
10
In this situation... Use this function...
You wish to superimpose one original im-
age over another e.g. to make a leaflet. The Image Overlay function makes copies
with a portion of one original image (the im-
age original) overlayed onto another origi-
nal image (the background original).
Making a Leaflet
Image Overlay
Set the
original on the
exposure glass.
1: Background original
2: Image original
Press the
Area Image Overlay
[Image] key.
1: Foreground image original
2: Background image original
* Select the [Overlay Opacity
Yes] or [Overlay Opacity No]
key.
Press the
[Image Overlay]
key.
