Gestetner 5499 Manuel utilisateur

Operation

Class Mode

Use the {

{{

{Class}

}}

}key to make sets of

prints from the same original. The

same numbers of prints are made for

each set.

Note

❒When you choose Class mode, Job

Separation mode is automatically

turned on. The job separator pulls

the top sheet of each set delivered

to the paper delivery tray to mark

the end of each printed set. The

next cycle begins automatically.

See p.79 “Job Separation”.

❒You can suspend Job Separation

mode whenever you set the Class

mode with the user tools. See “Au-

to Separate”on p.146 “4. Mode Set-

ting”.

APress the {

{{

{Class}

}}

}key.

BSelect [Same-NO.]with the [→

→→

→]or

{

{{

{}

}}

}key.

CPress the [OK]key.

DWith the number keys, enter the

desired number of prints for each

set.

EPress the {

{{

}}

}key.

GRCLAS0E

RR R

R R R

Class Mode

FWith the number keys, enter the

number of sets you wish to make.

Note

❒Up to 99 sets can be selected for

an original.

GPress the [OK]key.

HPlace one original on the expo-

sure glass or in the optional docu-

ment feeder.

IPress the {

{{

{Start}

}}

}key.

JCheck the image position on the

trial or proof print.

Note

❒If the image position is not cor-

rect, adjust it using the [Image

=]key. See p.24 “Adjusting the

Position of Printed Images”.

KMake your prints.

Operation

Combine Originals

You can combine originals in two ways:

❖

❖❖

❖2 single-sided originals →

→→

→1 single-sided print with 2 images

Combine two single-sided originals onto one single-sided print with the two

images placed side-by-side.

❖

❖❖

❖2 single-sided originals →

→→

→1 single-sided print with 4 images

Combine two single-sided originals onto one single-sided print with each im-

age duplicated (total of four images).

Note

❒You can also use Memory Combine mode. See p.118 “Memory Combine”.

❒You can set the machine to cancel Combine Originals mode after finishing

your print job with the user tools. See “Cancel Comb.”on p.146 “4. Mode Set-

ting”.

❒Any image closer than 8mm, 0.32" to the leading edge of the first original will

not be printed. Any image closer than 4mm, 0.16" to the leading edge of the

second original will also not be printed. When the image is too close to the

leading edge, use copies of the originals with the image shifted at least 8mm,

0.32" for the first original (4mm, 0.16" for the second original) from the leading

edge.

❒You can select different image settings for the first and second original.

❒Make sure that the paper feed side plates touch the paper lightly and that the

paper size and direction shown on the panel display match the size and direc-

tion of paper actually placed in the paper feed tray. Either case can cause the

two original images not to appear in the proper position on prints.

❒The following tables list the combinations that can be used with the Combine

feature (2 single-sided originals →1 single-sided print with 2 images).

GRCOMB2E

Combine Originals

❖

❖❖

❖Metric version

❖

❖❖

❖Inch version

❒The following tables list the combinations that can be used with the Combine

feature (2 single-sided originals →1 single-sided print with 4 images).

❖

❖❖

❖Metric version

❖

❖❖

❖Inch version

Original Size

A4KB5KA5KB6KA6K

Paper Size A3L100% 115% 141% 163% 200%

B4L87% 100% 122% 141% 173%

A4L71% 82% 100% 115% 141%

B5L61% 71% 87% 100% 122%

A5L50% 58% 71% 82% 100%

Original Size

81/2" ×11"K51/2" ×81/2"K

Paper Size 11" ×17"L100% 129%

81/2" ×14"L77% 100%

81/2" ×11"L65% 100%

51/2" ×81/2"L50% 65%

Original Size

A3LB4LA4LB5LA5LB6LA6L

Paper

Size

A3L50% 58% 71% 82% 100% 115% 141%

B4L- 50% 61% 71% 87% 100% 122%

A4L- - 50% 58% 71% 82% 100%

B5L- - - 50% 61% 71% 87%

A5L- - - - 50% 58% 71%

Original Size

11" ×17"L81/2" ×

14"L

81/2" ×

11"L

51/2" ×

81/2"L

Paper Size 11" ×17"L50% 65% 65% 100%

81/2" ×14"L- 50% 50% 77%

81/2" ×11"L- - 50% 77%

51/2" ×81/2"L---50%

Operation

❒If a suitable reproduction ratio is not selected, images might not completely

appear on prints.

❒Originals reading from left to right.

Reference

When you use the optional document feeder with this function, see p.129

“Combine Printing”.

APlace the first original face down.

Note

❒When you place an original sideways (K), the top should be toward the

operation panel as shown above.

BEnter the number of prints using the number keys.

112

ZDZX160E

ZDCH110E

Combine Originals

CCheck the print paper size and the reproduction ratio.

Note

❒To have the machine choose a suitable ratio automatically, use Auto Mag-

nification mode. See p.31 “Auto Magnification”.

DPress the {

{{

{Combine}

}}

}key.

ESelect [Combine 2]or [Quadruple]with the [←

←←

←][→

→→

→]or {

{{

}}

}{

{{

{}

}}

}keys.

FPress the [OK]key.

GPress the {

{{

{Start}

}}

}key.

Operation

HThe beeper sounds after the first original has been stored. Place the second

original face down.

IPress the {

{{

{Start}

}}

}key.

JCheck the image position on the trial or proof print.

Note

❒If the image position is not correct, adjust it using the [Image =

=]key. See

p.24 “Adjusting the Position of Printed Images”.

KMake your prints.

ZDCH110E

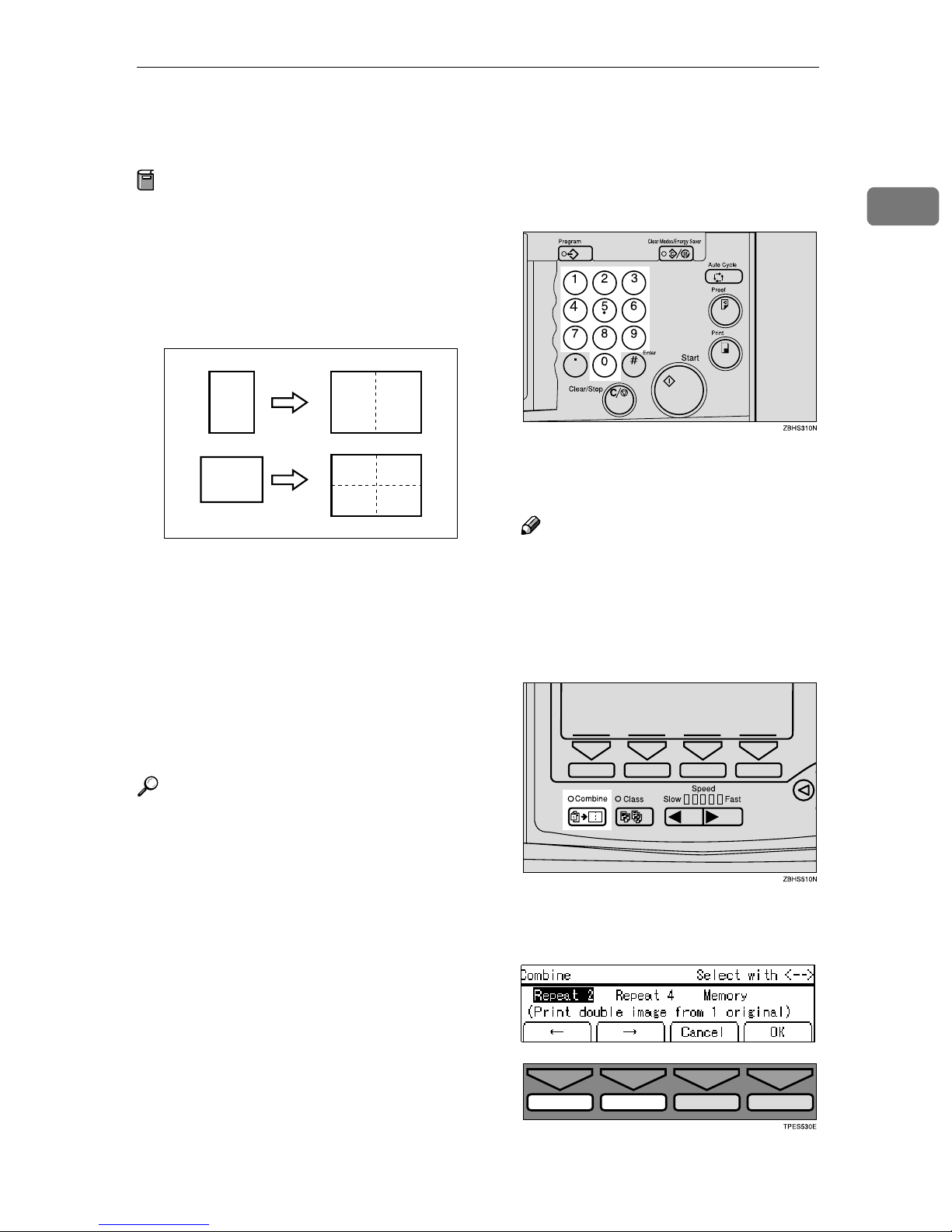

Auto Combine Mode

Preparation

To use this function, you have to

select Auto Combine mode with

the user tools. See “Combine”on

p.146 “4. Mode Setting”.

You can have images duplicated in

two ways:

❖

❖❖

❖1 single-sided original →

→→

→1 single-sid-

ed print of 2 images

The original image is duplicated

twice on one print.

❖

❖❖

❖1 single-sided originals →

→→

→1 single-

sided print of 4 images

The original image is duplicated

four times on one print.

Reference

See p.64 “Combine Originals”for

details.

APlace your original on the expo-

sure glass or in the optional docu-

ment feeder.

BEnter the number of prints using

the number keys.

CCheck the print paper size and the

reproduction ratio.

Note

❒To have the machine choose a

suitable ratio automatically, use

Auto Magnification mode. See

p.31 “Auto Magnification”.

DPress the {

{{

{Combine}

}}

}key.

ESelect [Repeat 2]or [Repeat 4]with

the [←

←←

←][→

→→

→]or {

{{

}}

}{

{{

{}

}}

}keys.

GRACOM0E

111

Operation

FPress the [OK]key.

GPress the {

{{

{Start}

}}

}key.

HCheck the image position on the

trial or proof print.

Note

❒If the image position is not cor-

rect, adjust it using the [Image

=]key. See p.24 “Adjusting the

Position of Printed Images”.

IMake your prints.

Skip Feed Printing

You can increase the time between

prints using the {

{{

{Skip Feed}

}}

}key. By

default, when one sheet of paper is

fed, the drum rotates twice. However,

you can select the number of drum ro-

tations. This gives you a chance to re-

move prints one by one from the

paper delivery tray or insert one sheet

of paper between two prints. If you

use this function, you can also use pa-

per longer than the length limitation

of 432mm, 17.0".

Note

❒For every sheet of paper fed, the

drum rotates twice by default. You

can change this default setting

with the user tools. See “No. of

Skip Feed”on p.146 “4. Mode Set-

ting”.

❒The maximum length of paper in

Skip Feed mode is 460mm, 18.1".

❒When you use paper longer than

432mm, 17.0", prints will not be de-

livered to the paper delivery tray

properly, so lower the paper deliv-

ery end plate and take out the

prints by hand.

APlace your original on the expo-

sure glass or in the optional docu-

ment feeder.

BPress the {

{{

{Skip Feed}

}}

}key.

CIf necessary select the number of

drum rotations per sheet of paper

fed with the [←

←←

←][→

→→

→]or {

{{

}}

}{

{{

{}

}}

}

keys.

Note

❒You can also select the number

of rotations with the number

keys.

❒You can select from 2 to 9 rota-

tions.

❒By default, the machine asks

you to confirm the number of

rotations. You can have this step

omitted by adjusting the user

tool settings. See “No. of Skip

Feed”on p.146 “4. Mode Set-

ting”.

DPress the [OK]key.

EPress the {

{{

{Start}

}}

}key.

Skip Feed

Edge Erase

Over lay

Make-Up

Stamp

Image Density

Lighter

Darker 2

Darker 1

Normal

Economy Mode

Original Storage

Job Separator

Auto On Line

On Line

ZDZS030N
