GeoVision GV-IP Speed Dome Manuel utilisateur

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use. ISD220200-QG-D

Quick Start Guide

GV-IP Speed Dome

Under the copyright laws, this manual may not be copied, in whole or in

part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any

kind and assumes no responsibility for errors or omissions. No liability is

assumed for incidental or consequential damages arising from the use of

the information or products contained herein. Features and specifications

are subject to change without notice.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows and Windows

XP are registered trademarks of Microsoft Corporation.

May2014

Contents

1. Introduction............................................................... 1

2.......................... 2

................................ 2

................................ 3

................................ 5

ount........... 5

Mount..................... 7

.............................. 10

...............................11

ng In................. 12

.............................. 14

.............................. 16

2.8 Configuring a Preset Position............................................... 18

2.9 Configuring a Sequence Route ............................................ 20

2.10 Configuring a Cruise .......................................................... 23

2.11 Configuring an Auto Pan..................................................... 24

2.12 Configuring a Tour.............................................................. 26

2.13 Upgrading System Firmware .............................................. 28

2.14 Restoring to Default Settings.............................................. 30

. GV-SD220 / SD220-S.......................

2.1 Packing List ...........................................................................

2.1.1 Indoor GV-IP Speed Dome...........

2.1.2 Outdoor GV-IP Speed Dome ........

2.2 Overview................................................................................

2.3 Installation..............................................

2.3.1 Indoor GV-IP Speed Dome: Hard-Ceiling M

2.3.2 Outdoor GV-IP Speed Dome: Wall

2.4 Connecting the Cables...........................

2.5 Accessing the Camera ..........................................................

2.5.1 System Requirements ..................

2.5.2 Looking Up the IP Address and Loggi

2.6 The Web Interface..................................

2.7 The PTZ Control Panel...........................

2.14.1 Restoring All the Settings.......................................... 30

ings Only............... 31

3. G 32

.............................. 32

.............................. 33

.............................. 34

3.3 Installation............................................................................ 35

e Mount ................ 35

Pendent Mount..... 38

.............................. 40

.............................. 42

gging in.................. 43

3.6 The Web Interface................................................................ 45

3.7 The PTZ Control Panel......................................................... 46

3.8 Configuring a Preset Position............................................... 48

3.9 Configuring a Sequence Route ............................................ 50

3.10 Configuring a Cruise .......................................................... 53

3.11 Configuring an Auto Pan..................................................... 55

3.12 Configuring a Tour.............................................................. 57

2.14.2 Restoring System Settings Only ...............................

2.14.3 Restoring PTZ Configuration Sett

V-SD200 / SD200-S...............................................

3.1 Packing List ...........................................

3.1.1 Indoor GV-IP Speed Dome...........

3.1.2 Outdoor GV-IP Speed Dome ........

3.2 Overview................................................

3.3.1 Indoor Speed Dome Mount: Surfac

3.3.2 Outdoor Speed Dome Mount: Mini

3.4 Connecting the Cables...........................

3.5 Accessing the Camera ...........................

3.5.1 System Requirements ................................................

3.5.2 Looking up the IP Address and Lo

iii

3.14 Restoring to Default Settings.............................................. 62

3.13 Upgrading System Firmware ..............................................

1. Intr

de. In the following

sections, you will be guided through the basic installations and

io V GV-SD200/GV-SD200-S.

led tion, ser’s Manual on the

re C

oduction

Welcome to the GV-IP Speed Dome Quick Start Gui

configurat ns of the G -SD220/GV-SD220-S/

see GV-IP Speed Dome UFor detai informa

Softwa D.

Model Application Description

GV-SD220 Indoor

GV-SD220-S Outdoor

2 MP H.264, 20x / 30x optical

zoom, 12x digital zoom, WDR Pro

GV-SD200 Indoor

GV-SD200-S Outdoor

2 MP H.264, 18x optical zoom, 8x

digital zoom, WDR Pro



2. GV-SD220 / SD220-S

2.1 Packing List

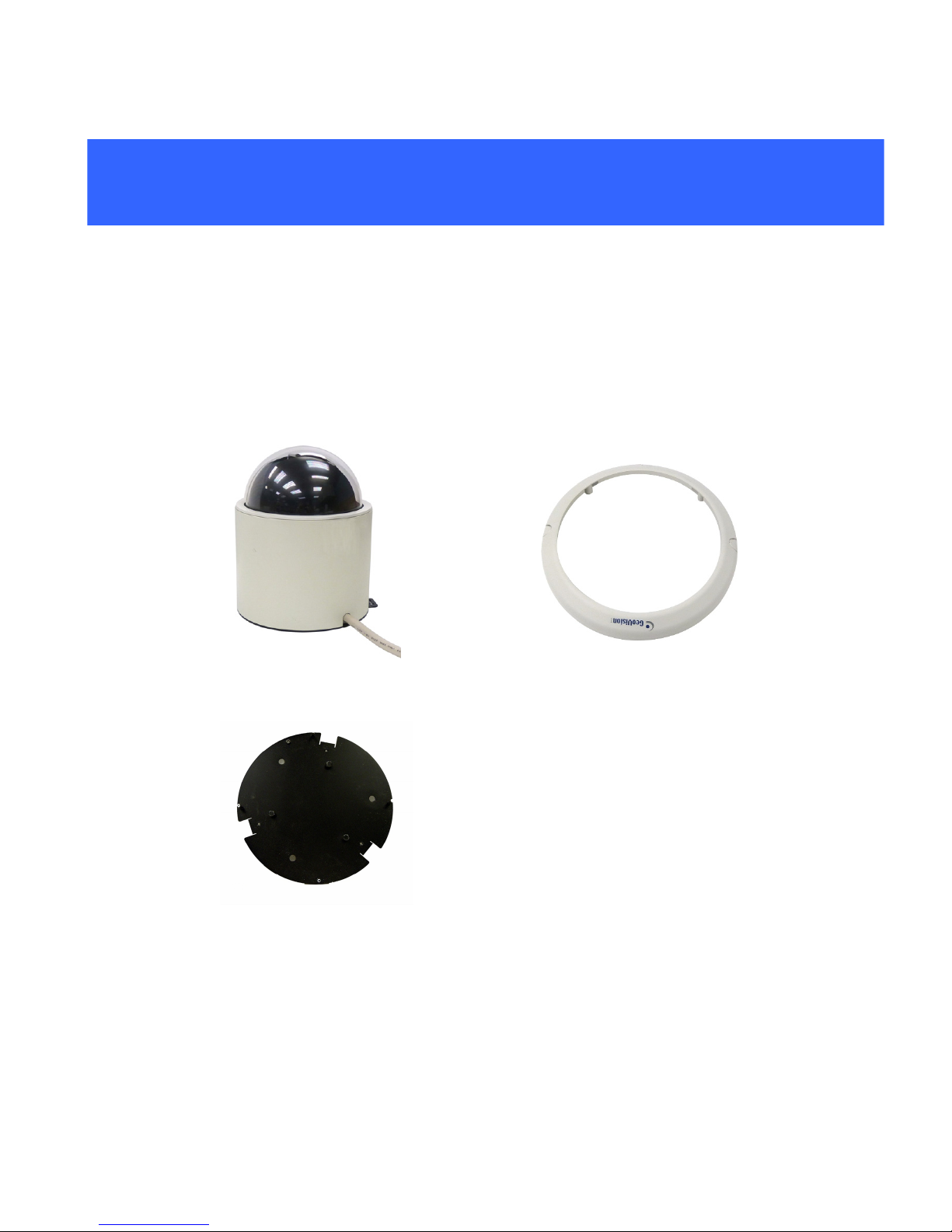

2.1.1 Indoor GV-IP Speed Dome

•Indoor GV-IP Speed Dome

•Hard-Ceiling Cover

te•Mounting Pla

•GV-IP Speed Dome

Software CD

•GV-NVR Software DVD

GV-SD220 / SD220-S

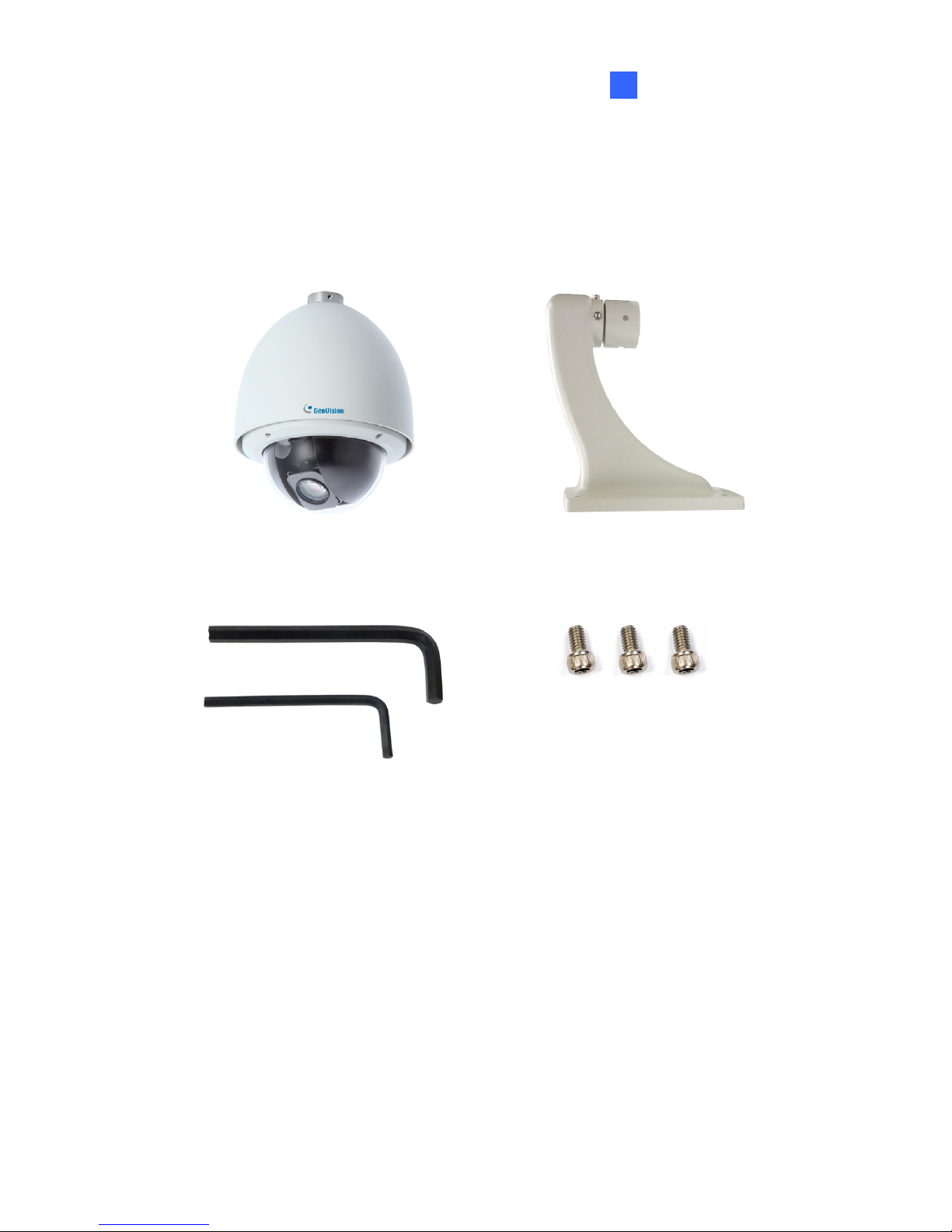

2.1.2 Outdoor GV-IP

•Outdoor GV-IP Speed Dome

Speed Dome

•Pendant Tube

•Hex Keys x 2

•M6 Screws x 3

•Desiccant pack x 4 •GV-IP Speed Dome

Software CD

•GV-NVR Software DVD

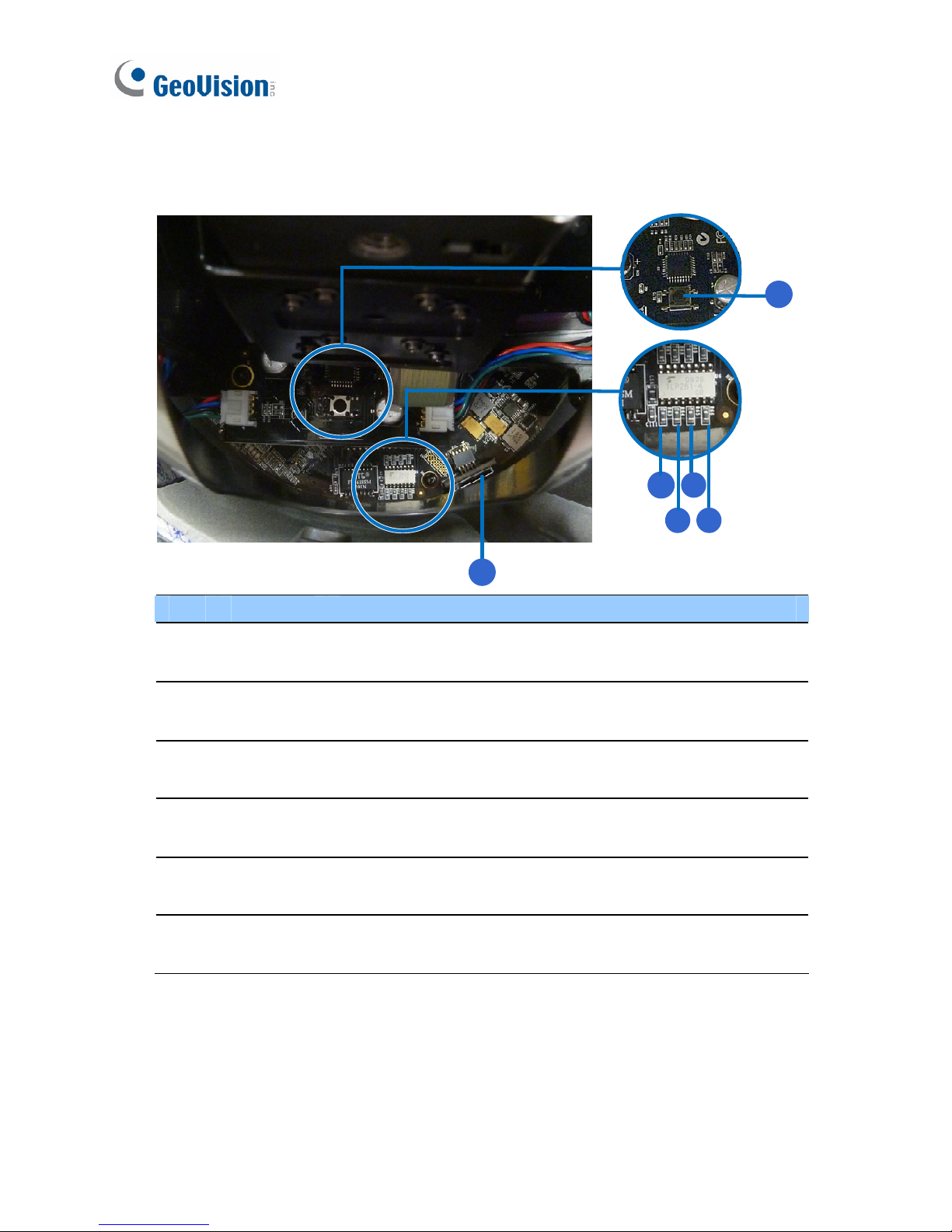

2.2 Overview

No. Name Description

1. e factory default values.

to Default Settings.

ault Restores all the settings to th

Def For details, see 2.13 Restoring

2. Status The status LED turns green when the power is on and

fades when the camera is ready for use.

3. Power The power LED turns green when the power is on.

4. ACT The ACT LED flashes orange light upon data

transmission.

5. Link The Link LED turns green with Internet connectivity.

6. Memory

Card Slot Insert a micro SD/SDHC card to store recording data.

GV-SD220 / SD220-S

2.3 Installation

There are multiple ways to install the GV-IP Speed Dome. Only the

standard installation methods are introduced in the Quick Start Guide. For

GV-SD220/220-S IP

Speed Dome, Chapter 5, GV-Mount Installation Guide on the Software CD.

2.3.1 Indoor GV-I eiling Mount

details on optional installations, see Installing the

P Speed Dome: Hard-C

Required Items

•Indoor packing (supplied)

•ceiling screws x 3 (user-prepared)

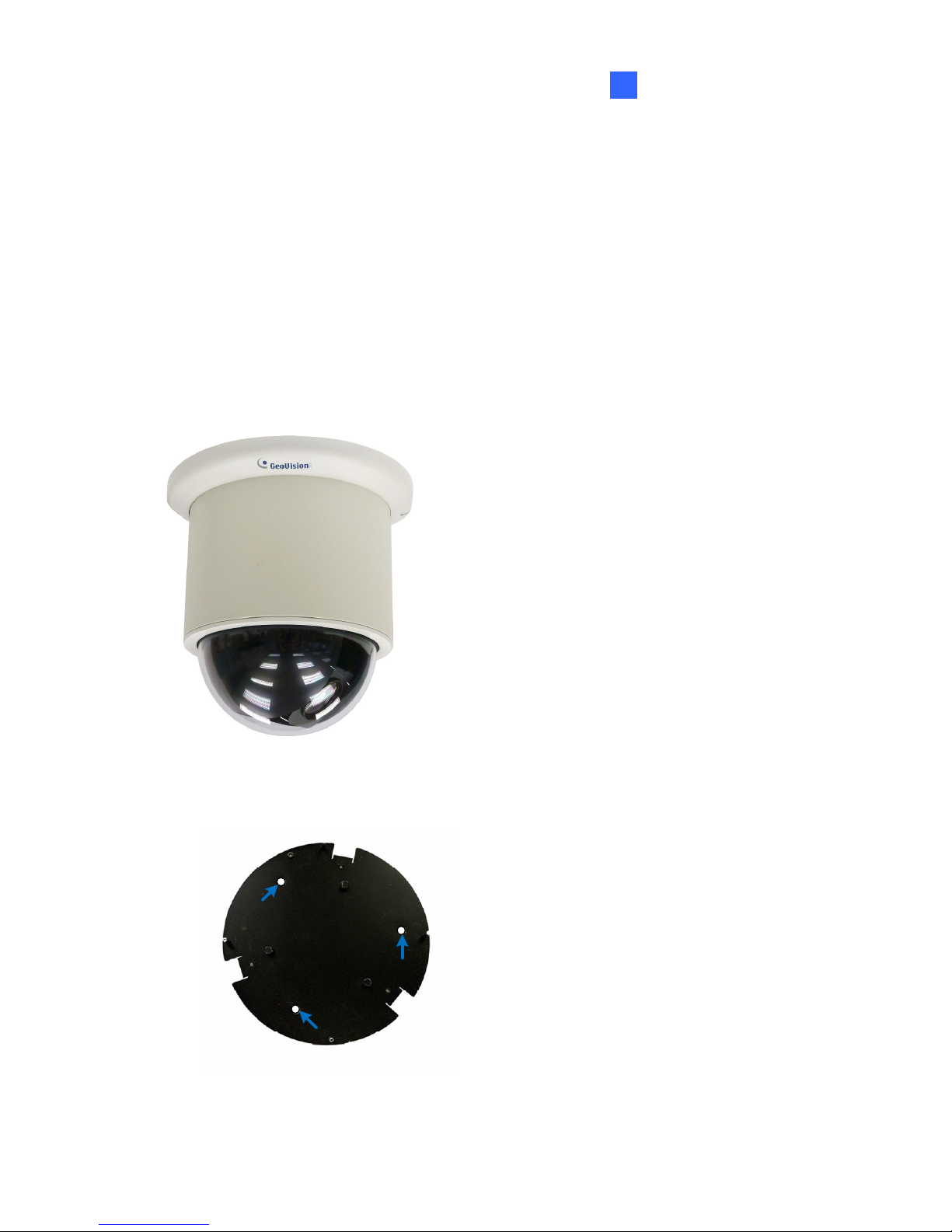

1. Secure the mounting plate to the ceiling with self-prepared screws.
