Quick Start Guide
GV-Panoramic PTZ Camera
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use. PPTZV10-QG-A
Available from A1 Security Cameras
© 2016 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
Note: No memory card slot or local storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
February 2016
Available from A1 Security Cameras
Contents
Note for Connecting to GV-VMS ...........................................................ii
Note for Recording................................................................................iii
Note for Installing Camera....................................................................iv
Optional Accessories.............................................................................v
1. Introduction......................................................................................1
1.1 Packing List..............................................................................................................2
1.2 Overview...................................................................................................................3
2. Installation........................................................................................4
3. Connecting the Camera ................................................................10
4. Accessing the GV-Fisheye Camera .............................................12
4.1 Web Browser..........................................................................................................12
4.2 Looking Up the Dynamic IP Address......................................................................13
4.3 Configuring the IP Address.....................................................................................15
5. The Integrated Web Interface .......................................................17
5.1 Fisheye View..........................................................................................................19
5.1 Speed Dome View..................................................................................................21
6. Upgrading System Firmware........................................................23
7. Restoring to Factory Default ........................................................24
Available from A1 Security Cameras
i
Note for Connecting to GV-VMS
The GV-Panoramic PTZ IP Camera is designed to work with GV-VMS, a video management
system. Note the following when the camera is connected to GV-VMS:
1. By default, the images are recorded to the memory card inserted in the GV- Panoramic
PTZ IP Camera.
2. Once the camera is connected to the GV-VMS, the resolution set on the GV-VMS will
override the resolution set on the camera’s Web interface. You can only change the
resolution settings through the Web interface when the connection to the GV-VMS is
interrupted.
Available from A1 Security Cameras
ii
Note for Recording
1. By default, the images are recorded to the memory cards inserted in the GV-PPTZ
Camera. Make sure the Write recording data into local storage option (see 4.1.1 Video
Settings, Chapter 4, GV-Panoramic PTZ Camera User’s Manual) is enabled. If this option
is disabled, the camera will stop recording to the memory card while the live view is
accessed through Web browsers or other applications.
2. Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the data are accessed
while the camera is under physical shock, power interruption, memory card
detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
The stored data can be lost if the memory card is not accessed for a long period of
time. Back up your data periodically if you seldom access the memory card.
Memory cards are expendable and their durability varies according to the conditions
of the installed site and how they are used. Back up your data regularly and replace
the memory card annually.
To avoid power outage, it is highly suggested to apply a battery backup (UPS).
For better performance, it is highly suggested to use Micro SD card of MLC NAND
flash, Class 10.
Replace the memory card when its read/write speed is lower than 6 MB/s or when the
memory card is frequently undetected by the camera.
3. It is recommended to use memory cards of the following setting and specifications:
Apply a battery backup (UPS) to avoid power outage.
Use Micro SD card of MLC NAND flash, Class 10 for better performance.
Available from A1 Security Cameras
iii

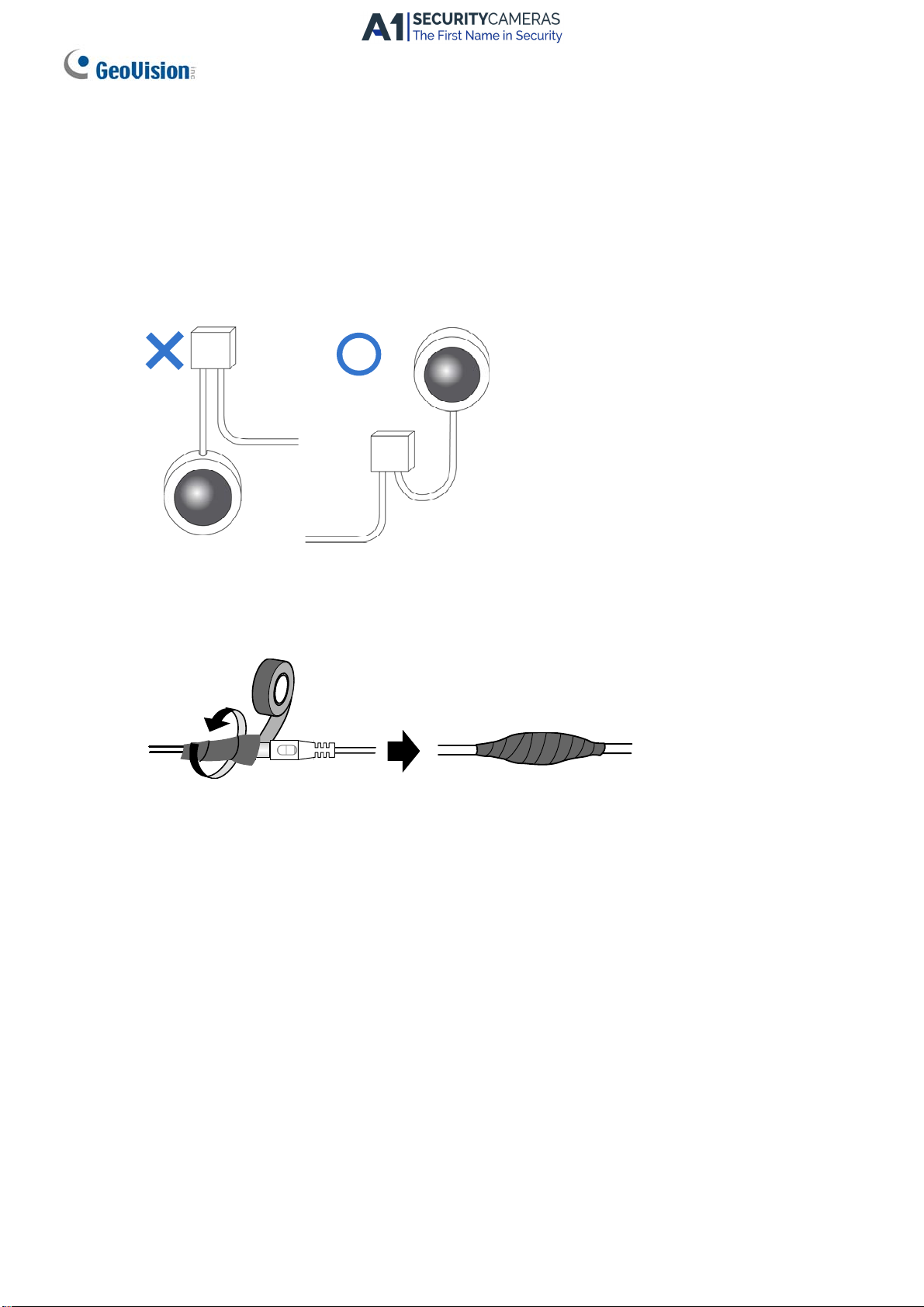

Note for Installing Camera
When installing GV-Panoramic PTZ IP Camera, be sure that:
1. The camera is set up above the junction box to prevent water from entering the camera
along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber
or the like.
3. The screws are tightened and the cover is in place after opening the camera cover.
4. The silica gel bag loses it effectiveness when the dry camera is opened. To prevent the
lens from fogging up, use the supplied adhesive tap and replace the silica gel bag every
time you open the camera, and conceal the gel bag in camera within 2 minutes of
exposing to open air.
Available from A1 Security Cameras
iv
Optional Accessories
Optional devices can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Name Details
GV-PA901
Power over Ethernet (PoE)
Adapter
The GV-PA901 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a single
Ethernet cable to GV-PPTZ7300.
GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup
of accessories for installation on ceiling, wall and pole. For
details, see GV-Mount Accessories Installation Guide on the
software DVD.
GV-POE Switch The GV-POE Switch is designed to provide power along with
network connection for IP devices. The GV-POE Switch is
available in various models with different numbers and types
of ports.
Power Adapter Contact your sales representative for the countries and areas
supported.
v
Available from A1 Security Cameras
1 Introduction
1. Introduction
Welcome to the GV-Panoramic PTZ Camera Quick Start Guide. In the following sections, you
will learn the basic installations and configurations of GV-Panoramic PTZ Camera. For a
detailed user manual, see the GV-Panoramic PTZ Camera User’s Manual on the Software
DVD.
Available from A1 Security Cameras
1

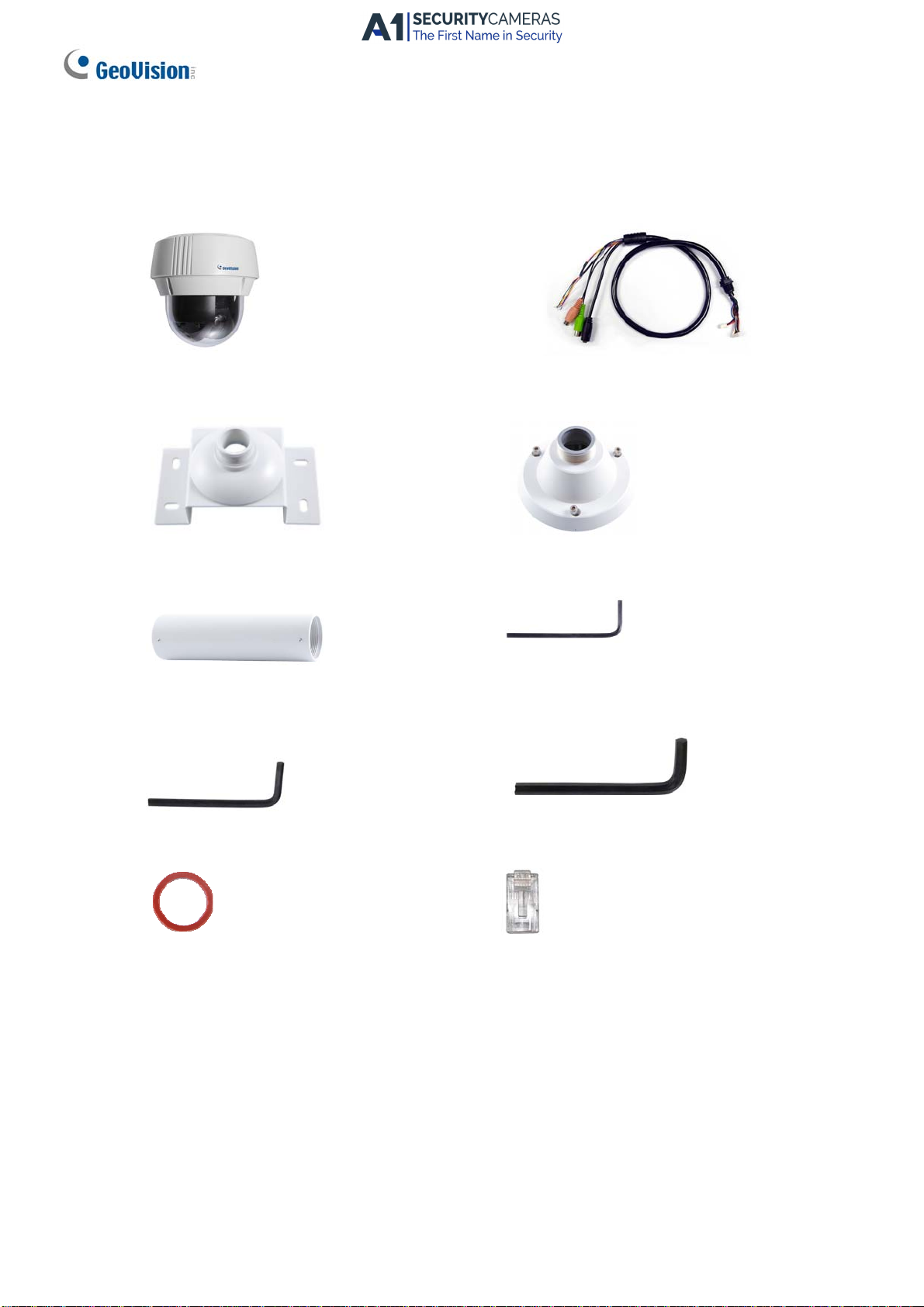

1.1 Packing List
Panoramic PTZ Camera Data Cable
Mounting Bracket Mounting Cap
Tube 2 mm Hex Key
3 mm Hex Key 5 mm Hex Key
Rubber ring RJ-45 Connector
Desiccant Pack x 2
GV-IPCAM H.264 Software DVD
GV-NVR Software DVD
Warranty Card
Available from A1 Security Cameras
2
1 Introduction

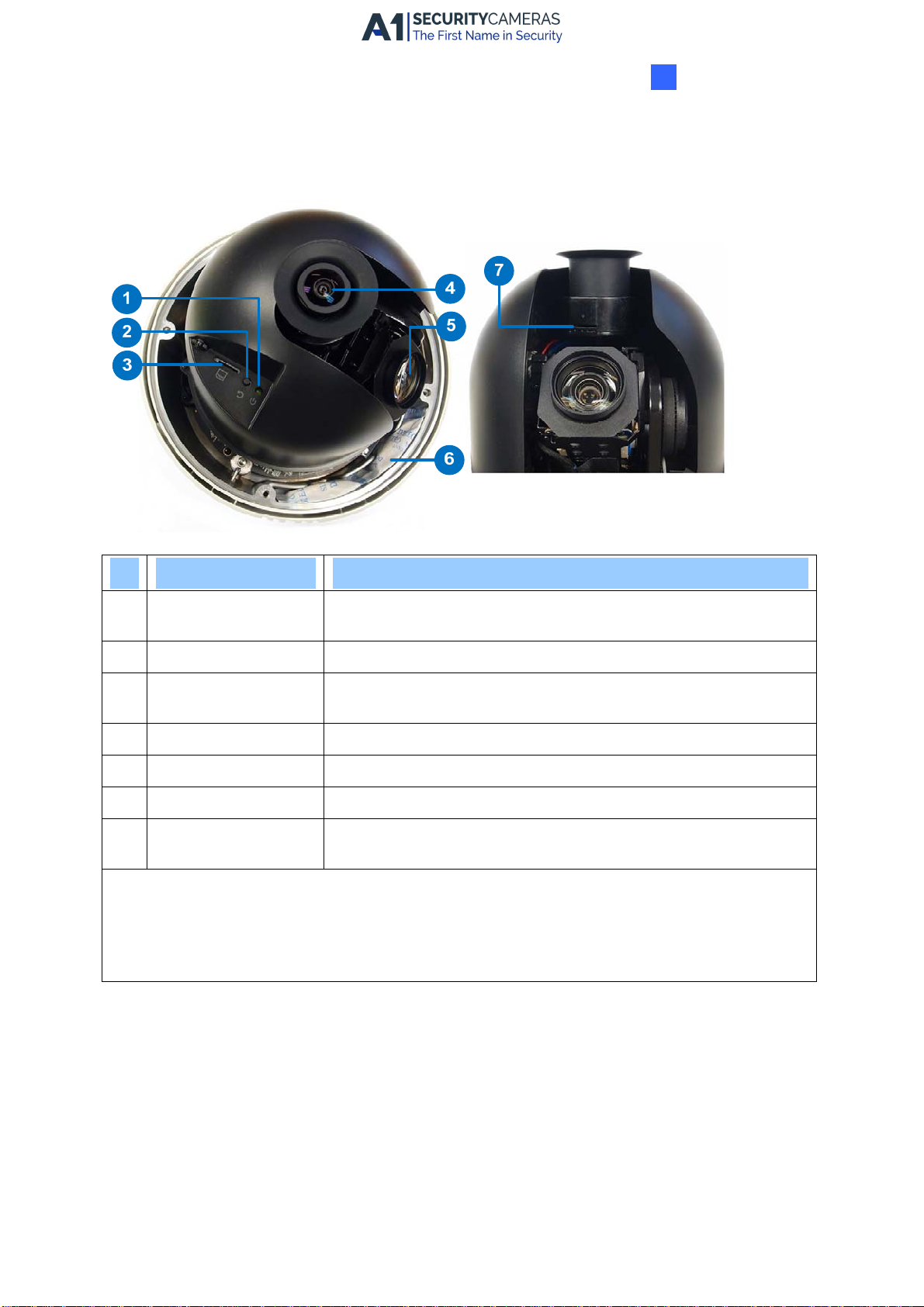

1.2 Overview
No. Name Function
1 Status LED Flashes when the camera is powering on and loading default
settings.
2 Default Button Resets all configurations to default factory settings.
3 Speed Dome SD
Card Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to
store recording data from the speed dome.
4 Fisheye Lens Receives image inputs.
5 Speed Dome Lens Receives image inputs.
6 Desiccant Pack Keeps the camera housing dry.
7 Fisheye SD Card
Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to
store recording data from the fisheye camera.
Note: The desiccant pack loses effectiveness after you open the camera cover. To prevent
the lens from fogging up, it is highly recommended to replace the desiccant pack every time
you open the camera. Ensure to insert a new desiccant pack and fasten the camera cover
within 2 minutes of opening the desiccant pack.
3
