GeoMax Zoom70 Manuel utilisateur

GeoMax Zoom70/90

Quick Guide

Version 2.0

Quick Guide 5

Quick Guide 23

Guía Rápida 41

Guide abrégé 59

Guida rapida 77

Guia Rápido 95

Краткое руководство 113

pt-br

GeoMax Zoom70/90

Quick Guide

Version 2.0

English

1 Important Information about your

Instrument

Read and follow the User Manual on the accompanying data storage device

before using the product.

Keep for future reference!

•Measuring horizontal and vertical angles.

•Measuring distances.

•Recording measurements.

•Automatic target search, recognition and following.

•Visualising the aiming direction and vertical axis.

•Remote control of product.

•Data communication with external appliances.

•Computing with software.

☞

Intended Use

Important Information about your Instrument 6

The Zoom70/90 instrument contains the following laser products:

Laser product Laser class

EDM (Electronic Distance Measurement) module

•measurements with reflectors Class 1

•measurements without reflectors Class 3R

Red laser pointer Class 3R

AiM (Automatic Prism Aiming) Class 1

Scout (Prism Search)*

only available at Zoom90 Class 1

NavLight (Navigation Light) Exempt Group

Laser plummet Class 2

*optional laser product

Laser products

Important Information about your Instrument 7

•The classification for the EDM, red laser pointer, AiM, Scout and laser

plummet is in accordance with IEC 60825-1 (2014-05).

•The classification for the NavLight is in accordance with IEC 62471-1

(2006-07).

CAUTION

Class 3R laser products

From a safety perspective, class 3R laser products should be treated as

potentially hazardous.

Precautions:

▶Prevent direct eye exposure to the beam.

▶Do not direct the beam at other people.

Important Information about your Instrument 8

CAUTION

Class 2 laser product

From a safety perspective, class 2 laser products are not inherently safe for

the eyes.

Precautions:

▶Avoid staring into the beam or viewing it through optical instruments.

▶Avoid pointing the beam at other people or at animals.

Important Information about your Instrument 9

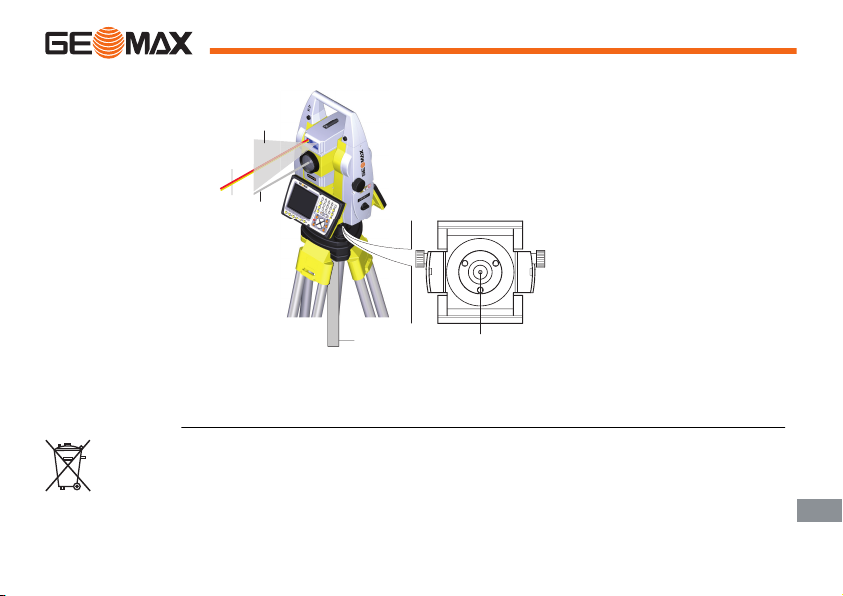

011169_001

a LED beam red

(NavLight)

b LED beam yellow

(NavLight)

c Laser beam

(Scout), only avail-

able at Zoom90

d Laser beam (EDM,

AiM)

e Laser beam (Laser

plummet)

f Exit for laser beam

(Laser plummet)

The product must not be disposed with household waste.

Locations of

laser apertures

Important Information about your Instrument 10
