Genesis FiberTwist Manuel utilisateur
Wi-Fi EasyMeshTM supported
FiberTwist
P6426/G6426
Installation Guide
Box contents
• Genexis FiberTwist (active device)
• Power adapter
• Labels (self-adhesive)
Label position
The product label is positioned on the boom
of the active device. The relevant device
information is also listed on the additional
labels included in the giftbox.
Preparation
Ensure there is a power socket
within reach of where the device
is being installed.
Genexis EasyWiFi app
Installation and management of the Genexis
FiberTwist device can be done with help of the
mobile application Genexis EasyWiFi. Please
follow the steps on the left page.
Important: Instructions need to be followed
precisely and uninterrupted. This minimizes
the risk of damage to the ber optic
connectors, causing a severe degradation of
signal quality.
Warning: Do not cover the device, this
will interfere with the ventilation. Ambient
Operating Temperature: 0°C ~ 40°C
Installation guide
Download app and
follow the steps
Scan QR-code
1
2
You're just a few steps away to install your
device via the Genexis EasyWiFi app
Installation with use of app

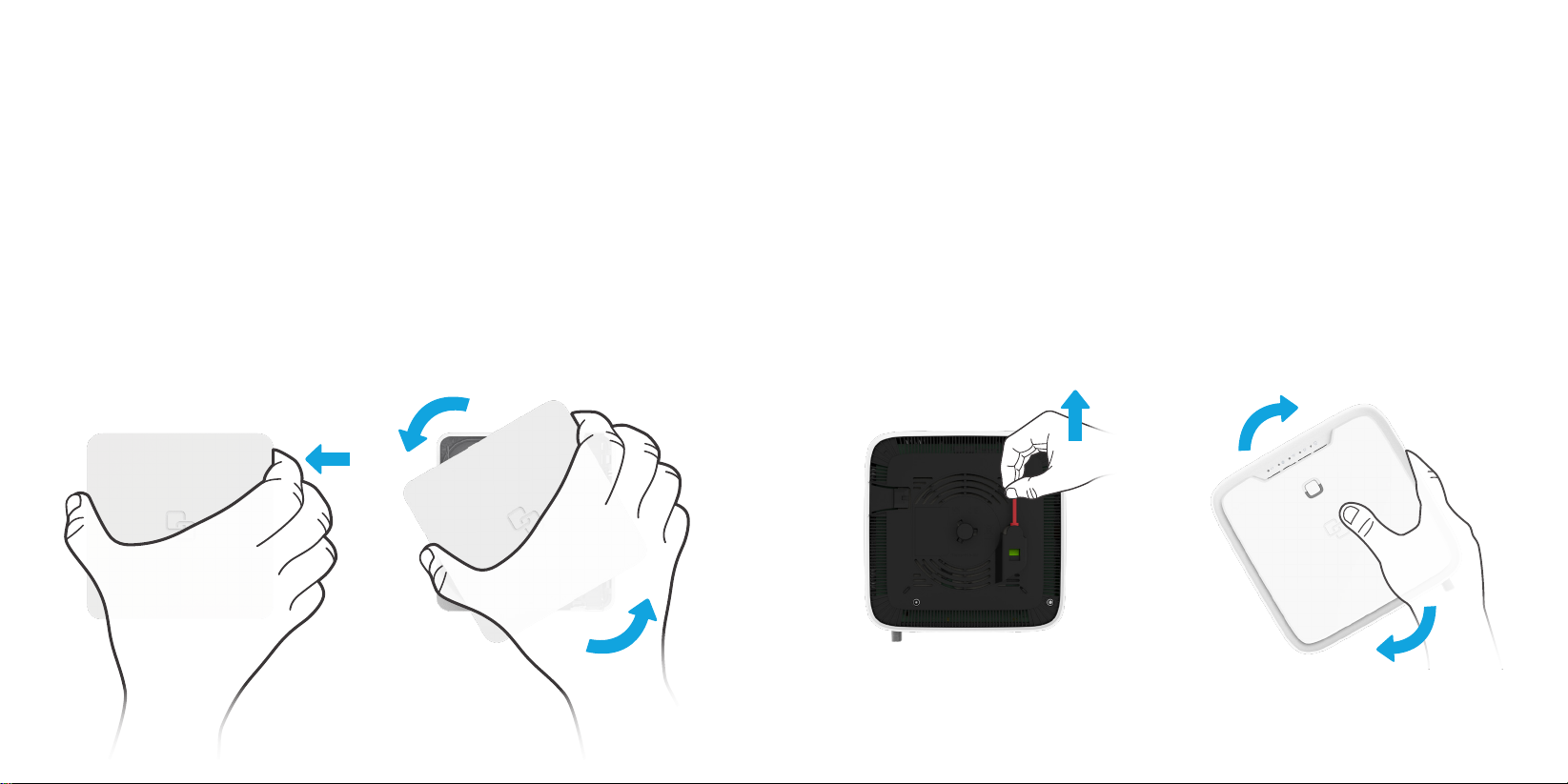

Remove dust cap
1. Take the FiberTwist out of the box.
2. The dust cap is connected to the red string
located on the rear of the FiberTwist.
3. Remove the dust cap by pulling the red string.
4. Store the dust cap in a safe place.
Twist!
1. Place the FiberTwist on the FTU/Bracket as
shown in the picture below.
2. Rotate clockwise until it clicks into place.
3. Make sure the FiberTwist is aligned squarely
on the FTU/Bracket.
Your FiberTwist is now installed!
Remove Blind Cover or active device (if present)
1. Press and hold the unlock buon (on the right side of the Blind Cover or active device).
2. Rotate the Blind Cover or active device counterclockwise till it blocks.
3. Remove the Blind Cover or active device from the baseplate (FTU) by pulling
it towards yourself.
4. Store the Blind Cover or active device in a safe place.
Using the web interface
You can access the FiberTwist web interface via
a wired connection or wireless connection.
• Wired connection: Connect an RJ45 network
cable between your personal device and the
FiberTwist LAN port (yellow connector).
• Wireless connection: Connect your personal
device to the wireless network as described in
this installation guide.
1. Use a web browser on your personal device
and navigate to the GUI URL as printed on
the labels of the FiberTwist.
2. Login using the credentials as printed on the
labels of the FiberTwist.
Power saving options
Power saving options are available via the
web interface.
Warning: This product contains a laser that
emits invisible light. It is a Class 1 Consumer
Laser product according to EN 50689:2021,
which means it is safe under all conditions of
normal use. However, it is still advised to not
look directly into the ber connector when the
product is powered on.
Seing up the FiberTwist
1. If required, connect your telephone to a
telephone port via an RJ11 phone cable.
2. If required, connect your personal devices
to the LAN ports via an RJ45 network cable.
3. If required, connect your television / set-top
box to the TV port with a coax cable.
4. Connect the supplied power adapter to
the FiberTwist and plug the adapter into a
power socket.
5. Toggle the ON/OFF buon on the boom of
the FiberTwist in the ON position to turn on
the device.
6. If the device is connected properly and
the service is active on the ber port, the
Status, Uplink and Internet LEDs will have a
solid green color.
Switching the WiFi ON/OFF
The WiFi function of the FiberTwist can
be switched ON or OFF by means of the
Mode buon.
• Switch OFF: On the FiberTwist, press and hold
the Mode buon until the WiFi LED turns o.
• Switch ON: On the FiberTwist, press and hold
the Mode buon until the WiFi LED turns on.
Connecting to the wireless network
You can connect your personal device to the
FiberTwist via manual pairing. If Automated
pairing (WPS) is prefered, please check for
your specic device how this can be initiated.
Before pairing , make sure
the WiFi LED is on (solid green). If not,
switch the WiFi ON as described in this
installation guide.
Manual pairing
The WiFi network name and WiFi key
are printed on the labels of the
FiberTwist.
1. Perform a search of available wireless
networks on your personal device or scan
the QR-code on the label of the FiberTwist.
2. Select the WiFi network name printed on
the labels of the FiberTwist.
3. Enter the WiFi key printed on the labels of
the FiberTwist.
Uplink
Green – optical WAN link is established
Green (blinking) – optical WAN link is in progress
Red (blinking) – insuicient optical input signal
O – no optical WAN link detected
Internet (IP connectivity)
Green – connected (DNS available)
Green (blinking) – connection failed (no DNS available)
O – no IP connectivity
Wireless (WiFi)
Green – wireless network 2.4 GHz and/or 5 GHz active
O – wireless networks inactive
Phone
Green – telephony service registered and operational
Green (blinking) – telephony service in progress to register
O – telephony service is disabled
TV
Green – TV service registered and ok
Red (blinking) – insuicient optical input signal
O – no TV service present or registered
Status
Green – system is operational ready
Yellow – system boot initialization
Yellow (blinking) – system is not ready yet
Blue – WPS pairing successful
Blue (blinking) – WPS pairing in progress
Red – system / booting failure
O – power o
LED overview
Unlock buon
Remove FiberTwist – press and hold while
twisting counterclockwise
Button overview
Mode buon
Pairing (WPS) – press and release once
WiFi ON – press and hold until WiFi LED turns solid green
WiFi OFF – press and hold until WiFi LED turns o
Reset
buon
LAN ports
Telephone
ports
ON/OFF
switch
Power
port
Port overview
TV port
USB 2.0
port
ON/OFF switch
Switch ON – ip the switch to ON
Switch OFF – ip the switch to OFF
Reset buon (recessed)
Reboot – short press once
Factory reset – long press and hold until
all LED’s start fast blinking green
LED dim buon
Dim LEDs – press and release repeatedly
to dim LEDs
Unlock buon
Company Name
Genexis Netherlands B.V.
Company Address
Lodewijkstraat 1a
5652 AC Eindhoven
The Netherlands
Name and title of authorized person
Maarten Egmond, CTO
Signature of authorized person
Place of issue Date of issue
Eindhoven 2021-11-24
The Netherlands
Hereby, Genexis Netherlands B.V. declares that the radio equipment type FiberTwist is in compliance
with Directive 2014/53/EU, Directive 2009/125/EC, Directive 2011/65/EU and Delegated Directive
2015/863.
The full text of the EU declaration of conformity is available at the following internet addresses:
hps://genexis.eu/product/bertwist/red/bertwist-p6426,
hps://genexis.eu/product/bertwist/red/bertwist-g6426
Frequency bands and maximum radio frequency power transmied
The FiberTwist P6426/G6426 operates in the frequency bands of 2.4 GHz and 5GHz.
The maximum radio frequency power transmied in these bands is:
• 20 dBm(100 mW) (EIRP)for the 2400 MHz – 2483.5 MHz band
• 23 dBm (200 mW) (EIRP)for the 5150 MHz – 5350 MHz band *
• 30 dBm (1000 mW) (EIRP) for the 5470 MHz – 5725 MHz band
* In EU, 5150 – 5350 MHz is restricted to indoor.
EU Declaration of ConformityTroubleshooting
Is the Status LED solid red?
Contact your service provider.
Is the Status LED not solid blue after
automated pairing (WPS)?
Automated pairing between the FiberTwist
and personal device failed. Please follow the
instructions again to connect your personal
devices to the FiberTwist via the wireless
network.
Is the Status LED blinking yellow and the
Uplink LED is blinking green?
The FiberTwist is being upgraded with new
software. Please wait until the Status LED
turns solid green again.
Is the Uplink LED o?
If the Uplink indicator LED is o, despite proper
connection, contact your service provider.
Is the Uplink LED blinking red?
Contact your service provider.
Is the Internet LED blinking green for
5 minutes?
FiberTwist does not have a connection with
the broadband network. Please contact your
service provider.
Is the WiFi LED o?
On the FiberTwist, press and hold the Mode
buon until the WiFi LED starts blinking green
or turns solid green.
Return the FiberTwist to factory default
seings
With the reset buon you can reset the
FiberTwist to its factory default seings.
You can press this buon with a small pin or
paperclip.
1. Press and hold the reset buon until all LED’s
start fast blinking green.
2. Wait until the Status LED turns solid
green again.
Revision 2.0 - November 2023 - Copyright ©2023 Genexis Netherlands B.V. All rights reserved.
Multiple languages of this document and additional product information are availableon hps://genexis.eu/product/bertwist/downloads
Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or
otherwise revise this publication without notice.
