Generac Power Systems 1293-2 Manuel utilisateur
2700PSI
This symbol points out important safety instructions, which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in
the manual before attempting to operate this unit.
Model No. 12932 (2700 psi High Pressure Washer) Manual No. B4724 evision 0 (4/14/1999)
Pressure Washer Owner’s Manual
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
-800-270- 408
M-F 8-5 CT
GENERAC
The Reliable Ones
2
Generac Portable Products 2700PSI High Pressure Washer
CAUTION! Always disconnect spark plug wire and place wire where it cannot contact spark plug to prevent
accidental starting when setting up, transporting, adjusting or making repairs to your high pressure washer.
Engine exhaust gases contain DEADLY carbon
monoxide gas. This dangerous gas, if breathed in
sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
Gasoline is highly FLAMMABLE and its vapors are
EXPLOSIVE. Do not permit smoking, open flames,
sparks or heat in the vicinity while handling
gasoline. Avoid spilling gasoline on a hot engine.
Allow unit to cool for 2 minutes before refueling.
Comply with all laws regulating storage and
handling of gasoline.
Use this pressure washer in areas away from
combustible materials, combustible fumes or dust.
The high pressure equipment is designed to be
used with Generac authorized parts only. If you use
this equipment with parts that do not comply with
minimum specifications, the user assumes all risks
and liabilities.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning.
Do not allow CHILD EN to operate the pressure
washer at any time.
Operate engine only at governed speed. unning
the engine at excessive speeds increases the
hazard of personal injury. Do not tamper with parts
which may increase or decrease the governed
speed.
Do not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
Before starting the pressure washer in cold
weather, check all parts of the equipment and be
sure ice has not formed there.
Units with broken or missing parts, or without
protective housing or covers should NEVE be
operated.
The muffler and air cleaner must be installed and in
good condition before operating the pressure
washer. These components act as spark arrestors if
the engine backfires.
Check the fuel system for leaks or signs of
deterioration such as chafed or spongy hose, loose
or missing clamps or damaged tank or cap. Correct
all defects before operating the pressure washer.
Do not spray flammable liquids.
Never aim the gun at people, animals or plants.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury.
High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
WWAARRNNIINNGG::
IMPORTANT! SAFETY RULES IMPORTANT!
3
Generac Portable Products 2700PSI High Pressure Washer
Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
Never move the machine by pulling on the high
pressure hose. Use the handle provided on the top
of the unit.
Always be certain the spray gun, nozzles and
accessories are correctly attached.
Never use a spray gun which does not have a
trigger lock or trigger guard in place and in working
order.
Use a respirator or mask whenever there is a
chance that vapors may be inhaled. ead all
instructions with the mask so you are certain it will
provide the necessary protection against inhaling
harmful vapors.
High pressure spray may damage fragile items
including glass. Do not point spray gun at glass
when in the high pressure spray mode.
Keep the hose connected to machine and the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
Hold the spray gun firmly in your hands before you
start the unit. Failure to do so could result in an
injury from a whipping spray gun. Do not leave the
spray gun unattended while the machine is running.
The cleaning area should have adequate slopes
and drainage to reduce the possibility of a fall due
to slippery surfaces.
Keep water spray away from electric wiring or fatal
electric shock may result.
Do not secure trigger gun in the pull-back (open)
position.
Do not by-pass any safety device on this machine.
The muffler and engine heat up during operation
and remain hot immediately after shutting it down.
Avoid contact with a hot muffler or engine or you
could be severely burned.
Operate and store this unit on a stable surface.
Never allow any part of the body to come in contact
with the fluid stream. DO NOT come in contact with
a fluid stream created by a leak in the high pressure
hose.
High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately. Never repair high
pressure hose. eplace it with another hose that
meets minimum pressure rating of your pressure
washer.
IMPORTANT! SAFETY RULES IMPORTANT!
4
Generac Portable Products 2700PSI High Pressure Washer
CONGRATULATIONS on your purchase of a
GENE AC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
Should you experience any problem you cannot
easily remedy, please contact your nearest
GENE AC Authorized Service facility, or call the 1-
800 number listed on the front of this manual. We
have competent, well-trained technicians and the
proper tools to service or repair this unit.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly.
CUSTOMER
RESPONSIBILITIES
ead and observe the safety rules.
Follow regular schedule in maintaining, caring for
and using your high pressure washer.
Follow the instructions under Customer
esponsibilities and Storage sections of this
Owner's Manual.
PRODUCT
SPECIFICATIONS
Pressure Washer Specifications
Outlet Pressure . . . . 2700 psi
Flow Rate . . . . . . . . . 2.7 gallons per minute (gpm)
Detergent Mix . . . . . . Use undiluted detergent
approved for pressure
washers
Water Supply . . . . . . Not to exceed 140°F
Temperature
Automatic Cool . . . . Will cycle when water
Down System reaches 140°-145°F
Engine Specifications
Engine Model . . . . . . Generac Power Systems
Rated Horsepower . . 7.8
Displacement . . . . . . 220cc
Spark Plug
Type . . . . . . . . C-12YC
Set Gap To: . . 0.030 inch (0.76mm)
Gasoline Capacity . . 4.2 U.S. quarts
Oil . . . . . . . . . . . . . . . SAE 30
In the State of California a spark arrestor is required
by law (Section 4442 of the California Public
esources Code). Other states may have similar
laws. Federal laws apply on federal lands.
NOTE: The spark arrestor must be maintained in
effective working order by the owner/operator.
You can order a replacement spark arrestor through
your authorized Generac service facility. See Engine
Owners Manual for part number.
Model Number 2932
Serial Number
Date of Purchase
The model and serial numbers will be found on a
decal attached to the pressure washer. ecord both
serial number and date of purchase and keep in a
safe place for future reference.
KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
5
Generac Portable Products 2700PSI High Pressure Washer

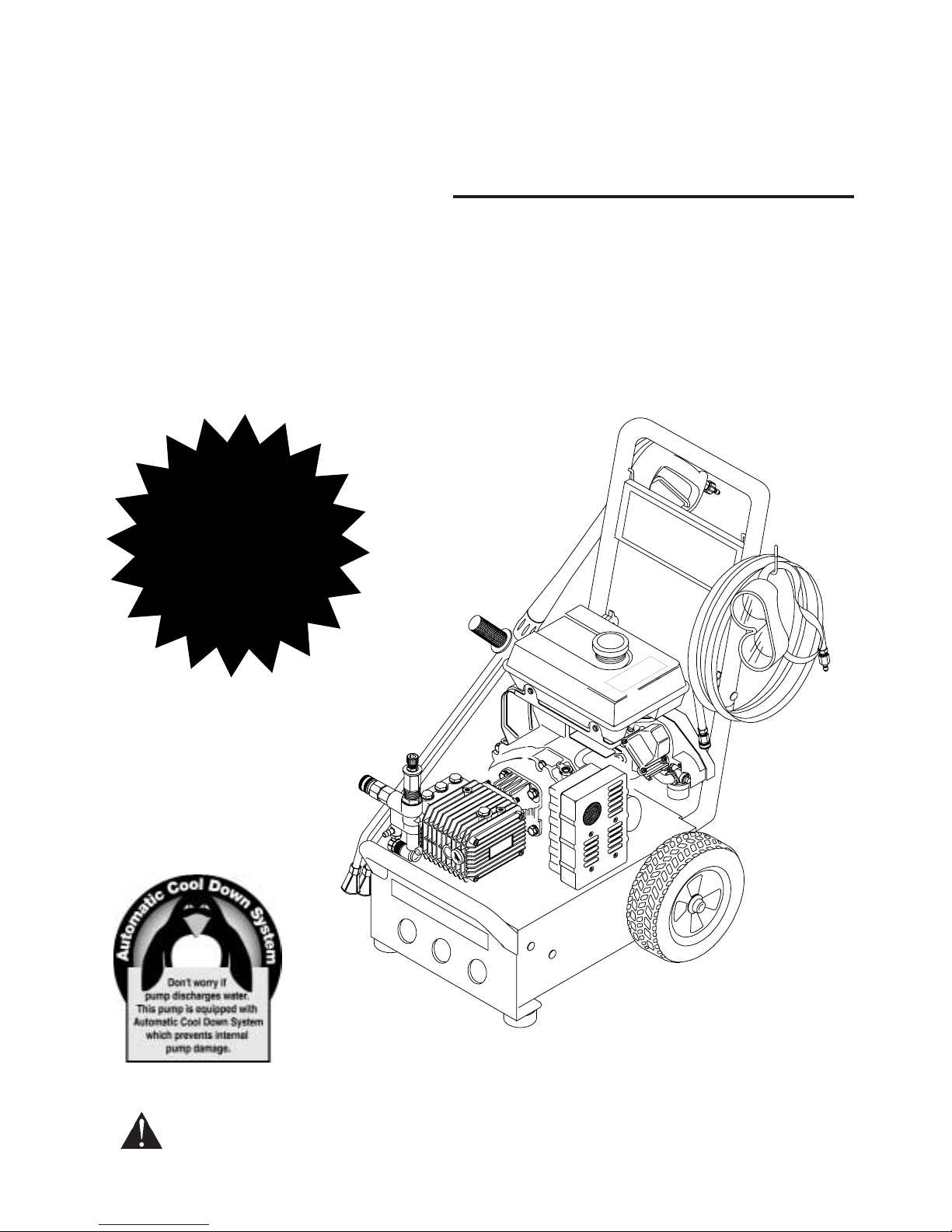

Automatic Cool Down System Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump under base of unit. This
system prevents internal pump damage.
Chemical Valve Handle The handle allows you to
select the high pressure spray or the chemical spray
(located on the wand).
Dual Element Air Cleaner Uses a dry type filter
element and foam pre-cleaner to limit the amount of
dirt and dust that gets in the engine.
Dual Lance Must be connected to the spray gun.
Gas Tank Fill with regular unleaded gasoline.
Goggles Always use the enclosed goggles or other
eye protection when running your pressure washer.
High Pressure Hose Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet Connection for high pressure
hose.
Primer Bulb Used for starting a cold engine.
Pump Develops high pressure.
Spark Arrestor Muffler Exhaust muffler lowers
engine noise and is equipped with a spark arrestor
screen, a USDA mandate for engine use in national
forests and parks.
Spray Gun Controls the application of water and
chemical onto cleaning surface with trigger device.
Includes safety latch.
Water Inlet Connection for garden hose.

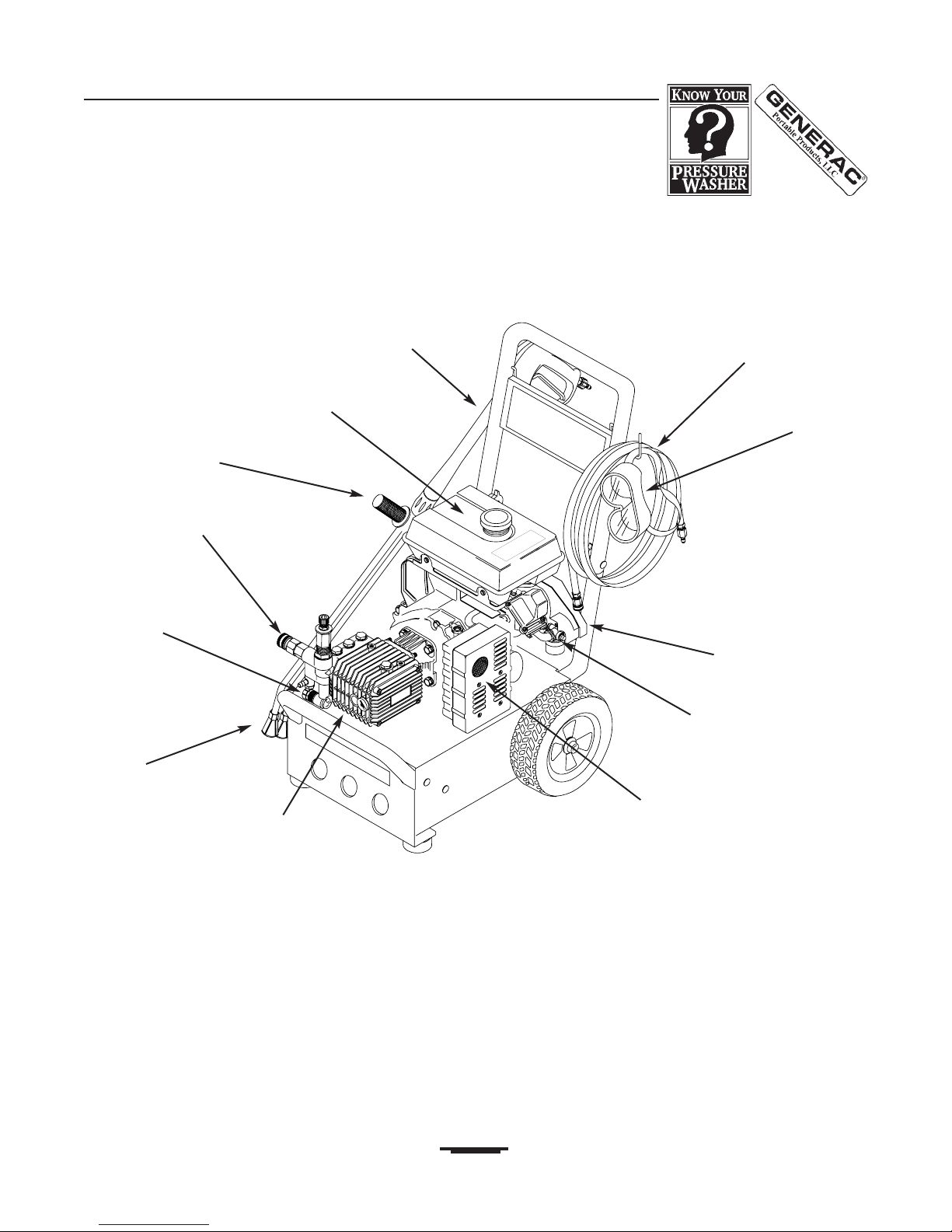

Spray Gun
Chemical Valve Handle
High Pressure Hose
Goggles
Dual Element
Air Cleaner
Gas Tank
Water Inlet
Pump equipped with
Automatic Cool Down System
High Pressure Outlet
Spark Arrestor Muffler
Primer Bulb
Dual Lance
6
Generac Portable Products 2700PSI High Pressure Washer
ead entire owners manual before you attempt to
assemble or operate your new pressure washer. Your
new pressure washer has been assembled at the
factory with the exception of those parts left
unassembled for shipping purposes.
REMOVE PRESSURE
WASHER FROM CARTON
emove parts box included with pressure washer.
Slice two corners at guide handle end of carton
from top to bottom so the panel can be folded down
flat, then remove all packing material.
oll pressure washer out of carton.
Carton Contents
Items in the carton include:
Main Unit
Manual Bag
Owners Manual
Engine Owners Manual
Nozzle Cleaning Kit
O ing Maintenance Kit
StaBil® Brochure
StaBil®
Owner egistration Card
Parts Box (which includes the following):
Video
Engine Oil
Wireform
Goggles
Spray Gun
Dual Lance
High Pressure Hose
Handle
Handle Parts Bag (which includes the following):
2 carriage bolts
2 knobs
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the Pressure Washer Helpline at -800-270- 408.
To prepare your pressure washer for operation you
will need to perform these tasks:
emove shipping cap from your pump and install oil
dipstick.
Attach the handle and attach the wire form that
holds high pressure hose and spray gun.
Connect high pressure hose to the spray gun and
the pump and connect water supply to the pump.
Add oil to engine crankcase.
Add fuel to fuel tank.

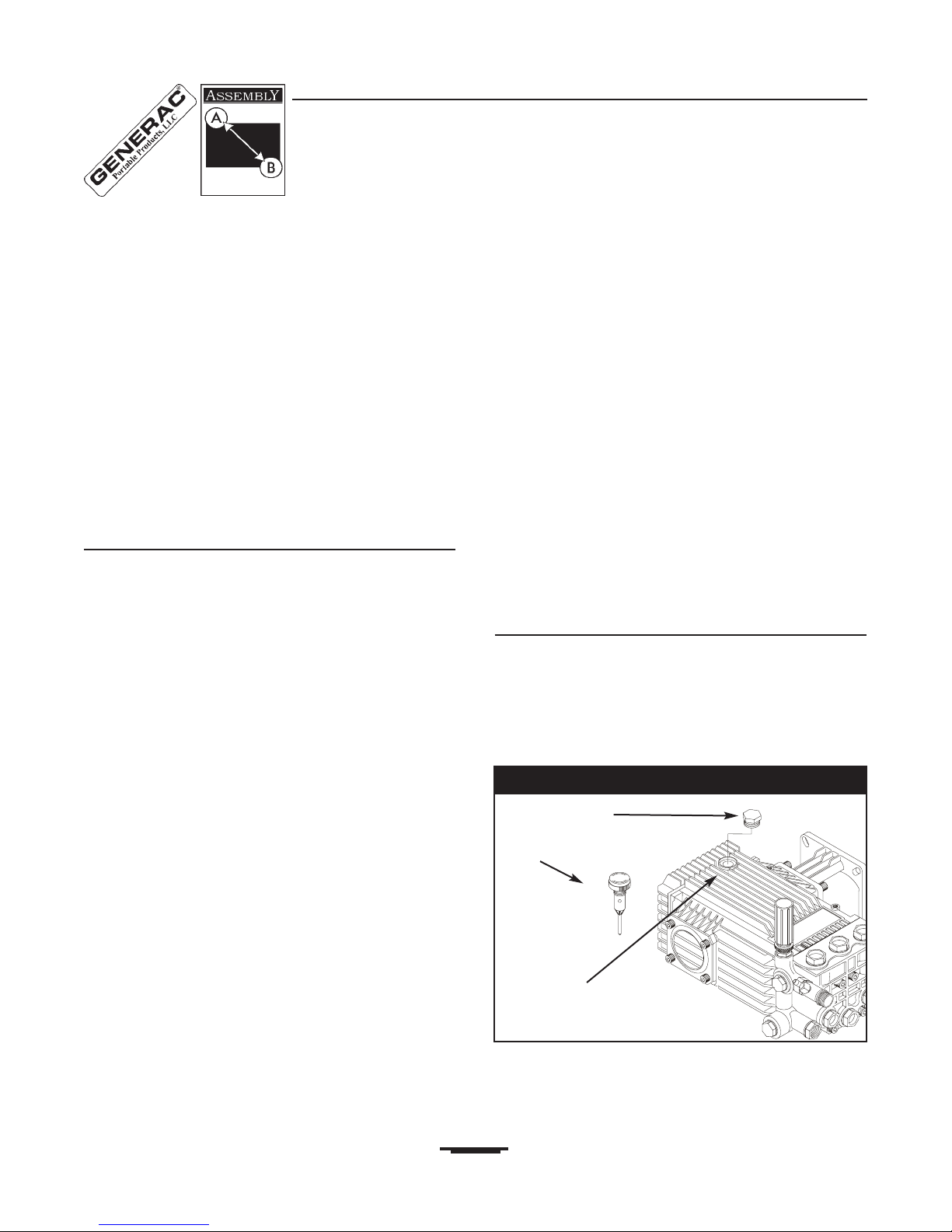

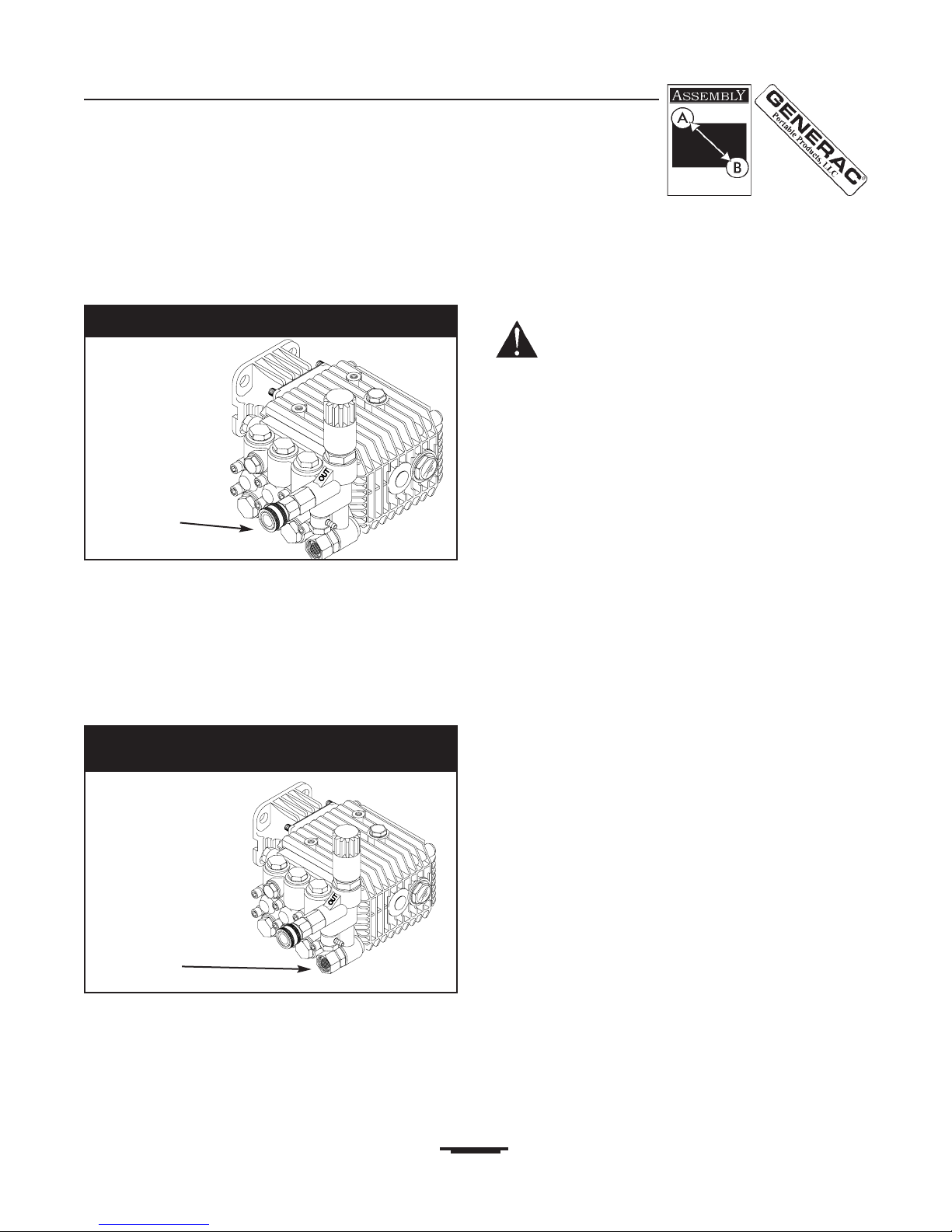

Remove Shipping Cap / Install Oil
Dipstick
To prevent oil from leaking from the pump, a shipping
cap has been installed on the oil breather of the
pump.
You must remove the shipping cap and the install oil
dipstick for your pressure washer to operate properly
(Figure 1).
unning unit with the shipping cap installed will
damage the pump and void your warranty.
Figure 1 emove shipping cap and install oil
Shipping Cap
Oil Dipstick
emove shipping cap and
install oil dipstick here.
7
Generac Portable Products 2700PSI High Pressure Washer
Attach the Handle
Place the handle onto the bottom of the handle
supports already connected to the main unit. Make
sure the holes in the handle align with the holes in
the handle supports (Figure 2).
Note: It may be necessary to move the handle
supports from side to side in order to align the handle
so it will slide over the handle supports.
Insert the carriage bolts from the outside through
the holes on the handle and attach the plastic
knobs on the inside. Tighten the knobs by hand
(Figure 3).
Insert the wire support with the longer arm
positioned on the left. From this view (from rear of
unit), the hook resembles a J (Figure 4).
Add Engine Oil
WARNING! Any attempt to crank or start the
engine before being properly serviced with the
recommended oil will result in an engine
failure.
Note: When adding oil to the engine crankcase, use
only high quality detergent oil rated with API service
classification SF,SG, SH or SH/CD rated SAE 30
weight.
Select the oils viscosity grade according to your
expected operating temperature:
Do Not Use SAE 0W40 Oil.
Although multi-viscosity oils (5W30, 10W30, etc.)
improve starting in cold weather, these multi-viscosity
oils will result in increased oil consumption when used
above 32°F. Check your engine oil level more
frequently to avoid possible damage from running low
on oil.
To fill unit with oil:
Place pressure washer on a level surface.
Clean area around oil fill and remove oil fill cap
(Figure 5).

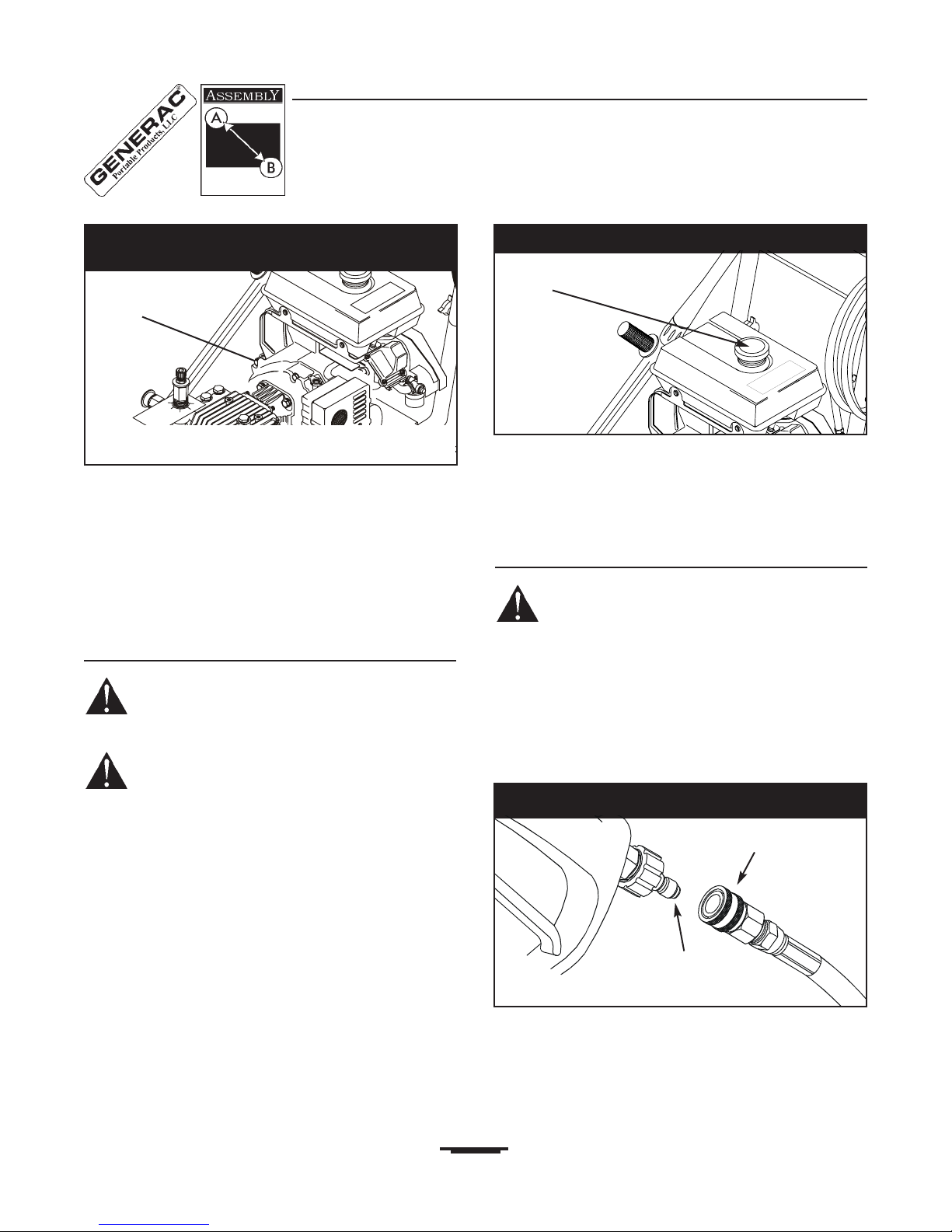

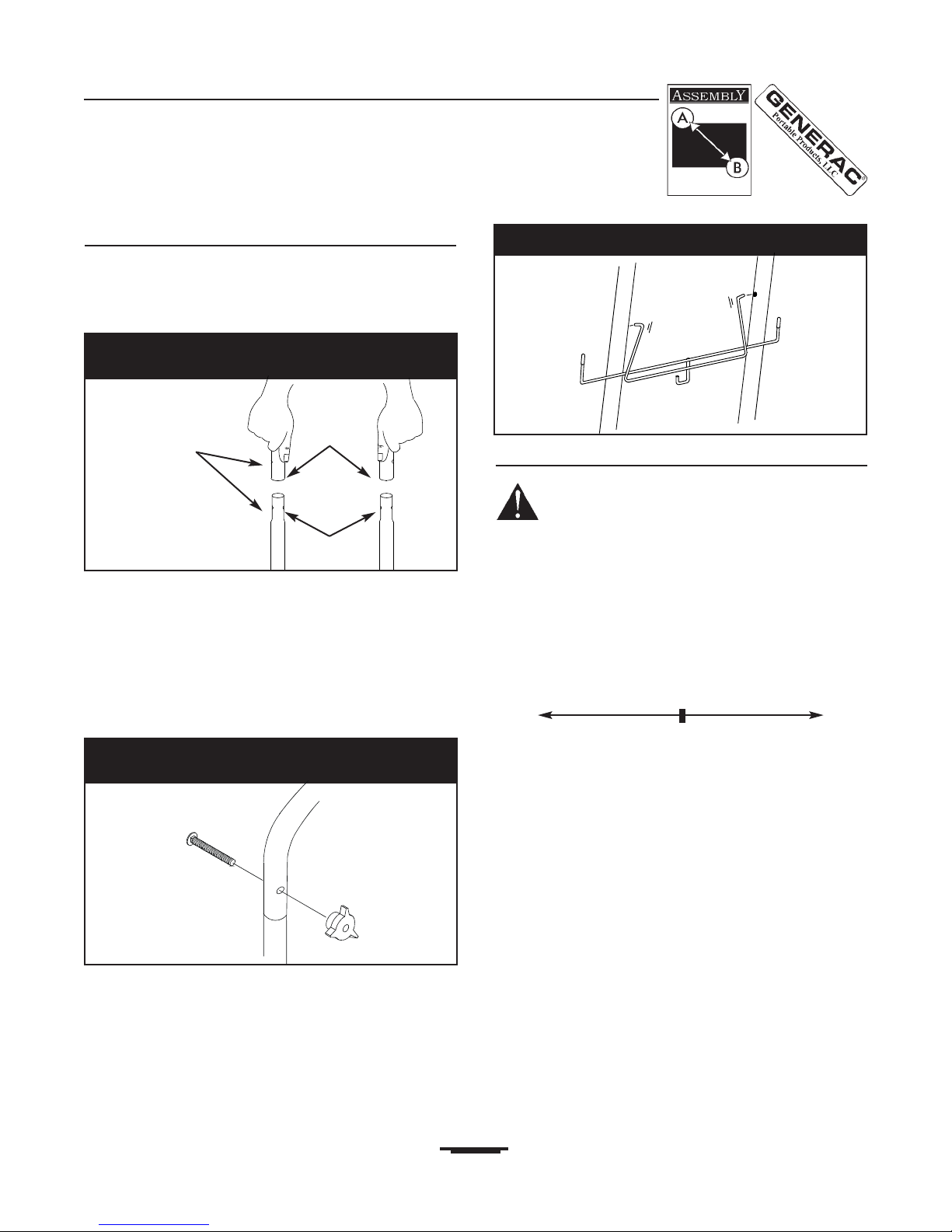

Figure 4 Fit wire form on handle.
Figure 3 Insert the carriage bolts and attach the
knobs.
colder 32°F warmer
5W30 SAE 30
Figure 2 Attach the top of the handle to the bottom of
the handle.
Make sure the
holes in the
handle
supports are
aligned with
the holes in
the handle.
Handle
Handle
Supports
8
Generac Portable Products 2700PSI High Pressure Washer
Pour oil into the oil fill opening until it reaches point
of overflowing. DO NOT OVE FILL.
Note: The bottle of oil included with your pressure
washer contains more oil than the capacity of the
crankcase.
Install oil fill cap, hand tighten securely.
Note: Check oil often during engine breakin.
Add Gasoline
DANGER! Never fill fuel tank indoors. Never
fill fuel tank when engine is running or hot. Do
not smoke when filling fuel tank.
WARNING! Never fill fuel tank completely full.
Fill tank to about 1/2" below the bottom of the
filler neck to provide space for fuel expansion.
Wipe away any fuel spillage from engine and
equipment before starting.
Use fresh, clean fuel and store in approved
containers. Use clean fill funnels. Never use stale
gasoline left over from last season or gasoline
stored for long periods.
Clean area around gas cap. emove cap
(Figure 6).
Add UNLEADED gasoline, slowly, to fuel tank.
Use a funnel to prevent spillage.
Install gas cap and wipe up any spilled gasoline.
Connect Hose and Water Supply to
Pump
WARNING! You must assemble wand and
attach all hoses before you start engine.
Starting engine without all hoses connected
and water supplied will damage pump.
Uncoil high pressure hose and attach hose quick
connect coupler to the fitting on the spray gun
(Figure 7). To engage the fitting, pull back on the
coupler collar, insert the gun fitting, and release the
collar. Pull on the gun to make sure it is securely in
place.
Figure 7 Connect high pressure hose to spray gun.
Figure 6 Add gasoline to fuel tank.
Gas Cap
Connect High Pressure
Hose Here
Figure 5 Add oil to engine crankcase. Do not attempt
to start engine without adding oil.
Oil Fill Cap
Make sure unit is on a level
surface before filling with oil!
Coupler Collar
9
Generac Portable Products 2700PSI High Pressure Washer
Similarly, attach other end of high pressure hose to
the high pressure quick connect fitting on the pump
(Figure 8). Pull on the hose to make sure it is
securely attached to the pump.
Before you connect your garden hose to the water
inlet, inspect the water inlet screen (see Figure 9).
Clean the screen if it contains debris or have it
replaced if damaged. Do not run the pressure
washer if the water inlet screen is damaged.
Connect garden hose to water inlet. Tighten firmly
by hand (Figure 9).
Turn on the water (open valve completely).
Squeeze trigger on gun to purge pump system of
air and impurities. Squeeze until a steady stream
appears.
WARNING! Before starting the pressure
washer, be sure you are wearing adequate
eye protection.
Attach dual lance to spray gun. Tighten by hand.
CHECKLIST BEFORE
STARTING ENGINE
In review, look back over the assembly to see if you
have performed all of the following.
Check for properly tightened hose connections
(high pressure and water supply). Make sure the
hoses have no kinks, cuts, or damage.
Check that oil has been added to proper level in
engine crankcase before trying to start the pressure
washer.
Add proper gasoline to fuel tank.
Provide proper water supply (not to exceed 140°F).
Be sure to read Safety ules and Operation
sections before using the pressure washer.
Figure 8 Connect high pressure hose to pump.
Connect High
Pressure Hose
Here
Figure 9 Connect the garden hose to water inlet and
turn ON the water.
Check Screen for
Damage and
Connect Garden
Hose Here
10
Generac Portable Products 2700PSI High Pressure Washer
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
-800-270- 408.
How to Start Your Engine
The best way to start your engine-powered pressure
washer for the first time is to follow these instructions
step-by-step. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
This pressure washer requires a water source that
flows at least 3.0 gallons per minute. Do not attempt
to siphon water from a non-pressurized container.
Place the pressure washer close enough to an
outside water source so that no more than 50' of
garden hose is needed.
Check that the high pressure hose is tightly
connected to the spray gun and to the pump. See
ASSEMBLY section for illustrations.
Connect the garden hose to water inlet on the
pressure washer pump and turn the water valve on
all the way.
WARNING! Do not run pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
emove dual lance from the spay gun.
Squeeze trigger on spray gun until a steady
stream of water appears.
Apply the safety latch to the spray gun trigger
(Figure 10).
Place the un/Stop switch to Run.
Press the primer bulb 3 times, waiting 2 seconds
between each push
Note: For a warm engine, do not prime.
Grasp rope handle and pull slowly until you feel
some resistance. Then pull cord rapidly to
overcome compression, prevent kickback and start
the engine. Let rope return to starter slowly.
If after 3 pulls the engine fails to start, disengage the
spray gun safety latch, squeeze the trigger to relieve
water pressure, re-engage the spray gun safety latch
and pull the recoil starter handle rapidly (Max. 3
pulls).
How to Stop Your Pressure Washer
Move the un/Stop switch to Stop.
Simply shutting off the engine will not release
pressure in the system. Squeeze trigger on the
spray gun to relieve pressure in the hose.
Note: A small amount of water will spray out when
you release the pressure.
How to Use the Spray Gun and Dual
Lance
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust pressure and apply
chemicals using the spray gun and dual lance.
DANGER! Never put hands in front of nozzle.
For most effective cleaning, keep spray nozzle
between 8 to 24 inches away from cleaning surface.
If you get spray nozzle too close, especially using
high pressure, you may damage the cleaning
surface.
Do not get closer than 6 inches when cleaning
automobile tires.

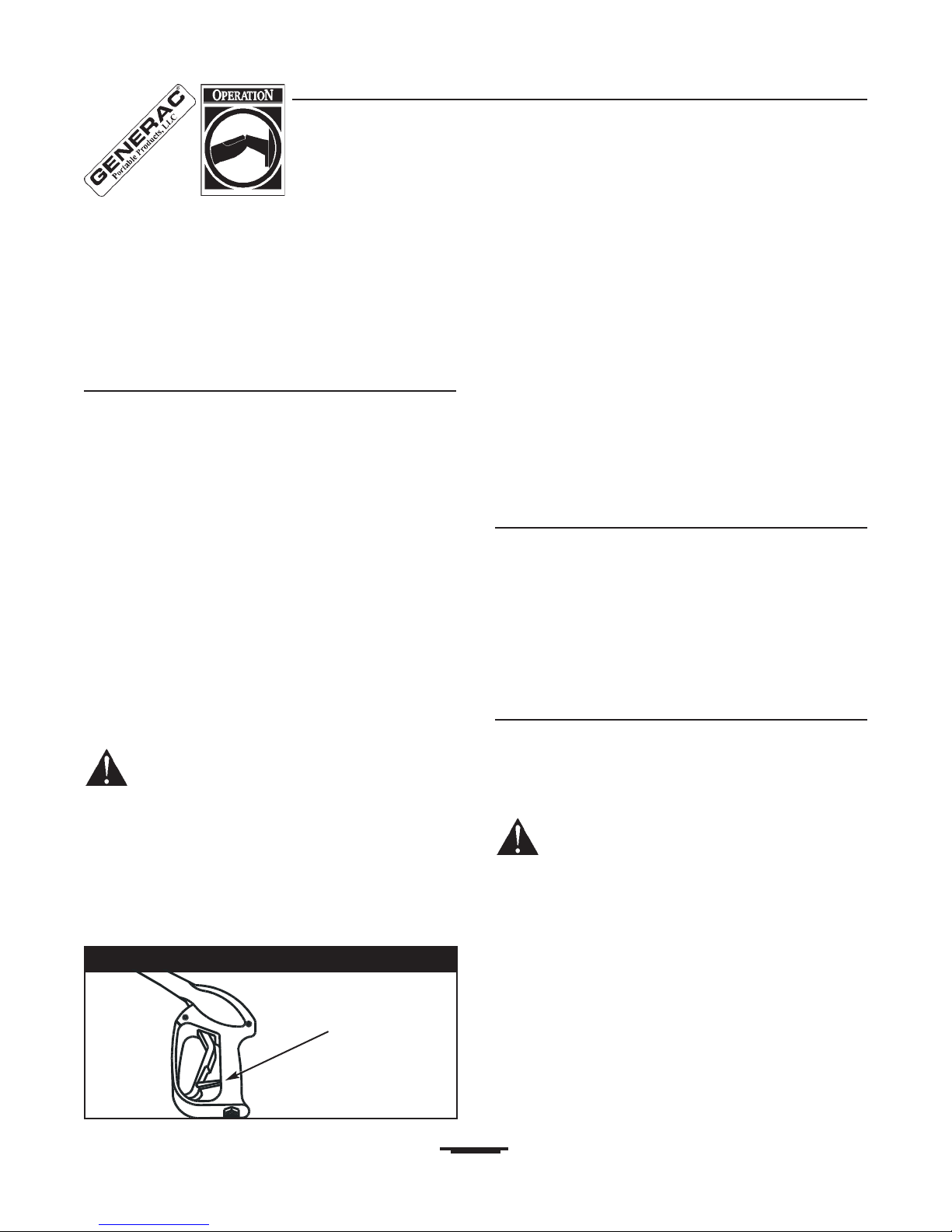

Figure 10 Safety Latch.
Safety Latch Applied
Autres manuels Generac Power Systems Nettoyeur haute pression
Generac Power Systems
Generac Power Systems 1037-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 3000CP Manuel utilisateur
Generac Power Systems
Generac Power Systems 2100PSI 1974-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems The Reliable Ones Manuel utilisateur
Generac Power Systems
Generac Power Systems 4040 PRO GAS PW 49ST Manuel utilisateur
Generac Power Systems
Generac Power Systems 1700PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems 1292-2 Manuel utilisateur
Generac Power Systems
Generac Power Systems 6228-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1042-1 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1750PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems 1460-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1455-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems Power Washer Manuel utilisateur
Generac Power Systems
Generac Power Systems BELT DRIVEN POWER WASHER Manuel utilisateur
Generac Power Systems
Generac Power Systems 2000PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems 10000025895 Manuel utilisateur
Generac Power Systems
Generac Power Systems OneWASH Manuel utilisateur
Generac Power Systems
Generac Power Systems 006022-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 7132 Manuel utilisateur
Generac Power Systems
Generac Power Systems Power Washer Manuel utilisateur
