Gembird EE5-U2-3 Manuel utilisateur

External USB v.2.0 enclosure for 5.25" devices

EE5-U2-3 external USB 2.0 enclosure for

5.25" devices

External USB v.2.0 enclosure for 5.25" devices

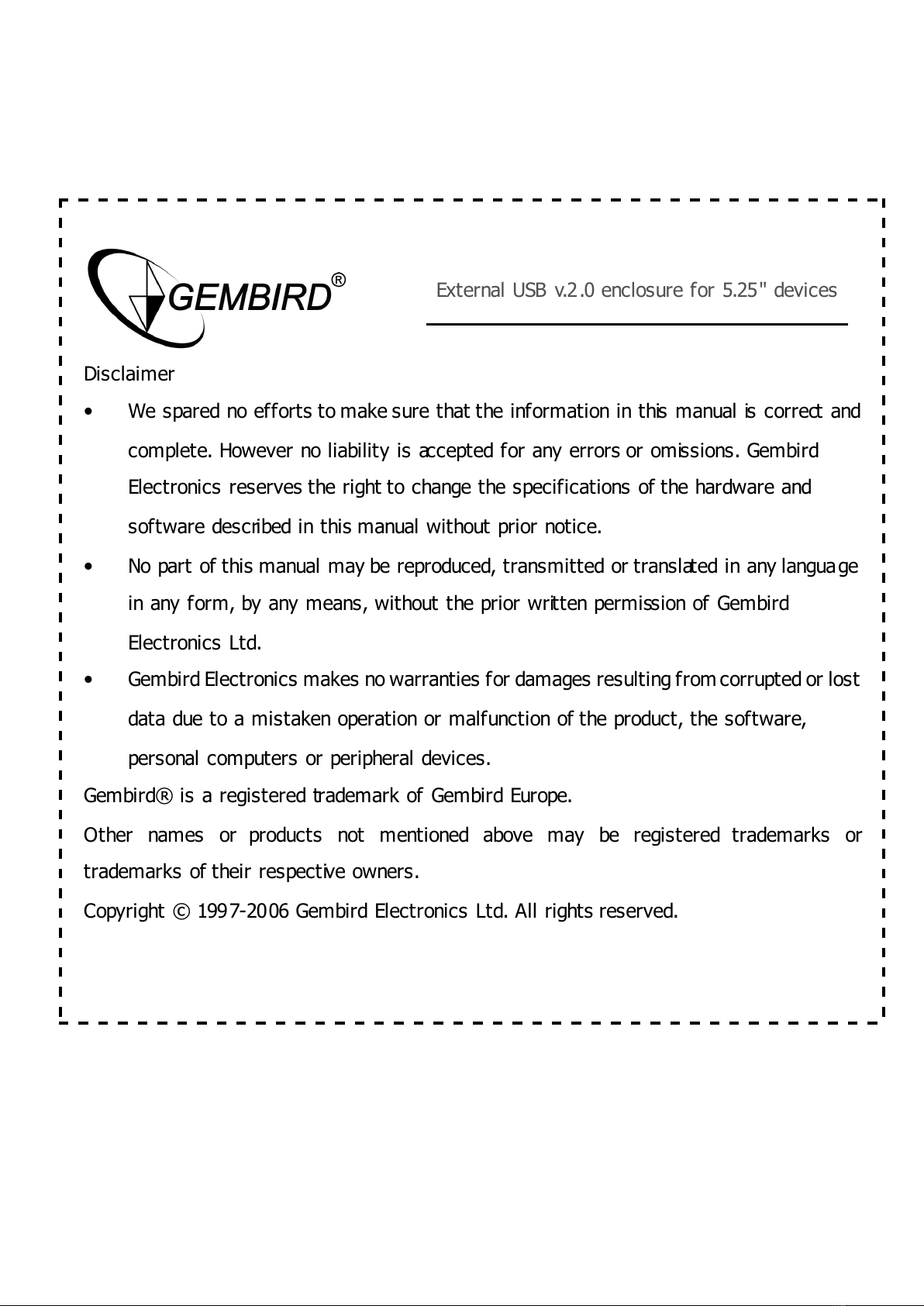

Disclaimer

•We spared no efforts to make sure that the information in this manual is correct and

complete. owever no liability is accepted for any errors or omissions. Gembird

Electronics reserves the right to change the specifications of the hardware and

software described in this manual without prior notice.

•No part of this manual may be reproduced, transmitted or translated in any language

in any form, by any means, without the prior written permission of Gembird

Electronics Ltd.

•Gembird Electronics makes no warranties for damages resulting from corrupted or lost

data due to a mistaken operation or malfunction of the product, the software,

personal computers or peripheral devices.

Gembird® is a registered trademark of Gembird Europe.

Other names or products not mentioned above may be registered trademarks or

trademarks of their respective owners.

External USB v.2.0 enclosure for 5.25" devices

Introduction

Thank you for buying our external USB 2.0 enclosure for 5.25"

devices! This manual will help you install it properly.

Features

•Fully compatible with USB 2.0 and USB 1.1 interfaces

•Suitable to all 3,5" hard disk drives as well as 5.25" devices

such as DVD-RW drives

•ot-swap, Plug-and-Play

•Power switch

•Aluminum case provides the best heat dissipation and hard

disk/DVD-drive protection

EE5-U2-3 User Manual

External USB v.2.0 enclosure for 5.25" devices

Specifications

•Up to 480Mbit/sec data transfer rate

•USB 2.0/IDE compliant: integrated IDE transceiver, high

speed (480Mbit/sec) and full speed (12Mbit/sec)

•Self-powered from USB

•Supports ATA PIO modes 0-4. ATA interface mode is

selected automatically

•Supports UDMA modes 0-4

•Supports 48-bit LBA (large DDs)

System requirements

•Personal computer equipped with USB port running

Windows 98/ME/2000/XP or Macintosh

•No driver is required with the exception of Windows 98

External USB v.2.0 enclosure for 5.25" devices

Hardware installation

•Connect your hard disk to the USB DD case and secure it

with the screws provided

•Connect the enclosure to any standard USB port on

PC/notebook with the USB cable provided.

External USB v.2.0 enclosure for 5.25" devices

Driver installation under Windows 98SE

After USB DD enclosure is connected, Windows 98 should

detect the new hardware and display "Found New

ardware…" wizard. When prompted, insert the CD provided

and let the system search for the correct driver, if necessary

specify \USB DD-CL811 USB DD_PL2506 in the search path.

If hardware is not detected by OS, follow these steps:

•Click "Start-Settings-Control Panel"

•Double click "Add New ardware" and then click "Next"

twice

•Select "No, the device isn't in the list" and click "Next"

•Select "No, I want to select the hardware from a list" and

click "Next"

•Select "Other devices" and click "Next"

•Click " ave Disk"

•Specify driver location, or click "Browse" to search for

External USB v.2.0 enclosure for 5.25" devices

driver location and select \USB DD-PL-2506 folder from

the CD provided and then click "OK"

•Click "OK" again

•Click "Next" twice, f ile copying will start

•Click "Finish", now the USB ard Disk Drive should appear

in My Computer or Windows Explorer. If it does not appear,

please, restart the computer.

Driver installation under Windows ME/ 000/XP

Under Windows ME/2000/XP, the system will f ind and setup the

"USB Mass Storage Device" automatically.

Congratulation, you can enjoy this product now!

External USB v.2.0 enclosure for 5.25" devices

Hard Disk Partitioning and Formatting

If there is no USB hard disk drive appeared in My Computer or

Windows Explorer after the above-mentioned procedures, you

may need to perform disk Partitioning and/or Formatting.

Windows 98/ME:

•Go to DOS prompt

•Run "FDISK" and perform the partitioning as you need.

Please note, you may need to delete the old partition f irst

if your hard disk was partitioned using other partitioning

utilities

•Run "FORMAT" to format the DD.

Windows 000/XP:

•Right click "My Computer" and then select "Manage"

•Go to "Disk Management"

•Perform Partitioning and formatting. Please refer to your

OS manual for details of how to use "Disk Management"

External USB v.2.0 enclosure for 5.25" devices

Warning: Before you disconnect the EE5-U2-3 from your system,

you should always perform the following procedure:

•Click the icon with your right mouse button

•Choose "Safely remove hardware" from the popup menu

•After the conf irmation the message "Storage device can

now be safely removed from the system" will appear.

Only now you can disconnect the EE5-U2-3 from the computer!

Troubleshooting

If all correct procedures have been followed and there is still no

USB ard Disk detected, you may need to access computer BIOS

and enable USB Devices. For details of how to access BIOS and

enable/disable devices, refer to your computer hardware manual.
