Gembird NIC-GX1 Manuel utilisateur
GigabitEthernetPCI-Expressadapter
USERMANUAL
2
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
Disclaimer
•Wespared no effortstomakesurethattheinformation inthis
manual iscorrectand complete.Howeverno liabilityisaccepted forany
errorsoromissions.GembirdElectronicsreservestherighttochange the
specificationsofthe hardwareand softwaredescribed inthismanual
without priornotice.
•No partofthismanualmaybe reproduced,transmitted ortranslated
inanylanguage inanyform,byanymeans,withoutthepriorwritten
permission of GembirdElectronicsLtd.
•GembirdElectronicsmakesno warrantiesfordamagesresulting
fromcorrupted orlostdatadue toamistaken operation ormalfunction of
the product, the software, personalcomputersorperipheraldevices.
Gembird®isaregistered trademarkofGembirdEuropebv.
Othernamesorproductsnotmentioned abovemaybe registered
trademarksortrademarksoftheirrespectiveowners.
Copyright ©2008 GembirdElectronicsLtd.Allrightsreserved
3
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
1. Setup fromCD
1.First, insertthe adaptertoPCI-Esloton the motherboardand
fixitwithscrews.Startthe computerand logintoWindows,
the systemwillnotifyaboutfindinganewdevice,click
toclose.
4
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
2.Put the CD intothe drive run “Setup.exe”.
3.EnteringInstall Shieldwizard click “next”and followthe instructions
stepbystep.
5
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
3.Installationcompleted click “Finish”.
6
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
2. Setup fromtheDevice manager
1.LogintoWindows,findinganewdevice “Newdevicewizard”
windowwill popout click “Cancel”
7
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
2.Referto“Examine installation result”step1~2.
3.”!”warningmarkwillappearforthe adapter.
8
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
4.Right click choose“Property”.
5．Inthepopout windowforproperty choose“Driver” “Update
driver”.
6．Inthehardwareupdatingwizard, choose“Install fromalist orspecific
location (Advanced)” click ”Next”.
9
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL
10
GEMBIRD EUROPEB.V.http://www.gembird.eu
GigabitEthernetPCI-Expressadapter
USERMANUAL

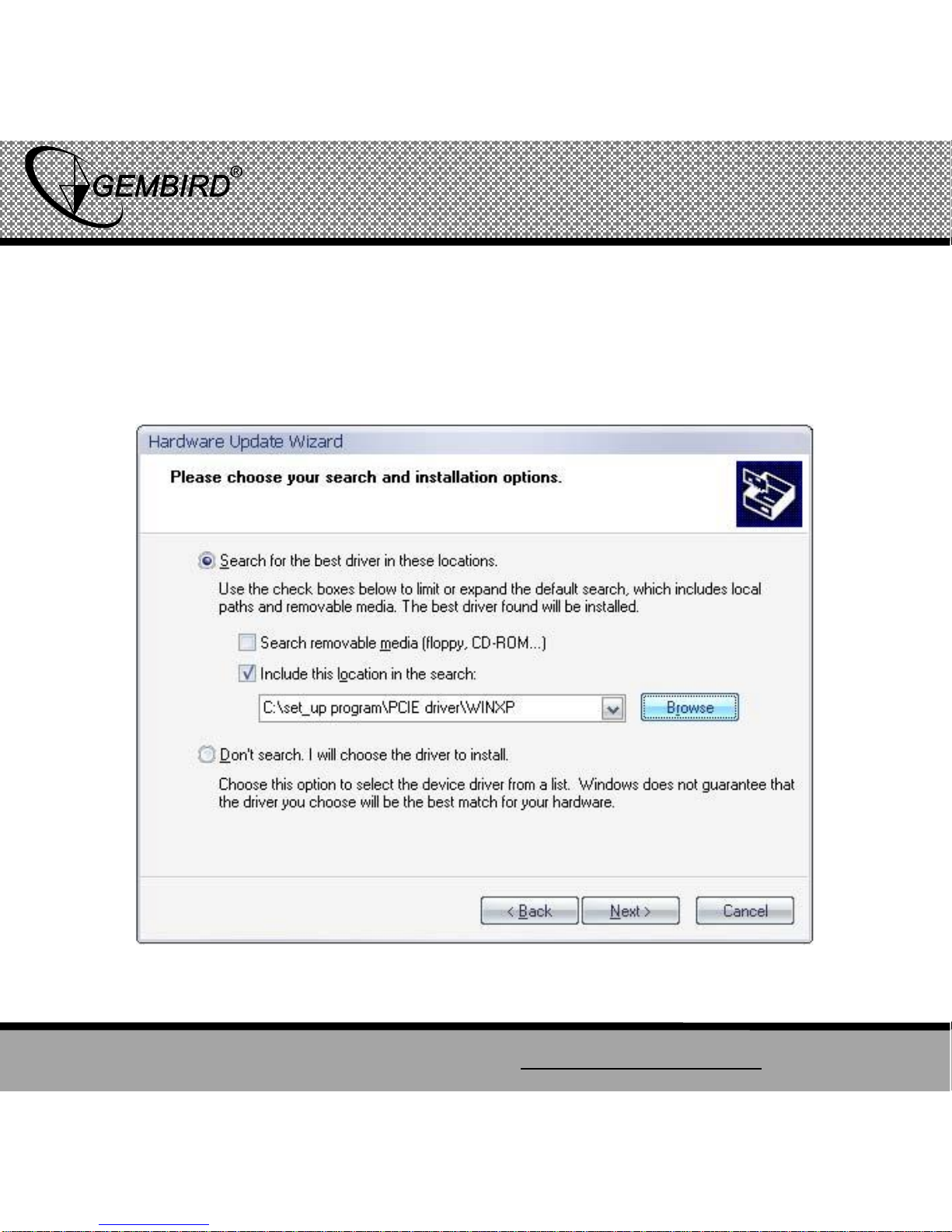

7．Click “Include thislocation inthe search”, click tochoosedirectoryof
the driveron the CD, click “Next”
8．Start copyingdriverdata.
Driverupdatingcomplete click “Finish”. The setupisdone .
