Gefen DVIKVM-241DL Manuel utilisateur

2x1 DVI KVM DL

Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

2x1 DVI DL Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the DL Switcher

Operation Notes

RMT2-IR Installation

IR Code Conﬂicts / IR Extender Installation

Speciﬁcations

Warranty

Congratulations on your purchase of the Gefen 2x1 DVI DL Switcher. Your complete

satisfaction is very important to us.

Gefen’s line of KVM (Keyboard Video & Mouse), DVI, USB, switches, extenders, con-

verters and hubs is designed to make computer use more comfortable, more productive

and less expensive. KVM switches allow access to multiple computers from a single

keyboard, while the extenders give the user control over a computer up to 330 feet

away from the work area.

Gefen products offer solutions for noise, space and security concerns, data center con-

trol, information distribution, conference room presentation, and school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of free support from a team of outstanding engineers.

Now you can switch easily and reliably between any combination of two dual link DVI

& USB 2.0 equipped computers (PC or Mac) - using only one keyboard, display and

mouse. The DL cross platform switcher saves space - there’s no need to work on a desk

crowded with double displays, keyboards and mouse devices. It saves time - there’s no

need to move from one monitor to another to access different computers.And, it saves

money - there’s no need to purchase additional displays, mouse devices, keyboards etc.

INTRODUCTION

FEATURES

Features

• Saves money on hardware costs

• Saves space on your desktop

• Save time and increase your productivity

• Maintains highest 3840 x 2400 x 60Hz resolution video

• No loss of quality

• Use either PC or Mac with USB keyboard/mouse

• Switches easily between any two dual link DVI computers

• Switch between two dual link DVI, USB 2.0 and Audio Sources

• IR Remote control

Includes:

(1) 2x1 DVI DL Switcher

(1) 5v Power Supply

(1) RMT2-IR Remote Control

(2) 6ft Dual Link DVI cables

(2) 6ft USB cables

(2) Audio cables

(1) Users Manual

PANEL DESCRIPTIONS

Power Indicator Infrared

Eye Selector

Indicates which

input is selected

Audio In 1 Audio In 2 Audio Out

Contact Closure Interface

- Connects to optional wired

RMT-2 remote control

5VDC Input DVI In 1 DVI In 2DVI Out

USB

Output

USB In 1

USB In 2

CONNECTING AND OPERATING THE 2x1 DVI DL SWITCHER

How to Connect the DL Switcher to your devices

1- Connect the supplied cables from your ﬁrst computer into the DVI In 1, USB In 1,

and Audio In 1 connection in the back of the DVI Switcher.

2- Connect the supplied cables from your second computer into the DVI In 2, USB In 2,

and Audio In 2 connection in the back of the DVI Switcher.

3- Connect the monitor to the DVI Out connection.

4- Connect your USB devices (e.g. keyboard, mouse) into the USB Out.

5- Connect your speakers to the Audio Out.

6- Plug the 5VDC power supply into the DL Switcher.

How to Operate the DL Switcher

1- Use the front panel push button to switch between sources.

2- Use the RMT2-IR remote control port to remotely toggle between sources.

3- Use the optional RMT-2 wired remote control to remotely toggle between sources.

2x1 DVI DL OPERATION NOTES

Operation Notes

When turning on or rebooting your computers, the DVI DL Switcher must be selected to

the computer that is booting until the computer completes the boot cycle. This step can

be eliminated using the Gefen DVI Detective, which stores the displays EDID.

If you loose your picture when switch from source 1 to source 2 or vice-versa you will

need a DVI Detective.

If you are experiencing USB dropouts try using the switcher just as a USB hub by only

connecting the USB cables from your computers to the switcher. Connect your devices

to the USB out portion of the switcher and connect your display to your computer

directly. Start your computer up and try switching. If your USB devices do come

up normally then you will need a DVI Detective to negotiate the video/USB signals

for faster switching. If they do not come up normally, then you will need to call tech

support.

RMT2-IR INSTALLATION

1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT2-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

Optional RMT-2 wired remote control

IR CODE CONFLICTS

In the event of IR conﬂicts, please do the following:

1. Remove the battery cover from the back of the RMT 2-IR remote.

2. Locate the Dip Switches above the batteries

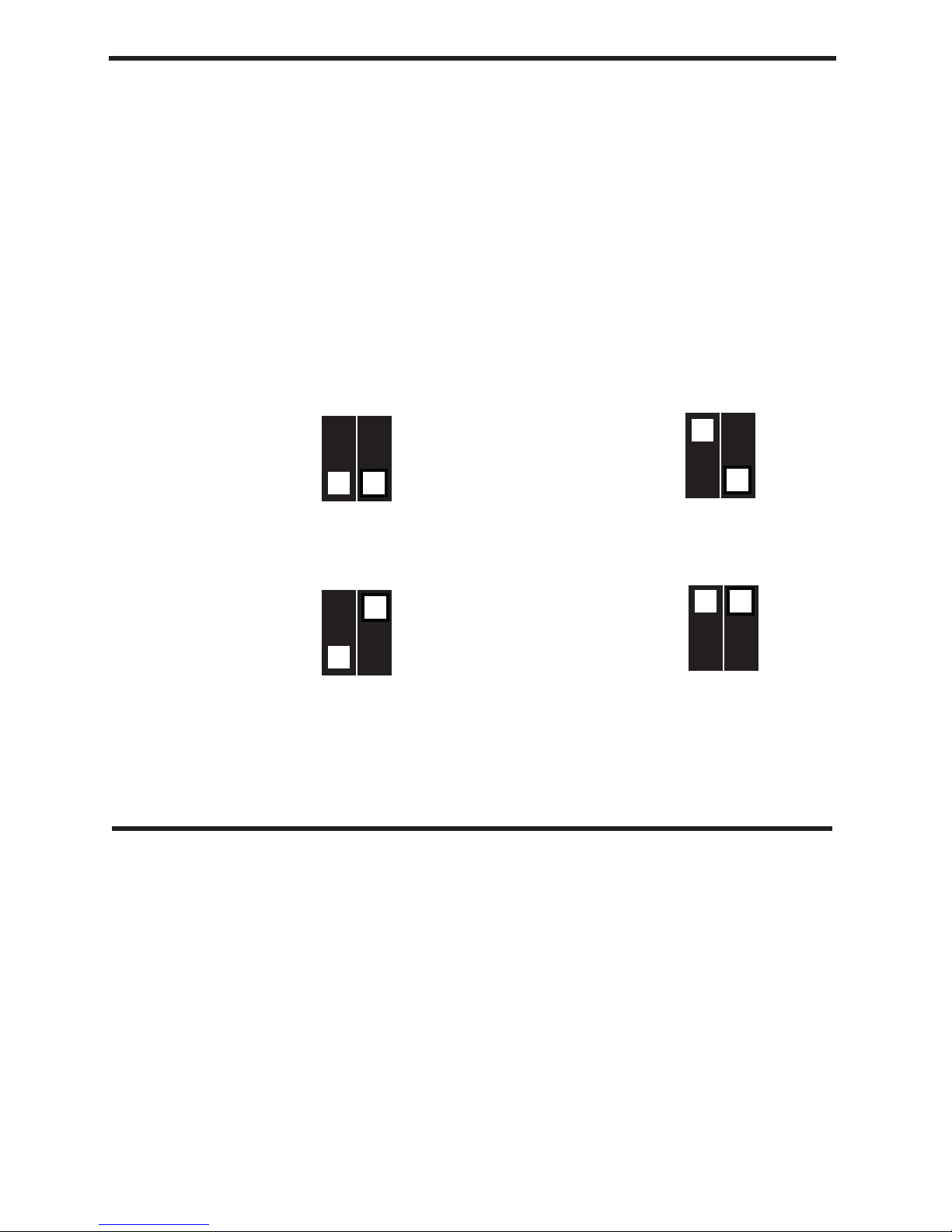

3. Switch the Dip Switches on the RMT 2-IR to any of the combinations pictured below.

4. Dip Switches 1 and 2 in the RMT 2-IR correspond with Dip Switches 1 and 2 on the

outside of the 2X1 DVI DL Switcher respectively. Flip the switches on the outside of

the 2x1 DVI DL Switcher to match the same Remote Channel as the RMT 2-IR. The

2x1 DVI DL Switcher is now set to a new IR Code.

Remote Channel 1:

Remote Channel 2:

Remote Channel 3:

Remote Channel 4:

IR EXTENDER INSTALLATION

How to Connect the IR Extender

1Locate the dip switches underneath the switcher, they will be hidden underneath a

blank silver sticker, and ﬂip dip switch number 4 to the "ON" position.

2Plug the IR extender into the Remote port on the front of the Switcher Unit

You should now be able to switch using the IR Extender.
