8x8 Crosspoint Matrix
for HDMI® 1.3
EXT-HDMI1.3-848CP
User Manual
www.gefen.com
ASKING FOR ASSISTANCE
Rev D4
1.3i
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday, Pacific Time
Write To:
Gefen, LLC.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
8x8 Crosspoint Matrix for HDMI 1.3 is a trademark of Gefen, LLC
HDMI, the logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing in the United States and
other countries.
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting and Operating The Gefen 8x8 Crosspoint Matrix For HDMI 1.3
6 Wiring Diagram
7 Controlling the Matrix using the Front Panel Buttons
8 Remote Description
9 Remote Installation
10 Remote Configuration
11 Routing Sources using the Remote
12 Setting the IR Channel on the Matrix
13 RS-232 Serial Control Interface
14 RS-232 Commands
18 Fast Switching (FST)
20 EDID Management
22 Rack Mount Installation
23 Specifications
24 Warranty
1
INTRODUCTION
Congratulations on your purchase of the Gefen 8x8 Crosspoint Matrix for HDMI
1.3. Your complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 8x8 Crosspoint Matrix for HDMI 1.3
The Gefen 8x8 Crosspoint Matrix for HDMI 1.3 routes high definition video at
resolutions of up to 1080p with multichannel digital audio from any eight HDMI
sources to any eight displays. The 8x8 Crosspoint Matrix supports advanced
digital audio formats such as Dolby True HD and DTS-HD Master audio. Each
source is accessible at all times by any display by selecting it with the included
IR remote, by using the RS-232 port or by using the button switches on the front
panel.
How It Works
Connect up to eight Hi Def sources to the Gefen 8x8 Crosspoint Matrix for HDMI
1.3 using the supplied HDMI cables. Connect up to eight HDTV displays to the
Matrix’s HDMI outputs. 3D content can be displayed when connecting a 3DTV
and 3D source. Power-on the Matrix and apply power to the sources and to the
displays. A/V sources can now be routed to any combination of display devices
using the front panel buttons, the included IR remote control or RS-232 control.
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE GEFEN 8X8 CROSSPOINT MATRIX FOR HDMI 1.3
• There is no internal scaling in the Gefen 8x8 Crosspoint Matrix for HDMI 1.3.
All of the attached monitors must be able to display the resolutions output by
the source devices. For maximum compatibility it is recommended that only
one compatible / common resolution be used by all of the source devices.
• The Gefen 8x8 Crosspoint Matrix for HDMI 1.3 is a full-featured crosspoint
matrix for eight inputs and eight outputs. Any source can be connected to
any display at any time, using the remote control or by controlling it via the
buttons on the front panel.
• 3D content pass-through is enabled to all outputs when a 3DTV is connected
to Output A. Ensure to power cycle the Matrix once a 3DTV is connected to
Output A during standard operation.
OPERATION NOTES
2
3
FEATURES
Supported HDMI 1.3 Features
• 225 MHz (up to 10-bit YUV 444 @ 1080p)
• Deep Color
• Dolby TrueHD and DTS-HD Master Audio
• Lip-Sync
Features
• Displays any of eight (8) Hi Def sources on eight (8) HDTV displays,
independently
• Maintains beautiful, sharp HDTV resolutions up to 1080p Full HD and 2K
• 3DTV Pass-Through
• EDID Management for rapid integration of sources and display devices.
• Fast Switching for quick and responsive HDMI signal routing.
• Supports digital audio formats including LPCM 7.1 audio, Dolby Digital Plus,
Dolby TrueHD, and DTS-HD Master Audio
• IR Control
• Built-in IR Extender
• RS-232 serial control
• Locking HDMI Connectors
• Rack-mountable
• HDCP-compliant
Package Includes
(1) Gefen 8x8 Crosspoint Matrix for HDMI 1.3
(8) 6 ft HDMI cables (M-M)
(1) 6 ft DB9 Serial Cable (M-F)
(1) IR Remote Control Unit
(1) 24V DC Power Supply
(1) Set of Rack Ears
(1) User Manual
4
PANEL LAYOUT
Front Panel
Back Panel
8
7
910 11
1
23564
5
PANEL DESCRIPTIONS
1 Main LCD Display
This is a two-line, sixteen-character display which displays status information
and is also used to manage display / source routing.
2 Navigation Buttons
These buttons are used to navigate between the inputs and outputs of the
Gefen 8x8 Crosspoint Matrix for HDMI 1.3. For details on how these controls
are used, see page 7.
3 Menu Button
Pressing this button changes between routing mode and status mode.
4 IR Sensor
Receives signals from the IR Remote Control.
5 Lock Button
Temporarily locks the front panel controls. This prevents inadvertent routing
changes or power-down. The LED above the button is turns bright green when
the front panel is locked. Press once to lock the front panel buttons. Press this
button again to unlock the front panel buttons.
6 Power On/Off Button
Turn the power on or off using this button (the LED will change color from red to
green).
7 HDMI Output Ports A – H
Connect HDTV displays to these HDMI ports.
8 IR Extender Port
Used to extend the IR Sensor range of the unit.
9 RS-232 Serial Port
Connects to the RS-232 control device. The 8x8 Crosspoint Matrix for HDMI 1.3
may be switched remotely using this port. See page 13 for more information.
10 HDMI Input Ports 1 – 8
Connect a Hi-Def source device to any of these input ports.
11 24V DC Power Receptacle
Connect the included 24V Power Supply to this receptacle.
6
CONNECTING AND OPERATING
THE 8X8 CROSSPOINT MATRIX FOR HDMI 1.3
How To Connect The 8x8 Crosspoint Matrix For HDMI 1.3
1. Using the supplied HDMI cables, connect a Hi Def source to HDMI Input
1 on the 8x8 Crosspoint Matrix. Connect a second Hi Def source to HDMI
Input 2, and so on.
2. Connect an HDTV display to HDMI Output A on the 8x8 Crosspoint Matrix.
Connect another HDTV display to HDMI Output B, and so on.
3. Connect the included 24V DC power supply to the 8x8 Crosspoint Matrix and
plug the power cord into an available wall outlet.
4. The power button LED will turn bright red indicating that the 8x8 Crosspoint
Matrix is in standby mode.
5. Power on the displays and the source devices. Turn on the 8x8 Crosspoint
Matrix for HDMI 1.3 by pressing the power button on the front panel. A
vibrant HDTV HD picture should be seen, along with multichannel digital
audio (if the display supports audio).
NOTE: If the source and display support 3D then the 8x8 Crosspoint Matrix
for HDMI 1.3 will pass through the 3D signal. Output A must be connected
to a 3DTV.
8x HDMI Sources
EXT-HDMI1.3-848CP
8x HDMI Displays
HDMI CABLE
7
How to Switch between Inputs and Outputs

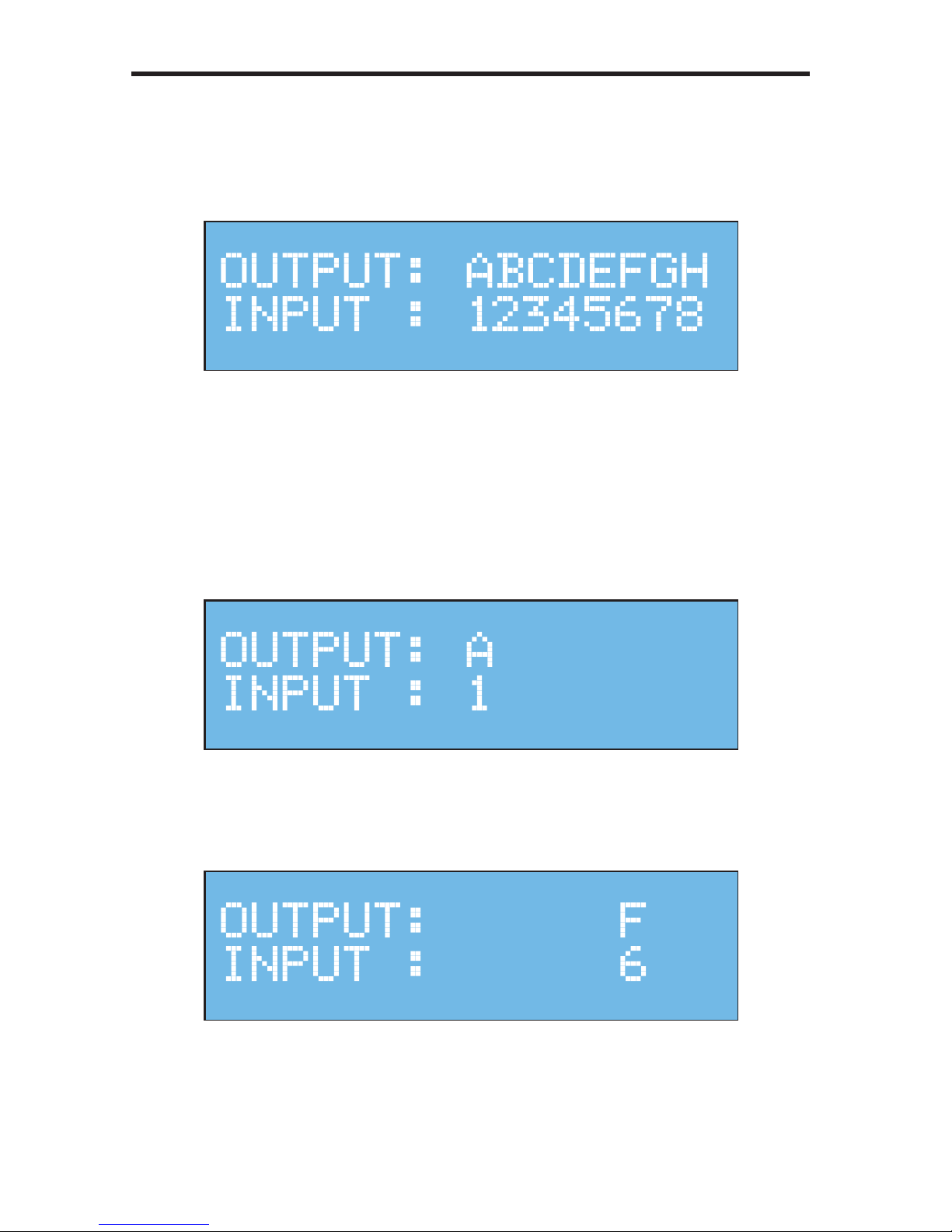

The main display of the Gefen 8x8 Crosspoint Matrix for HDMI 1.3 is a sixteen-
character, two-line LCD. This display shows the current routing status
The first row represents outputs A through H on the back of the unit. The second
row represents the inputs to which each output is routed. Each input can have a
value from 1 to 8.
Routing sources to a display
1 Press the Output+ button. The display will change to show a single output
(zone) and input (source).
2 Press the Input+ or Input- button to change the input (source).
3 Press the Output+ or Output- button to cycle through each of the outputs
(zones).
4 Press the Menu button to return to the routing status screen.
CONNECTING AND OPERATING
THE GEFEN 8X8 CROSSPOINT MATRIX FOR HDMI 1.3
