HDMI Super

Booster

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

HDMI Super Booster is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the HDMI Super Booster

Speciﬁcations

Warranty

Congratulations on your purchase of the HDMI Super Booster. Your complete

satisfaction is very important to us. Gefen’s line of KVM (Keyboard Video & Mouse),

DVI, ADC, USB, switches, extenders, converters and hubs is designed to make

computer use more comfortable, more productive and less expensive.

The ex•tend•it HDMI Super Booster extends the length of any HDMI cable by regener-

ating the HDCP-HDMI signal before it outputs to the HDCP-HDMI monitor or projector.

The HDMI Super Booster will clean out the digital noise (sparkles) in your picture. The

HDMI Super Booster enables you to relocate your DVD player or satellite receiver to a

safe, quiet and clutter-free environment.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of free support from a team of outstanding engineers.

Introduction

The HDMI Super Booster extends the length of any HDMI cable by regenerating the

HDMI signal before it outputs to the HDMI monitor or projector. The HDMI Super Boost-

er will clean out the digital noise (sparkles) in your picture. The ex•tend•it HDMI Super

Booster is connected with a HDMI (male to male) cable from the computer HDMI graph-

ic port to the HDMI Super Booster input. The HDMI Super Booster output uses a second

HDMI (male to male) cable to go from the output to any HDMI display or projector with a

HDMI connector. The box is placed near the display to remove any noise that has been

generated by a long HDMI cable.

INTRODUCTION

FEATURES

Features

• Connects HDMI set top boxes and computers with HDMI outputs to HDMI compatible

displays or projectors

• Maintains highest HDMI single link video resolution 1080p

• Supports DDWG standard for HDMI compliant monitors

• Supports full HDMI audio and video

• HDCP Compliant

• Installs in minutes

Includes:

HDMI Super Booster

User's Manual

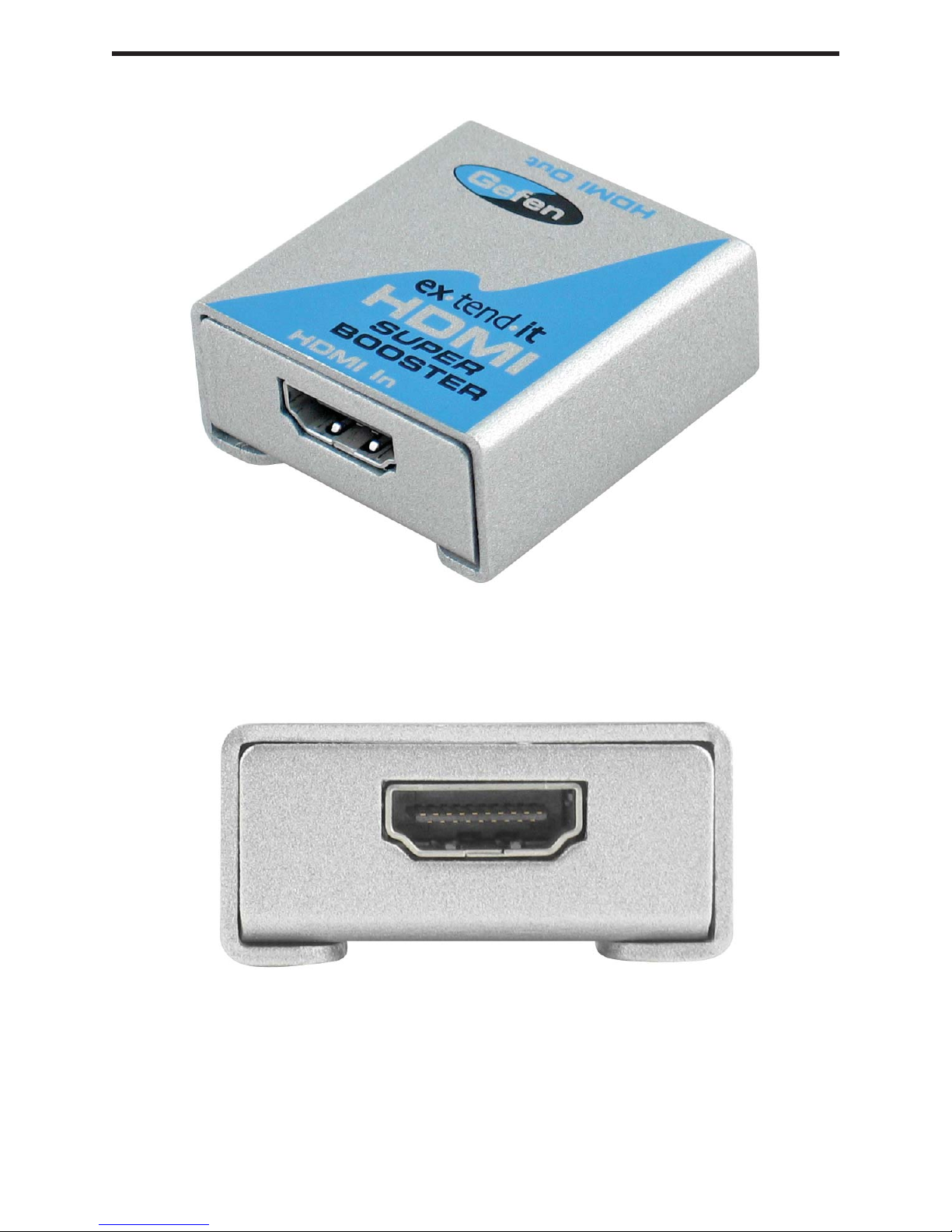

PANEL DESCRIPTIONS

Connecting and Operating the HDMI Super Booster

How to Connect the HDMI Super Booster

1- Connect the long HDMI cable from the source into the “HDMI In”. The HDMI Super

Booster is placed next to your display to regenerate the HDMI cable.

2- Connect a short HDMI cable from the “HDMI Out” to your display or projector.

3- If there is no video signal or there is signal noise in the picture, adjust the EQ trimpod

located underneath the HDMI Super Booster using a small ﬂat head screw driver.

SPECIFICATIONS

Video Ampliﬁer Bandwidth ................................................................................ 1.65 Gbps

Input Video Signal ......................................................................................... 1.2 volts p-p

Input DDC Signal .................................................................................... 5 volts p-p (TTL)

Maximum Single Link Range .................................................................................. 1080p

Input/Output Connector Type ................................................. HDMI type A 19 pin female

Dimensions ............................................................................ 1.625”W x 0.75”H x 1.75”D

Shipping Weight ....................................................................................................... 2 lbs.

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two

(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical, or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may

be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,

special, incidental, or consequential damages resulting from any defect or omission

in this manual, even if advised of the possibility of such damages. The technical

information contained herein regarding HDMI Super Booster features and speciﬁcations

is subject to change without notice.

WARRANTY
