Geemarc PhotoPhone Manuel utilisateur
GB
F
User guide
PhotoPHONE
Notice d’utilisation
Amplified desk telephone
with volume and tone control
Téléphone multifonctions
avec réglage du volume et de la tonalité
INDEX
Description 4
Setting up
- Connecting the telephone 6
- Ringer settings 6
- T/P switch 8
- Time break recall switch 8
- Wall mounting 8
- Desk support 10
Volume and tone adjustment
- Receiving volume and tone 11
- Sending volume level adjustment 12
Using the phone
- Answering incoming call 13
- Making a call 13
- Last number redial 13
- Recall, * & # buttons 14
- Mute button 14
- Storing telephone numbers 14
- Dialling stored number 16
General information 17
GB
2
SOMMAIRE
Description 18
Installation
- Raccordements 20
- Réglage de la sonnerie 20
- Multifréquences ou décimale 22
- Interrupteur 300ms/100ms 22
- Montage mural 22
- Position bureau 24
Réglage du volume et de la tonalité
- Volume et tonalité de réception 25
- Réglage du volume d’émission 26
Utilisation
- Recevoir un appel 27
- Appeler 27
- Rappel du dernier numéro 27
- Touches R, * & # 28
- Fonction secret 28
- Mémoriser un numéro de téléphone 28
- Appel d’un numéro en mémoire 30
Informations générales 31
F
3
4
Tone reception
adjustment
Last number
redial
Memory storing key
Mute button
Flashing incoming ring
indicator
Direct
memory
buttons
Volume recep-
tion adjustment
Extra volume
and tone
activation
Time break recall
button

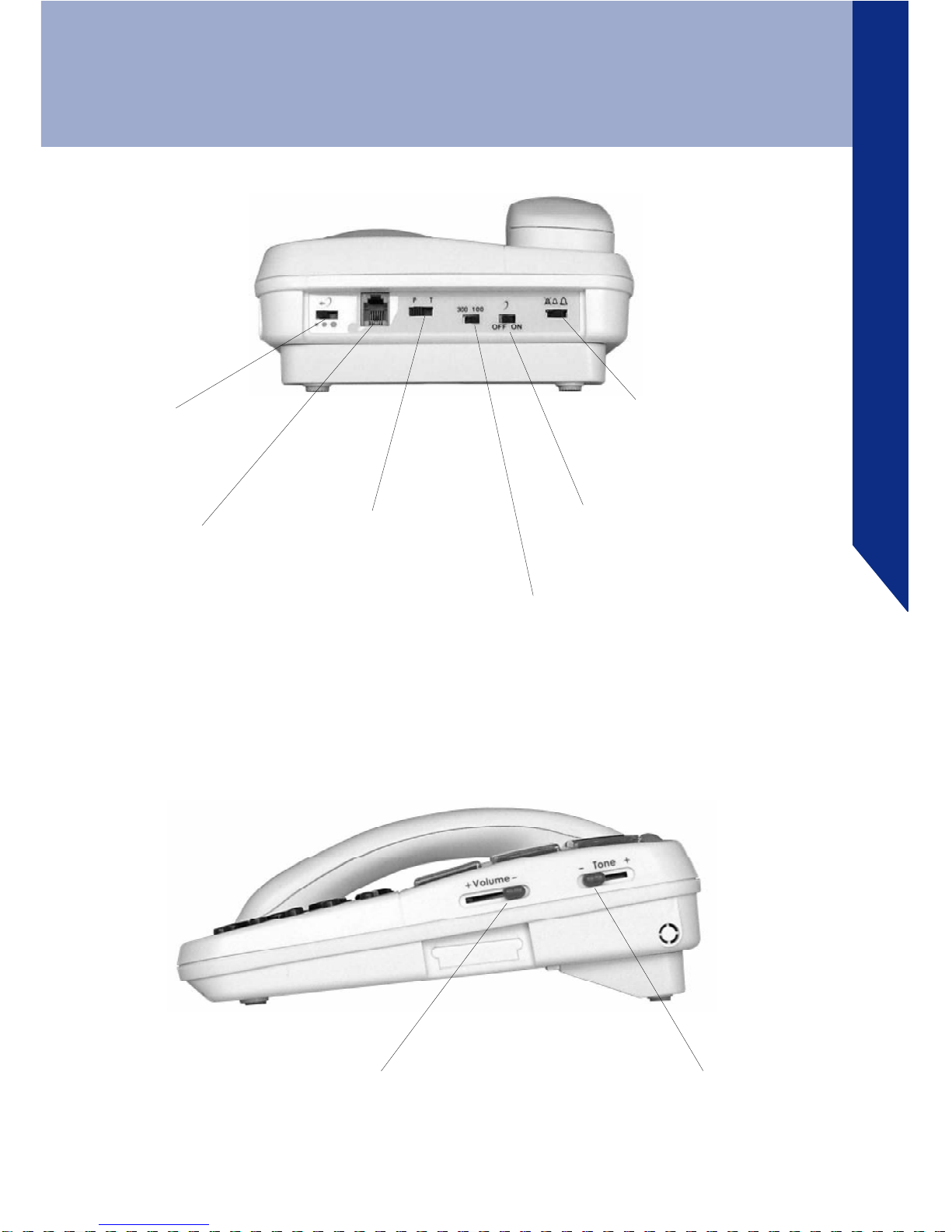

Description
5
(*) Classified TNV-3 according to EN60950 standard.
Tone / Pulse
switch
Sending
level switch
Line socket*
Time break recall
switch
(R=100ms/300ms)
Volume & Tone
adjustment ON/OFF
switch
Ringer level
adjustment switch
Reception Tone
adjustment
Reception volume
adjustment
Description
1-CONNECTINGTHETELEPHONE
- Connect the handset cord.
-Openthebatterycompartment.
Insert 4 alkaline batteries without mercury (Type
AAA1.5V,notsupplied)inthecompartment(*).Bat-
teriesarerequiredifyouwishtoincreasetheringer
level up to 10 dB.
Snap the battery door back in place.
- Connect the line cord plug to the line socket on
the base (*).
Connect the other end of the line cord to the
PTT socket. (*)
2-RINGER SETTINGS
A switch located on the upper side allows the
ringer to be switched HI,LOW,OFF:
: Off,
: Low,
: Hi
(*) Classified TNV-3 according to EN60950 standard.
Settingup
6
Setting up
Your phone comes with the ringer switched to
«High» and the melody set to «6»:
Low Mid High
Melody 1 1 2 3
Melody 2 4 5 6 (by default)
Melody 3 7 8 9
Ifyoudon’tliketheringermelody,youcanchoose
anewonebychangingthesettingsasperinstruc-
tionsbelow:
- Lift the handset.
- Press button.
- Press # button.
- Press any of the 1 - 9 dial keys.
The new ringer settings will be activated with the
nextincomingcall.
Note: The ringer level will be increased up to 10
dB if you insert batteries.
7
Setting up
3 - TONE/PULSE SWITCH (T/P)
The Tone/Pulse switch is factory pre-set to Tone
position (T). In UK, all telephone exchanges now
useTone dialling. If your phone does not dial out,
it is probably being used from an older private
switch- board (PBX). In this case, theTone/Pulse
switch must be moved to Pulse.
4 - TIME BREAK RECALL (TBR) SWITCH
For UK, the TBR switch should be set to 100 mS.
Itcanbeswitchedto300mSforotherlocationsor
PBX’s.
Note: If you are using your CL1100
with a hearing aid, set your hearing
aid to “T” position.
5 - WALL MOUNTING
To wall-mount your telephone, slide out the clip,
turnandslidebackintothewallmountingposition
8
Setting up
Wall mounting
80 mm
80 mm
1234567
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1
23456
7
1234567
7 mm
Vis
(locatedinthebaseunit,justbelowtheearpiece).
This will ensure that the handset stays firmly in
position.

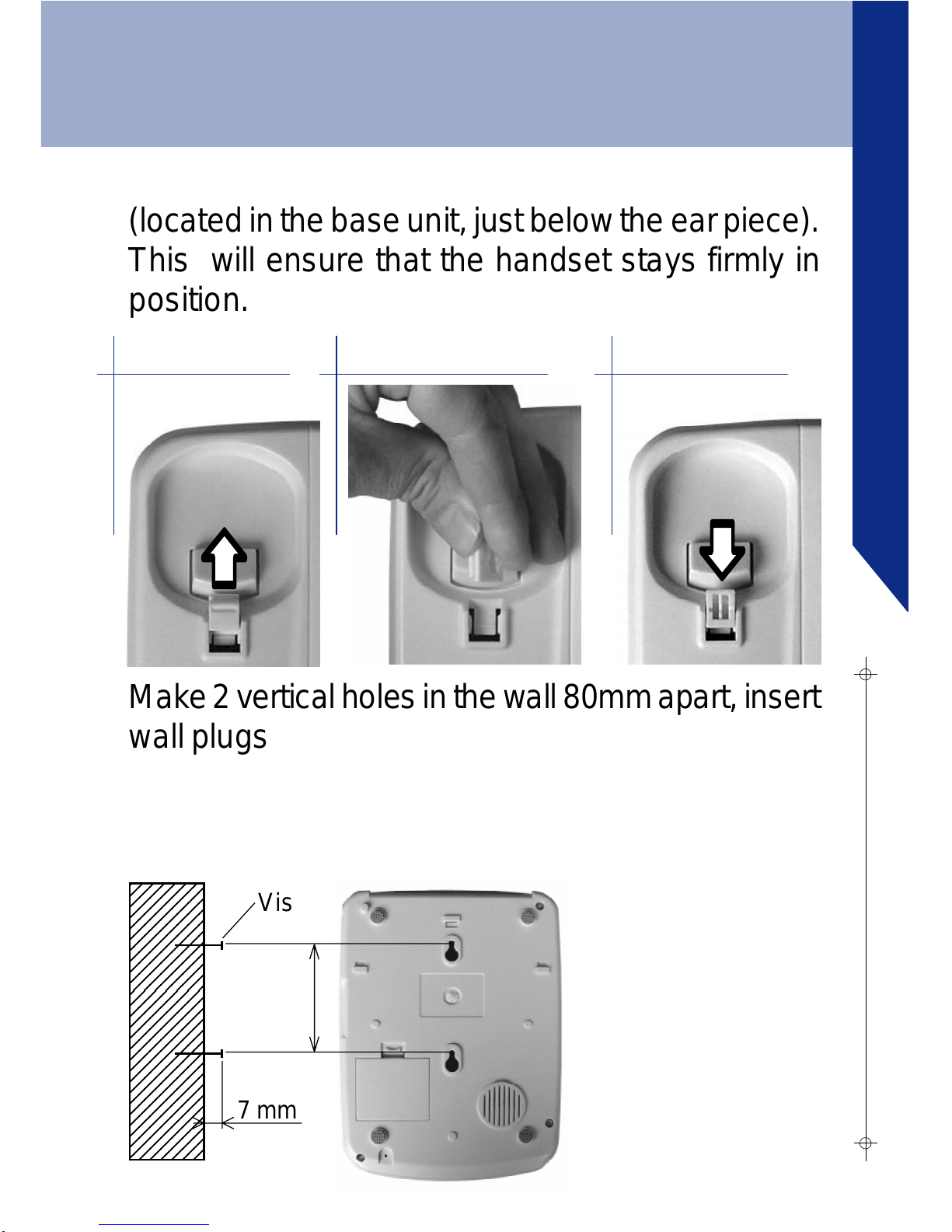

Make2verticalholesinthewall80mmapart,insert
wallplugsandwallmountingscrews.Thescrews
should protrude from the wall by 6-7 mm. Place
thephoneontothescrew-headsandslidedownto
secure.
Step 1 Step 2 Step 3
9
6 - DESK SUPPORT
Thephonecanbeusedontheflatpositionorraised
with the desk support. The desk support will give
you the best viewing angle.
Tofitthedesksupport,insertthetwoupperhooks
into the openings provided and push the support
firmlyhome.
Setting up
12
10
