GE RAK147P1 Mode d'emploi

www.GEAppliances.com

49-7406 11-00 JR

Operating Instructions

Auto Changeover . . . . . . . . . .10

Day/Time Setting Mode . . . . .6

Default Mode . . . . . . . . . . . . . . .4

Fan Control . . . . . . . . . . . . . . .10

Hold and Temporary

Override . . . . . . . . . . . . . . . . . . .6

Initial Power Up . . . . . . . . . . . . .3

LCD Backlight . . . . . . . . . . . . .10

Programming Mode . . . . . . .7–9

Reviewing and Changing

Setpoint Temperature . . . . . . .5

Selecting Temperature Scale . .4

Thermostat Overview . . . . . .2–3

Time Format . . . . . . . . . . . . . . .5

Verification . . . . . . . . . . . . . . .10

Installation Instructions

Location . . . . . . . . . . . . . . . . . . 11

Mounting and Wiring . . . 11–13

Specifications . . . . . . . . . . . . . .14

Tools Required . . . . . . . . . . . . 11

Troubleshooting Tips . . . . . 15

Customer Service

Warranty . . . . . . . . . . . . . . . . . 20

Write the model and serial

numbers here:

You can find them on a label on

the thermostat.

RAK147P1

RAK163P1

Owner’s Manual &

Installation Instructions

Thermostats

Digital Programmable

Using your thermostat.

The digital programmable series of thermostats offers an

economical remote control solution for single-stage

heat/cool and multi-stage heat pump applications. System

selections include heat, cool, off or auto mode, as well as

fan on or fan auto selections.

Thermostats are available in the following selections:

RAK163P1 (1 heat/1 cool)

and

RAK147P1 (2 heat/1 cool heat pump)

FEATURE DESCRIPTION

No batteries required for general Saves programmed setpoints in the

operation. event of a power loss.

24V AC/DC Compatible Switch selection for either 24 VAC or

24 VDC operation.

Temperature Safety Circuit Auto cut-off in heat mode if room

temperature > 90°F and auto cut-off

in cool mode if room temperature

< 60°F.

°F or °C compatible Switch selection for either Fahrenheit

or Celsius degrees.

Backlit display Display is backlit whenever a button

is pressed.

Programming Modes 5+2- and 7-day programming

flexibility.

Auto changeover from Heat to Cool Automatically changes from heating

to cooling.

Thermostat Overview

Figure 1: RAK163P1 and RAK147P1 Display

LCD SEGMENT DESCRIPTION

Day indicator Indicates the day of week.

AM/PM indicator Indicates AM or PM.

Time display Displays time, program time or set temperature.

Program indicator Indicates the operating or editing program

(Morning, Day, Evening and Night), flashes when

temporary hold.

Hold indicator Indicates that the thermostat is in hold mode.

System mode indicator Shows whether heat, cool, auto or off system is

selected and operating.

Fan mode indicator Indicates that the fan is in ON or Auto mode.

Temperature display Displays room temperature, program

temperature or span.

Set temp indicator Indicates that the set temperature is shown.

Celsius mode indicator Indicates that the temperature displayed is in

Celsius scale. Default is Fahrenheit.

Set temp indicator

Fan mode

indicator

Celsius mode

indicator

Temperature

display

System mode

indicator

Display Description

General Features

Time display

Program indicator

Hold indicator

AM/PM indicator

Day indicator

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

www.GEAppliances.com

KEY FUNCTION

▲• Increases data (time, temperature, etc.).

• Press with ▼to enter span setting mode.

▼• Decreases data (time, temperature, etc.).

• Press with ▲to enter span setting mode.

HOLD/RETURN • Enters hold.

• Terminates hold or temporary override.

• Returns from Day/Time or Program setting modes to

Normal mode.

DAY/TIME • Enters day and time setting mode.

• Advances through setting of day of week, hour and

minutes.

PROGRAM • Enters program setting mode.

• Advances through setting of program day, time and

temperature.

• Changes time display format when in day and time

setting mode.

SYSTEM MODE Selects the system mode of the thermostat from AUTO,

HEAT, OFF and COOL.

FAN MODE Selects the operation mode of the FAN between

AUTO & ON.

RESET Hardware resets signal to reset the thermostat.

Keyboard Functions

Initial Power Up

■ The thermostat will reset after power up or if the

reset button is pressed.

■ During reset, all LCD segments and the LCD

backlight will be turned on. After one second

and when all keys are released, the thermostat

will start. At the same time, the memory and I/O

ports of the MCU will be set to their default

values.

■ After initial power up or reset, both the weekday

and weekend programs are initialized as shown

in the following table.

Program MORN DAY EVE NITE

Program

HEAT COOL HEAT COOL HEAT COOL HEAT COOL

Setpoint

68°F 78°F 65°F 80°F 68°F 78°F 66°F 78°F

(TIME) (TIME) (TIME) (TIME)

Monday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Tuesday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Wednesday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Thursday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Friday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Saturday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Sunday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Default Program

Figure 2: Display and Keyboard

Temperature Scale Selection

■ The temperature scale can be selected by the C/F dip switch

inside the unit. Please refer to Figure 3 in the

Installation

Instructions

for identification of the correct switch.

■ If C/F switch is set at “F,” the temperature scale after reset is

Fahrenheit. If C/F switch is set at “C,” the temperature scale

after reset is Celsius.

■ Figure 3 shows the LCD right after reset. Fahrenheit scale is the

default.

Figure 3: Default Display after Reset and Initial Power-Up

Using your thermostat.

Default Mode

■ The LCD shows the time, day of week, room temperature,

operating program number or hold status, and the system and

fan status.

For the example at left:

■ The time is 2:05 PM Wednesday.

■ The room temperature is 73°F. If the Celsius scale is selected,

the

indicator will be displayed.

■ The current operating program is

DAY

. If the indicator is

flashing, temporary hold is active.

■ Icon explanation:

■ If heating is selected:

FLAME

icon will be displayed.

■ If a call for heating is made:

FLAME

icon will be flashing.

■ If cooling is selected:

SNOWFLAKE

icon will be displayed.

■ If a call for cooling is made:

SNOWFLAKE

icon will be

flashing.

■ If Auto-changeover is selected and system is in heating

mode:

■

AUTO

and

FLAME

icons will be displayed.

■ If heating is called while in

AUTO

mode:

FLAME

icon will

flash.

■ If Auto-changeover is selected and system is in cooling

mode:

■

AUTO

and

SNOWFLAKE

icons will be displayed.

■ If cooling is called while in

AUTO

mode:

SNOWFLAKE

icon

will flash.

■ All icons will be off if

OFF

is selected.

■ Fan is in

mode.

Figure 4: Example Display

Figure 5: Example of Celsius Mode and Cooling System

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

www.GEAppliances.com

Time Format

■ Time is displayed in AM/PM format.

■ AM/PM format is <AM|PM>hh:mm where the leading zero

of the hour will be suppressed. Time displayed will be in the

range of 12:00 AM to 11:59 AM and 12:00 PM to 11:59 PM.

Figure 6: Time Display Format

Review and Change the Setpoint Temperature

■ In

NORMAL

mode, press ▲or ▼. The clock and the day of the

week indicator will be cleared. The setpoint temperature and

SET TEMP

indicator will be displayed. The

HEAT

COOL

AUTO

indicator will turn on indicating the current operating system.

Figure 7: Temperature Setpoint Example

■ To change the setpoint temperature, press and hold either ▲

or ▼for more than 1 second. The entire display will flash once

and the setpoint temperature can be changed. Continue to

hold the key or release and press again to adjust the setpoint

temperature.

■ Press and hold the key for 2 seconds for fast advance.

■ Press the

HOLD/RETURN

button to return to

NORMAL

mode

immediately or wait 5 seconds to return to

NORMAL

mode

automatically.

Figure 8: Display will Flash Once

Figure 9: Display with New Setpoint Temperature

Using your thermostat.

Hold and Temporary Override

■ Hold is the permanent bypass of program temperature

setpoints. Manual release is required to return to active

program mode.

■ Press

HOLD/RETURN

NORMAL

mode for hold. The current

setpoint temperature will be used. The

HOLD

icon will be

displayed and the program numbers will be cleared.

■ The

HOLD

temperature setpoint can be changed by following

the directions for changing the normal temperature in the

previous section.

■ To release the hold, press

HOLD/RETURN

again in

NORMAL

mode to return to programmed operation. The

HOLD

icon

will disappear.

■ Temporary override is the temporary change of the setpoint

temperature until the next program time. Refer to the previous

section on changing temperature setpoints for information on

adjusting the temperature.

■ To release temporary override before the next setpoint comes,

press

HOLD/RETURN

twice in

NORMAL

mode (the first press will

change to hold and the second press will release the hold and

temporary override).

Figure 10: ‘HOLD’ Display

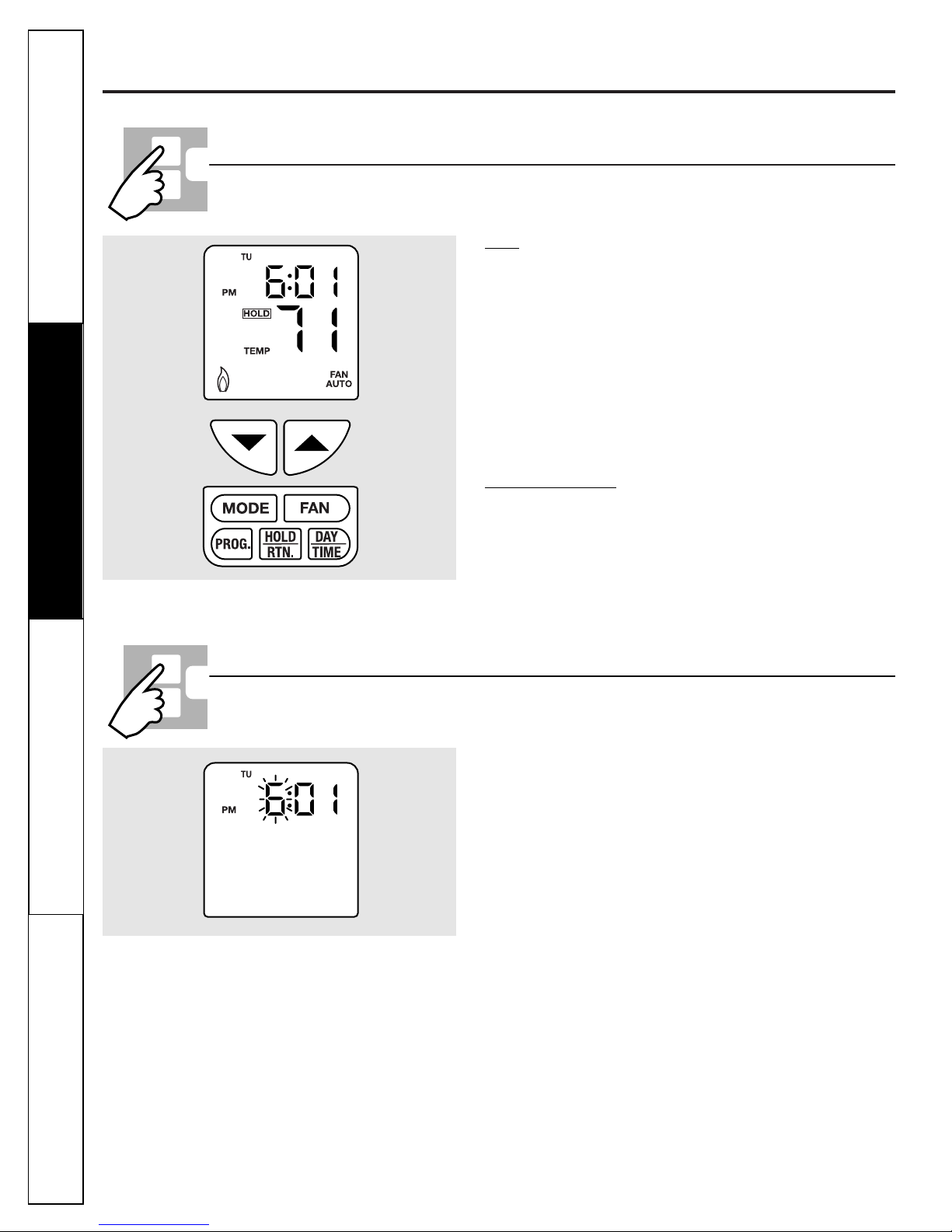

Day/Time Setting Mode

■ In

NORMAL

mode, press

DAY/TIME

to enter the

DAY/TIME

SETTING

mode. The LCD will be cleared except for the time and

day of week indicator.

■ When the hour is flashing, press ▲(increase setting) or ▼

(decrease setting) to adjust hour.

■ Press

DAY/TIME

again. Minutes will be flashing. Press ▲or ▼to

adjust minutes.

■ Press

DAY/TIME

again. The day will be flashing. Press ▲or ▼to

adjust day.

■ Press

DAY/TIME

again. The thermostat will return to

NORMAL

mode.

■ When adjusting the day or time, press and hold ▲or ▼for

2 seconds for fast advance. During fast advance, the data will

stop flashing.

■ At any time you may press the

HOLD/RETURN

button or wait 5

seconds to return to

NORMAL

mode.

■ The clock seconds will be reset to zero whenever time is

changed. The clock seconds will not be affected if only the

day is changed.

■ The time display will be frozen in

DAY/TIME

setting mode.

However, the internal clock is still running. If nothing is

changed, then the frozen time will be replaced by the internal

clock when you return back to the

NORMAL

mode.

Figure 11: Changing Time and Date Display

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

www.GEAppliances.com

Programming Mode

The RAK163P1 and RAK147P1 are capable of

programming in either 5+2 or 7 day formats. The

table below is the default program for both the

heating and cooling programs. If nothing is

changed, these will be the times and temperatures

that are active.

Program MORN DAY EVE NITE

Program

HEAT COOL HEAT COOL HEAT COOL HEAT COOL

Setpoint

68°F 78°F 65°F 80°F 68°F 78°F 66°F 78°F

(TIME) (TIME) (TIME) (TIME)

Monday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Tuesday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Wednesday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Thursday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Friday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Saturday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Sunday

6 a.m. 8 a.m. 5 p.m. 11 p.m.

Default Program

To review or change the program, press

PROGRAM

NORMAL

mode. The time period

MORNING

of the Weekday Program will be

displayed first. The system icon in Figure 12 indicates it is in the

heating program. If the cooling program is needed, press the

MODE

button as shown in Figure 10 to change to the

SNOWFLAKE

icon and the cooling program. All other segments are cleared.

Figure 12: Program Setting Display

Troubleshooting Tips

Operating Instructions

Safety Instructions Installation Instructions

Using your thermostat.

Press

PROGRAM

from the

NORMAL

mode. The program time-

hour will be flashing and the

MORNING

time period will be

active. Press ▲or ▼to adjust time. To change programming

days press

DAY/TIME

button. The order of the day

programming is:

■ Weekday Program (i.e. Monday through Friday)

■ Weekend Program (i.e. Saturday and Sunday)

■ 7 Day Program (i.e. Monday through Sunday on individual

days)

Programming Steps

Figure 13: Program Time-Hour Flashing

Press

PROGRAM

again. The program time-minute will be

flashing. Press ▲or ▼to adjust. Program time-minute

advances 10 minutes per step.

Figure 14: Program Time-Minute Flashing

Press

PROGRAM

again. The program temperature will be

flashing. Press ▲or ▼to adjust.

Figure 15: Program Temperature Flashing

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

www.GEAppliances.com

Press

PROGRAM

again. The next program time period will be

displayed. The order of the time periods within one day are:

1. Morning

2. Day

3. Evening

4. Night (Nite)

Figure 16: Next Program Time Period Displayed

Additional Instructions

■ After programming all four time periods for the weekday

program, the weekend program will be displayed. Repeat

steps 1–5 for the weekend program.

■ After programming all four time periods for the weekend

program, the individual day program will be displayed. If

the programming is complete, press the

HOLD/RETURN

button to return to the

NORMAL

display and to activate the

program. If any changes or additional programming

are required, follow steps 1–5 for the individual 7-day

programming.

■ When adjusting the program time or temperature, press

and hold ▲or ▼for 2 seconds for fast advance. During fast

advance, the data will stop flashing.

■ To return to

NORMAL

mode at any time, press the

HOLD/RETURN

button or wait 5 seconds with no action and

the display will return to

NORMAL

mode.

■ The setpoint temperature cannot be set beyond the

thermostat’s control range of 60°F to 90°F (15°C to 32°C).

■ Switching between the heating and cooling programs is

done by pressing the

MODE

button. The

FLAME

icon will

be displayed when heating is selected, and the

SNOWFLAKE

icon will be displayed when cooling is selected. When

AUTO

is selected and the

AUTO

icon is displayed, the unit will

use both of the heating and cooling programs in the

auto-changeover mode of operation.

■ There is no ‘OFF Program’ that can be selected. The

program will always be active unless the thermostat is

turned off.

Fan Control

■ If

FAN AUTO

is selected, the fan will cycle On/Off with the system. If

FAN ON

is selected, the Fan will be

on all the time.

Using your thermostat.

LCD Backlight

■ LCD backlight is activated when any key is pressed. Any

subsequent key press or switch change will extend the period.

When there is no key pressed for five seconds, the backlight

will automatically turn off.

■ The LCD backlight will not operate when there is no external

24 VAC or 24 VDC power supplied.

Figure 18: Blank Display

Verification

To verify that the thermostat is operating correctly:

Press the

MODE

button to select the heat or cool system.

Press the ▲or ▼to adjust the setpoint temperature above

or below the current ambient temperature. The thermostat

should call for either heating or cooling and the fan should

turn on.

Press the

FAN

button to change from

FAN AUTO

FAN ON

The fan should come on automatically.

If the thermostat does not operate correctly, proceed to the

Troubleshooting

section.

Auto Changeover

The auto changeover feature is a special operation of the thermostat that does not require the user to

change the system mode from heating to cooling. Once the programs are set and the thermostat is put in

the

AUTO

mode, the switching from heating to cooling is accomplished completely by the thermostat.

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GE Thermostat

GE RAK348R1 Manuel utilisateur

GE RAK348T1 Manuel utilisateur

GE RAK148P2 Instructions originales

GE RARWT Series Instructions originales

GE PROGRAMMABLE THERMOSTAT Manuel utilisateur

GE RAK148H2 Instructions originales

GE IS-ZW-TSTAT-300 Manuel utilisateur

GE RAK148D1 Instructions originales

GE RAK148F2 Mode d'emploi

GE RAK148P1 Instructions originales

GE 60-909-95 Manuel utilisateur

GE RAK148D1 Instructions originales

GE RARWT1W Instructions originales

GE CC-SCSTAT Manuel utilisateur

GE RAK348T1 Manuel utilisateur

GE RAK190V Manuel utilisateur

GE RAK150VF2 Manuel utilisateur

GE RARWT Series Instructions originales

GE PROGRAMMABLE THERMOSTAT Manuel utilisateur

GE RAK148D2 Instructions originales

GE RAL163P1 Instructions originales

GE RARWT Series Instructions originales

GE RAK149P2 Instructions originales

GE RAK160W2 Instructions originales

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
