GE GE-DSH-82 Instructions de montage
1 of 13
© 2010 GE Security, Inc.
P/N 1069666 • REV 1.0 • ISS 22FEB10
GE
Security
GE-DSH-73/82 and 82-POE
Managed Switch Installation
Sheet
Package Contents
Thank you for purchasing the GE Security 7/8-Port Fast Ethernet + 2/3-Port
Gigabit TP/SFP Combo Managed Switch. The following Managed Switch model
numbers are covered in this sheet:
•GE-DSH-73
• GE-DSH-82
• GE-DSH-82-PoE
Open the box of the Managed Switch and carefully unpack it. The box should
contain the following items:
• The Managed Switch x1
• User's manual CD x1
• This Installation Sheet x1
• RJ-45to RS-232 cable x1
If any item is found missing or damaged, please contact your local reseller for
replacement.
System Requirements
Your switch is designed to operate with a variety of platforms, operating systems
firealarmresources.com
2 of 13 P/N 1069666 • REV 1.0 • ISS 22FEB10
and network cards. Actual performance will depend on a combination of these
components. Differences in performance can occur depending on the versions
and types of platforms, operating system and network cards used.
The minimum system requirements are:
• Clients running Windows 98/ME, NT4.0, 2000/XP, Vista, MAC OS9 or later,
Linux, UNIX or other platform compatible with TCP/IP protocols.
• Workstation installed with Ethernet NIC (Network interface Card)
• Serial Port connection (Terminal)
• Above PC with COM Port (DB-9)
• Ethernet Port connection
• Network cables - Use standard network (UTP) cables with RJ45
connectors.
• Above PC installed with WEB Browser and JAVA runtime environment
Plug-in
Note: We recommend using Windows XP or Windows 7 with Internet Explorer 6.0
or above for access to the switch management setup.
Wiring the Power Units
The 6-contact terminal block connector on the top panel of Managed Industrial
Switch is used for two DC redundant power inputs.
Note: This product is intended to be supplied by a UL Listed Direct Plug-In Power
Unit marked "Class 2" or "LPS" and output rated 48 VDC, 380 mA minimum.
Please follow the steps below to insert the power wire.
1. Insert the positive/negative DC power wires into the contacts 1 and 2 for
POWER 2, or 5 and 6 for POWER 1.
firealarmresources.com
P/N 1069666 • REV 1.0 • ISS 22FEB10 3 of 13
Figure 1: Terminal block connectors
2. Tighten the wire-clamp screws for preventing the wires from loosening.
Figure 2: Terminal block pinouts
1 2 3 4 5 6
Power 2 Power 2
- + - +
Note: The wire gauge for the terminal block should be in the range between 12 ~
24 AWG.
For the GE-DSH-82-PoE, A 48VDC, 3A power input is required for full PoE load on
the PoE. Please connect an external power source to the terminal block that can
supply steady power at 48VDC.
firealarmresources.com
4 of 13 P/N 1069666 • REV 1.0 • ISS 22FEB10
Terminal Setup
Three are ways to access and setup your switch. They are:
• RS-232 console
• Telnet
• Web Browser
RS-232 console
To configure the system, connect a serial cable to a COM port on a PC or
notebook computer and to the serial (console) port of the GE-DSH-82 Managed
Switch. The console port of the Managed Switch is DCE already, so that you can
connect the console port directly through PC without the need of Null Modem.

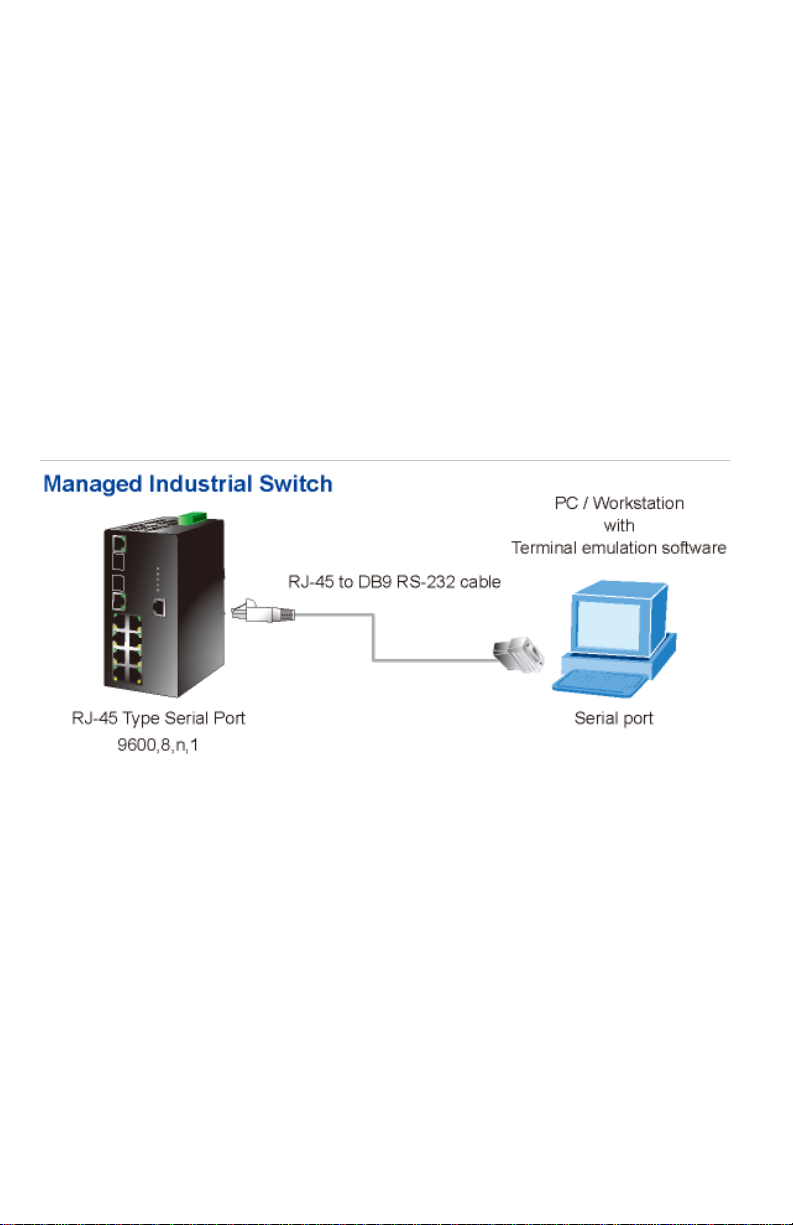

Figure 3: Terminal setup diagram
A terminal program is required to make the software connection to the GE-DSH-
73, GE-DSH-82 and the GE-DSH-82-PoE Managed Switch. Window’s Hyper
Terminal program is a good choice. Hyper Terminal program can be accessed
from the Start menu.
1. Click START, then Programs/ Accessories and then Hyper Terminal.
2. When the following screen appears, make sure that the COM port should be
configured as:
• Baud : 9600
• Parity : None
• Data bits : 8
• Stop bits : 1
• Flow Control: None
firealarmresources.com
P/N 1069666 • REV 1.0 • ISS 22FEB10 5 of 13

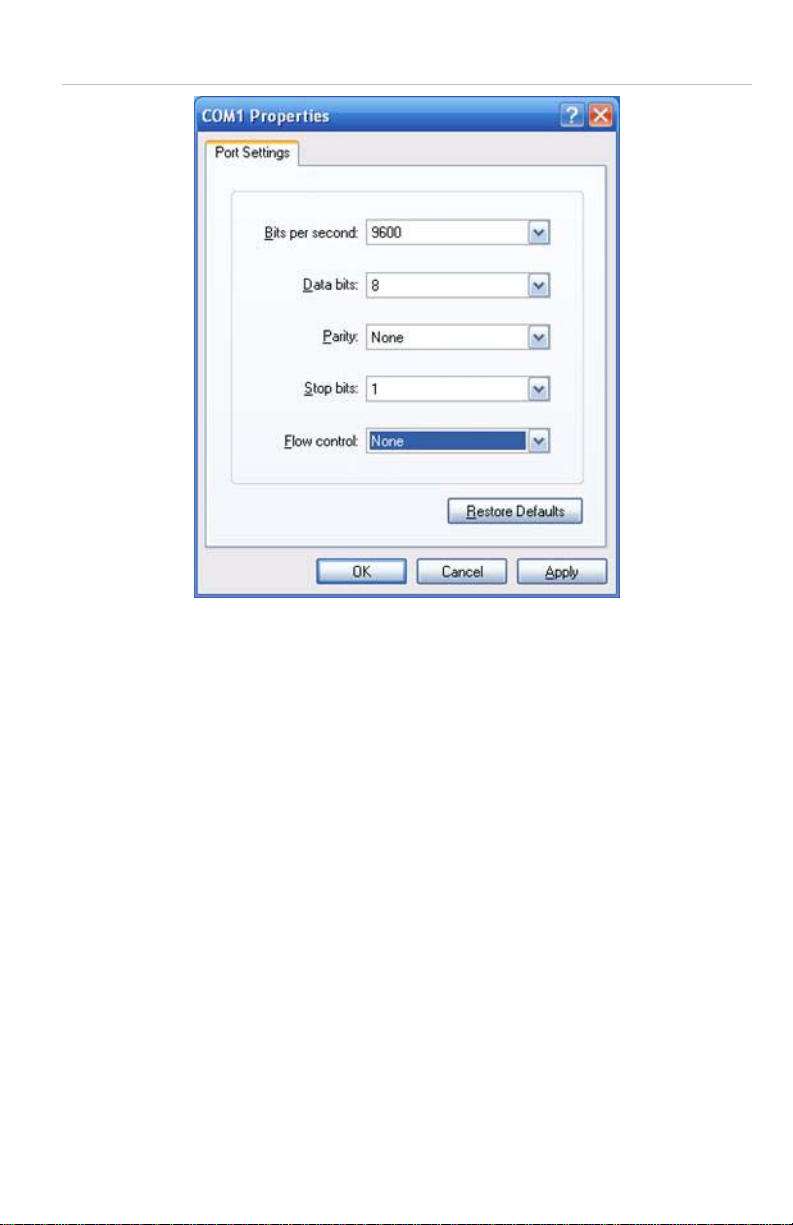

Figure 4: COM1 properties window
Logon to the Console
Once the terminal has connected to the device, power on the GE-DSH-73, GE-
DSH-82 and the GE-DSH-82-PoE Managed Switch, the terminal will display that it
is running testing procedures.
Then, the following message asks for the login user name and password. The
factory default password for the login screen is:
• Username: admin
• Password: admin
firealarmresources.com
6 of 13 P/N 1069666 • REV 1.0 • ISS 22FEB10
Figure 5: GE-DSH-73, GE-DSH-82 and the GE-DSH-82-PoE Login screen
Note: For security reasons, please change and memorize the new password after
this first setup. Passwords must be entered in lowercase letters in the console
interface.
Configure IP Address
The Managed Industrial Switch is shipped with default IP address as following.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Managed
Industrial Switch, please use the procedures as follows:
Show the current IP address
1. On the "Switch>" prompt, enter "enable" to enter Privileged EXEC mode.
2. On the "Switch #" prompt, enter "show ip".
3. The screen displays the current IP address, Subnet Mask and Gateway. As
show in Figure 6.
firealarmresources.com
P/N 1069666 • REV 1.0 • ISS 22FEB10 7 of 13
Figure 6: IP information screen
Configure IP address
1. On the "Switch# " prompt, type "configure" to enter the configuration mode.
2. On the "Switch(config)# " prompt, enter the following command and press
<Enter>. As show in Figure 7.
Switch(config)# ip address 192.168.1.100 255.255.255.0 192.168.1.1
The previous command would apply the follow settings for the Managed
Industrial Switch.
• IP: 192.168.1.100
• Subnet Mask: 255.255.255.0
• Gateway: 192.168.1.1
firealarmresources.com
8 of 13 P/N 1069666 • REV 1.0 • ISS 22FEB10

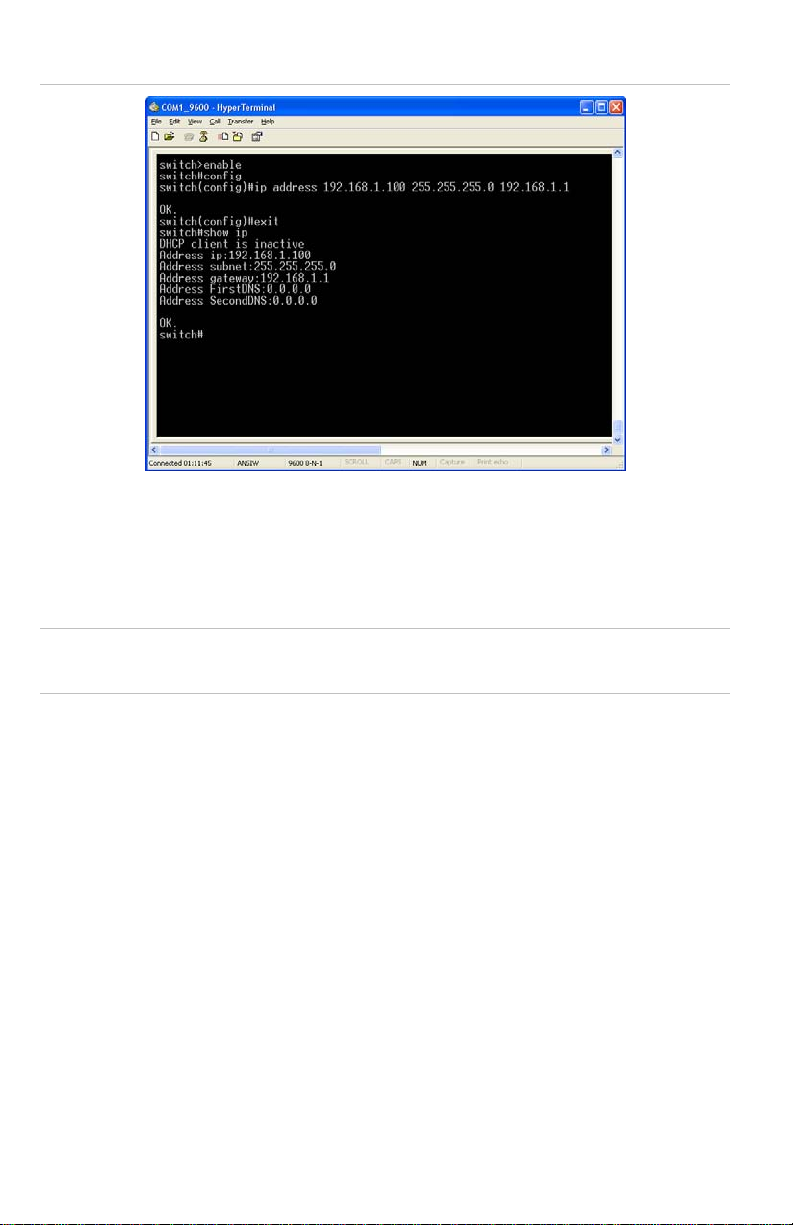

Figure 7: Set IP address screen
3. Repeat Step 2 to check if the IP address is changed.
If the IP is successfully configured, the Managed Industrial Switch will apply the
new IP address setting immediately. You can access the Web interface of
Managed Industrial Switch through the new IP address.
Note: If you are not familiar with console command or the related parameter,
enter "?" anytime in console to get the help description.
Telnet Setup
1. Connect an RJ-45 cable from the PC to a Switch port on the Managed
Switch.
firealarmresources.com
31fo901BEF22SSI•0.1VER•6669601N/P
Figure 8: RJ-45 connection diagram
2. Enable the Hyper Terminal program. A terminal program is required to
make the software connection to the Managed Switch. Windows' Hyper
Terminal program is a good choice. Hyper Terminal can be accessed
from the Start menu. Click START, then Programs,Accessories and then
Hyper Terminal.
3. The following screen will appear. Input a new connection name. You
should use something like the model name of your switch.
Figure 9: New Connection dialog window
4. Change the Connect using drop-down menu to TCP/IP (Winsock) then input
Host address. The Managed Switches default IP address is 192.168.0.100 and
the default telnet port number is 23, then press the OK button.
firealarmresources.com
10 of 13 P/N 1069666 • REV 1.0 • ISS 22FEB10
Figure 10: The Connect to dialog window
Log on to the Console
Make sure the device finished booting. Once the telnet has connected to the
device, the hyper terminal will display the login request.
Then, the following message asks the login user name and password. The factory
default password as following and the login screen as following appear.
User name: admin
Password: admin
firealarmresources.com
